Budget Lift System w/Shock
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | Fabtech |
|---|---|
| Part number | K2353 |
| Lift/Drop Height | 2.5 IN |
| Country of Origin | US |
| Warranty | Lifetime |
| Weight (lbs) | 73.6 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Value Priced System With Fabtech Quality
- Increased Ground Clearance
- Extended Range Upper Ball Joints Provide A Smooth Quiet Ride
- In-field testing and multiple vehicle fit checks ensure products will fit properly during installation and provide years of trouble free service with superior vehicle ride qualities.
Fitment
| Years | Vehicle |
|---|---|
| 2017-2026 | Ford F-250 Super Duty 4WD |
| 2017-2026 | Ford F-350 Super Duty 4WD |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
2017-26 Ford F250/F350 4WD
This Super Duty lift kit is perfect for the enthusiast looking to run oversized tires and wants additional wheel travel for offroad use. With the large Super Duty wheelwell openings and this quality 2.5″ lift kit, you can run 35″ tall tires with ease.
Fabtech’s coil springs retain the factory load carrying capacity while providing increased suspension travel. The coil springs and associated bracketry allow for an additional inch of compression travel over stock without binding the suspension. This extra travel helps when offroading in rugged terrain.
Sway bar drop brackets are included to reposition the front bar so that the link ends do not go over center at full droop and cause bind. The brake lines are relocated down on the frame with extension brackets to eliminate the possibility of overstretching the lines throughout the new travel range. Fabtech provides extension brackets rather than longer brake lines to keep the factory brake system sealed for fast and trouble-free installation.
This suspension kit utilizes the factory bump stops without extensions. This allows for more travel with the Fabtech coil springs and components.
Typically, once a Super Duty is lifted the front axle is pushed to one side due to the length of the track bar and the location. To address this issue Fabtech provides a heavy-duty 1/4″ thick steel Track Bar mount. It repositions the track bar and front axle under the vehicle to the factory specifications. This provides proper tracking of the front and rear axle for excellent highway manners.
This Super Duty lift kit retains the factory shocks with heavy duty shock extension brackets for a stock like ride.
With the installation of this 2.5″ lift the vehicle‚ the stance front to rear will be nearly flat compared to the factory nose-down appearance. For owners that want to retain more of the factory nose-down appearance, Fabtech offers an optional 4″ rear block kit (FTS22214). The 4″ blocks replace the factory 2.5″ blocks and will provide an additional 1.5″ of lift over stock.
Fabtech has thoroughly cycled this suspension and checked all the associated pivot points and joints for a bind free, reliable operation. This is a quality suspension for your Super Duty that you will come to appreciate both on and offroad.

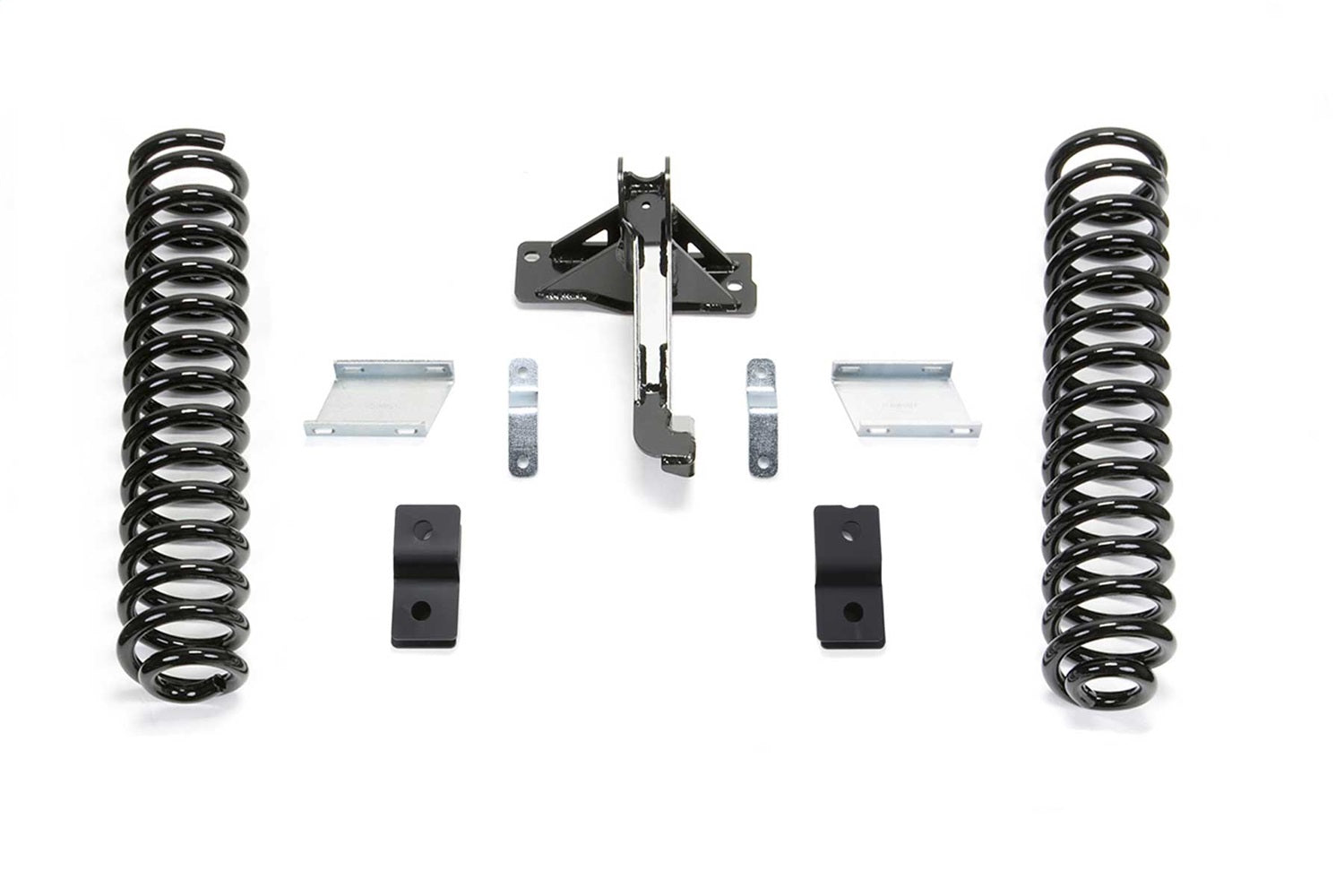

Features
- Front Coil Springs
- Shock Extension Brackets
- Trac Bar Relocation Bracket
- Sway Bar Drop Brackets
- Brakeline Extension Brackets
Part Numbers
| Oty | Part # | Description |
|---|---|---|
| 1 | FTS22315 | Component Box |
| 2 | FTS22319 | Front Shock Extension Brackets |
– California Prop 65 Warning
-
FOOTNOTES
3. Non dually models only.
42. Will not fit gas motors.
257. Does not fit vehicles equipped with Ford onboard scale system.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
