Basic Lift System w/Shocks
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | Fabtech |
|---|---|
| Part number | K2258 |
| Lift/Drop Height | 4 IN |
| Country of Origin | US |
| Warranty | Lifetime |
| Weight (lbs) | 226 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Everything You Will Need To Lift Your Vehicle
- Utilizes The Stock Radius Arm
- Designed For The Budget Minded Enthusiast
- In-field testing and multiple vehicle fit checks ensure products will fit properly during installation and provide years of trouble free service with superior vehicle ride qualities.
Fitment
| Years | Vehicle |
|---|---|
| 2015-2020 | Ford F-150 2WD |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
2015-20 Ford F150 2WD
This system feature Fabtech’s proven IFS technology with extended length ductile iron steering knuckles for proper Ford electronic stability control functionality. Heavy duty 1/4" thick steel lower control arm crossmembers provide superior ground clearance for adventurous offroad trails. Rear lift is accomplished with a 2.25" lift block and extended length u-bolts.
Rear shock options include Fabtech’s Performance twin tube shocks.
This high quality system does not require drilling or cutting for installation and comes Fabtech’s 5/60 Powertrain warranty.
Features
- Heavy Duty 1/4" Thick, High Arched Crossmember
- Ductile Iron Steering Knuckles
- Rear Block & U-bolt Kit
CROSSMEMBERS
1/4" thick steel lower control arm crossmembers are arched for maximum ground clearance. Four adjustable alignment cams provide a wide range of adjustment. The fully welded box design of these crossmembers provides additional strength to the front suspension.
STEERING KNUCKLES
Extended length ductile iron steering knuckles retain near stock track width keeping the tires under the fenders. These steering knuckles are designed to work in conjunction with the Ford ESC for proper functionality at all speeds.
BRAKE LINE BRACKETS
Re-positions the factory Ford brake lines down on the frame for the new travel range without having to open the brake system. Keeps factory fluid system intact.
SWAY BAR BRACKETS
1/4" thick steel drop brackets re-position the front sway bar for the increased ride height. This allows the sway bar link ends to fully cycle without binding throughout the extended travel range.
REAR LIFT BLOCKS
2.25" Tall rear lift blocks replace the factory blocks without changing the ride quality or load carrying capacity.
REAR U-BOLTS
U-Bolts that retain the entire rear differential to the vehicle. A critical part that demands the best quality for your vehicle.
PERFORMANCE REAR SHOCKS
Extended length twin tube shocks provide a good highway ride with the ability to tackle offroad.

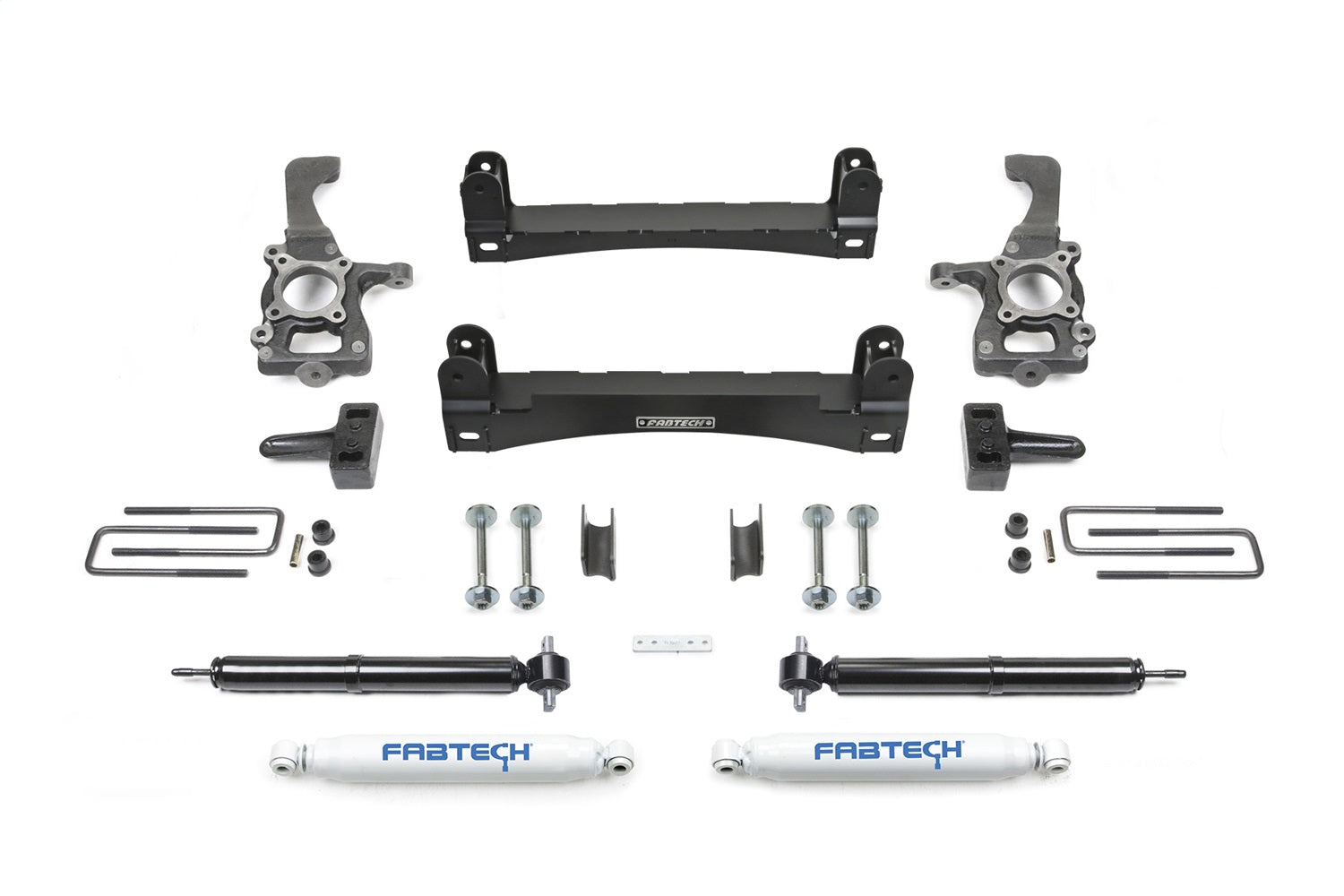

Part Numbers
| Oty | Part # | Description |
|---|---|---|
| 1 | FTS22258 | Component Box 1 |
| 1 | FTS22259 | Component Box 2 |
| 2 | FTS7266 | Rear Performance Shocks |
– California Prop 65 Warning
-
FOOTNOTES
14. Can not use OEM wheel and tire.
20. Does not fit Standard Cab.
123. Will not fit Raptor models.
