Fabtech K2245DL Uniball Control Arm Lift System
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | Fabtech |
|---|---|
| Part number | K2245DL |
| Lift/Drop Height | 2 IN |
| Country of Origin | US |
| Warranty | Lifetime |
| Weight (lbs) | 98 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Upper Control Arm Kit
- Custom Engineered For High Quality Ride
- Regulates Wheel Motion In Relation To Body
- In-field testing and multiple vehicle fit checks ensure products will fit properly during installation and provide years of trouble free service with superior vehicle ride qualities.
Fitment
| Years | Vehicle |
|---|---|
| 2015-2020 | Ford F-150 4WD |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
2015-20 Ford F150 4WD

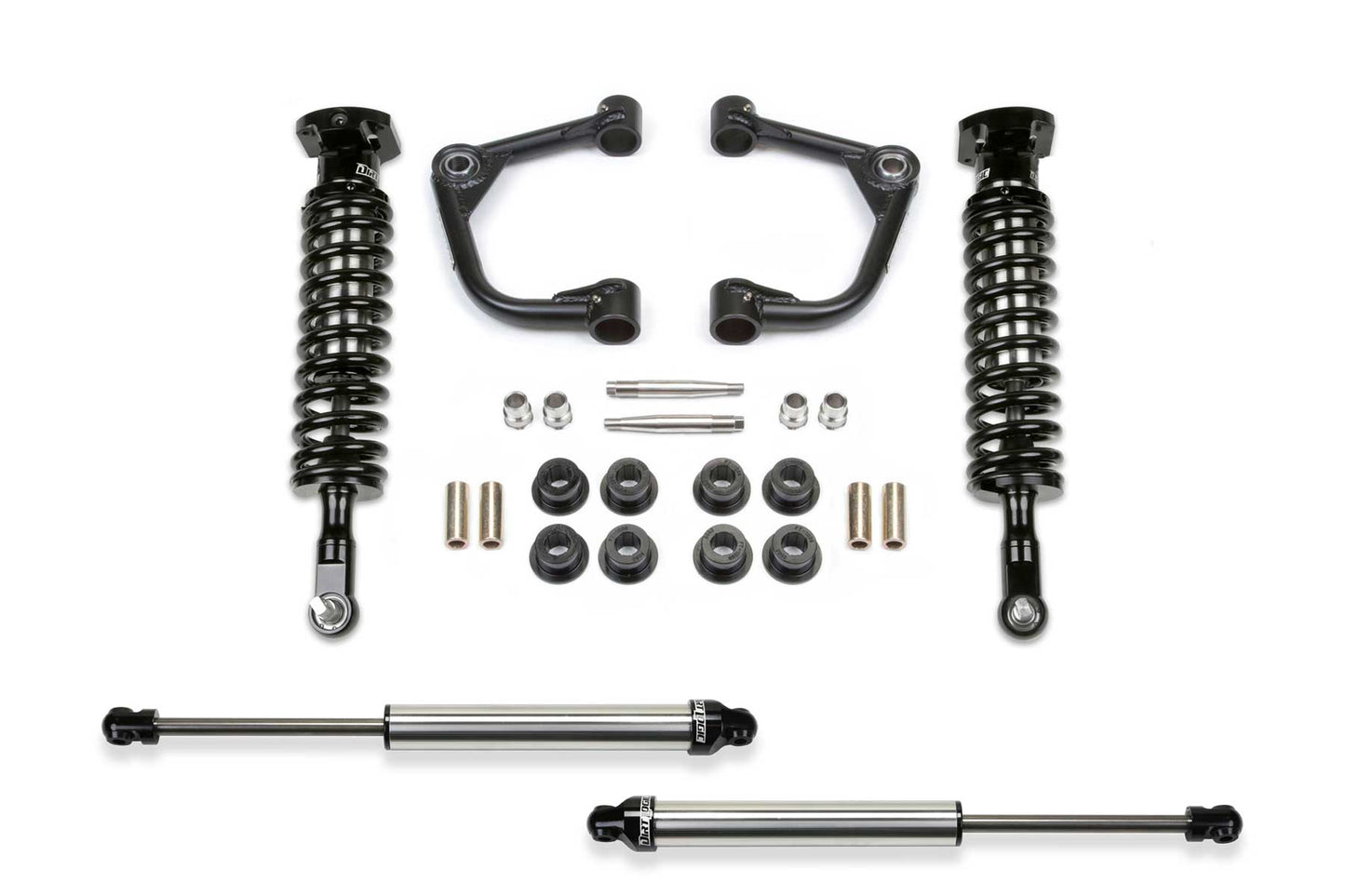

Obtain increased wheel travel with a mild lift height with this heavy duty Upper Control Arm systems. The tubular Upper Control Arms feature 1.25″ OD, .120″ wall thick chromoly tube construction with 1″ diameter Stainless Steel Uniballs that attach to the factory spindle without drilling.
The replacement UCA’s have been designed to work in conjunction with Fabtech’s Dirt Logic 2.5 Coilover shocks providing increased wheel travel for a complete front suspension system upgrade. The vehicle’s offroad suspension performance will be greatly increased due to the extensive ride tuning of the Dirt Logic 2.5 Coilovers and rear Dirt Logic 2.25’s.
Features
- Built with same materials as found on Trophy Trucks
- .120″ Wall 4130 Chromoly Tubing. 1.50″ OD
- .250″ wall DOM Bushing Barrels
- PTFE lined 1″ ID Stainless Steel American Uniball
- 17-4 Stainless Misalignments
- Heat Treated 17-4 Stainless Steel Tapered Uniball Pins
Part Numbers
| Oty | Part # | Description |
|---|---|---|
| 1 | FTS22182 | Uniball Upper Control Arms |
| 1 | FTS22252 | Front Dirt Logic 2.5 Coilovers |
| 2 | FTS811332 | Rear Dirt Logic 2.25 Shocks |
– California Prop 65 Warning
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
