TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | Fabtech |
|---|---|
| Part number | K2183 |
| Lift/Drop Height | 4 IN |
| Country of Origin | US |
| Warranty | Lifetime |
| Weight (lbs) | 236 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Everything You Will Need To Lift Your Vehicle
- Utilizes The Stock Radius Arm
- Designed For The Budget Minded Enthusiast
- In-field testing and multiple vehicle fit checks ensure products will fit properly during installation and provide years of trouble free service with superior vehicle ride qualities.
Fitment
| Years | Vehicle |
|---|---|
| 2009-2013 | Ford F-150 4WD |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview

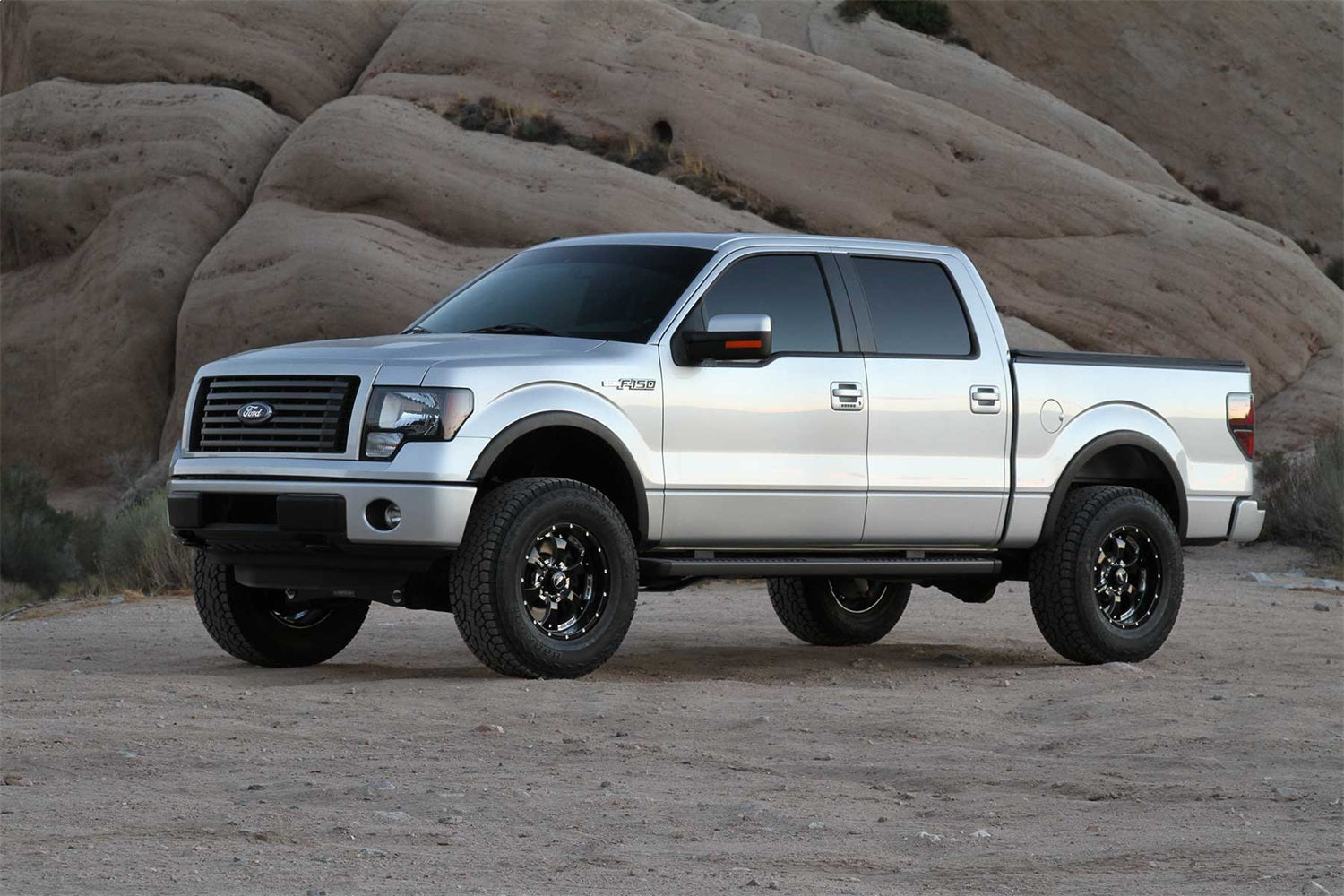

2009-13 Ford F150 4WD
Fabtech’s 4” F150 system utilizes their proven heavy duty construction and design features found in their 6” systems but with less lift and at a much lower price. This 4” System allows use of 35” tall tires and features high arched lower control arm crossmembers constructed of 1/4 “ thick steel for maximum strength. The Fabtech ductile iron steering knuckles retain the stock track width keeping tires under the fender for a clean appearance. Rear lift is accomplished with a block and u-bolt configuration.
The Basic System includes heavy duty front Coilover shocks for increased damping capacity while retaining the factory coil springs and Fabtech’s Performance rear shocks.
The 4” System allows use of 33” or 35” tires and is ESC (Electronic Stability Control) and Traction Control compliant.

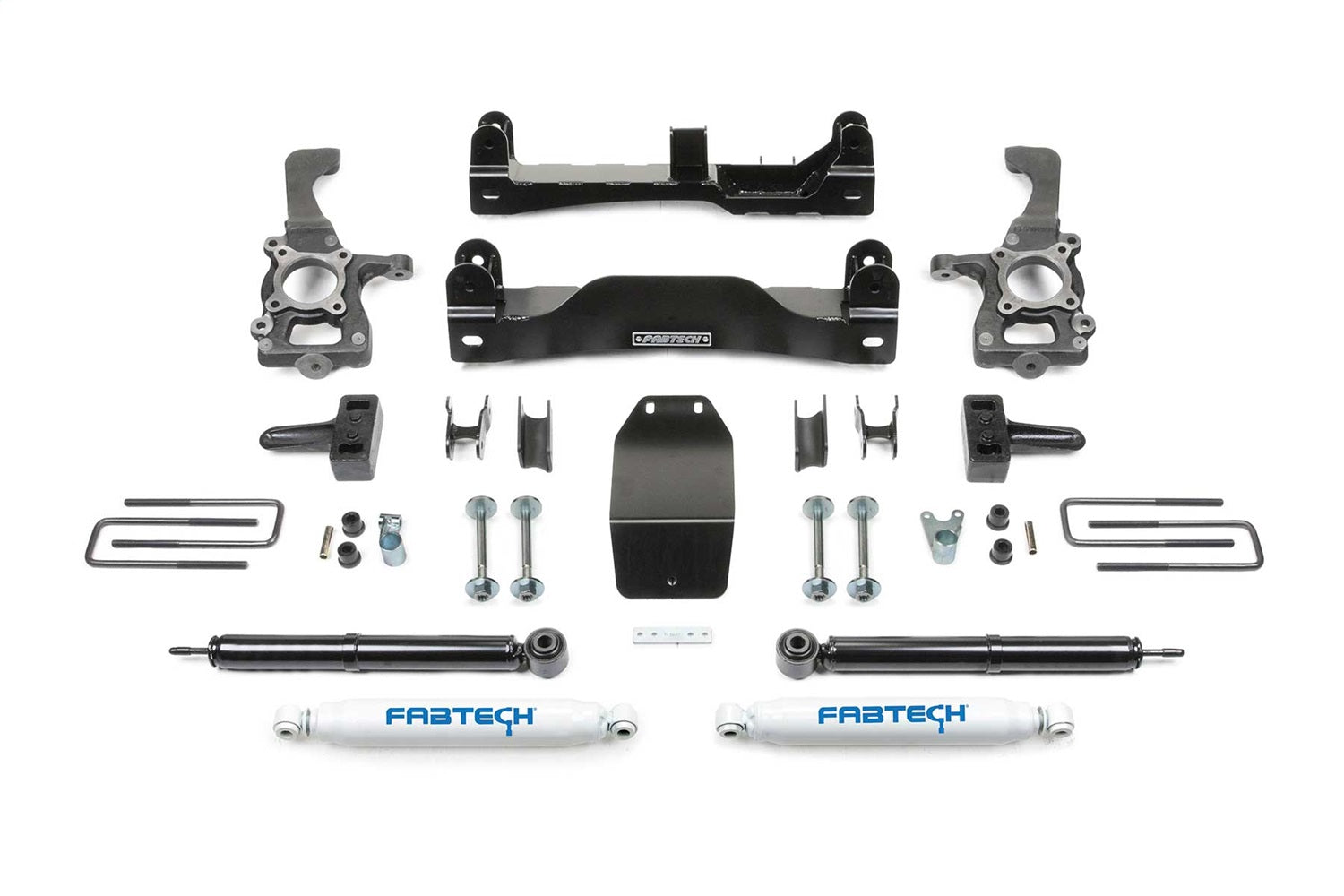

Features
- Heavy Duty 1/4″ Thick, High Arched Crossmember
- Ductile Iron Steering Knuckles
- Front Coilover Spacers
- Rear Block & U-bolt Kit
Part Numbers
| Oty | Part # | Description |
|---|---|---|
| 1 | FTS22155 | Component Box 1 |
| 1 | FTS22156 | Component Box 2 |
| 2 | FTS7266 | Rear Performance Shock |
– California Prop 65 Warning
-
FOOTNOTES
14. Cannot use OEM wheel and tire.
20. Does not fit Standard Cab.
123. Will not fit Raptor models.
124. Requires cutting of fenderwell sheetmetal for use with 35″ tires.
