Fabtech K2140DL Radius Arm Lift System
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | Fabtech |
|---|---|
| Part number | K2140DL |
| Lift/Drop Height | 8 IN |
| Country of Origin | US |
| Warranty | Lifetime |
| Weight (lbs) | 456.8 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Unsurpassed Strength And Performance
- Patent Pending Radius Arms
- Fully Tubular Structure
- Dimple Die Side Plates
- In-field testing and multiple vehicle fit checks ensure products will fit properly during installation and provide years of trouble free service with superior vehicle ride qualities.
- Adjustable Alignment Cam Allows Caster Adjustment
Fitment
| Years | Vehicle |
|---|---|
| 2011-2016 | Ford F-250 Super Duty 4WD |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
2011-16 Ford F250 4WD

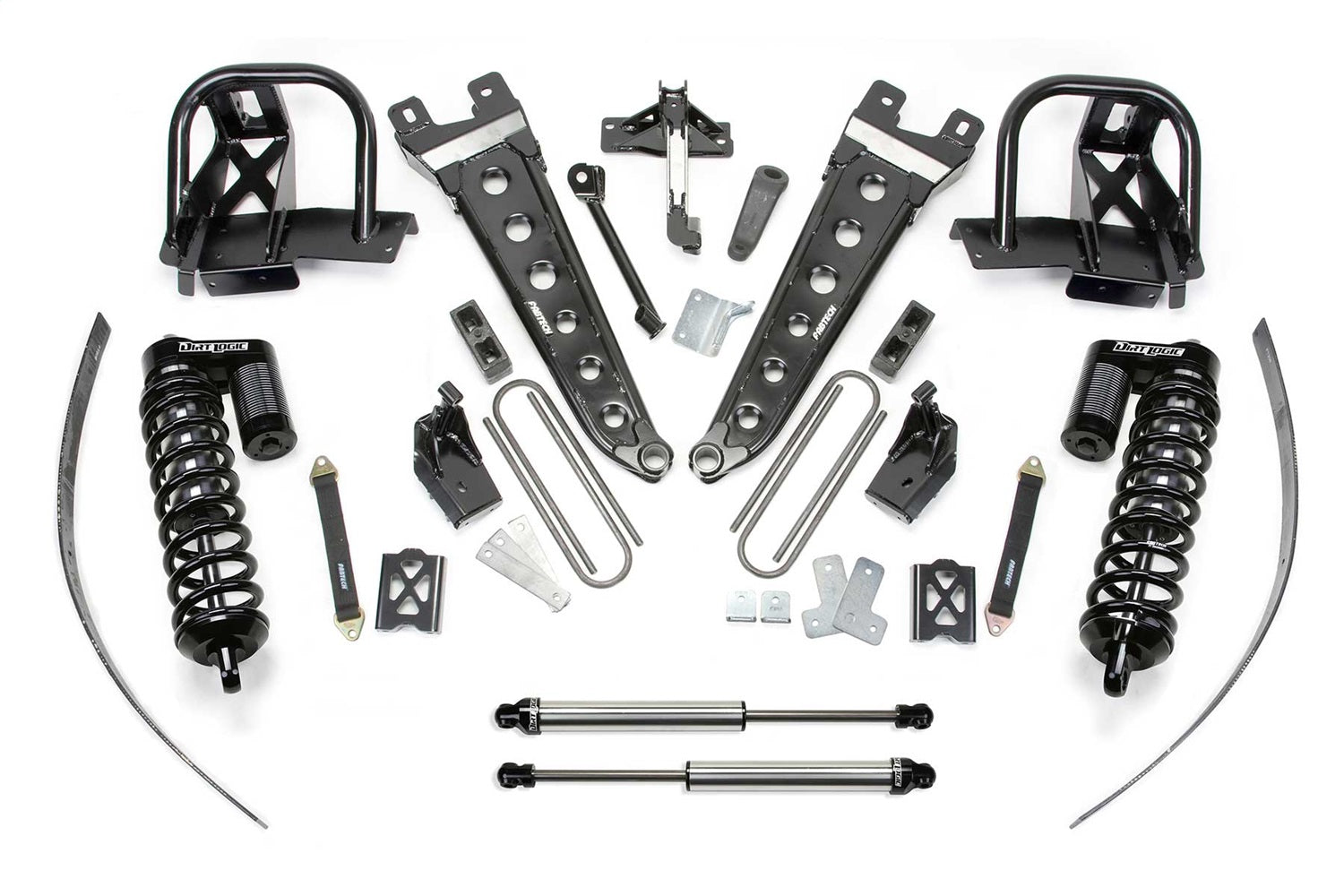

Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front lift includes Dirt Logic 4.0 Coilovers. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops and more. Rear lift is an add-a-leaf and a block & u-bolt kit.
Features
- Fabtech Replacement Radius Arms
- Front Dirt Logic 4.0 Coilovers
- Trac Bar Relocation Bracket
- Sway Bar Drop Brackets
- Pitman Arm
- Rear Add-a-leafs
- Rear Block & U-bolt Kit
Part Numbers
| Oty | Part # | Description |
|---|---|---|
| 1 | FTS22139 | Component Box 1 |
| 1 | FTS22143 | Component Box 2 |
| 2 | FTS835012 | Front Dirt Logic 4.0 Coilover |
| 1 | FTS22105 | Rear Block & Add-a-leaf Kit |
| 2 | FTS810052 | Rear Dirt Logic 2.25 Non Resi |
– California Prop 65 Warning
-
FOOTNOTES
27. Front drive shaft modification may be required to clear exhaust on gas motors.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
