4.0 Coilover Conversion System
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | Fabtech |
|---|---|
| Part number | K2136DL |
| Lift/Drop Height | 8 IN |
| Country of Origin | US |
| Warranty | Lifetime |
| Weight (lbs) | 245.8 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Increases Travel/Progressive Dampening Capacity
- Smoother Ride On And Off-Road
- Designed For Dirt Logic Coilover Shocks
- In-field testing and multiple vehicle fit checks ensure products will fit properly during installation and provide years of trouble free service with superior vehicle ride qualities.
Fitment
| Years | Vehicle |
|---|---|
| 2011-2016 | Ford F-250 Super Duty 4WD |
| 2011-2016 | Ford F-350 Super Duty 4WD |
| 2011-2016 | Ford F-450 Super Duty 4WD |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
2011-16 Ford F250/F350 4WD
2011-13 Ford F450 4WD [8 LUG]
For the ultimate Super Duty suspension upgrade, this Coilover conversion directly replaces the stock Coil Spring buckets with super stout gusseted 1 3/4” tubing for exceptional strength. This Coilover conversion system allows use of the Dirt Logic 4.0 Coilover Shocks. To complete this high end Coilover conversion, opt for our hydraulic bump stops. This Coilover Shock System is compatible with our Radius Arm and 4 Link systems.
Features

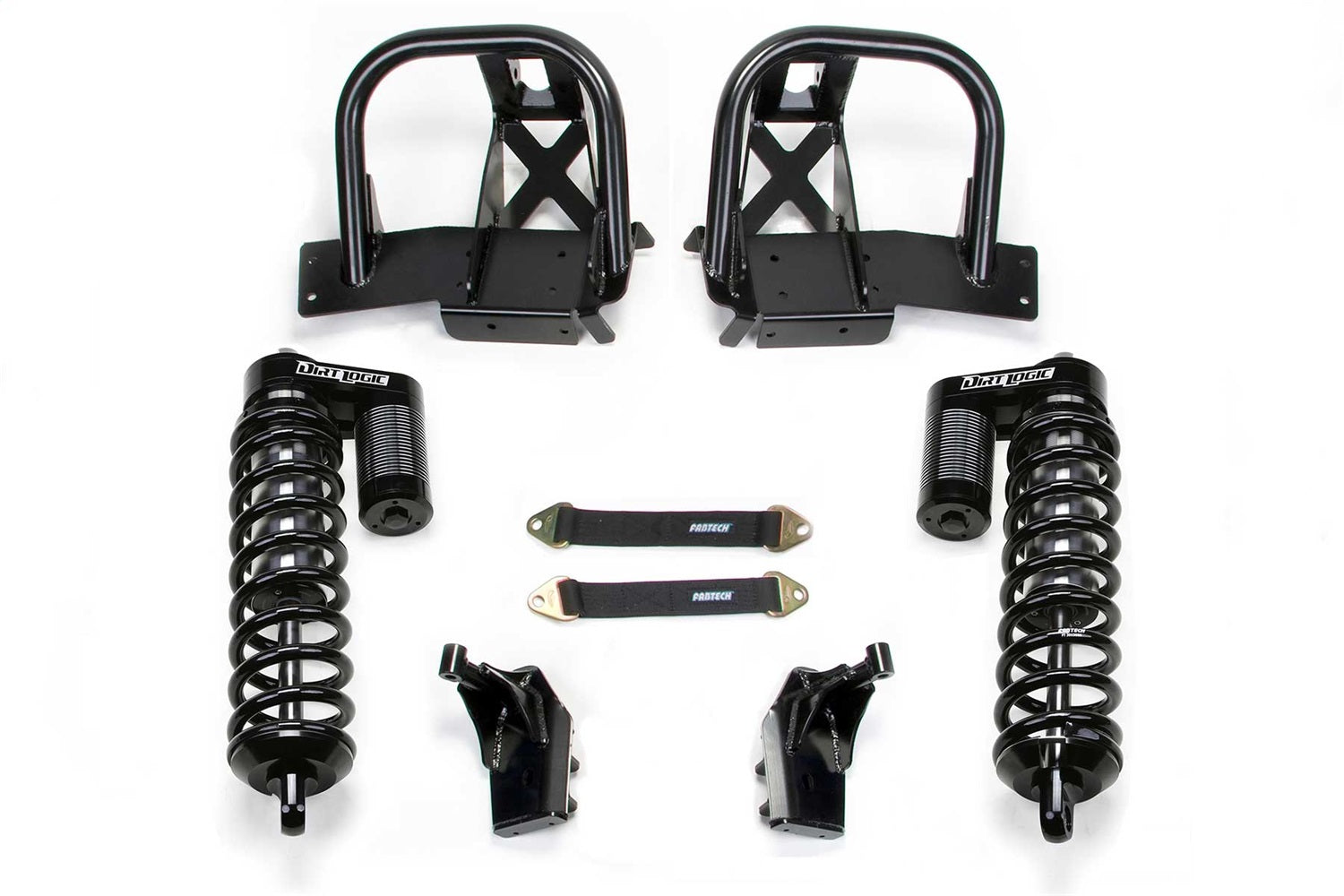

- Coilover Hoop Kit
- Front Dirt Logic 4.0 Coilovers
Part Numbers
| Oty | Part # | Description |
|---|---|---|
| 1 | FTS22143 | Component Box |
| 2 | FTS835012 | Front Dirt Logic 4.0 Coilover |
– California Prop 65 Warning
-
FOOTNOTES
41. Will not work with Leveling or Basic System.
