Fabtech K1157DL Uniball UCA Lift System w/Shocks
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | Fabtech |
|---|---|
| Part number | K1157DL |
| Lift/Drop Height | 0 |
| Country of Origin | US |
| Warranty | Lifetime |
| Weight (lbs) | 74 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Arms Eliminate Upper Ball Joint
- Arms Super Strong 1 in. ID Stainless American Uniball
- 17-4 Stainless Steel Heat Treated Uniball Pin
- Arms Are Direct Replacements For Factory Arms
- In-field testing and multiple vehicle fit checks ensure products will fit properly during installation and provide years of trouble free service with superior vehicle ride qualities.
- For Suspensions That Require Additional Strength/Alignability
Fitment
| Years | Vehicle |
|---|---|
| 2025-2026 | Chevrolet Silverado 2500 HD 4WD |
| 2025-2026 | GMC Sierra 2500 HD 4WD |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
2020-26 Chevy Silverado 2500HD | GMC Sierra 2500HD 2WD/4WD

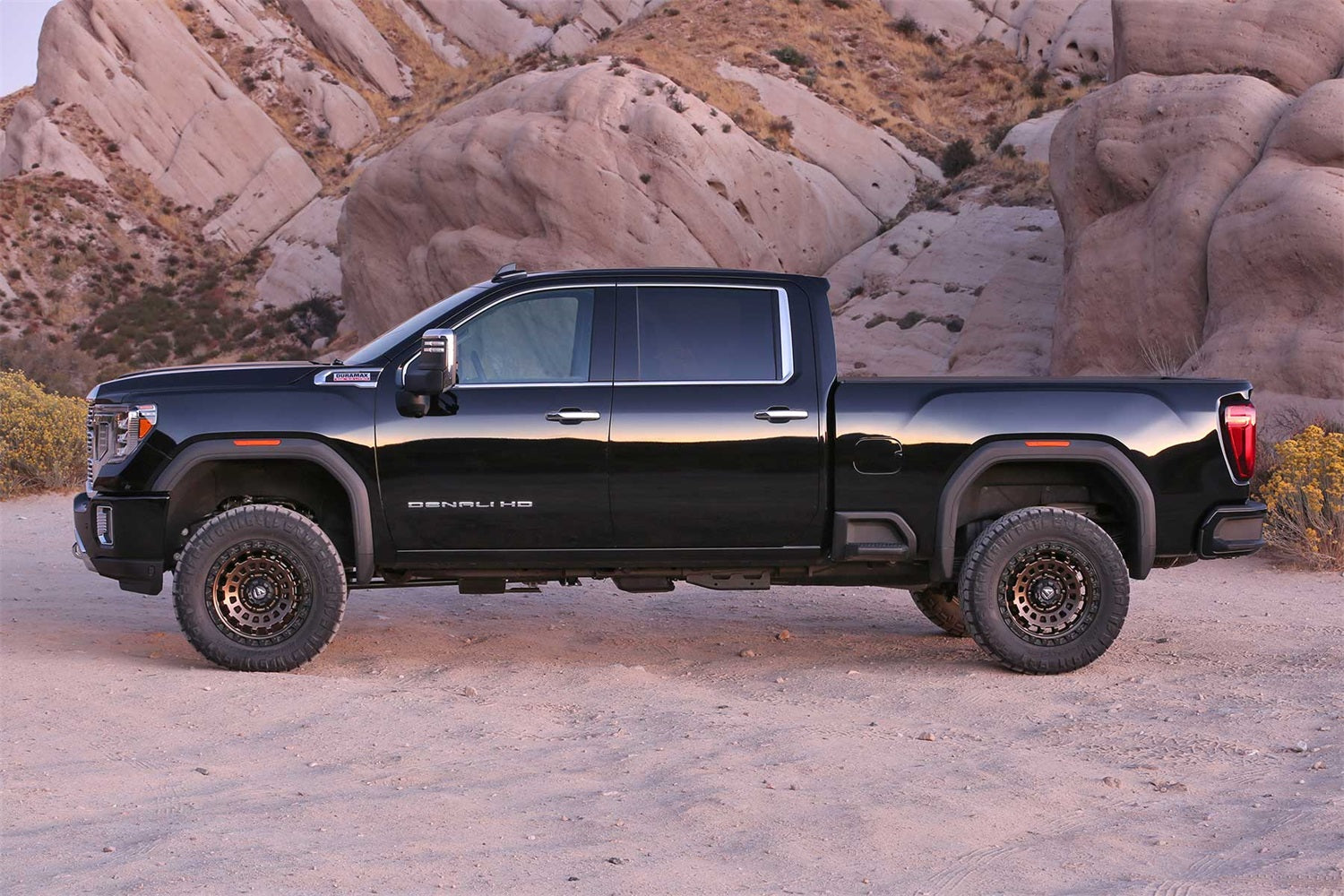

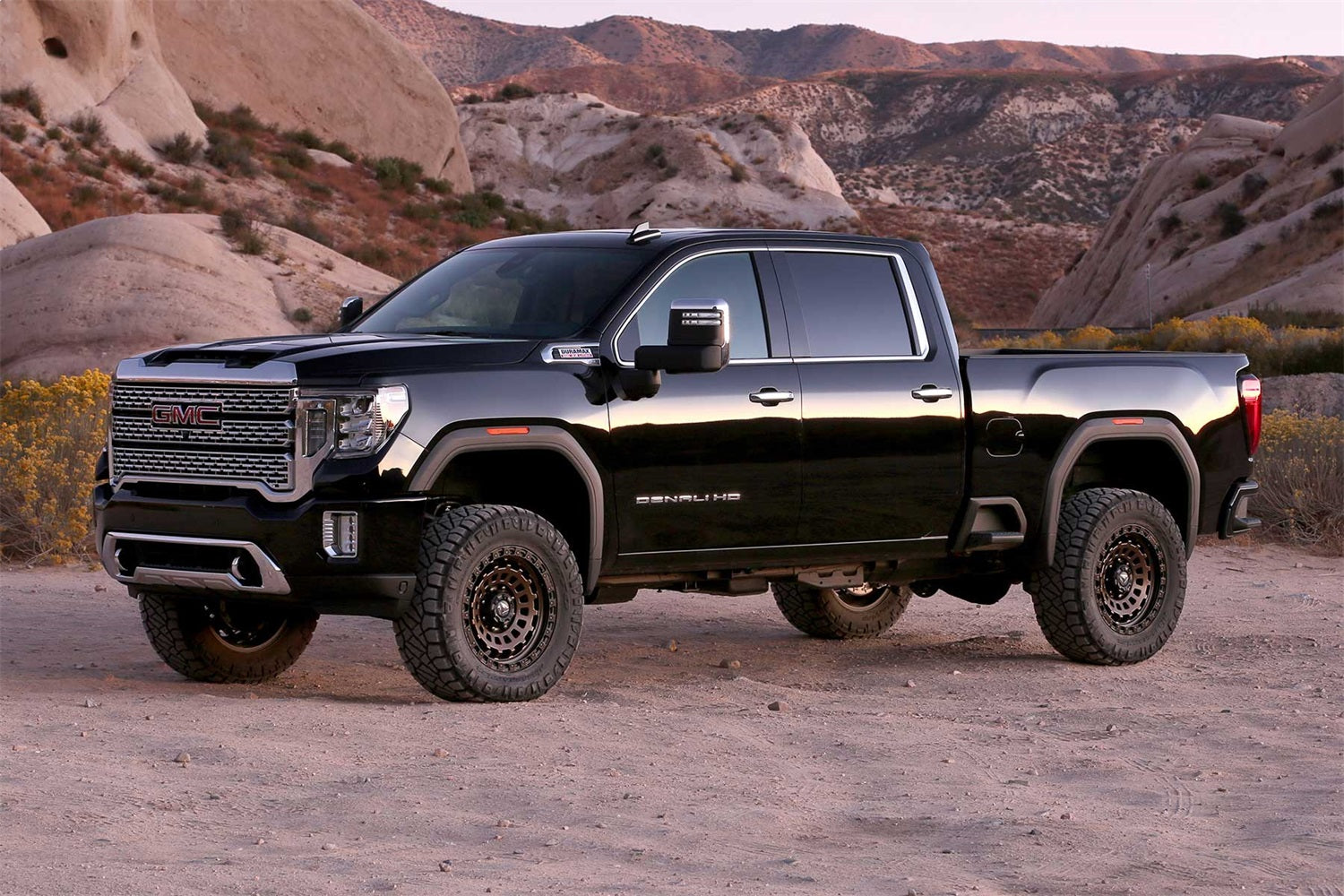

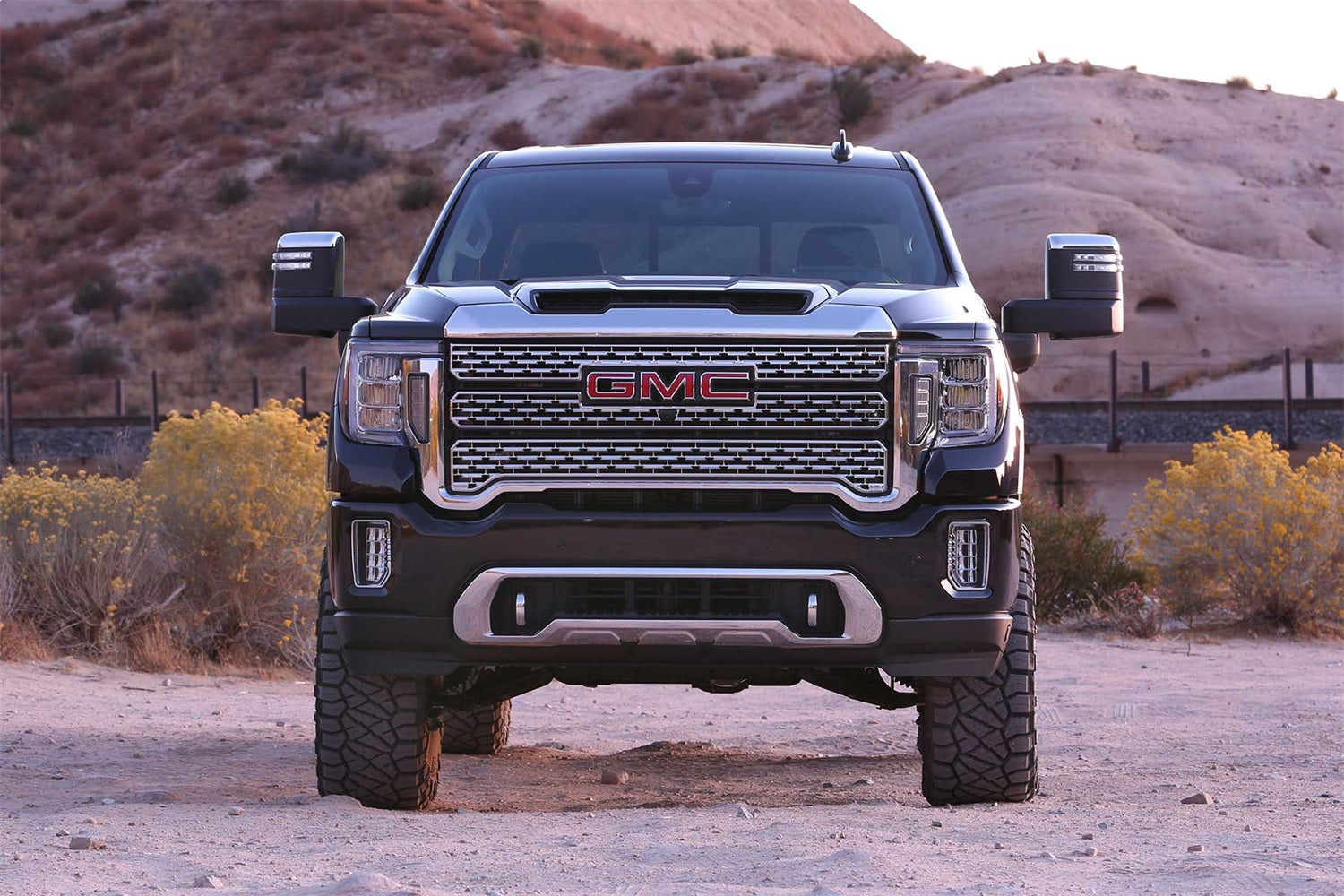

This high quality GM 2500HD lift kit offers an increased ride height for enthusiasts looking to run a 35″ tall tire with enhanced offroad capabilities. The stance of the vehicle will become more level front to rear for an aggressive look.
The factory GM upper control arms are replaced with Fabtech’s heavy duty ball joint tubular arms. They are constructed with 1.50″ OD DOM steel tubing and feature a high travel ball joint that is sizably larger than stock. This provides for increased strength both on and offroad. Fabtech sets the ball joint angle to allow for full travel without bind throughout the travel range.
Fabtech’s forged torsion bar keys replace the factory units and allow for additional ride height adjustment to work in conjunction with the new upper control arms.
Fabtech offers their top of the line Dirt Logic 2.25 shocks with this 2500HD lift kit. They are constructed with a stainless steel body and a NitroSteel® piston rod for maximum corrosion resistance and durability. These high quality Dirt Logic shocks will provide a superior ride quality both on and offroad with excellent damping for offroad use.
This 3.5″ HD lift kit comes with high quality components that add strength and reliability to the vehicle while giving it a commanding presence.
Features

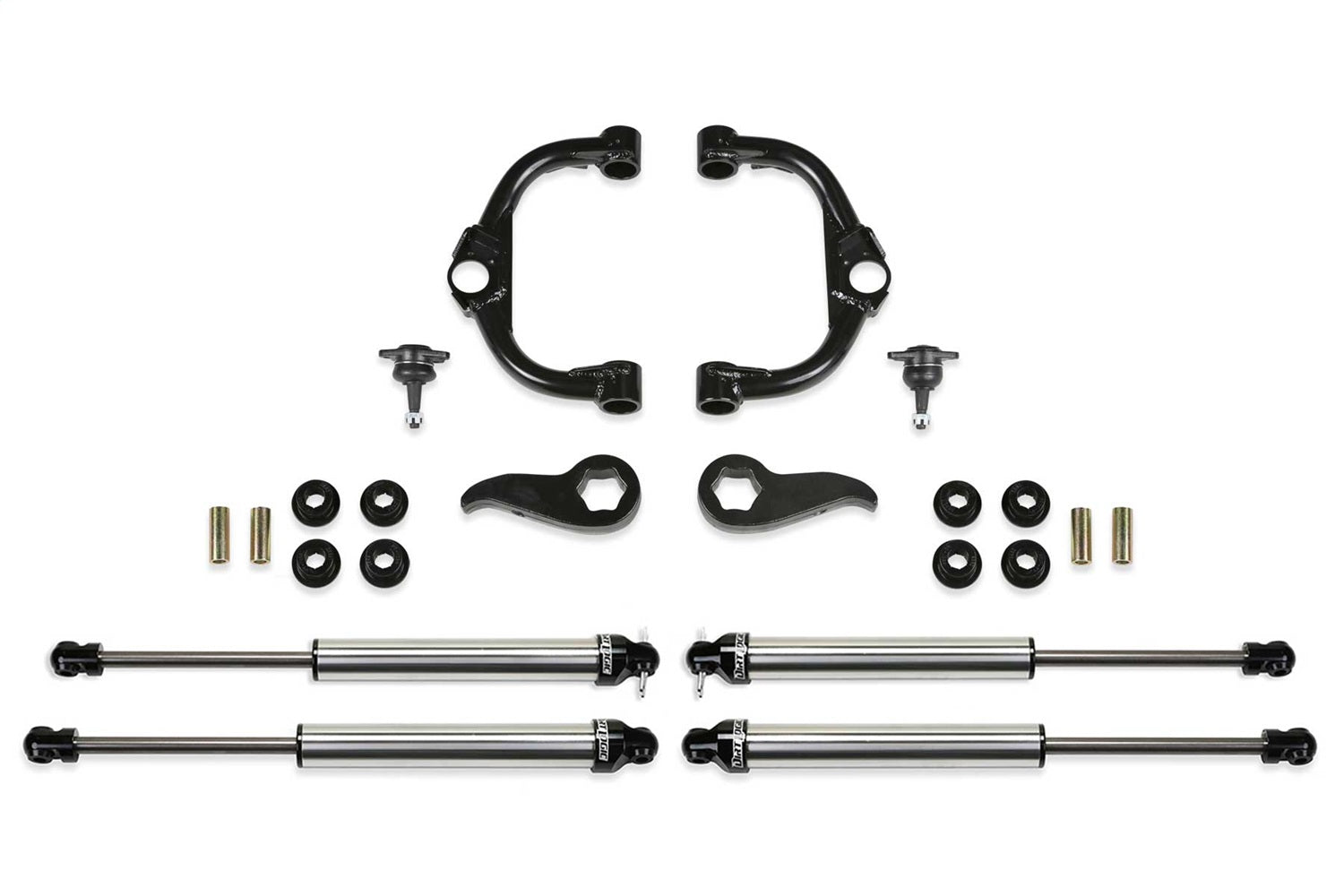

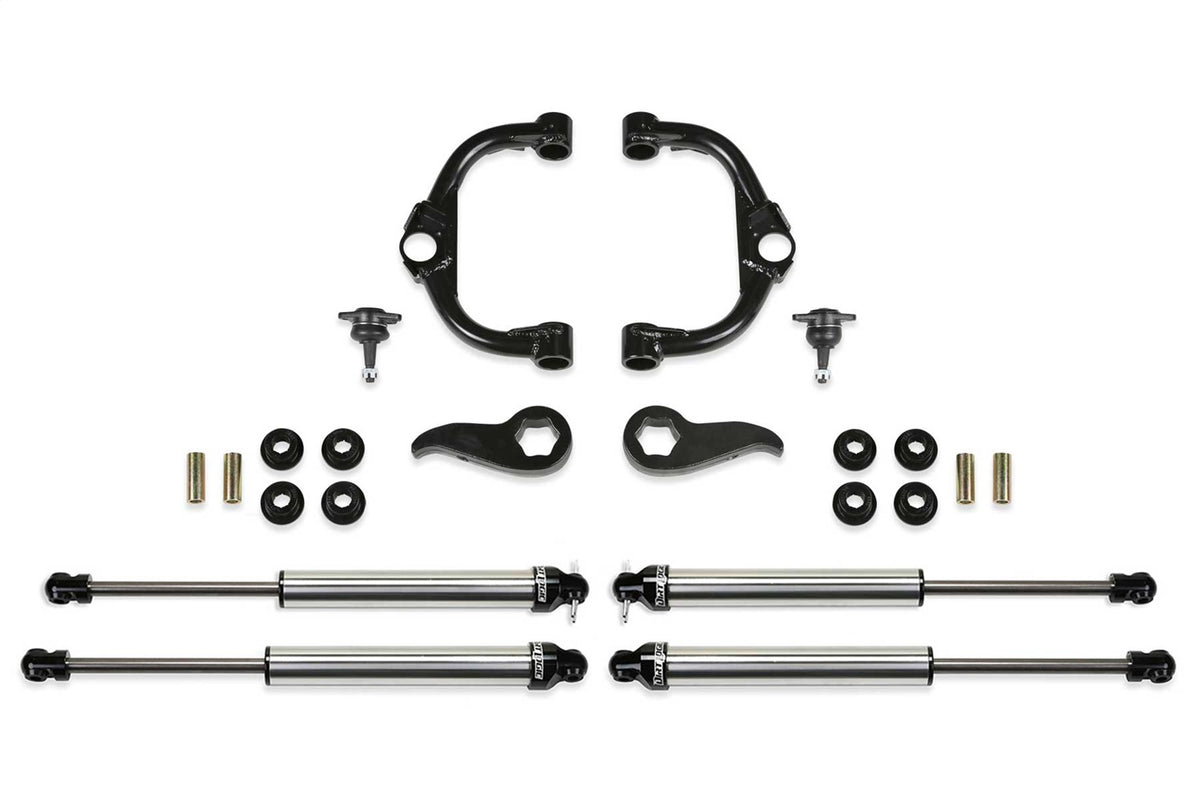

- Tubular Steel Upper Control Arms
- Additional 1 degree of caster built in
- 1.5″ OD x .120″ wall DOM tubing
- High travel oversized ball joint
- 2.25″ OD x .250″ wall DOM bushing barrels
- Heavy duty forged torsion bar keys
Part Numbers
| Qty | Part # | Description |
|---|---|---|
| 1 | FTS21276 | Component Box |
| 2 | FTS811532 | Front Dirt Logic 2.25 Shocks |
| 2 | FTS810942 | Rear Dirt Logic 2.25 Shocks |
– California Prop 65 Warning
-
FOOTNOTES
14. Can not use OEM wheel and tire.
20. Does not fit standard cab models.
