Basic Lift System
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | Fabtech |
|---|---|
| Part number | K1125 |
| Lift/Drop Height | 6 IN |
| Country of Origin | US |
| Warranty | Lifetime |
| Weight (lbs) | 292.63 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Fast Installation w/Heavy Duty 0.25 in. Thick Steel
- Retains Factory Track Width Keeping Tires Under Fenders
- Sway Bar Leverage Is Proper To OE Specs
- Simplistic Coilover Spacer System
- In-field testing and multiple vehicle fit checks ensure products will fit properly during installation and provide years of trouble free service with superior vehicle ride qualities.
- No CV Spacers To Install
- Front Differential Angled For High Speed 4WD
- Zero Bump Steer Throughout Travel Range
- Passes FMVSS 126 Stability Control Standards
- Free 5 year 60000 Mile Powertrain Warranty
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview

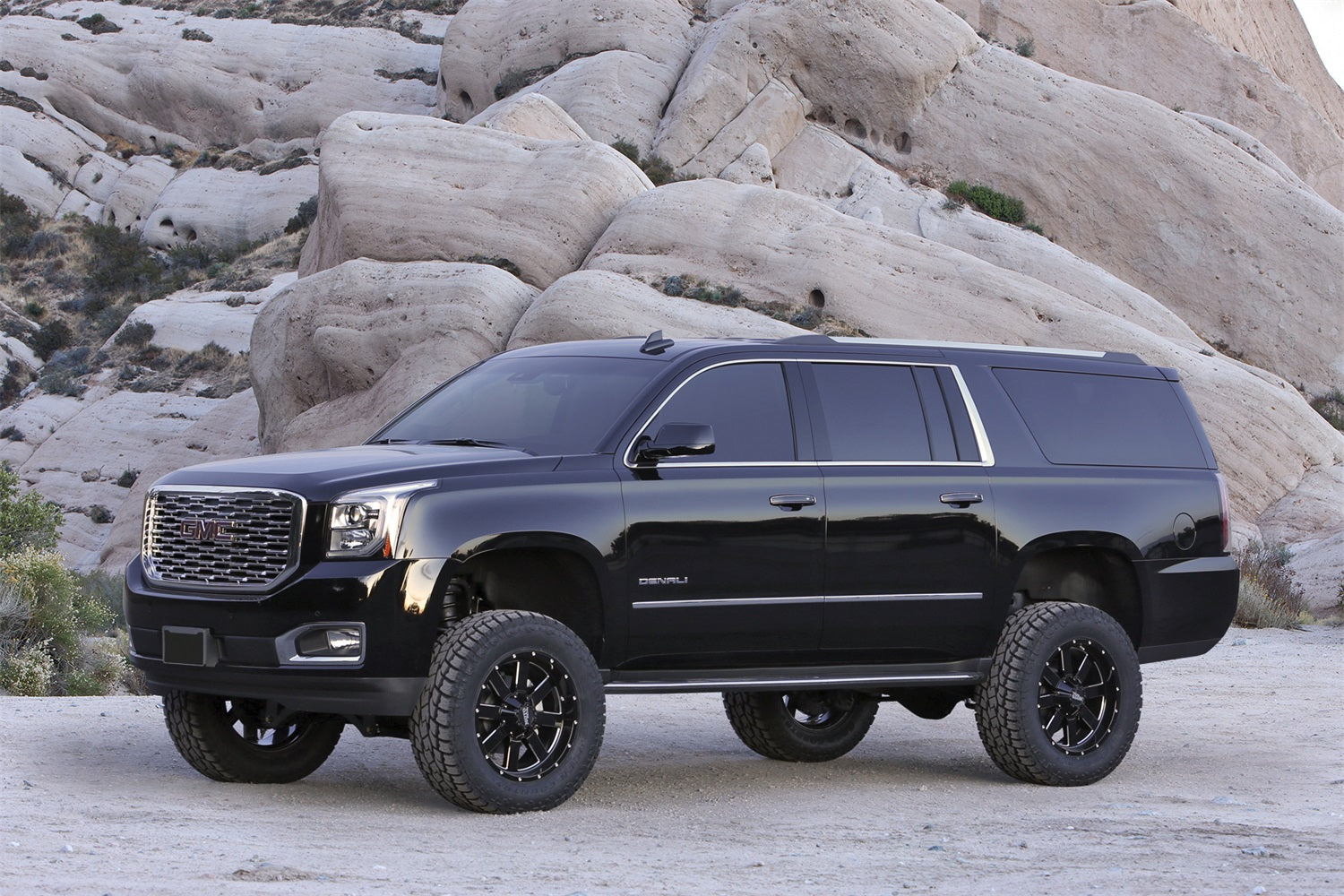

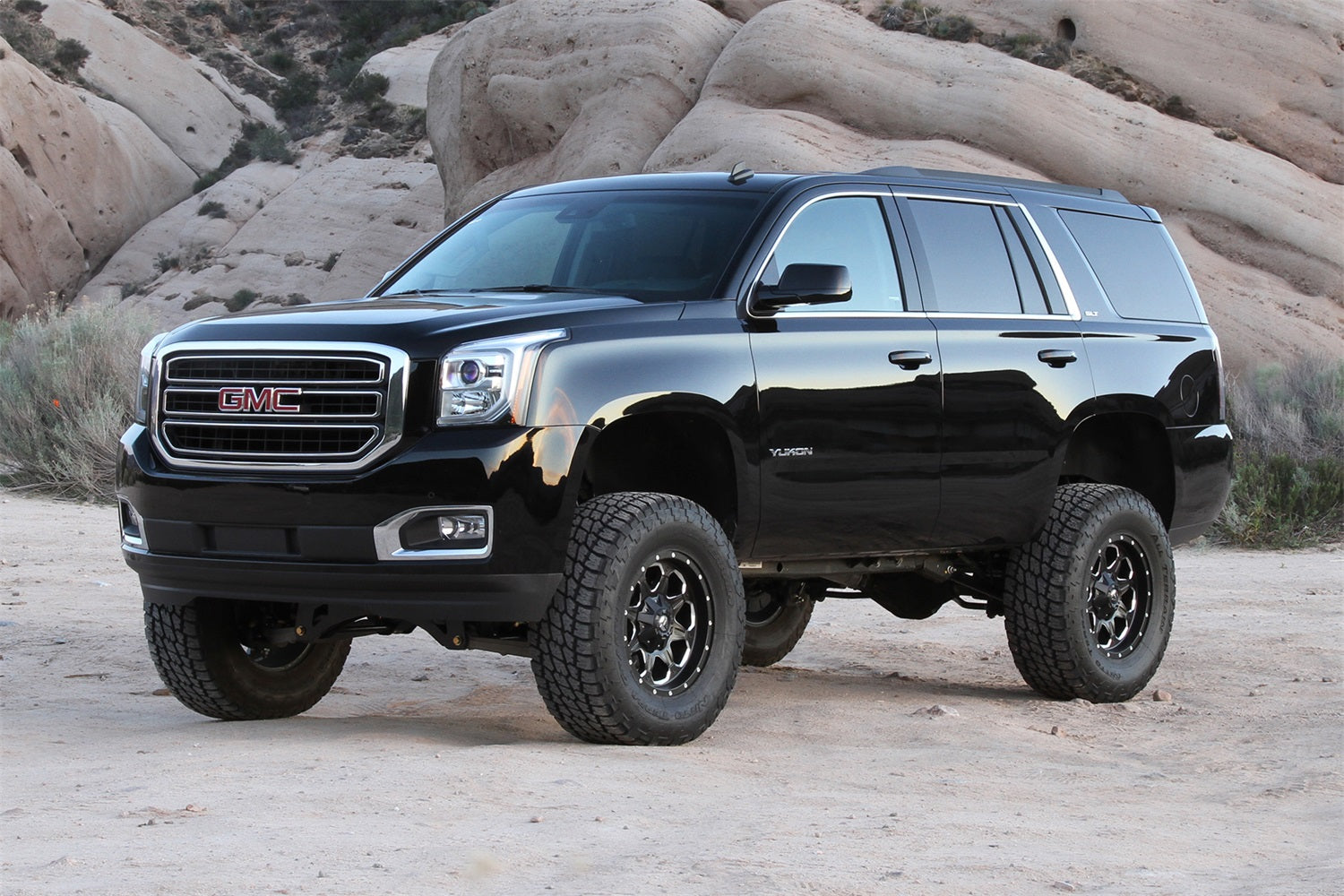

2017-20 Chevy 1500 SUV | GMC 1500 SUV 2WD/4WD
This high quality 6" system retains the factory track width keeping the tires under the fenders for a clean appearance. It has been designed to clear 33" tall tires while providing a factory like ride quality.
Heavy duty 1/4" thick steel lower control arm Crossmembers provide superior ground clearance while the integrated front differential Skid Plate adds protection to the drivetrain. The front differential is relocated in a manner to reduce driveline vibration when in 4 wheel drive mode at highway speeds.
The system utilizes a simplistic upper Coilover spacer that does not require the disassembly of the shock for a quick installation. The factory rear shocks are retained with extended length mounts.
Fabtech’s rear Coil Springs provide increased ride height with a comfortable highway ride. New upper and lower rear Link Arms re-positions the differential to the precise pinion angle to eliminate driveline vibration at all speeds.
Rear extended length Sway Bar Links and heavy duty Track Bar Bracket retains the proper roll center of the vehicle for both on and offroad use.
This system passes FMVSS 126 standards for stability control functionality as tested by an independent lab.
All systems come with a Free 5 year 60,000 mile Powertrain Warranty.
Features
CROSSMEMBERS
1/4" thick steel lower control arm Crossmembers are arched for maximum ground clearance. The welded box design of these Crossmembers provides additional strength to the front suspension.
STEERING KNUCKLES
Extended length ductile iron Steering Knuckles retain the stock track width keeping the tires under the fenders. These steering knuckles are designed to work in conjunction with the factory ESC for proper functionality at all speeds.
COILOVER SPACERS
Thick wall tubing and 1/4" thick steel plate is used to build these 6" lift spacers that retain the factory Coilover shocks for a stock ride.
SKID PLATE
A heavy duty front differential Skid Plate is constructed of 1/4" thick steel to protect the diff from offroad obstacles.
DIFFERENTIAL MOUNTS
Integrated Differential Mounts on the Crossmembers properly reposition the front diff for the precise CV and driveshaft angle to reduce driveline vibration at high speed.
REAR SWAY BAR LINKS
Extended length Sway Bar Links feature urethane bushings for positive on road feel and longevity.
REAR TRAC BAR BRACKET
Heavy duty 1/4" thick steel bracketry relocates the Track Bar to retain the proper roll center of the vehicle.
REAR SHOCK MOUNTS
Extended length mounts retain the factory rear Premium and MagnaRide shocks at the correct travel range with the increased ride height.

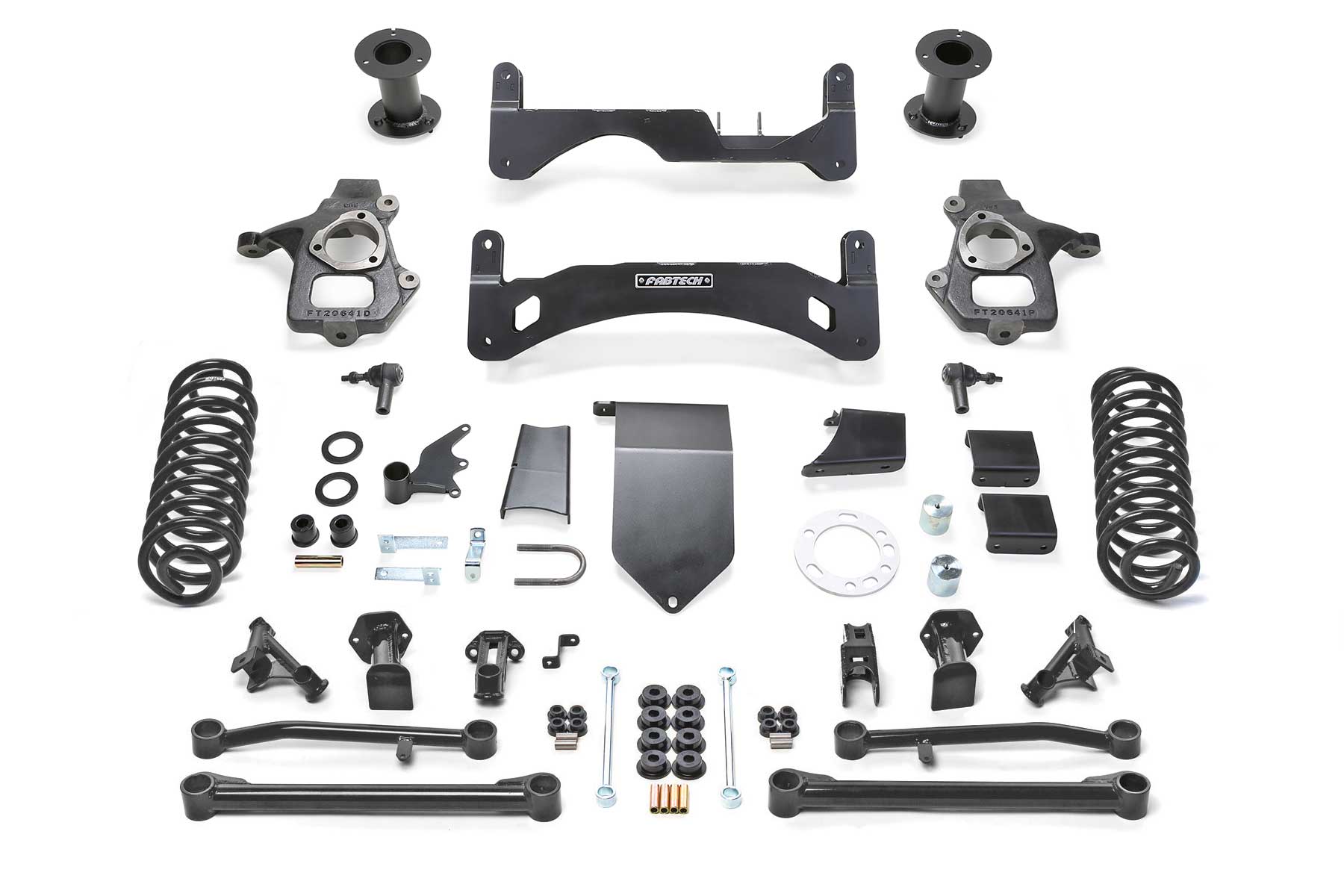

Part Numbers
| Qty | Part # | Description |
|---|---|---|
| 1 | FTS21170 | Component Box 1 |
| 1 | FTS21246 | Component Box 2 |
| 1 | FTS21171 | Coilover Spacer Kit |
| 1 | FTS21247 | Rear Box Kit |
– California Prop 65 Warning
-
FOOTNOTES
8. Will not fit all wheel drive models.
14. Cannot use OEM wheel and tire.
16. Utilizes stock rear shocks.
101. Some models may not sit level after install.
132. Will not fit 2WD Suburban models.
134. Will not fit 2WD Yukon XL models.
262. Will not fit vehicles equipped with Super Cruise.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
