Fabtech 3" BUDGET SYS W/ MAGNERIDE 14-18 GM C/K1500 P/U DENALI W/ OE FORG STL UCA
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Tire size - 33/12.
- 50r17 wheel - 17x8 w/4 1/2" bs w/minor trimming; tire size - 275/65r18 wheel - 18x8 w/4 1/2" bs w/minor trimming; tire size - 295/55r20 wheel - 20x9 w/5" bs w/minor trimming; 8.
- Will not fit all wheel drive models.
- 14.
- Can not use oem wheel and tire.
- does not fit standard cab.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | Fabtech |
|---|---|
| Part number | K1097 |
| Country of Origin | US |
| Warranty | Lifetime |
| Weight (lbs) | 65 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- In-field testing and multiple vehicle fit checks ensure products will fit properly during installation and provide years of trouble free service with superior vehicle ride qualities.
Fitment
| Years | Vehicle |
|---|---|
| 2014-2018 | GMC Sierra 1500 2WD |
| 2014-2018 | GMC Sierra 1500 4WD |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Installation
Free install support from the Trucks R Us tech team, for you or your shop.

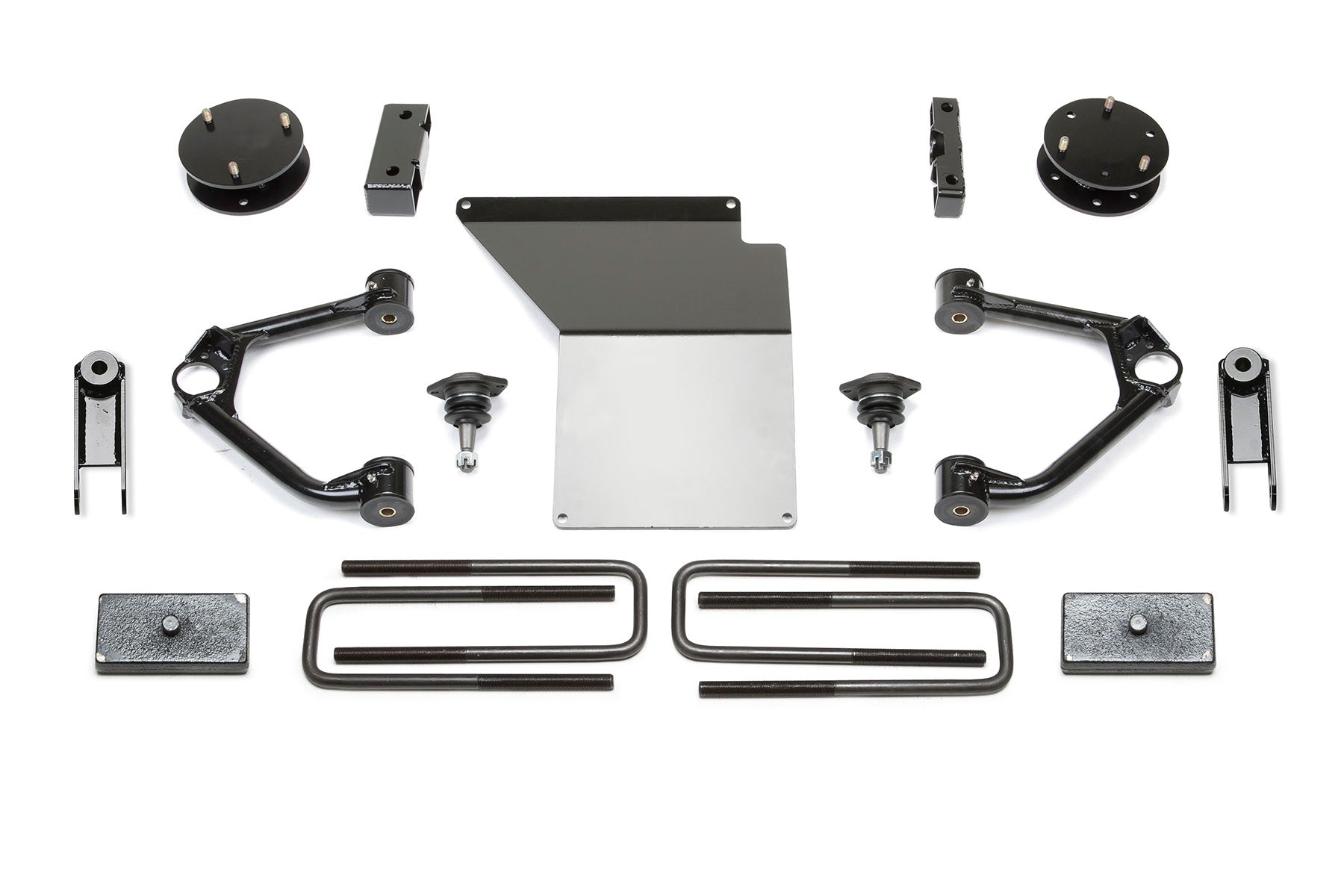

Overview
2014-18 GMC Sierra 1500 Denali 2WD/4WD
This system offers a mild lift height with easy installation for clearance of 33” tall tires on K1500’s w/ factory Magnetic Ride Control suspension.
Lift is accomplished by utilizing the factory front Coilover shocks with steel spacer system that helps retain the stock ride of the front suspension. The stock upper control arms are replaced with thick wall DOM tubular arms that feature heavy duty extended range ball joints. These ball joints provide additional strength to the vehicles suspension compared to the factory.
The front differential is relocated to keep CV angles proper with the new lift height while a 1/4” thick steel skid plate provides protection against offroad obstacles.
Rear lift is accomplished with 1 1/2″ rear lift block and u-bolts to help level the stance of the vehicles.
Features
- Value priced system with Fabtech quality
- Increased ground clearance
- Extended range upper ball joints provide a smooth quiet ride
- Increased fender clearance compared to a Leveling Kit for 33” tall tires
- Suspension can be restored to stock
- Easy installation
Part Numbers
| Qty | Part # | Description |
|---|---|---|
| 1 | FTS21211 | Component Box w/ Magneride |
– California Prop 65 Warning
-
FOOTNOTES
8. Will not fit all wheel drive models.
14. Cannot use OEM wheel and tire.
17. Does not fit standard cab.
