3" Uniball UCA 2014-18 Chevrolet, GMC 1500 Suspension Lift Kit w/ Magnaride
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | Fabtech |
|---|---|
| Part number | K1092 |
| Lift/Drop Height | 4 IN |
| Country of Origin | US |
| Warranty | Lifetime |
| Weight (lbs) | 66 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Increased ground clearance
- Top quality Uniball Upper Control Arms for aggressive offroad use
- 1” ID FK Uniballs with PTFE for ultimate strength
- Increased fender clearance compared to a Leveling Kit for 33” tall tires
- In-field testing and multiple vehicle fit checks ensure products will fit properly during installation and provide years of trouble free service with superior vehicle ride qualities.
- Suspension can be restored to stock
Fitment
| Years | Vehicle |
|---|---|
| 2014-2018 | GMC Sierra 1500 2WD |
| 2014-2018 | GMC Sierra 1500 4WD |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
2014-18 GMC Sierra 1500 Denali 2WD/4WD
This system offers a mild lift height with easy installation for clearance of 33” tall tires on K1500’s w/ factory Magnetic Ride Control suspension.
Lift is accomplished by utilizing the factory front Coilover shocks with steel spacer system that helps retain the stock ride of the front suspension. The stock upper control arms are replaced with high quality tubular Uniball arms that allow unrestricted movement throughout the travel range.
The arms are constructed of top quality material including .120” wall 4130 Chromoly tubing with a 1.50” OD and 1” FK Stainless PTFE Uniballs. These arms are the best on the market for aggressive offroad driving in harsh conditions.
The front differential is relocated to keep CV angles proper with the new lift height while a 1/4” thick steel skid plate provides protection against offroad obstacles.
Rear lift is accomplished with 1 1/2″ rear lift block and u-bolts to help level the stance of the vehicles.
Features
- Increased ground clearance
- Top quality Uniball Upper Control Arms for aggressive offroad use
- 1” ID FK Uniballs with PTFE for ultimate strength
- Increased fender clearance compared to a Leveling Kit for 33” tall tires
- Suspension can be restored to stock

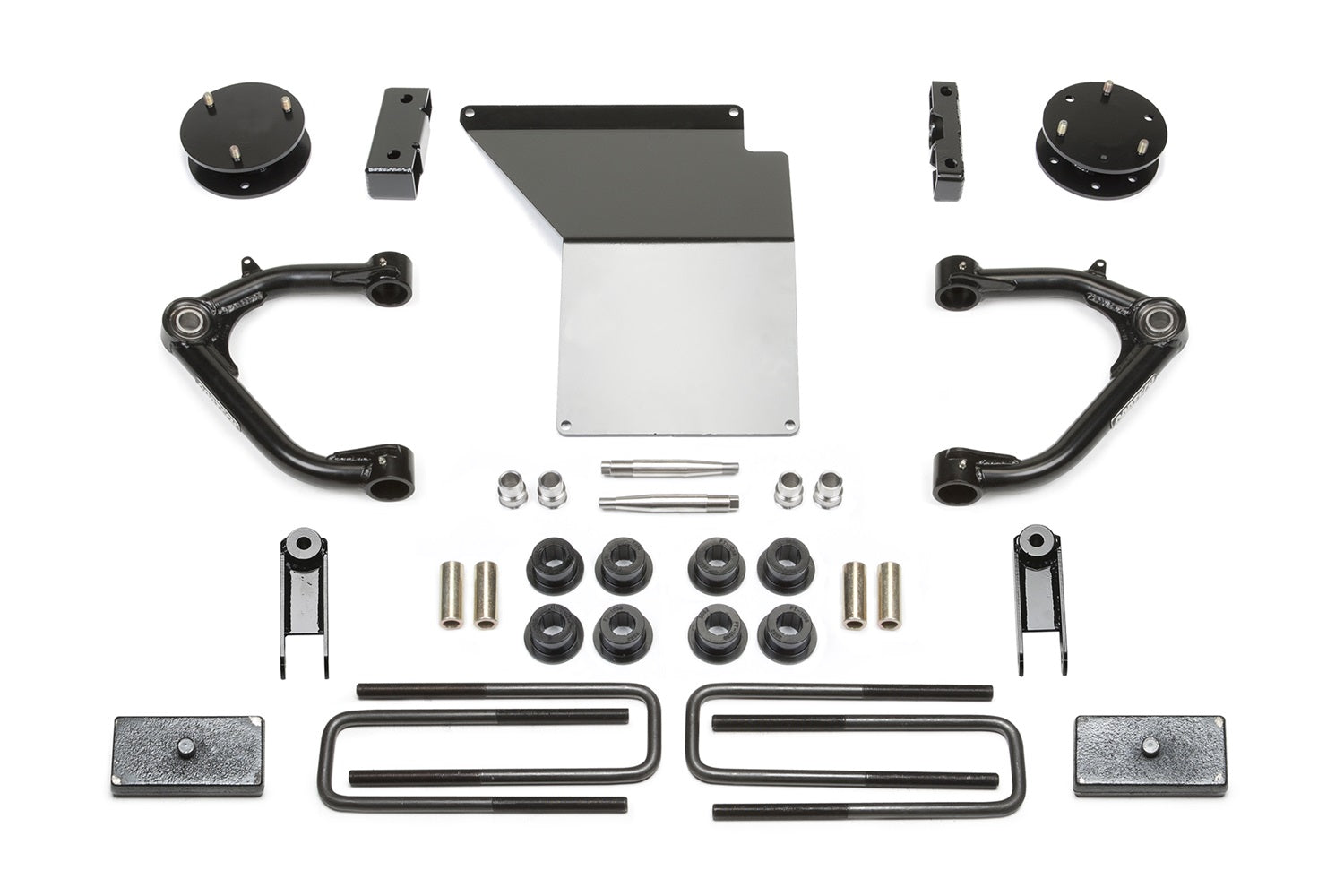

Part Numbers
| Qty | Part # | Description |
|---|---|---|
| 1 | FTS21195 | Component Box w/ Magneride |
– California Prop 65 Warning
-
FOOTNOTES
8. Will not fit all wheel drive models.
14. Cannot use OEM wheel and tire.
17. Does not fit standard cab.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
