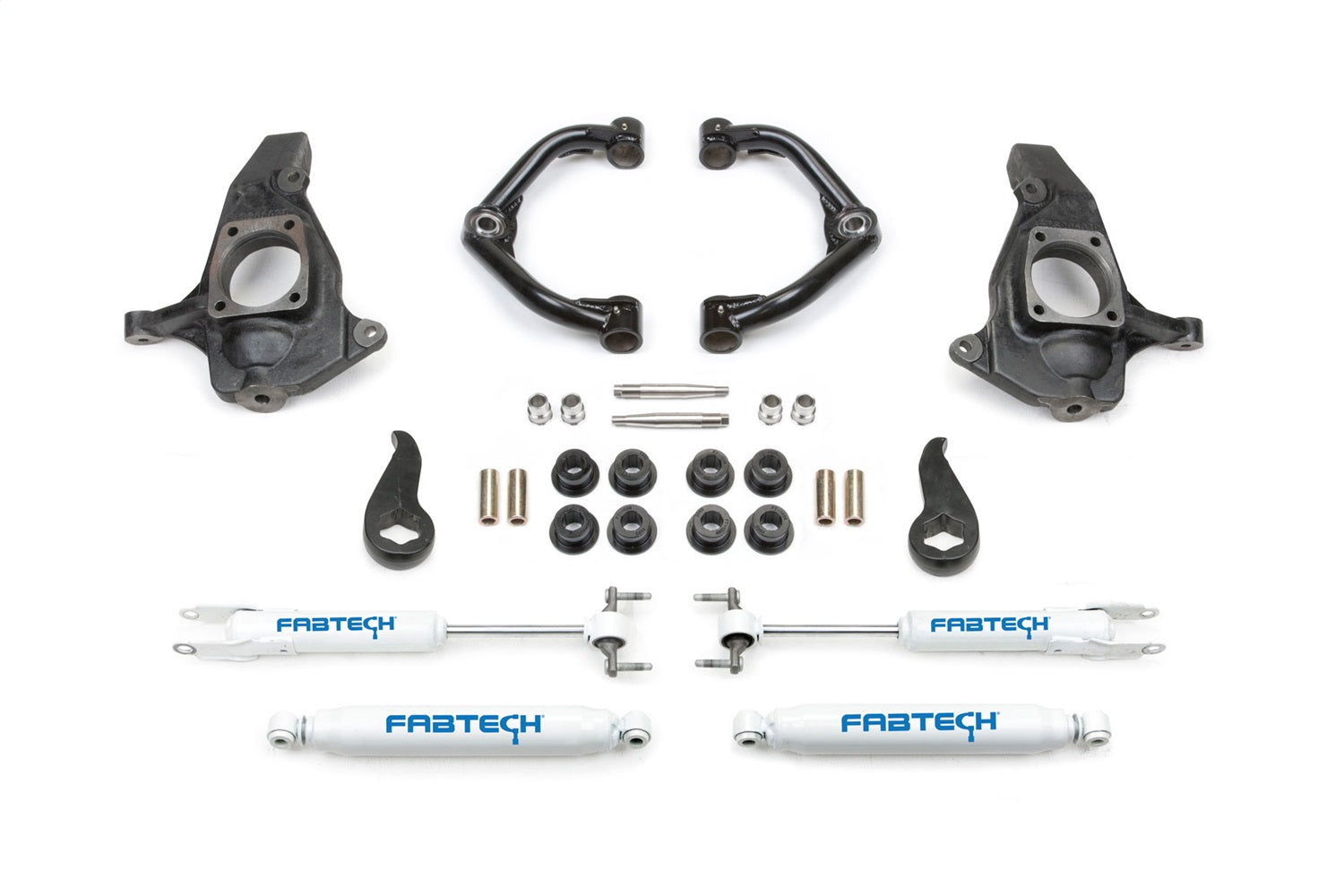

Fabtech K1064 2011-19 Chevy 2/3500HD 3.5" UCA Ball Joint System w/ Performance Shocks

Fabtech K1064 2011-19 Chevy 2/3500HD 3.5" UCA Ball Joint System w/ Performance Shocks

PART #

$1,697.61
$1,697.61
SALE CALL OR CHAT TO ORDER
Shipping calculated at checkout.

Inventory: Low (Live-Chat or Call For Stock)
View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

The 3.5” System is available with our Uniball Upper Control Arms that feature .120” wall 4130 Chromoly tubing with a 1.50” OD 1” FK Stainless PTFE Uniballs for 9” of front wheel travel. The system also includes heavy duty ductile iron steering knuckles and forged adjusting torsion bar keys to provide the proper amount of lift without CV bind.

This system will level the stance of the vehicle compared to the factory nose down rake with no change to the rear suspension. For those customers that require a factory nose down appearance an optional 1? rear block kit is available (2500HD Part # FTS21110) or (3500HD Part # FTS21111).

Features

  • Upper Control Arms Built With Same Materials Found On Trophy Trucks
  • .120" Wall 4130 Chromoly Tubing. 1.50" OD
  • .250" wall DOM Bushing Barrels
  • 1" ID Stainless Steel American Uniball
  • In-field testing and multiple vehicle fit checks ensure products will fit properly during installation and provide years of trouble free service with superior vehicle ride qualities.
  • 17-4 Stainless Misalignments
  • Heat Treated 17-4 Stainless Steel Tapered Uniball Pins
  • Ductile Iron Steering Knuckles
  • Forged Torsion Bar Keys
