Fabtech K1062M 3" Uniball System with Rear Stealth Shocks Chevy 1500 2WD/4WD

Fabtech K1062M 3" Uniball System with Rear Stealth Shocks Chevy 1500 2WD/4WD

PART #

$1,230.48
$1,230.48
SALE CALL OR CHAT TO ORDER
Shipping calculated at checkout.

Inventory: In Stock
View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

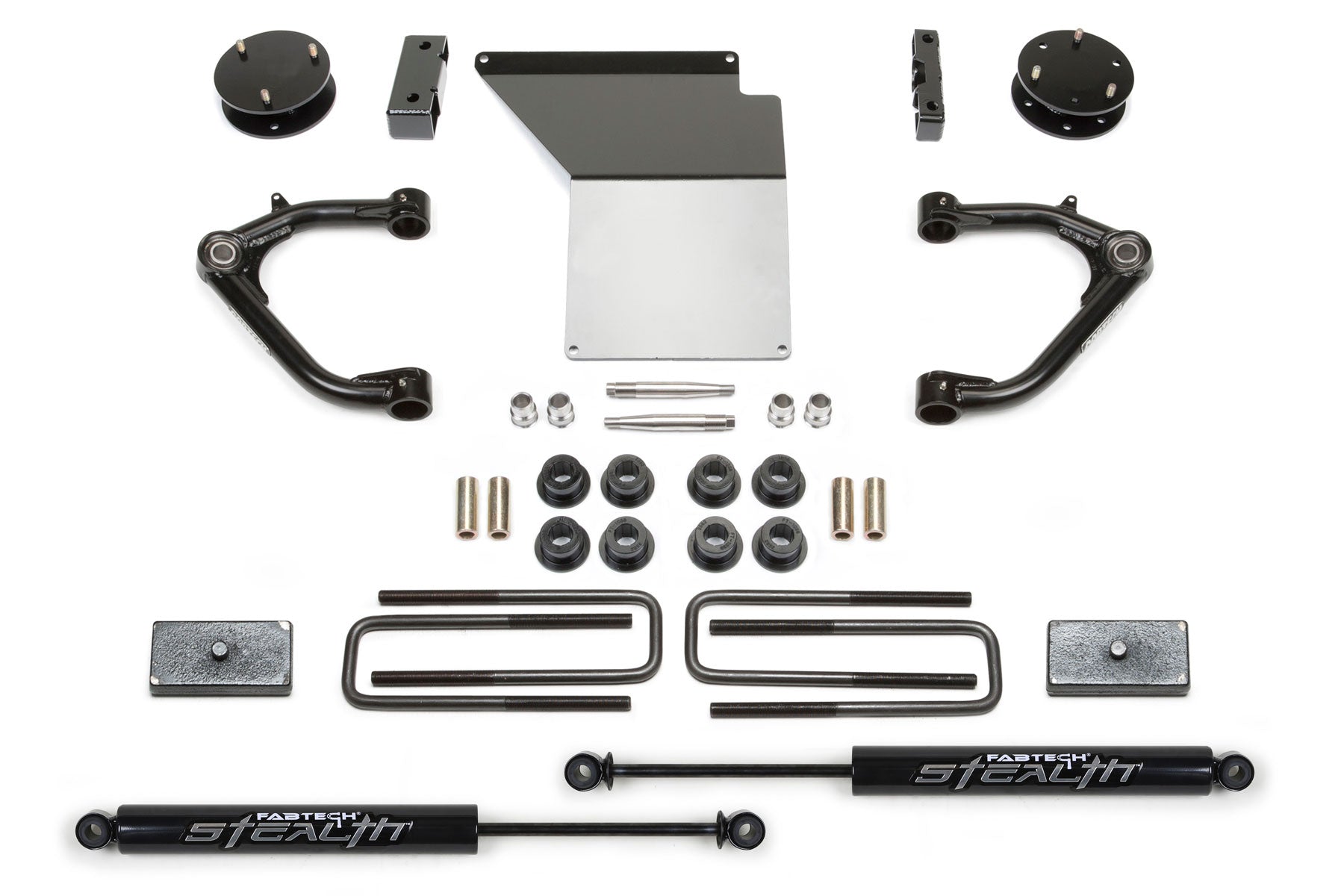

This system offers a mild lift height with easy installation for clearance of 33” tall tires on GM C/K1500s.

Lift is accomplished by utilizing the factory front Coilover shocks with steel spacer system that helps retain the stock ride of the front suspension. The stock upper control arms are replaced with high quality tubular Uniball arms that allow unrestricted movement throughout the travel range.

The arms are constructed of top quality material including .120” wall 4130 Chromoly tubing with a 1.50” OD and 1” FK Stainless PTFE Uniballs. These arms are the best on the market for aggressive offroad driving in harsh conditions.

The front differential is relocated to keep CV angles proper with the new lift height while a 1/4” thick steel skid plate provides protection against offroad obstacles.

Rear lift is accomplished with 1 1/2" rear lift block and u-bolts to help level the stance of the vehicles. Performance rear shock absorbers replace the stock units for increased damping.

Features

  • In-field testing and multiple vehicle fit checks ensure products will fit properly during installation and provide years of trouble free service with superior vehicle ride qualities.
