Budget Lift System w/Shock
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | Fabtech |
|---|---|
| Part number | K1060DL |
| Lift/Drop Height | 4 IN |
| Country of Origin | US |
| Warranty | Lifetime |
| Weight (lbs) | 115.8 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Retains Factory Front Coil Springs For Stock Ride
- In-field testing and multiple vehicle fit checks ensure products will fit properly during installation and provide years of trouble free service with superior vehicle ride qualities.
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview

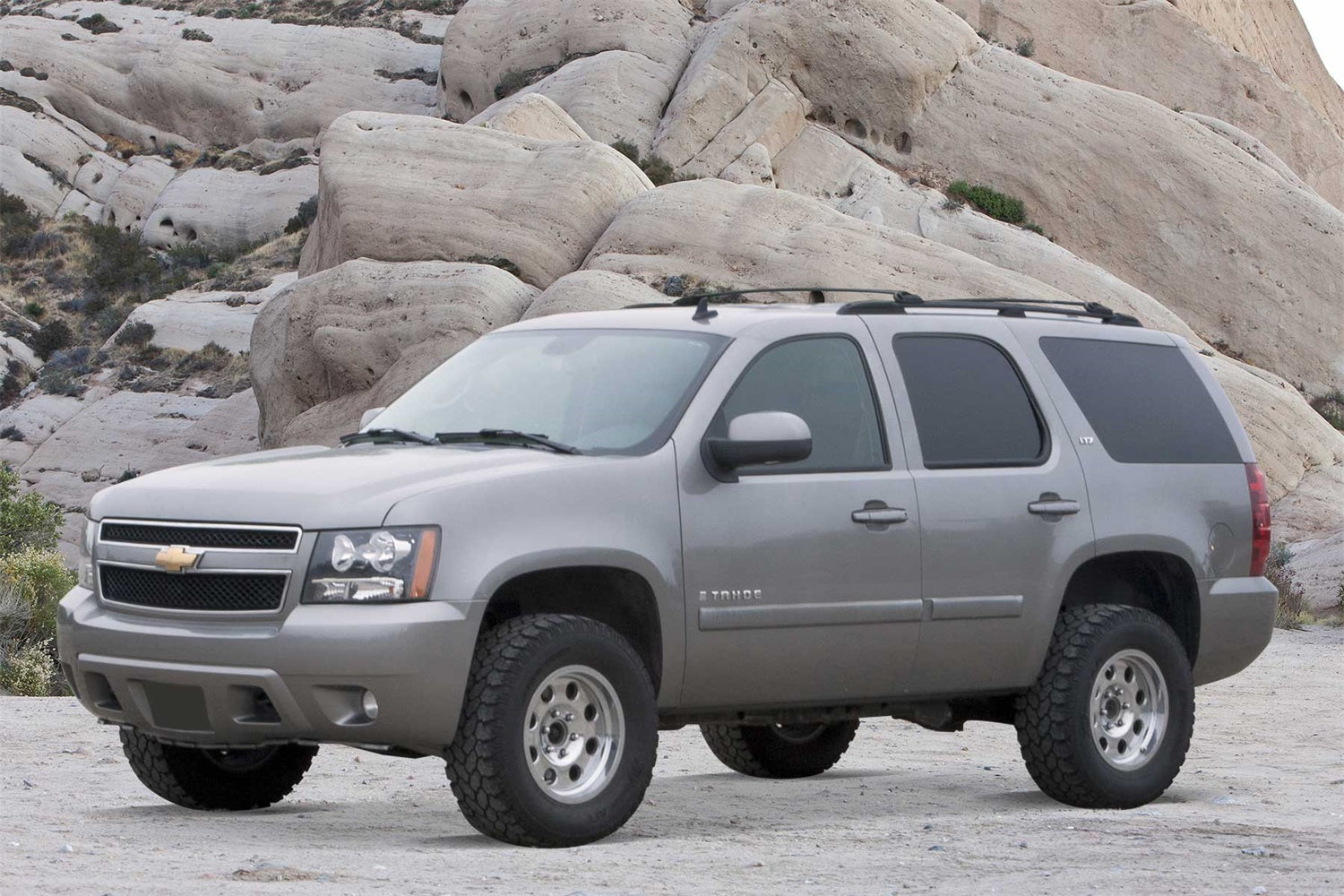

2007-14 Chevy 1500 SUV | GMC 1500 SUV 2WD/4WD
The 3” Budget System for GM C/K1500 SUV’s provides a mild lift height with a supple ride for use with 33” tall tires for the value minded enthusiast.
Fabtech’s replacement DOM upper tubular control arms feature heavy duty extended range ball joints that provide additional strength to the front suspension. The new ball joints provide unrestricted movement throughout the suspension travel range for smooth operation. On 4WD models the front differential housing is relocated to keep CV angles proper with the new ride height while a 1/ 4” thick steel skid plate protects the front diff. The rear lift comes from a 1 1/2" Coil Spacer system.
For increased damping this system comes with high end Dirt Logic 2.5 Coilovers for the front and Dirt Logic 2.25 shocks on the rear.

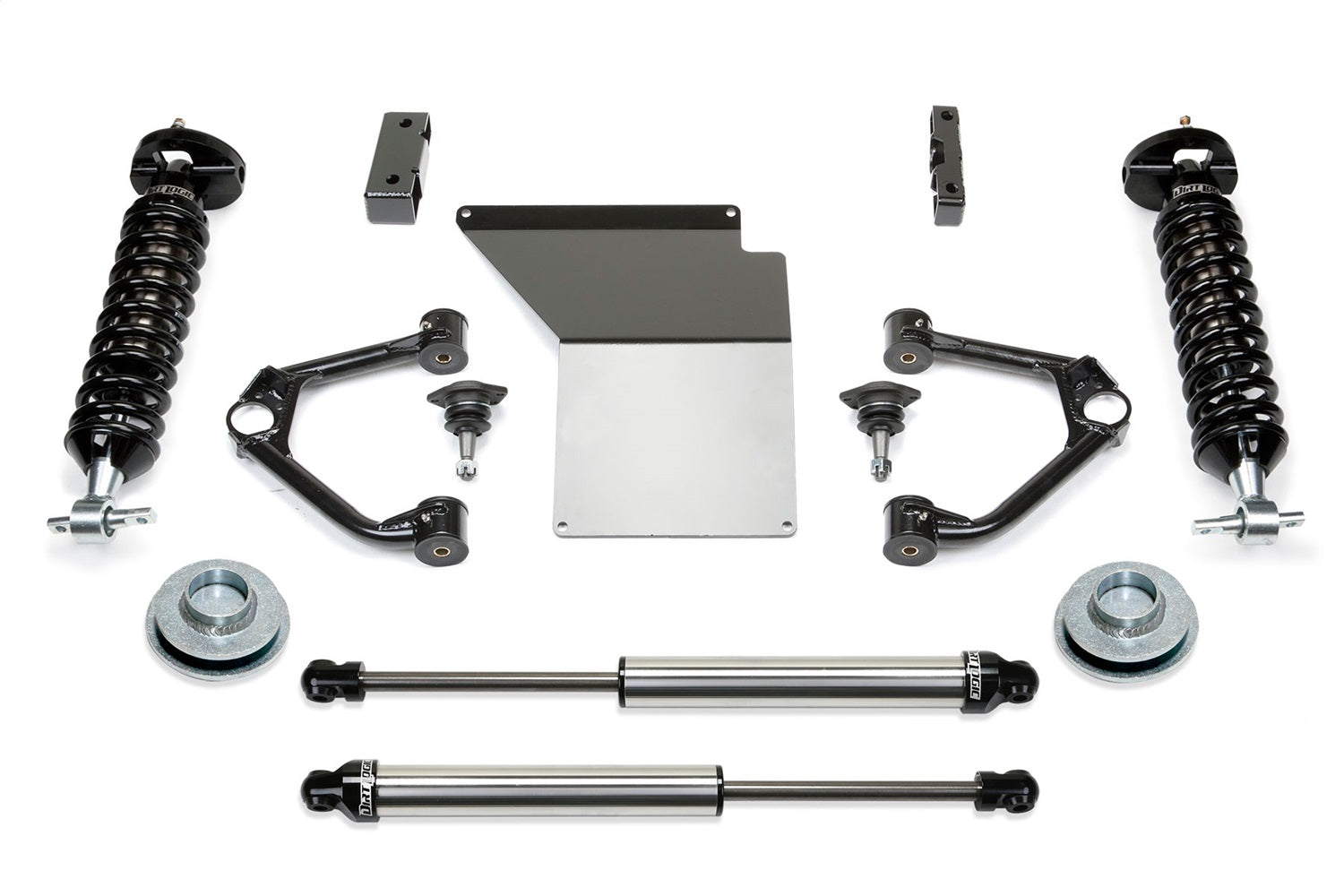

Features
- Replacement DOM Upper Tubular Control Arms
- Extended Range Ball Joints
- Front Differential Skid Plate
- Rear Coil Spacer Kit
Part Numbers
| Qty | Part # | Description |
|---|---|---|
| 1 | FTS21201 | Component Box w/ Dirt Logic Shocks |
– California Prop 65 Warning
-
FOOTNOTES
1. Will not fit models with Factory AutoRide shocks.
14. Cannot use OEM wheel and tire.
132. Will not fit 2WD Suburban models.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
