Fabtech K1015M Chevrolet, GMC (6.0, 6.6, 8.1) 8" Performance Suspension Lift Kit
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | Fabtech |
|---|---|
| Part number | K1015M |
| Front Lift Height | 8" |
| Lift/Drop Height | 8 IN |
| Country of Origin | US |
| Warranty | Lifetime |
| Weight (lbs) | 356.3 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Heavy Duty 1/4" Thick High Arched Crossmember
- Front Differential Skid Plate
- Ductile Iron Steering Knuckles
- New Tubular Upper Control Arms
- In-field testing and multiple vehicle fit checks ensure products will fit properly during installation and provide years of trouble free service with superior vehicle ride qualities.
- Torsion Bar Drop Brackets
- Impact Struts
- Billet Sway Bar End Links
- Rear Add-a-leaf
- Rear Block
- U-bolt Kit
Fitment
| Years | Vehicle |
|---|---|
| 2001-2006 | Chevrolet Silverado 2500 HD 2WD |
| 2001-2006 | Chevrolet Silverado 2500 HD 4WD |
| 2001-2006 | Chevrolet Silverado 3500 HD 2WD |
| 2001-2006 | Chevrolet Silverado 3500 HD 4WD |
| 2001-2006 | GMC Sierra 2500 HD 2WD |
| 2001-2006 | GMC Sierra 2500 HD 4WD |
| 2001-2006 | GMC Sierra 3500 HD 2WD |
| 2001-2006 | GMC Sierra 3500 HD 4WD |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
2001-06 Chevy Silverado 2500HD/3500HD | GMC Sierra 2500HD/3500HD 2WD/4WD

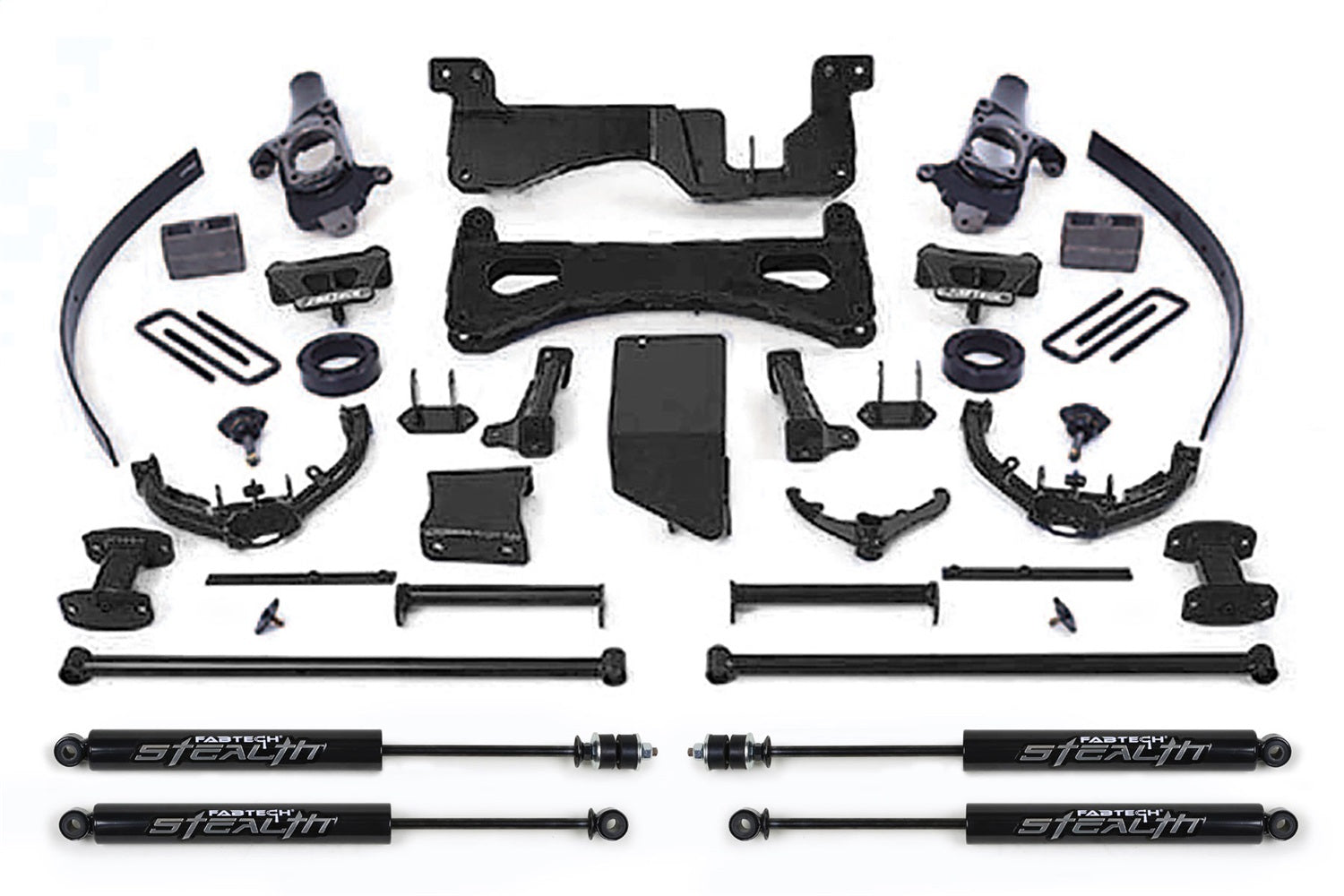

The 8″ Performance Suspension System is accomplished via one-piece cast drop down steering knuckles attaching to heavy-duty 1/4″ thick, high arched lower control arm crossmembers with tubular upper control arms. Fabtech’s combination of steering knuckle, high arched crossmembers and upper control arms provides an excellent ride quality with high ground clearance. This system will provide a true 8 inches of lift without adjustment to the torsion bars allowing the use of 37″ tall tires. The front differential is properly relocated to eliminate front driveshaft vibration on 2001-06 vehicles with the stock driveshaft. On late model 2007-08 vehicles with Magna 1625 transfer cases the system requires the use of a CV front driveshaft to address high speed 4WD use. New tubular upper control arms fit into the stock frame pockets using urethane bushings. Upper control arms include double shock mounting tabs for integration with Fabtech’s optional front dual shock hoop system. The front suspension is completed with an differential skid plate, tubular crossmember supports and impact struts while the torsion bar drop down brackets properly align the torsion bars to the relocated stock lower control arms. The rear suspension is lifted using a 4″ block kit with 2″ add a leafs. The system is completed with rear bump stop brackets and a rear driveshaft carrier bearing drop bracket.
Features
- Heavy Duty 1/4″ Thick, High Arched Crossmember
- Front Differential Skid Plate
- Ductile Iron Steering Knuckles
- New Tubular Upper Control Arms
- Torsion Bar Drop Brackets
- Impact Struts
- Upgraded Sway Bar End Links
- Rear Add-a-leaf
- Rear Block & U-bolt Kit
Part Numbers
| Qty | Part # | Description |
|---|---|---|
| 1 | FTS21011BK | Component Box 1 |
| 1 | FTS21012BK | Component Box 2 |
| 1 | FTS21013BK | Component Box 3 |
| 2 | FTS6192 | Front Stealth Shocks |
| 2 | FTS6063 | Rear Stealth Shocks |
– California Prop 65 Warning
-
FOOTNOTES
3. Non dually models only.
10. Requires welding, exhaust, and possible front drive shaft mods.
12. Does not fit models with Quadrasteer.
14. Can not use OEM wheel and tire.
15. Will experience some loss of turning radius.
21. Front Driveshaft modification required or order an aftermarket CV Driveshaft.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
