Fabtech 6" PERF SYS W/DLSS SHKS 01-10 GM C/K2500HD, C/K3500 NON DUALLY
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Tire size - 35/12.
- 50r20 wheel - 20x8.
- 5 w/4 3/4" bs w/minor trimming; tire size - 315/70r17 wheel - 17x8 w/4 5/8" bs w/minor trimming; tire size - 315/75r16 wheel - 16x8 w/4 5/8" bs w/minor trimming; tire size - 325/65r18 wheel - 18x8 w/5" bs w/minor trimming; non dually models only.
- 4.
- Larger tires cannot be installed on oem wheels.
- 12.
- Does not fit models with quadrasteer.
- 14.
- Can not use oem wheel and tire.
- 15.
- Will experience some loss of turning radius.
- 50.
- Installation requires welding.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | Fabtech |
|---|---|
| Part number | K1014DL |
| Country of Origin | US |
| Warranty | Lifetime |
| Weight (lbs) | 290.6 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- In-field testing and multiple vehicle fit checks ensure products will fit properly during installation and provide years of trouble free service with superior vehicle ride qualities.
Fitment
| Years | Vehicle |
|---|---|
| 2001-2010 | Chevrolet Silverado 2500 HD 2WD |
| 2001-2010 | Chevrolet Silverado 2500 HD 4WD |
| 2001-2010 | Chevrolet Silverado 3500 HD 2WD |
| 2001-2010 | Chevrolet Silverado 3500 HD 4WD |
| 2001-2010 | GMC Sierra 2500 HD 2WD |
| 2001-2010 | GMC Sierra 2500 HD 4WD |
| 2001-2010 | GMC Sierra 3500 HD 2WD |
| 2001-2010 | GMC Sierra 3500 HD 4WD |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
2001-10 Chevy Silverado 2500HD/3500HD | GMC Sierra 2500HD/3500HD 2WD/4WD

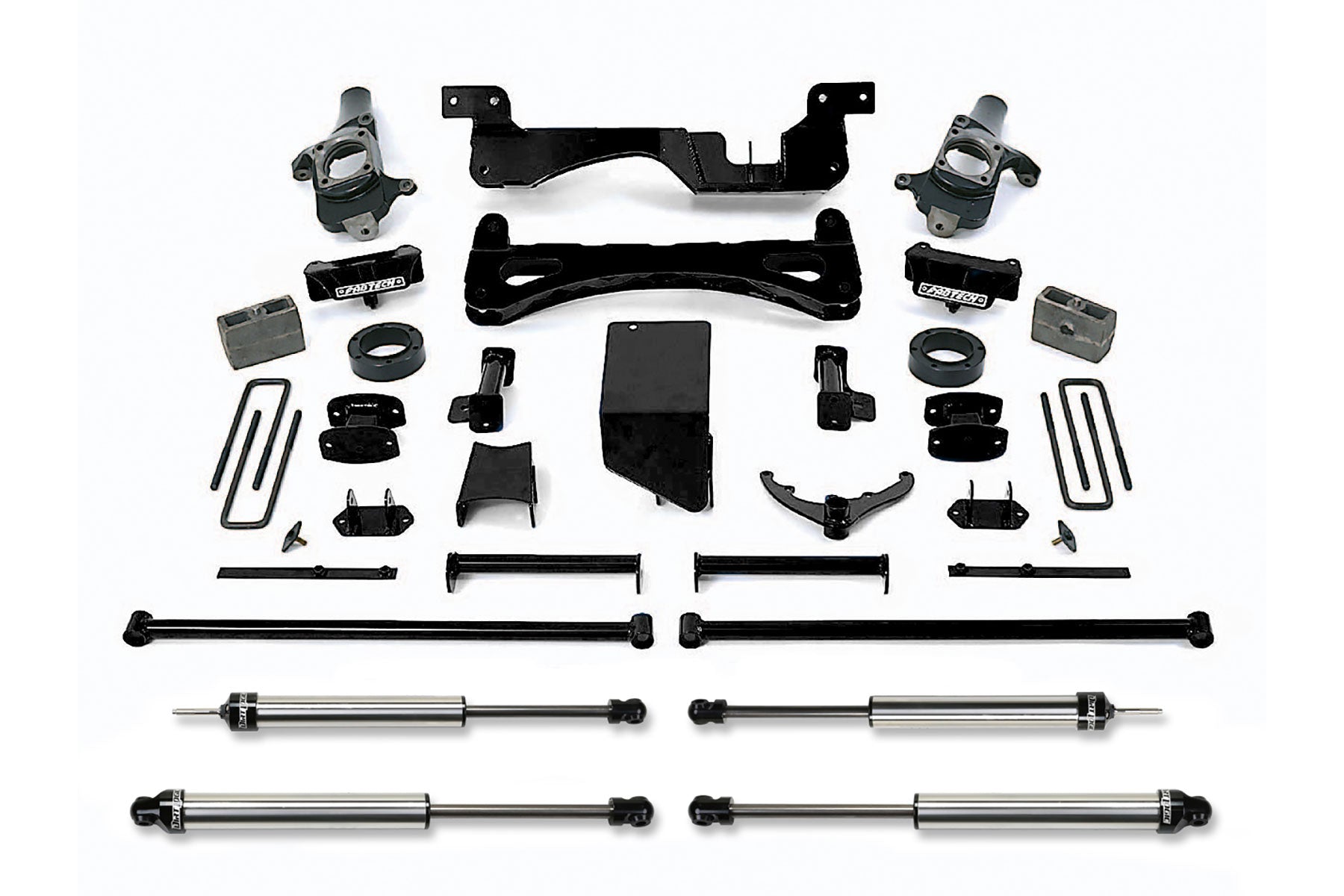

Our 6″ system for 2001-10 GM HD’s has been designed to provide superior suspension performance for daily driving or for offroad. This is accomplished using our proven one piece lower control arm crossmembers and extended length steering knuckles with a multitude of shock absorber options. The 1/4″ thick arched lower control arms crossmembers include an integrated front differential skid plate, crossmembers support tubes and rear impact struts to distribute front suspension impact loads through the frame evenly. A new knuckle design was introduced in 2007 with this system that provides reduced track width to keep the tires under the fenders. This system also includes torsion bar drop mounts, extended length sway bar links with urethane bushings, front and rear bump stop brackets, and rear blocks.
Features
- Heavy Duty 1/4″ Thick, High Arched Crossmember
- Front Differential Skid Plate
- Ductile Iron Steering Knuckles
- Torsion Bar Drop Brackets
- Impact Struts
- Upgraded Sway Bar End Links
- Rear Block & U-bolt Kit
Part Numbers
| Qty | Part # | Description |
|---|---|---|
| 1 | FTS21008BK | Component Box 1 |
| 1 | FTS21009BK | Component Box 2 |
| 2 | FTS810172 | Front Dirt Logic 2.25 Non Resi |
| 2 | FTS810182 | Rear Dirt Logic 2.25 Non Resi |
– California Prop 65 Warning
-
FOOTNOTES
3. Non dually models only.
4. Larger tires cannot be installed on OEM wheels.
12. Does not fit models with Quadrasteer.
14. Can not use OEM wheel & tire.
15. Will experience some loss of turning radius.
50. Installation requires welding.
