Fabtech FTS23232 Radius Arm Lift System
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | Fabtech |
|---|---|
| Part number | FTS23232 |
| Lift/Drop Height | 2.5 IN |
| Country of Origin | US |
| Warranty | Lifetime |
| Weight (lbs) | 61 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Unsurpassed Strength And Performance
- Patent Pending Radius Arms
- Fully Tubular Structure
- Dimple Die Side Plates
- In-field testing and multiple vehicle fit checks ensure products will fit properly during installation and provide years of trouble free service with superior vehicle ride qualities.
- Adjustable Alignment Cam Allows Caster Adjustment
Fitment
| Years | Vehicle |
|---|---|
| 1994-2010 | Dodge Ram 2500 4WD |
| 1994-2010 | Dodge Ram 3500 4WD |
| 2011-2026 | Ram 2500 4WD |
| 2011-2026 | Ram 3500 4WD |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
2014-26 Ram 2500 4WD
2014-26 Ram 3500 4WD

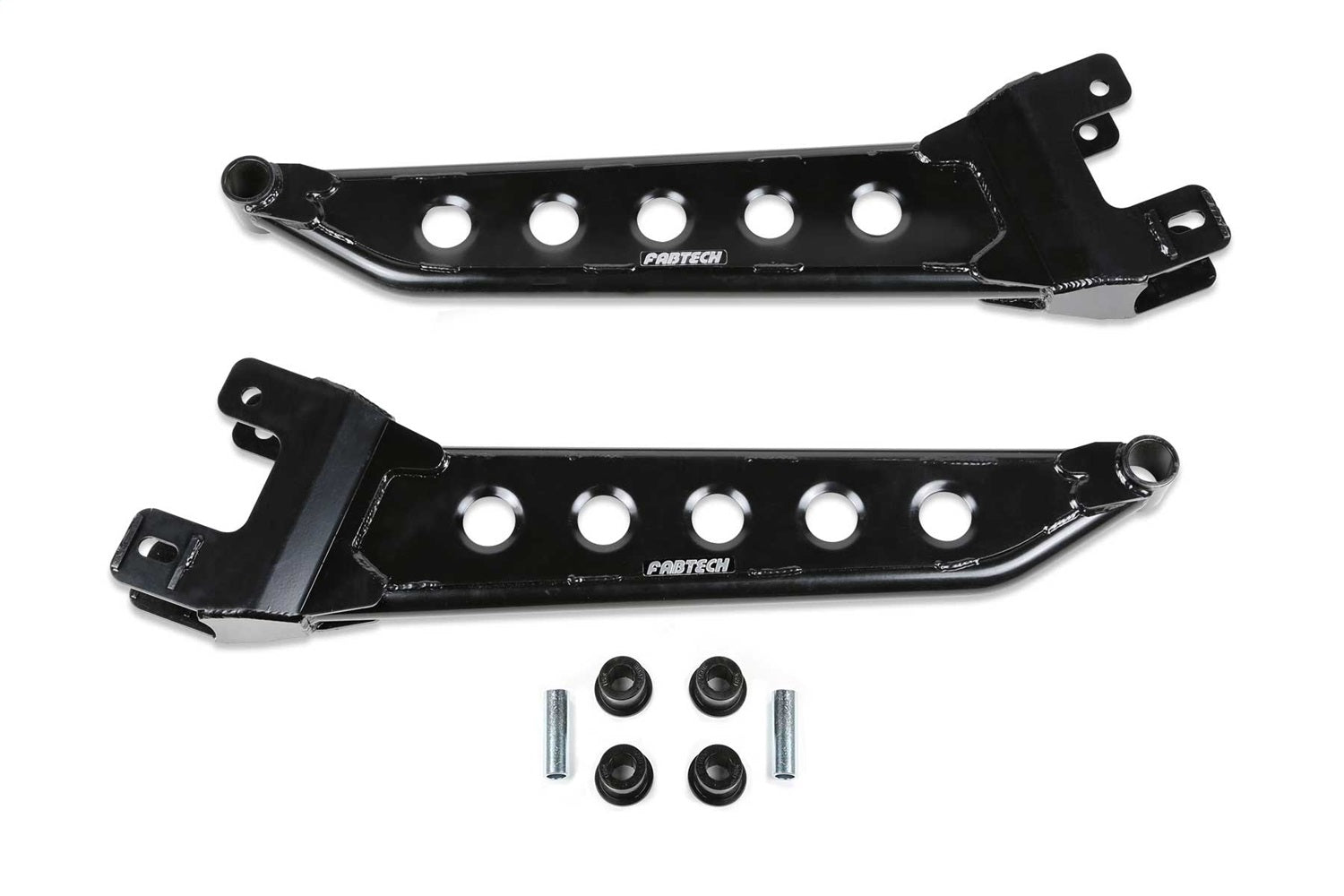

Fabtech’s legendary Radius Arms are the perfect upgrade to the Ram 2500 and 3500 front suspension for lifted applications. The heavy duty tubular construction adds strength with a race component style to the vehicle for aggressive offroad use.
These Ram Radius Arms directly replace the factory arms for use with lifted 2.5″ to 7″ suspensions. The arms have an additional 1 degree of caster built into the arms and with the easy adjustment alignment cams gives a total of 2 degrees more caster than stock. A big benefit for lifted vehicles to improve highway drive ability with oversized tires.
The upper and lower tubes of the arms are constructed with 1.75″ OD x .120″ wall DOM tubing and are fully welded closed to prevent corrosion. Spanning between the tubes is a dimple die side plate that adds rigidity to the arm for strength with minimal weight gain.
The Ram Radius Arms are offset and positioned inboard compared to the stock arms to allow full steering lock with a 13.50 wide tire on a 5″ backspace wheel.
The Fabtech Ram Radius Arms are an open design so that powdercoat can cover the entire arm. This design is superior in coating coverage compared to boxed arms that are stitch welded and have gaps that allow moisture to get inside and cause rust.
Fabtech’s Radius Arms have been proven for over 15 years in consumer, commercial and military applications. There are no better Radius Arms for your Ram.
Features
- Constructed with 1.75″ OD x .120 wall DOM tubing
- Stout 1/4″ thick steel axle mount attachment
- Directly replaces factory arms on lifted vehicles
- Additional caster to improve drive ability with oversized tires
Part Numbers
| Oty | Part # | Description |
|---|---|---|
| 1 | FTS23232 | Component Box |
– California Prop 65 Warning
-
FOOTNOTES
3. Non-dually models only.
226. Fits 2.5″ – 7″ suspension systems only.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
