Important notes before you order
- WARNING ADVISORY!
- DO NOT USE IMPACT TOOL WHEN SECURING BALL JOINT STUD TO SPINDLE.
- DO NOT EXCEED 50 FT LBS. OF TORQUE
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | Cognito Motorsports Truck |
|---|---|
| Part number | 210-P1174 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Made In USA
Fitment
| Years | Vehicle |
|---|---|
| 2015-2019 | Chevrolet Silverado 2500 HD High Country |
| 2011-2019 | Chevrolet Silverado 2500 HD LTZ |
| 2011-2019 | Chevrolet Silverado 2500 HD LT |
| 2011-2019 | Chevrolet Silverado 2500 HD WT |
| 2015-2019 | Chevrolet Silverado 3500 HD High Country |
| 2011-2019 | Chevrolet Silverado 3500 HD LTZ |
| 2011-2019 | Chevrolet Silverado 3500 HD LT |
| 2011-2019 | Chevrolet Silverado 3500 HD WT |
| 2011-2019 | GMC Sierra 2500 HD Denali |
| 2011-2019 | GMC Sierra 2500 HD SLE |
| 2011-2019 | GMC Sierra 2500 HD SLT |
| 2011-2014 | GMC Sierra 2500 HD WT |
| 2015-2019 | GMC Sierra 2500 HD |
| 2011-2019 | GMC Sierra 3500 HD Denali |
| 2011-2019 | GMC Sierra 3500 HD SLE |
| 2011-2019 | GMC Sierra 3500 HD SLT |
| 2011-2014 | GMC Sierra 3500 HD WT |
| 2015-2019 | GMC Sierra 3500 HD |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
WARNING ADVISORY!
Ball Joint/Control Arm Installation
DO NOT USE IMPACT TOOL WHEN SECURING BALL JOINT STUD TO SPINDLE.
DO NOT EXCEED 50 FT LBS. OF TORQUE

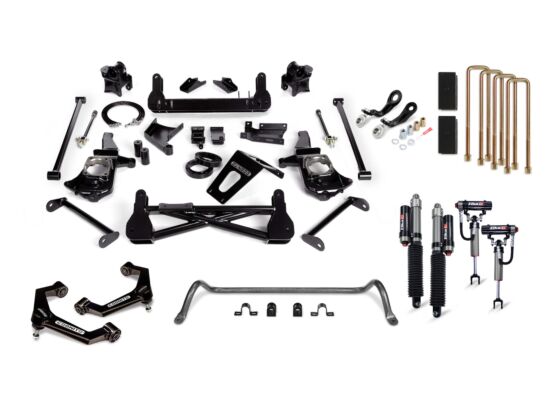

Each Kit Features:
- Yields 7-inches of front lift
- Cognito Block and U-Bolt Kit yields 4-inches of rear lift
- SM Series Ball Joint Upper Control Arms
- Patented Pitman and Idler Arm Support Kit
- Stainless Steel extended brake lines
- HD front sway bar
- ELKA 2.5 Inch Remote Reservoir, Compression Adjustable Front and Rear Shocks
- Maintains Adequite Droop Travel for Superior Ride Quality
- Levels vehicle frot to rear
- 16-hour DIY install time
- Made In USA
We have bundled everything you need in a lift kit for your Silverado/Sierra 2500/3500 2WD/4WD with high quality Cognito components. There is no guesswork. Cognito components are engineered, manufactured, and assembled in the USA.
The Cognito Non-Torsion Bar Drop Front Lift kit is designed and engineered to offer superior ride quality and corrected CV joint angles
The Cognito Ball Joint SM Series Upper Control Arms add style, function, and performance to your vehicle by correcting the Ball Joint angle for lifted and leveled applications and improving the allowable droop travel for a better ride quality. The control arm kit features boxed sheet metal arms that are CNC robot welded and powder coated semi-gloss black. Ball joints are included as well as new crush sleeves and polyurethane bushings.
The Cognito Pitman and Idler Arm Support Kit: Pitman and Idler arms have been an inherent wear problem within the steering systems of Chevy and GMC trucks and SUVs for decades. The Cognito PISK (Pitman and Idler Arm Support Kit) replace the problem components that plague factory and aftermarket steering systems on several models and years of GM trucks and SUVs.
These improvements are accomplished through application of Cognito's innovative, patented design, by providing additional support to the vehicle's pitman and idler arms, which eliminate the forward and rearward movement of the center-link.
The Elka 2.5 Performance Series Remote Reservoir shocks contain the latest in shock technology to transform the performance of your truck. The Elka 2.5 Performance Series front shocks are rust resistant and have a metal impact extruded aluminum body to increase cooling capacity. Eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. They are easy to install and provide a comfortable on-road ride and predictable off-road handling in even the toughest conditions.
The Cognito HD front sway bar is designed to reduce body roll, so you have better vehicle control and greatly improves traction for safer driving. These HD Sway Bars are developed for this specific application. Measuring 1.5 Inch in diameter and made from heat treated and hot formed 4140 chromoly steel for extra strength and durability. Larger sway bar clamps and polyurethane bushings are included.
The Cognito 4-inch Block and U-Bolt Kit includes 4-inch tall powder coated semi-gloss black cast steel blocks and heavy-duty zinc plated U-bolts.
