Cognito Motorsports TruckPart # 110-P1423

Cognito 4-Inch Performance Billet UCA Lift Kit with Cognito 2.0 RR Shocks for 20-26 Silverado/Sierra 2500/3500 2WD/4WD

Regular price $5,695.95
Regular price B2B price $5,695.95
SALE CALL OR CHAT TO ORDER
Shipping calculated at checkout.
Read the important notes before ordering

Questions about fitment? Live chat or call 866-235-4715

Inventory: Call or Live Chat
  • Free shippingMost orders $500+
  • 30-day returnsSee policy
  • Warranty supportWe work with the maker
View full details

Questions about fitment?

Talk to a TRU specialist

We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT

Important notes before you order

  1. WARNING ADVISORY!
  2. DO NOT USE IMPACT TOOL WHEN SECURING BALL JOINT STUD TO SPINDLE.
  3. DO NOT EXCEED 50 FT LBS. OF TORQUE
  4. Every kit includes all required hardware and QR code linking to detailed installation instructions to ensure a smooth and efficient installation process.

TRU specialist notes

From the Trucks R Us fitment and install team, beyond the manufacturer's information.

  • Plan for a professional wheel alignment after installing any lift or leveling kit.
  • Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.

Specifications

BrandCognito Motorsports Truck
Part number110-P1423
Adjustable Control ArmYes
Bushing(s) IncludedYes
Grade TypePerformance
Installation Time14 h
Leaf Spring Bracket ColorBlack
Maximum Lift4 IN
Maximum Lift Height Front4 IN
Maximum Lift Height Rear2 IN
Mounting Hardware IncludedYes
Shocks IncludedYes

California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov

Features

  • Made in the USA

Fitment

YearsVehicle
2020-2026Chevrolet Silverado 2500 HD Custom
2020-2026Chevrolet Silverado 2500 HD High Country
2020-2026Chevrolet Silverado 2500 HD LTZ
2020-2026Chevrolet Silverado 2500 HD LT
2020-2026Chevrolet Silverado 2500 HD WT
2020-2026Chevrolet Silverado 3500 HD High Country
2020-2026Chevrolet Silverado 3500 HD LTZ
2020-2026Chevrolet Silverado 3500 HD LT
2020-2026Chevrolet Silverado 3500 HD WT
2020-2026GMC Sierra 2500 HD AT4
2020-2026GMC Sierra 2500 HD Base
2020-2026GMC Sierra 2500 HD Denali Ultimate
2020-2026GMC Sierra 2500 HD Denali
2020-2026GMC Sierra 2500 HD Pro
2020-2026GMC Sierra 2500 HD SLE
2020-2026GMC Sierra 2500 HD SLT
2020-2026GMC Sierra 3500 HD AT4
2020-2026GMC Sierra 3500 HD Base
2020-2026GMC Sierra 3500 HD Denali Ultimate
2020-2026GMC Sierra 3500 HD Denali
2020-2026GMC Sierra 3500 HD Pro
2020-2026GMC Sierra 3500 HD SLE
2020-2026GMC Sierra 3500 HD SLT

Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.

Installation

    Free install support from the Trucks R Us tech team, for you or your shop.

    Overview

    WARNING ADVISORY!

    Ball Joint/Control Arm Installation

    DO NOT USE IMPACT TOOL WHEN SECURING BALL JOINT STUD TO SPINDLE.

    DO NOT EXCEED 50 FT LBS. OF TORQUE

    Features:

    • Yields 4-inches of front lift, 2-inches of rear lift for a level stance

    • Cognito Billet Upper Control Arm Kit

    • Cognito Pitman and Idler Arm Support Kit

    • Cognito 2.0 Remote Reservoir Shocks

    • Maintains adequate droop travel to optimize ride quality

    • PISK improves drivability, fuel economy, and tire wear

    • 14-hour DIY install time

    • Made in the USA



    Upgrade your Silverado/Sierra 2500/3500 with a premium lift kit engineered to deliver increased ground clearance, improved suspension performance, and dependable durability both on and off road. Designed for 2WD and 4WD applications, this complete system combines high-quality Cognito components with race-proven FOX shocks to provide outstanding performance, ride quality, and long-term reliability without the guesswork.

    Proudly engineered, manufactured, and assembled in the USA, Cognito components are built to handle the demands of daily driving, towing, and aggressive off-road use while maintaining excellent comfort and drivability.

    At the heart of this system is the Cognito Non-Torsion Bar Drop Front Lift Kit, specifically engineered to maximize ground clearance by keeping the torsion bars tucked within the factory frame location instead of lowering them below the chassis. This design helps maintain proper CV axle angles, superior ride quality, and improved underbody clearance for enhanced off-road capability and overall suspension performance.

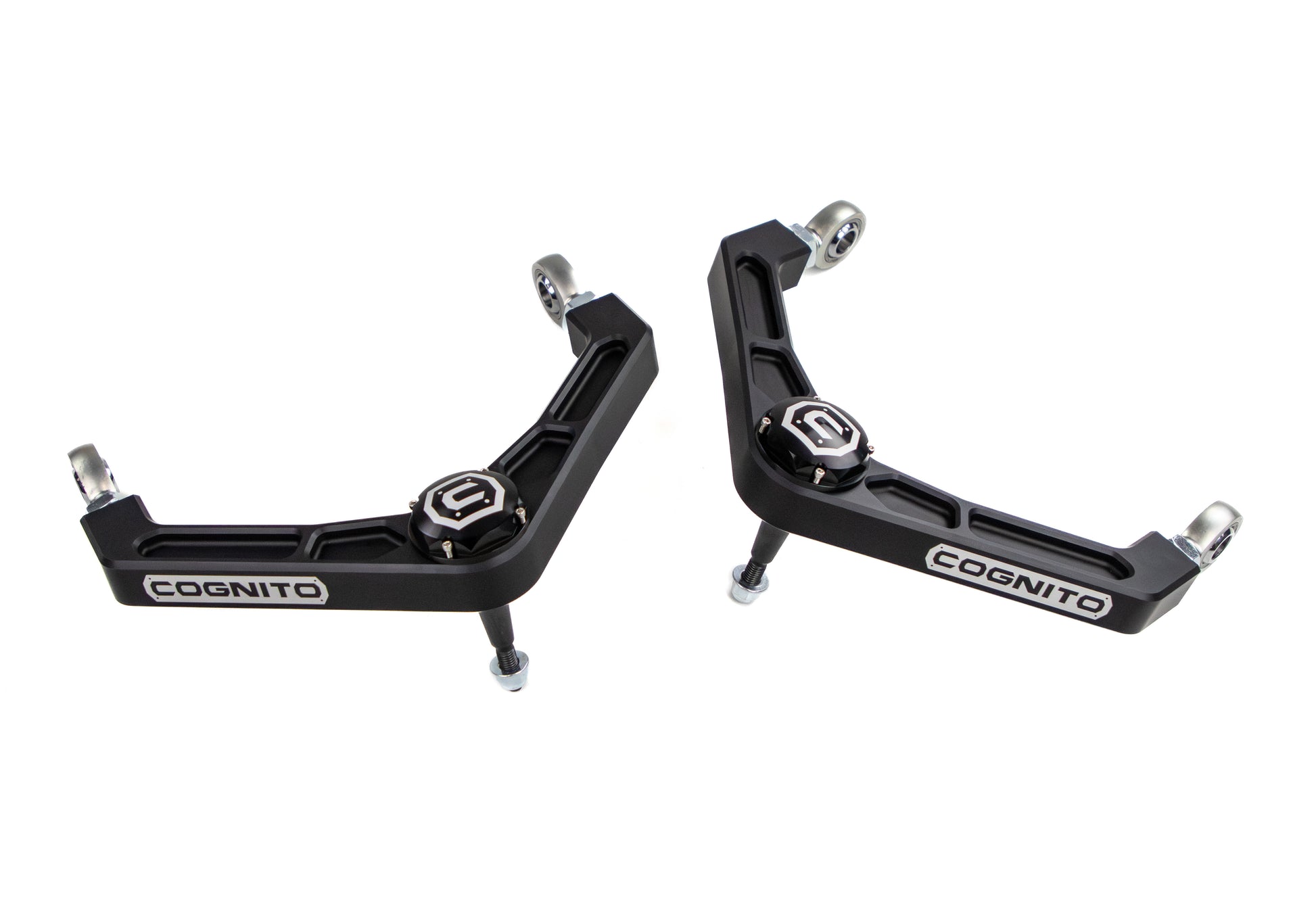

    The included Cognito Billet Upper Control Arms are precision-machined from premium 6061 aluminum and finished in a durable black anodized coating for exceptional strength, corrosion resistance, and long-term durability. Their lightweight yet heavy-duty construction improves suspension geometry and provides increased droop travel, making them some of the strongest upper control arms Cognito has developed to date. Every kit includes all required hardware and QR code linking to detailed installation instructions to ensure a smooth and efficient installation process.

    To further improve steering system reliability, the included Cognito Pitman and Idler Arm Support Kit (PISK) addresses common weaknesses found in factory GM steering systems. Utilizing Cognito’s patented design, the PISK reinforces the pitman and idler arms to help eliminate unwanted center-link movement while improving steering precision, stability, and overall component longevity.

    This kit is paired with Cognito 2.0 Remote Reservoir Aluminum shocks, engineered specifically for GM HD trucks to deliver exceptional ride quality, control, and durability in a direct bolt-on package. The external reservoirs increase oil capacity and improve heat dissipation to help maintain consistent damping performance under demanding conditions while adding a clean, aggressive appearance. Eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. They're easy to install and provide a comfortable on-road ride and predictable off-road handling in even the toughest conditions. The result is a complete suspension system designed to enhance the appearance, capability, and performance of your truck while maintaining everyday comfort and drivability.

    Questions

    Will this fit my truck?

    Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.

    Do you help with installation?

    Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.

    What if the part has a problem?

    We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.

    Can I return it?

    Most items can be returned within 30 days. See our return policy for details.

    Do I need an alignment after installing?

    Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
