Important notes before you order
- WARNING ADVISORY!
- DO NOT USE IMPACT TOOL WHEN SECURING BALL JOINT STUD TO SPINDLE.
- DO NOT EXCEED 50 FT LBS. OF TORQUE
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | Cognito Motorsports Truck |
|---|---|
| Part number | 110-P1418 |
| Bushing(s) Included | Yes |
| Grade Type | Performance |
| Installation Time | 5 h |
| Maximum Lift | 3 IN |
| Maximum Lift Height Front | 3 IN |
| Mounting Hardware Included | Yes |
| Shocks Included | Yes |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- 5-hour DIY install time
Fitment
| Years | Vehicle |
|---|---|
| 2011-2019 | Chevrolet Silverado 2500 HD High Country |
| 2011-2019 | Chevrolet Silverado 2500 HD LTZ |
| 2011-2019 | Chevrolet Silverado 2500 HD LT |
| 2011-2019 | Chevrolet Silverado 2500 HD WT |
| 2011-2019 | Chevrolet Silverado 3500 HD High Country |
| 2011-2019 | Chevrolet Silverado 3500 HD LTZ |
| 2011-2019 | Chevrolet Silverado 3500 HD LT |
| 2011-2019 | Chevrolet Silverado 3500 HD WT |
| 2011-2019 | GMC Sierra 2500 HD Denali |
| 2011-2019 | GMC Sierra 2500 HD SLE |
| 2011-2019 | GMC Sierra 2500 HD SLT |
| 2011-2019 | GMC Sierra 2500 HD WT |
| 2011-2019 | GMC Sierra 3500 HD Denali |
| 2011-2019 | GMC Sierra 3500 HD SLE |
| 2011-2019 | GMC Sierra 3500 HD SLT |
| 2011-2019 | GMC Sierra 3500 HD WT |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
WARNING ADVISORY!
Ball Joint/Control Arm Installation
DO NOT USE IMPACT TOOL WHEN SECURING BALL JOINT STUD TO SPINDLE.
DO NOT EXCEED 50 FT LBS. OF TORQUE
Each Kit Features:
• Up to 3 inches of front lift
• Cognito Ball Joint SM Series Upper Control Arm Kit
• Cognito Pitman and Idler Arm Support Kit
• Cognito 2.0 Remote Reservoir Shocks
• Cognito Torsion Bar Adjuster Key Kit
• Improved ball joint angle
• Maintains adequate droop travel to optimize ride quality
• PISK improves drivability, fuel economy, and tire wear
• 5-hour DIY install time
Upgrade your Silverado/Sierra 2500/3500 with a complete leveling solution engineered for performance, durability, and straightforward installation. Designed for both 2WD and 4WD models, this all-in-one package eliminates the guesswork by including the premium components needed to properly level your truck while improving ride quality, handling, and steering performance.
This Cognito leveling kit includes Cognito SM Series Upper Control Arms, the Cognito Pitman and Idler Arm Support Kit (PISK), Cognito 2.0 Remote Reservoir Aluminum shocks, and Torsion Bar Adjuster Keys.

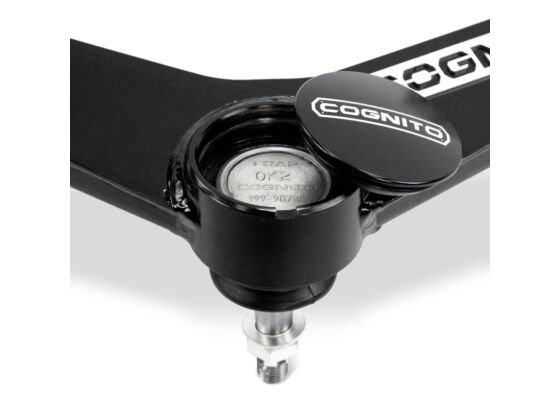

The Cognito SM Series Upper Control Arms are designed to provide improved performance, style, and function for stock, leveled, and lifted applications. Constructed from heavy-duty boxed sheet metal and finished in a durable semi-gloss black powder coat, these arms feature corrected ball joint angles for leveled and lifted trucks while allowing increased droop travel for improved ride quality and suspension performance. Each arm is equipped with Cognito Alpha Joints and maintenance-free pivot bushings.
To further enhance steering system reliability, the included Cognito Pitman and Idler Arm Support Kit addresses common weaknesses found in factory GM steering systems. Cognito’s patented design adds critical support to the pitman and idler arms, significantly reducing unwanted center-link movement and improving steering precision, stability, and component longevity.
This kit is paired with Cognito 2.0 Remote Reservoir Aluminum shocks, engineered specifically for GM HD trucks to deliver exceptional ride quality, control, and durability in a direct bolt-on package. The external reservoirs increase oil capacity and improve heat dissipation to help maintain consistent damping performance under demanding conditions while adding a clean, aggressive appearance.
Featuring application-specific valving, rebuildable construction, and hard-anodized aluminum components, these shocks deliver predictable handling, improved ride quality, and confident control on and off road. Engineered to maximize suspension travel without binding critical suspension components, they help create a balanced suspension system built to handle the demands of daily driving, towing, work, and adventure.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
