Important notes before you order
- WARNING ADVISORY!
- DO NOT USE IMPACT TOOL WHEN SECURING BALL JOINT STUD TO SPINDLE.
- DO NOT EXCEED 50 FT LBS. OF TORQUE
- No assembly required, these are ready to install.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | Cognito Motorsports Truck |
|---|---|
| Part number | 110-P1270 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- 13-hour DIY install time
Fitment
| Years | Vehicle |
|---|---|
| 2020-2025 | Chevrolet Silverado 2500 HD Custom |
| 2020-2025 | Chevrolet Silverado 2500 HD High Country |
| 2020-2025 | Chevrolet Silverado 2500 HD LTZ |
| 2020-2025 | Chevrolet Silverado 2500 HD LT |
| 2020-2025 | Chevrolet Silverado 2500 HD WT |
| 2020-2025 | Chevrolet Silverado 3500 HD Base |
| 2020-2025 | Chevrolet Silverado 3500 HD High Country |
| 2020-2025 | Chevrolet Silverado 3500 HD LTZ |
| 2020-2025 | Chevrolet Silverado 3500 HD LT |
| 2020-2025 | Chevrolet Silverado 3500 HD WT |
| 2020-2025 | GMC Sierra 2500 HD AT4 |
| 2020-2022 | GMC Sierra 2500 HD Base |
| 2024-2025 | GMC Sierra 2500 HD Denali Ultimate |
| 2020-2025 | GMC Sierra 2500 HD Denali |
| 2023-2025 | GMC Sierra 2500 HD Pro |
| 2020-2025 | GMC Sierra 2500 HD SLE |
| 2020-2025 | GMC Sierra 2500 HD SLT |
| 2020 | GMC Sierra 2500 HD |
| 2020-2025 | GMC Sierra 3500 HD AT4 |
| 2020-2022 | GMC Sierra 3500 HD Base |
| 2024-2025 | GMC Sierra 3500 HD Denali Ultimate |
| 2020-2025 | GMC Sierra 3500 HD Denali |
| 2023-2025 | GMC Sierra 3500 HD Pro |
| 2020-2025 | GMC Sierra 3500 HD SLE |
| 2020-2025 | GMC Sierra 3500 HD SLT |
| 2020 | GMC Sierra 3500 HD |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
WARNING ADVISORY!
Ball Joint/Control Arm Installation
DO NOT USE IMPACT TOOL WHEN SECURING BALL JOINT STUD TO SPINDLE.
DO NOT EXCEED 50 FT LBS. OF TORQUE

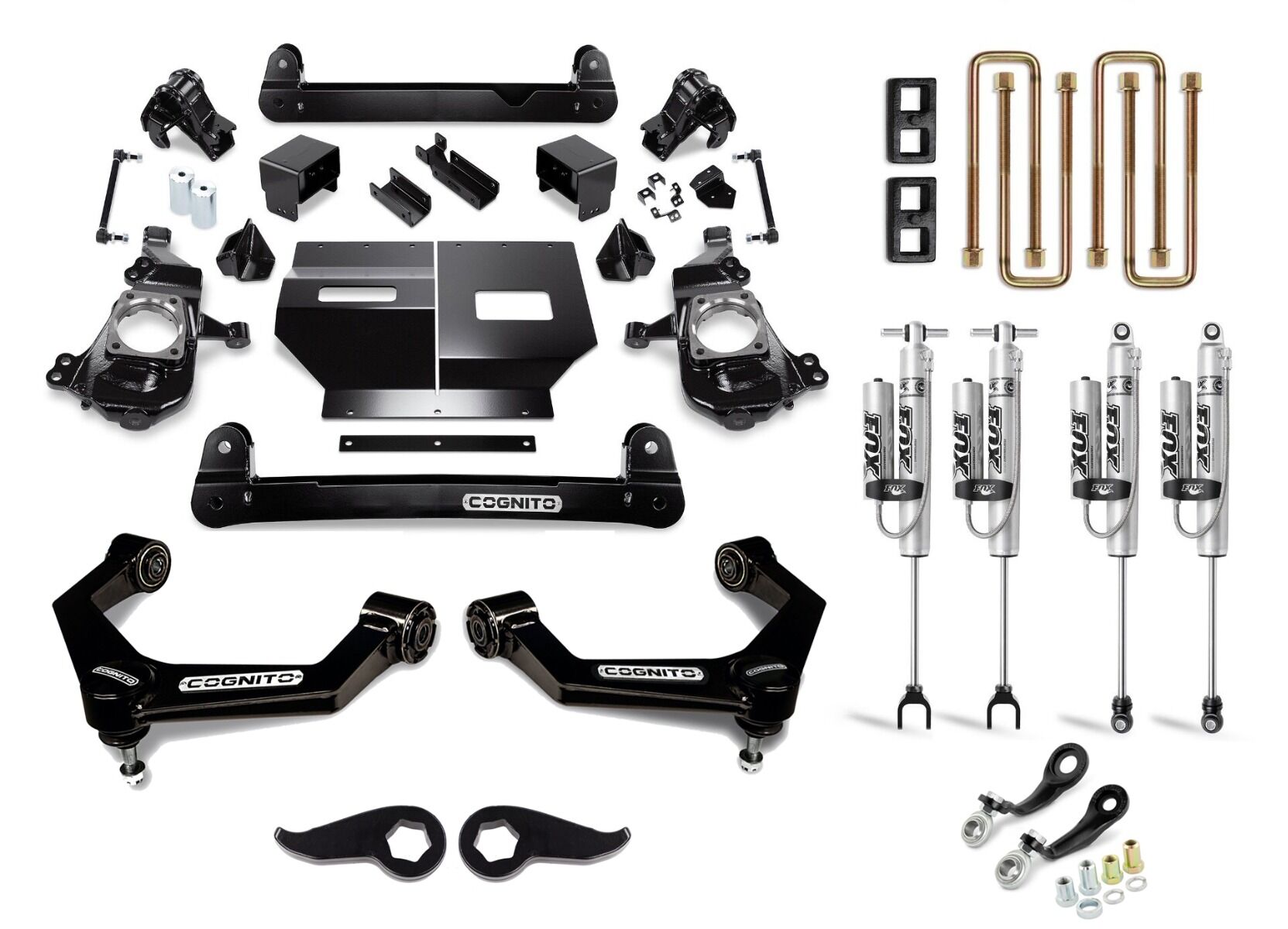

Each Kit Features:
- Yields 5-inches of front lift, 3" Rear Lift
- SM Series Ball Joint Upper Control Arms
- Patented Pitman and Idler Arm Support Kit
- Fox 2.0 Performance Series Remote Reservoir Shocks
- Maintains Adequate Droop Travel for Superior Ride Quality
- 13-hour DIY install time
We have bundled everything you need in a lift kit for your Silverado/Sierra 2500/3500 2WD/4WD with high quality Cognito components. There is no guesswork. Cognito components are engineered and assembled in the USA, and nearly all Cognito components are manufactured in Bakersfield California.
The Cognito Non-Torsion Bar Drop Front Lift kit is designed and engineered to offer maximum ground clearance by keeping the torsion bars tucked up in the frame rather than being dropped down, while maintaining a superior ride quality, along with proper CV axle angles.
The Cognito SM Series Upper Control Arms add style, function and performance to your vehicle by correcting the Ball Joint angle and adding caster for lifted and leveled applications, and increasing the allowable droop travel for superior ride quality. The control arm kit features boxed sheet metal arms that are welded, and powder coated semi-gloss black with pre-installed maintenance free ball joints and pivot bushings. No assembly required, these are ready to install.
Pitman and Idler arms have been an inherent wear problem within the steering systems of Chevy and GMC vehicles for decades. When tie rod angles increase to anything above parallel to the center link, the life of pitman and idler arms decreases rapidly without this upgrade. The Cognito PISK (Pitman and Idler Arm Support Kit) prevents premature wear of pitman and idler arms by supporting and controlling the intended motion of these components in an innovative method which earned a Utility Patent. Say good bye to the need for a steering stabilizer which simply masks the root problem, this support kit is all that is needed to Fix the Flaw and control the GM pitman and idler arm style steering properly.
The Fox 2.0 Performance Series Remote Reservoir shocks contain the latest in shock technology in the 2" diameter shock lineup. They are rust resistant via a metal impact extruded aluminum body which also increases cooling capacity.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
