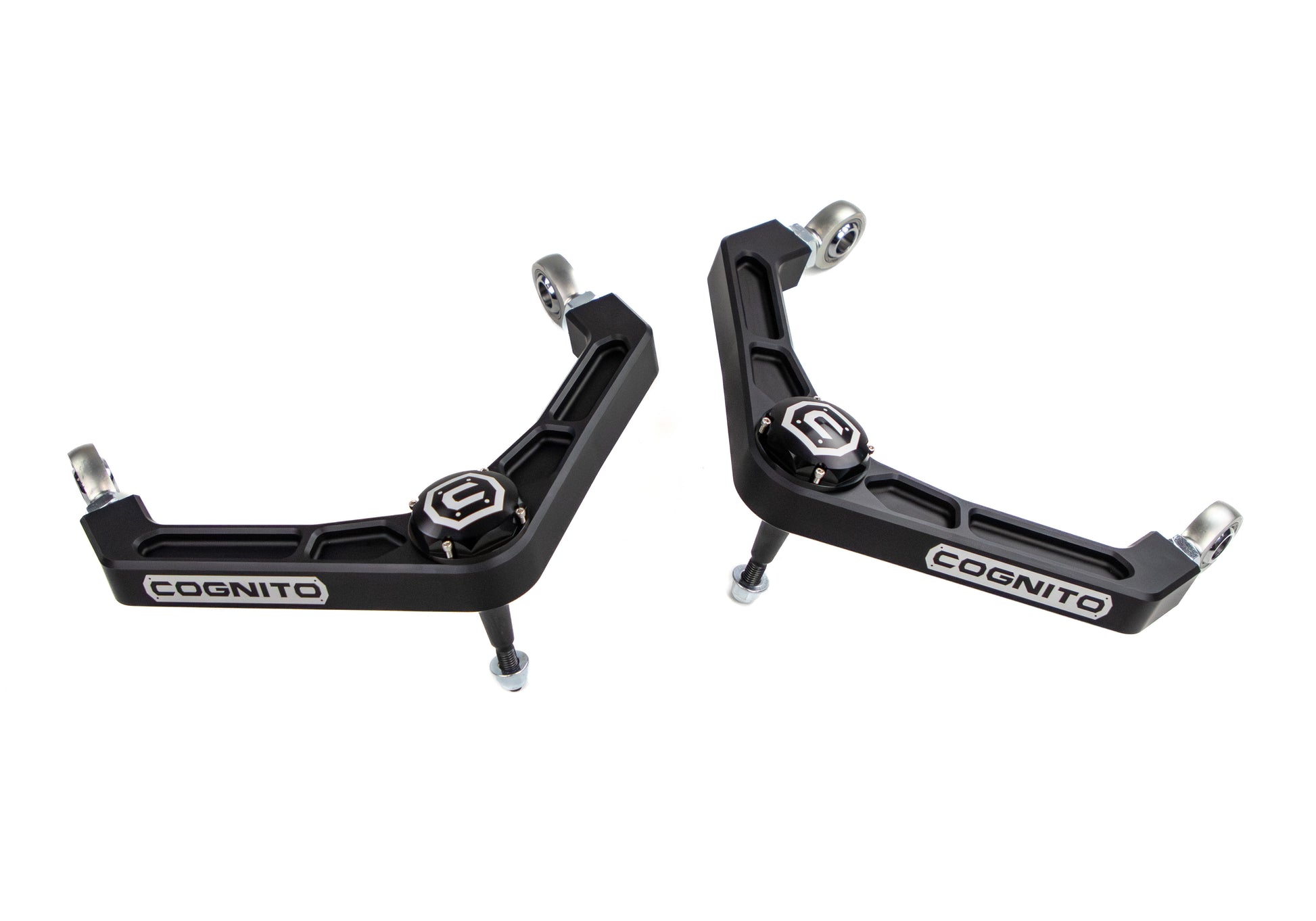

Cognito Billet Upper Control Arm Kit For 20-26 Silverado/Sierra 2500/3500 2WD/4WD Trucks
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- WARNING ADVISORY!
- DO NOT USE IMPACT TOOL WHEN SECURING BALL JOINT STUD TO SPINDLE.
- DO NOT EXCEED 50 FT LBS. OF TORQUE
- TECH NOTE: The additional down travel provided by an Cognito Suspension System can cause clearance issues between the sway bar and the stock splash guard as the suspension approaches full extension. Cognito 2020-UP GM HD Splash Guard Kit, part number 110-91295 recommended.
- TECH NOTE: The additional down travel provided by an Cognito Suspension System can cause clearance issues between the sway bar and the stock splash guard as the suspension approaches full extension.
- All required hardware and detailed step-by-step instructions are included for a smooth and hassle-free installation.
Specifications
| Brand | Cognito Motorsports Truck |
|---|---|
| Part number | 110-91365 |
| Ball Joint Included | Yes |
| Ball Joint Mounting Type | Press In |
| Color | Black |
| Construction | Billet |
| Control Arm Color | Black |
| Control Arm Construction | Billet |
| Control Arm Material | Aluminum |
| Grade Type | Performance |
| Material | Aluminum |
| Quantity | Pair |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- O-ring sealed dust cover cap
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
WARNING ADVISORY!
Ball Joint/Control Arm Installation
DO NOT USE IMPACT TOOL WHEN SECURING BALL JOINT STUD TO SPINDLE.
DO NOT EXCEED 50 FT LBS. OF TORQUE
Features:
- Precsion CNC machined 6061 billet aluminum construction for light weight and exceptional strength
- Features the Delta Pro Ball Joint (U.S. Patent No. 10,731,700)
- Camber and caster adjustability allows for precise wheel alignment
- PTFE Lined 7/8” FK Rod Ends for improved response through suspension travel
- O-ring sealed dust cover cap
TECH NOTE: The additional down travel provided by an Cognito Suspension System can cause clearance issues between the sway bar and the stock splash guard as the suspension approaches full extension. Cognito 2020-UP GM HD Splash Guard Kit, part number 110-91295 recommended.
Our Cognito billet aluminum upper control arm kit is engineered to enhance the performance of your 2020–2026 GM Silverado/Sierra 2500/3500 pickup including AT4X & ZR2 models. By improving front suspension geometry, introducing added adjustability for both camber and caster with FK 7/8 Heim Joints, and optimizes ball joint angles throughout the full range of suspension travel.
Each Cognito billet control arm is precision-machined from high-quality 6061 aluminum and finished in durable black anodize, resulting in a lightweight yet highly durable component proving to be one of the strongest upper control arms we’ve developed to date. All required hardware and detailed step-by-step instructions are included for a smooth and hassle-free installation.
Our Billet upper control arms are equipped with the Delta Pro ball joint, designed to deliver more strength than a traditional ball joint with the articulation benefits typically associated with a uniball. While uniballs are known for smooth articulation, they can be vulnerable to environmental exposure in daily driving conditions. Cognito’s design addresses this by incorporating a protective housing with Zinc corrosion-resistant plating and a durable grease seal to keep contaminants out.
The metal-on-metal construction and greaseable design promotes long-lasting performance of the Delta Joint while allowing noiseless operation. What makes the Delta Joint stand apart from the alternative is that it provides increased durability over standard uniballs while offering greater articulation than conventional ball joint. delivering a well-balanced solution for both on-road comfort and off-road capability.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
About Cognito Motorsports Truck
Cognito Motorsports is an industry leader in the design, development, and manufacturing of high-quality, proprietary suspension, steering, and chassis components for popular trucks and SUVs. Founded in 2001 and operating out of a converted chicken coop in Arroyo Grande, California,... Shop all Cognito Motorsports Truck
