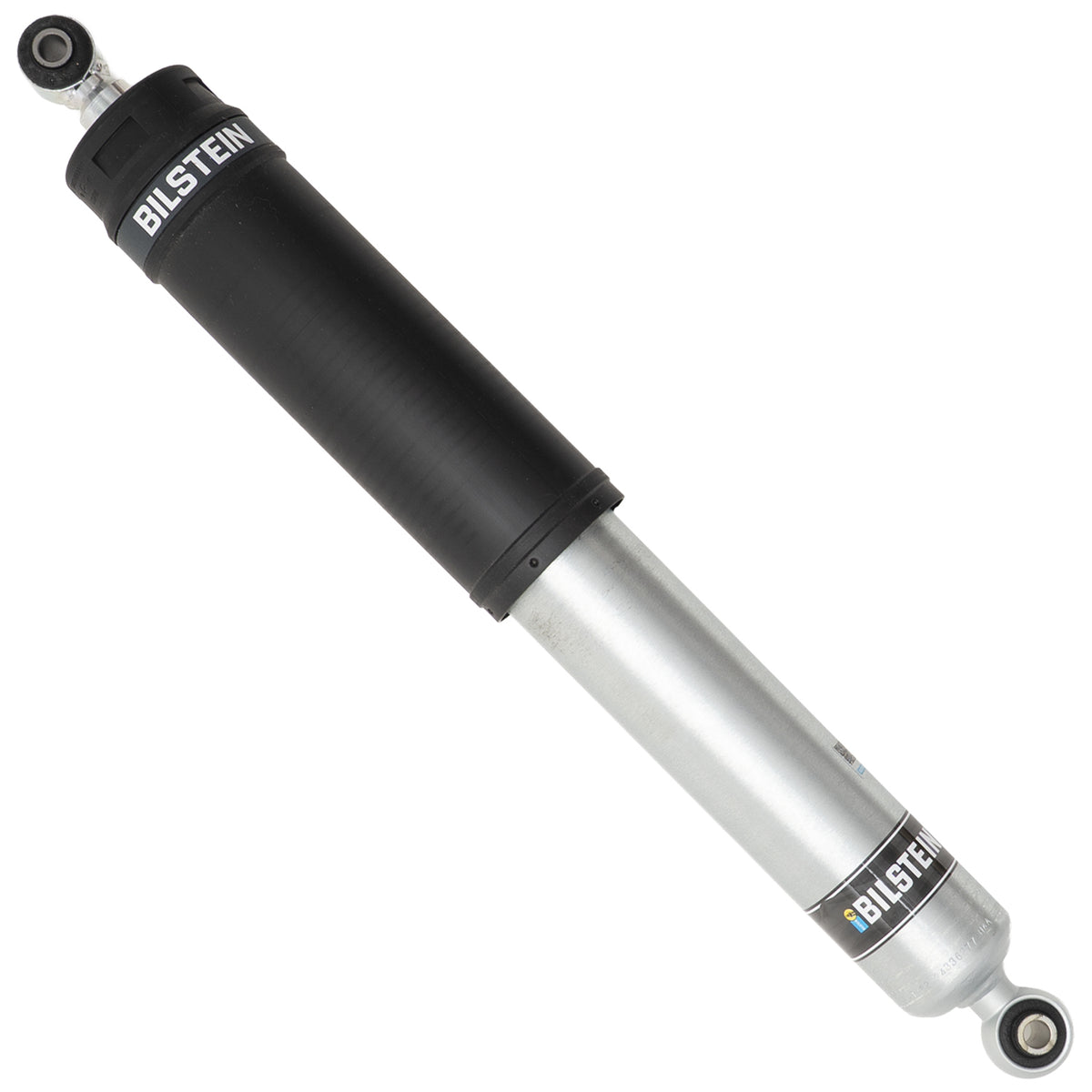

Bilstein 24-336277 B8 6100 - Suspension Shock Absorber
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Fits Vehicles With 0-1.5" Rear Lift
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-336277 |
| Adjustable Damping | Non-Adjustable |
| Body Design | Smooth Body (Non-coilover) |
| Boot Included | Black Straight |
| Collapsed Length (IN) | 16.22 |
| Collapsed Length (mm) | 411.9 |
| Extended Length (IN) | 24.41 |
| Extended Length (mm) | 620 |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 12.1mm |
| PartType | Shocks / Struts |
| Piston Diameter | 60mm |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 6100 |
| Shaft Diameter | 18mm |
| Spring Seat Included | No |
| Stroke/Travel Length (IN) | 8.19 |
| Stroke/Travel Length (mm) | 208.1 |
| Upper Mount Type | Eye 12.1mm |
| Country of Origin | US |
| Warranty | Lifetime |
| Weight (lbs) | 9 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Large 60mm body for increased oil capacity cooling and long-term durability
- 60mm digressive piston improves ride comfort and control over rough terrain
- Vehicle specific tuning
Fitment
| Years | Vehicle |
|---|---|
| 2024-2026 | Ford Ranger Lariat (Rear): Fits Vehicles With 0-1.5" Rear Lift |
| 2024-2026 | Ford Ranger XL (Rear): Fits Vehicles With 0-1.5" Rear Lift |
| 2024-2026 | Ford Ranger XLT (Rear): Fits Vehicles With 0-1.5" Rear Lift |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Bilstein B8 6100 shock absorbers are filled with the technology perfected over 3 decades of off-road dominance. Bilstein's monotube gas pressure design with a large 2.65-in OD body and 60mm digressive piston maximizes heat dissipation for increased shock life, and decreases oil foaming to prevent performance loss while providing a smoother ride and more control over rough terrain. The B8 6100 will provide increased durability, making them perfect for vehicles subjected to rugged roads and harsh conditions.
Specifications
- Collapsed Length (in): 16.22
- Extended Length (in): 24.41
- Collapsed Length (mm): 27.1
- Extended Length (mm): 620.0
- Stroke/travel Length (in): 8.19
- Lower Mount Type: Eye 12.1mm
- Upper Mount Type: Eye 12.1mm
- Internal Design: Monotube
- Finish: Zinc Plated
- Reservoir: No
- Body Design: Smooth Body (Non-coilover)
- Body Diameter (od): 2.65 in.
- Piston Diameter: 60mm
- Boot Included: Black Straight
- Spring Seat Included: No
- Shaft Diameter: 18mm
- Adjustable Damping: Non-Adjustable
- Country of Origin: US
- Quantity per Vehicle: 2
- UPC: 00651860966380
