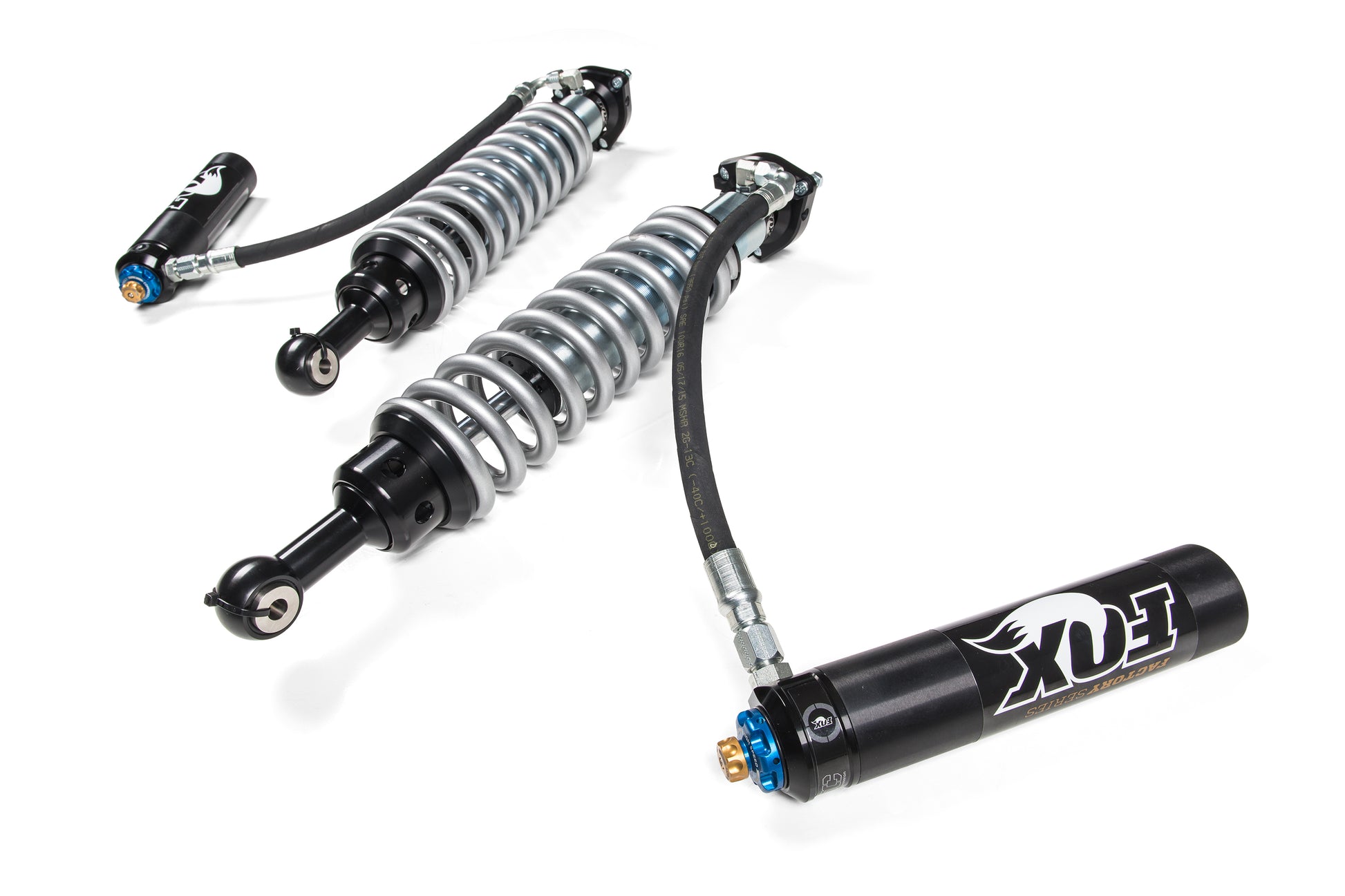

FOX 2.5 Coil-Over Shocks w/ DSC Reservoir Adjuster · 5.5 Inch Lift · Factory Series Chevy Colorado and GMC Canyon (15-21)
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Specifications
| Brand | FOX |
|---|---|
| Part number | FOX88306136 |
| Compressed Length | 18.55 |
| Cylinder Material | Steel |
| Extended Length | 24.69 |
| Gas Charged | No |
| Lower Mount Type | Eyelet |
| Reservoir Type | Remote |
| Shaft Diameter | 7/8 |
| Travel Length | 5.86 |
| Type | Coil-Over |
| Upper Mount Code | OEM |
| Upper Mount Type | OEM |
| Install time | 2 -3hrs |
Features
- 2.5-inch smooth bore zinc plated seamless steel body
- Zinc-plated and double-clear coated for long lasting finish
- Black-anodized, CNC-machined 6061-T6 billet aluminum
- Application-specific, adjustable 3.0 Eibach® racing springs
- 7/8-inch hard chrome-plated steel shafts
- Application specific valving to maximize performance
Fitment
| Years | Vehicle |
|---|---|
| 2017-2020 | Chevrolet Colorado: Base |
| 2022 | Chevrolet Colorado: LT, WT, Z71 (Diesel models only) |
| 2017-2021 | Chevrolet Colorado: LT, WT, Z71 |
| 2021 | Chevrolet Colorado: Z71 LT |
| 2015-2016 | Chevrolet Colorado |
| 2022 | GMC Canyon: AT4, Denali, Elevation (Diesel models only) |
| 2015-2021 | GMC Canyon |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Installation
- Estimated install time2 -3hrs
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Give your BDS 5.5-inch lift equipped 2015-2021 Chevy Colorado or GMC Canyon a race-winning technology upgrade to improve damping in any terrain with FOX Factory Series 2.5 Coil-Over shocks with Dual Speed Compression (DSC) Reservoir Adjusters. Before any FOX shocks reach production, they've had to stand the test of time and live up to incredible abuse by the fastest athletes in racing. FOX pushes the boundaries to give you that same precise control and race-proven performance you can feel in a bolt-on solution.
Coil-over shocks provide suspension damping and suspend the weight of the vehicle. The integrated coil spring can be adjusted for preload and ride height and come pre-set to level your vehicle right out of the box. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
FOX 2.5 Coil-Over Shocks w/ DSC Reservoir Adjuster for 2015-2021 Chevy Colorado and GMC Canyon provides 5.5 Inch Lift. Easy Install. Smoothest riding off road shock.Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
