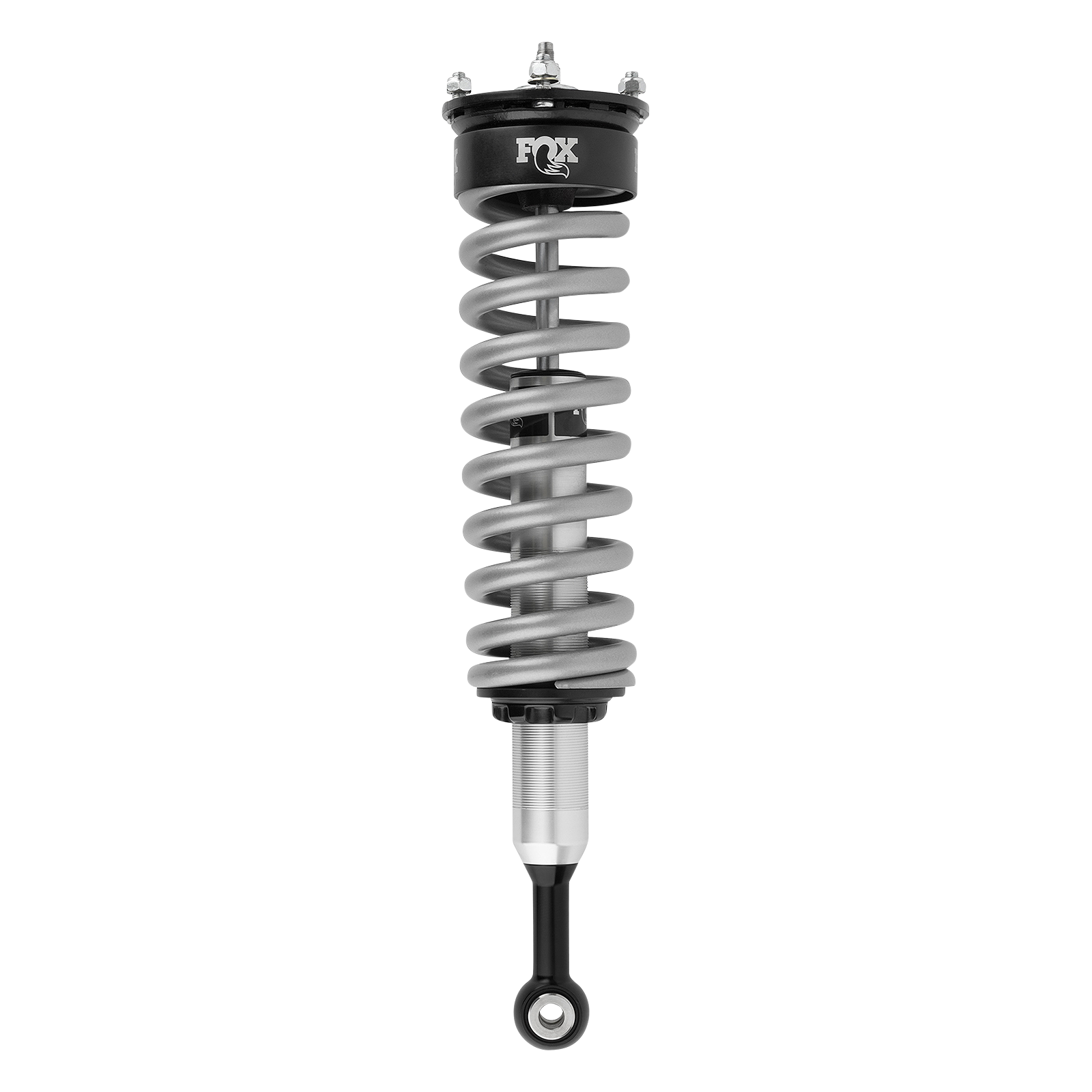

FOX 2.0 IFP Coilover Shock · 0-2 Inch Lift · Performance Series Toyota Tundra (00-06)
- Lift 0-2"
- Finish Clear-anodized
- Install 1-2 hrs
- Difficulty Moderately Easy
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Sold individually - order QTY 2 for a pair.
Specifications
| Brand | FOX |
|---|---|
| Part number | FOX98502005 |
| Lift Height | 0-2" |
| Adjustable Damping | No |
| Compressed Length | 13.6 |
| Extended Length | 18.19 |
| Finish | Clear-anodized |
| Gas Charged | Yes |
| Lower Mount Code | Eyelet |
| Lower Mount Type | Eyelet |
| Position | Front |
| Shaft Diameter | 5/8" |
| Travel Length | 4.59 |
| Type | Coil-Over |
| Upper Mount Code | OEM |
| Upper Mount Type | OEM |
| Install time | 1-2 hrs |
| Difficulty | Moderately Easy |
Features
- 2-inch Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
- 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Internal IFP mono-tube reservoir design
Installation
- Estimated install time1-2 hrs
- DifficultyModerately Easy
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Upgrade the on-road comfort and off-road control of your 2000-2006 Toyota Tundra 4WD to FOX Performance Series 2.0 Coilover IFP (internal floating piston) shocks. The mono-tube design's internal reservoir separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving.
Locking, spring preload rings that allow easy ride height and preload adjustment retain a top-quality racing coil, selected to deliver the optimal spring rate. FOX shocks bolt on with no modifications and are designed to level your truck front-to-rear. The metal impact-extruded aluminum body increases cooling capacity and resists rust. Vehicle-specific upper mount includes a composite bushing that isolates noise and vibration.
Upgrade your 2000-2006 Toyota Tundra 4WD with FOX 2.0 IFP coilovers. Adjustable 0-2" lift, and improved on/off-road performance.Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
