BDS Suspension Coilover Upgrade Kit · FOX 3.0 Internal Bypass Factory Race Series Toyota Tundra TRD Pro (22-26) 4WD
- Front lift 0"
- Lift 0-1.5"
- Max tire 285 / 75
- Rear lift 0"
- Shocks included
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Arms are designed to work with Fox Coilovers that require upper control arms and may not work with all aftermarket spacer lifts / lift kits (Will work with BDS 3” Lift).
- Ball joint cap must be removed for maintenance of ball joint. Remove cap to access grease zerk. Grease at regular maintenance intervals.
- For replacement ball joints, order BDS088200. Ball joints are not directional allow for max range of motion with 2”-3” lifts.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | BDS Suspension |
|---|---|
| Part number | BDS845FRS |
| UPC / GTIN | 840416435610 |
| Front Lift Height | 0" |
| Front Lift Method | Coil-Over |
| Lift Height | 0-1.5" |
| Max Tire Size | 285 / 75 |
| Rear Lift Height | 0" |
| Rear Lift Method | Stock |
| Shocks Included | Yes |

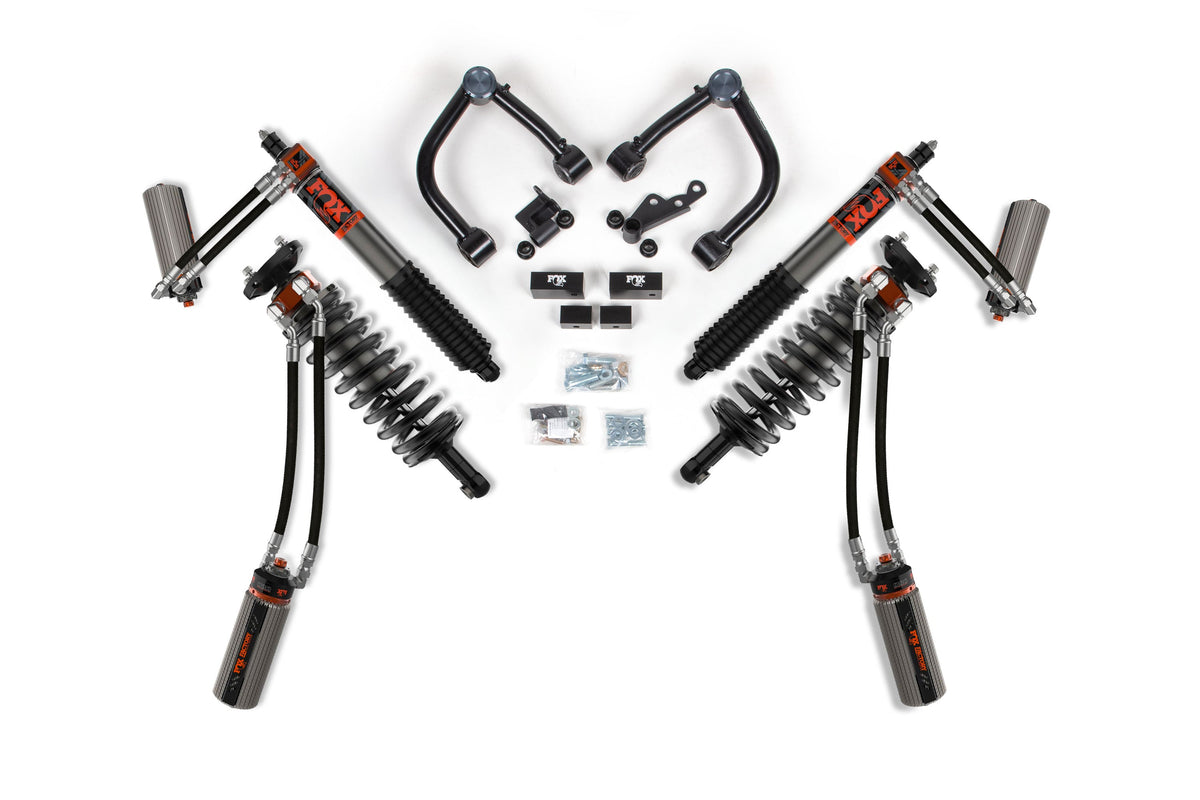

What's in the box
| Qty | Part | Description |
|---|---|---|
| 1 | BDS128254 | Upper Control Arm Kit | Toyota Tundra (22-26) |
| 1 | FOX88306219 | FOX 2.5 Remote Reservoir Front Coilover | 0-2 Inch Lift | Performance Elite Series | Toyota Tundra (22-26) |
Features
- FOX 2.5 Performance Elite series DSC coil-overs offer improved damper performance over stock
- BDS performance UCAs increase strength and allow for more suspension travel
- FOX 3.0 Factory Race Series Internal Bypass shocks included
- Factory Protection Plus drivetrain warranty included
- Easy, 100% Bolt on installation
Fitment
| Years | Vehicle |
|---|---|
| 2022-2026 | Toyota Tundra: TRD Pro |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Recommended wheels & tires
- 285 / 75 with 18 x 9 and 6.25" in. Backspace
- 295 / 60 with 20 x 9 and 5.5 in. Backspace
- 305 / 55 with 17 x 9 and 5 in. Backspace
Overview
Performance Leveling Kit for 2022–2026 Toyota Tundra TRD Pro Level Stance. Unmatched Control. Proven FOX Performance.
Unlock the protntial of your Tundra TRD Pro with this high-performance Leveling Kit, engineered to deliver a more aggressive stance while maintaining factory ride quality. Designed for 2022–2026 Toyota Tundra TRD Pro models, this kit enhances capability and aesthetics without compromising reliability.
FOX 3.0 Factory Race Series Internal Bypass Shocks:
These top-tier shocks offer superior control and damping performance with position-sensitive technology. Built for high-speed off-road use and confident on-road comfort, the FOX 3.0 Internal Bypass Shocks are fully rebuildable and tunable for serious enthusiasts.- Fox 3.0 Internal By-pass shocks with poistion sensative damping which results in increased comfort while on road with superb off road performance.
- Dual Speed Compression (DSC) Adjuster Increases both low and high-speed compression levels up to 25%
- Easy twist knobs for Low-Speed and High-Speed Compression adjustment
- Provides added control and comfort for on-road use
- More aggressive damping for use off-road
BDS Upper Control Arms:
High-strength UCAs from BDS improve suspension geometry and enhance front-end durability. Specifically designed to pair with performance coilovers, they increase travel while maintaining proper alignment.Front Differential Drop Kit Included:
The included diff drop ensures corrected front driveline angles for improved reliability and reduced wear during off-road excursions or heavy use.Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
