BDS Suspension 9 Inch Lift Kit w/ 4-Link · FOX 2.5 Performance Elite Coil-Over Conversion Ford F250/F350 Super Duty (20-22) 4WD · Diesel
- Front lift 9"
- Lift 8-10"
- Max tire 38 x 15.5
- Rear lift 8"
- Shocks included
- Install 12 hrs
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- The transfer case indexing ring is designed for diesel models only and will not fit gas models equipped with the 6R100 transmission.
- If equipped with a 2-piece rear driveshaft, a carrier-bearing drop kit may be required (BDS123402)
- 40x13.50 tires WILL require trimming.
- If your truck is equipped with a factory rear sway bar add BDS123009
- The indexing ring is not designed for manual shift transfer case models. Modification of the shift cable mount will be required.
- Fits SRW models only
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | BDS Suspension |
|---|---|
| Part number | BDS1959FPE |
| UPC / GTIN | 840416412130 |
| Front Lift Height | 9" |
| Front Lift Method | Coil-Over |
| Lift Height | 8-10" |
| Max Tire Size | 38 x 15.5 |
| Rear Lift Height | 8" |
| Rear Lift Method | Leaf Spring |
| Shocks Included | Yes |
| Install time | 12 hrs |
| Difficulty | Difficult |

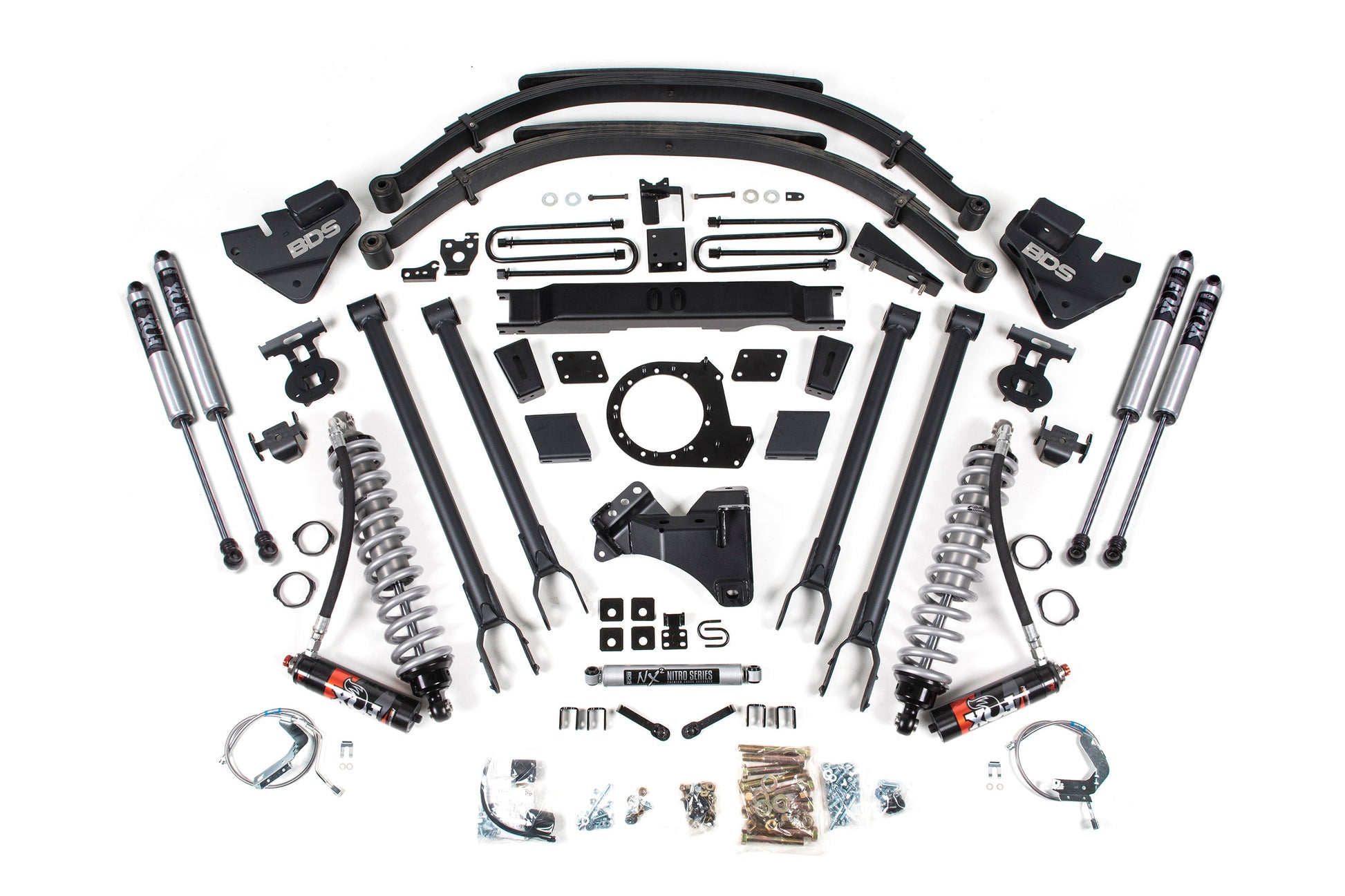

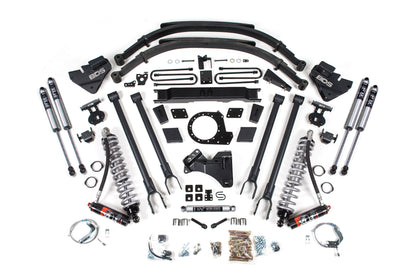

What's in the box
| Qty | Part | Description |
|---|---|---|
| 2 | BDS003839 | Rear Leaf Spring | 8 Inch Lift | Ford F250/F350 Super Duty (17-22) 4WD |
| 1 | BDS85431 | NX2 Steering Stabilizer Shock - Single | Ford F250/F350 Super Duty (17-26) 4WD |
| 1 | FOX88406429 | FOX 2.5 Coilover Shocks w/ DSC Reservoir | 8-9 Inch Lift | Performance Elite Series | Ford F250 / F350 Super Duty (8 Inch Lift: 05-19) | (9 Inch Lift: 20-26) 4WD |
| 2 | FOX98224721 | FOX 2.0 IFP Front Shock | 8 Inch Lift | Performance Series | Ford F250/F350 Super Duty (17-22) 4WD |
| 2 | FOX98224779 | FOX 2.0 IFP Rear Shock | 8 Inch Lift | Performance Series | Ford F250/F350 Super Duty (17-22) |
| 1 | BDS123805 | Transfer Case Indexing Ring | Fits 8 Inch Lift | Ford F250/F350 Super Duty (20-22) 4WD |
Features
- FOX 2.5 Coil-Over mounts in factory coil bucket location
- Adds additional secondary FOX 2.0 shock for max performance
- Eibach coil springs ride smooth through the roughest terrain
- Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
- Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
- Glideride leaf springs to provide full lift height and increased capacity with a built in overload spring
- FOX shocks are fully serviceable and resistant to corrosion and harsh environments.
Recommended wheels & tires
- 38 x 15.5 with 20 x 10 and 5 in. Backspace
- 40 x 13.5 with 20 x 10 and 5 in. Backspace
Installation
- Estimated install time12 hrs
- DifficultyDifficult
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Go to new heights with your 2020-2022 Ford F250 and F350 Super Duty diesel truck by installing this 9-inch 4-Link lift kit with FOX 2.5 Performance Elite coil-over shocks from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 40" tires.
Up front the lift kit includes diesel-specific FOX 2.5 coil-overs, 4-Link control arm conversion, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned FOX nitrogen charged secondary shocks.
At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes full replacement BDS Glideride leaf springs, u-bolts, brake line brackets and a matching set of FOX Performance shocks.
4-Link Conversion
Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.
FOX Performance Elite Coil-Over
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
T-Case Indexing
At this height, driveline adjustments are necessary to allow the use of the factory driveshafts so a precision-built transfer-case indexing ring featuring ARP-studs can clock the transfer case and improve the front driveline operating angle. Additionally, a high clearance transmission crossmember supplied to allow sufficient clearance.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
