BDS Suspension 9 Inch Lift Kit w/ 4-Link Ford F250/F350 Super Duty (20-22) 4WD · Diesel
- Front lift 9"
- Lift 8-10"
- Max tire 40 x 13.5
- Rear lift 8"
- Shocks included
- Install 6-8 hrs
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Traction Bars
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
- 40 x 13.50 tires WILL require trimming.
- Transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission.
- If your truck is equipped with a factory rear sway bar add: 123009
- Indexing ring has not been designed to work on manual shift transfer case models. Modification to the shift cable mount will be required.
- Fits SRW models only.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | BDS Suspension |
|---|---|
| Part number | BDS1959FS |
| UPC / GTIN | 840416412147 |
| Front Lift Height | 9" |
| Front Lift Method | Coil Spring |
| Lift Height | 8-10" |
| Max Tire Size | 40 x 13.5 |
| Rear Lift Height | 8" |
| Rear Lift Method | Leaf Spring |
| Shocks Included | Yes |
| Install time | 6-8 hrs |
| Difficulty | Moderate |
| Required Tools | 30mm Socket, Cut Off Wheel or Equiv., Pitman Arm Puller |
What's in the box
| Qty | Part | Description |
|---|---|---|
| 2 | BDS003839 | Rear Leaf Spring | 8 Inch Lift | Ford F250/F350 Super Duty (17-22) 4WD |
| 1 | BDS033811 | Coil Springs | 8 Inch Lift | Ford F250/F350 Super Duty (05-22) 4WD | Diesel |
| 1 | BDS85431 | NX2 Steering Stabilizer Shock - Single | Ford F250/F350 Super Duty (17-26) 4WD |
| 1 | BDS123805 | Transfer Case Indexing Ring | Fits 8 Inch Lift | Ford F250/F350 Super Duty (20-22) 4WD |
For: FOX 2.0 Performance Series
| Qty | Part | Description |
|---|---|---|
| 2 | FOX98224721 | FOX 2.0 IFP Front Shock | 8 Inch Lift | Performance Series | Ford F250/F350 Super Duty (17-22) 4WD |
| 2 | FOX98224779 | FOX 2.0 IFP Rear Shock | 8 Inch Lift | Performance Series | Ford F250/F350 Super Duty (17-22) |
For: NX2 Nitro Series
| Qty | Part | Description |
|---|---|---|
| 2 | BDS85721 | NX2 Nitro Front Shock | 8 Inch Lift | Ford F250/F350 Super Duty (17-22) 4WD |
| 2 | BDS85779 | NX2 Nitro Rear Shock | 8 Inch Lift | Ford F250/F350 Super Duty (17-22) |
Features
- Easy, 100% Bolt-on installation
- Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
- Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
- Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
- Fabricated steel blocks provide level stance from front to rear
- Standard NX2 Nitro shocks with vehicle-specific valving for better control

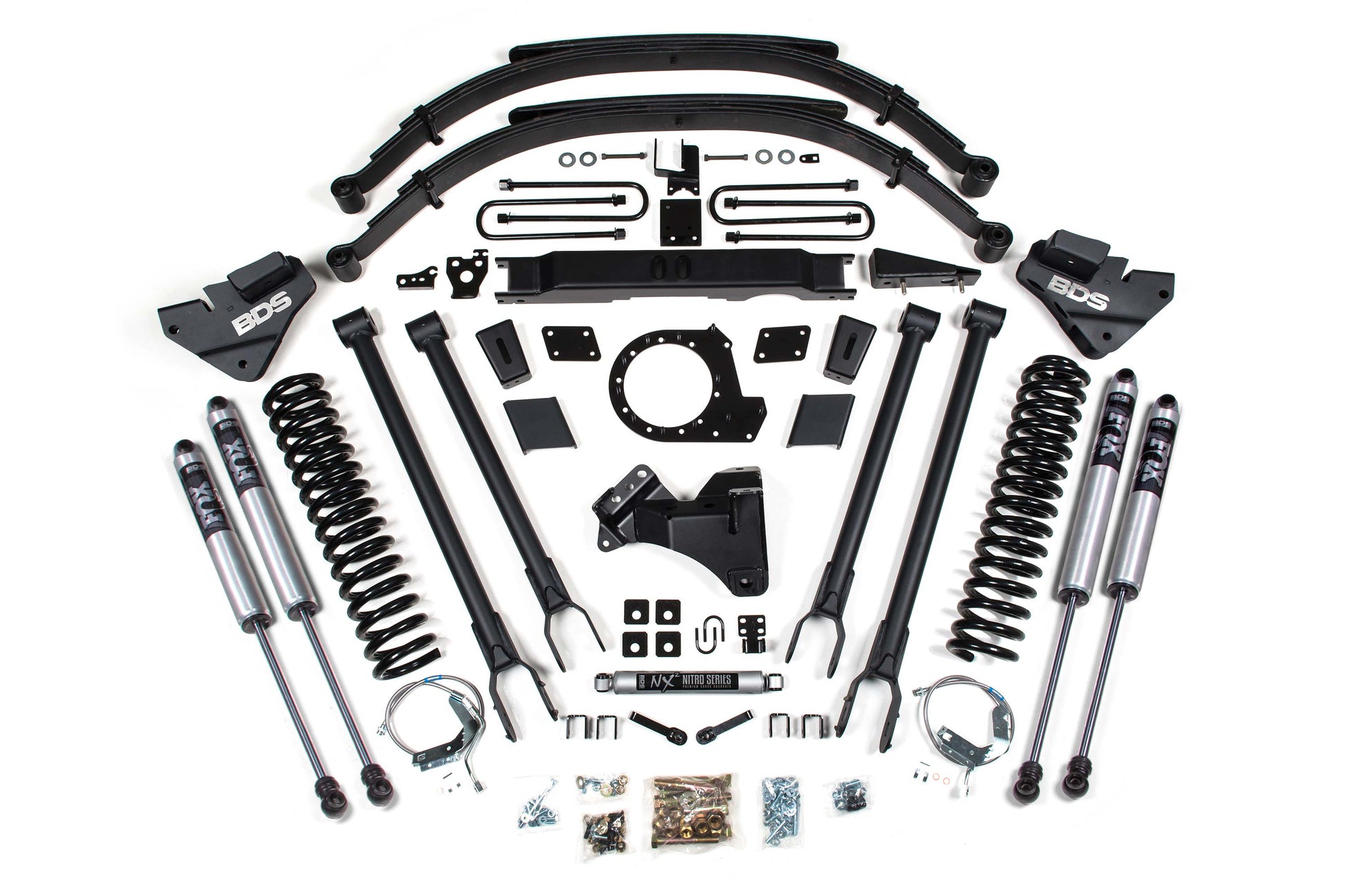

- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Fitment
| Years | Vehicle |
|---|---|
| 2020–2022 | Ford F-250 Super Duty 4WD DIESEL |
| 2020–2022 | Ford F-350 Super Duty King Ranch 4WD DIESEL |
| 2020–2022 | Ford F-350 Super Duty Lariat 4WD DIESEL |
| 2020–2022 | Ford F-350 Super Duty Limited 4WD DIESEL |
| 2020–2022 | Ford F-350 Super Duty Platinum 4WD DIESEL |
| 2020–2022 | Ford F-350 Super Duty XL 4WD DIESEL |
| 2020–2022 | Ford F-350 Super Duty XLT 4WD DIESEL |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Recommended wheels & tires
- 40 x 13.5 with 17 x 10 and 5 in. Backspace
Installation
- Estimated install time6-8 hrs
- DifficultyModerate
Free install support from the Trucks R Us tech team, for you or your shop.
Overview

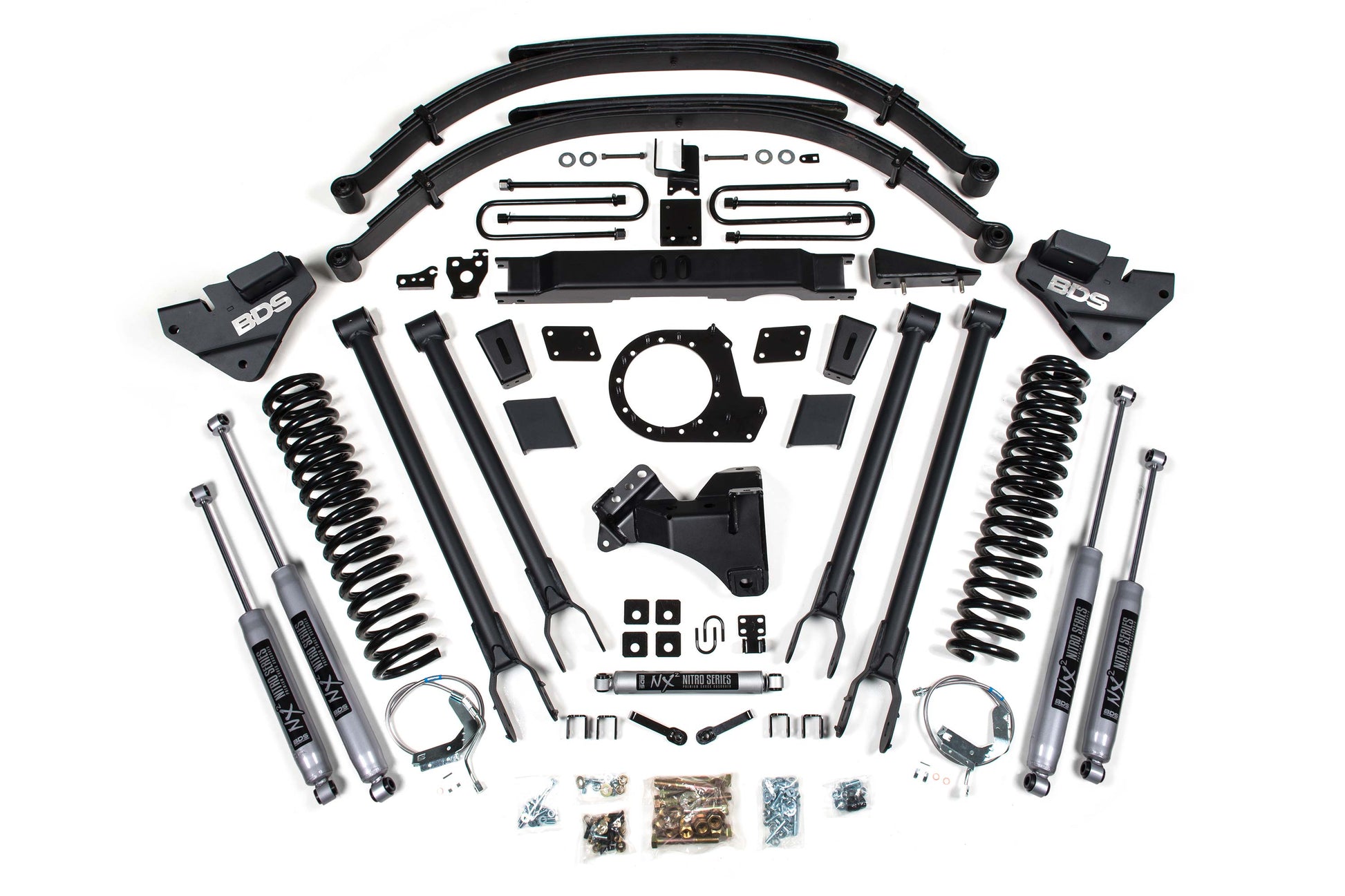

Take your Ford Super Duty diesel truck to the next level with this 9-inch 4-Link lift kit from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 40" tires.
Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-Link control arm conversion, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, bump stop extensions, stainless steel braided brake lines, NX2 steering stabilizer, and custom-tuned nitrogen charged shocks.
At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes full replacement Glideride leaf springs to provide full lift height and increased capacity with a built in overload spring, u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.
4-Link Conversion
Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.
Pro-Ride Coil Springs
A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
T-Case Indexing
At this height, driveline adjustments are necessary to allow the use of the factory driveshafts so a precision-built transfer-case indexing ring featuring ARP-studs can clock the transfer case and improve the front driveline operating angle. Additionally, a high clearance transmission crossmember supplied to allow sufficient clearance.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
About BDS Suspension
BDS Suspension offers a wide range of premium suspension parts and components to complete the build of your high-performance truck or Jeep. All BDS products are made in the USA and powder coated for a superior ultra-premium appearance. On or... Shop all BDS Suspension
