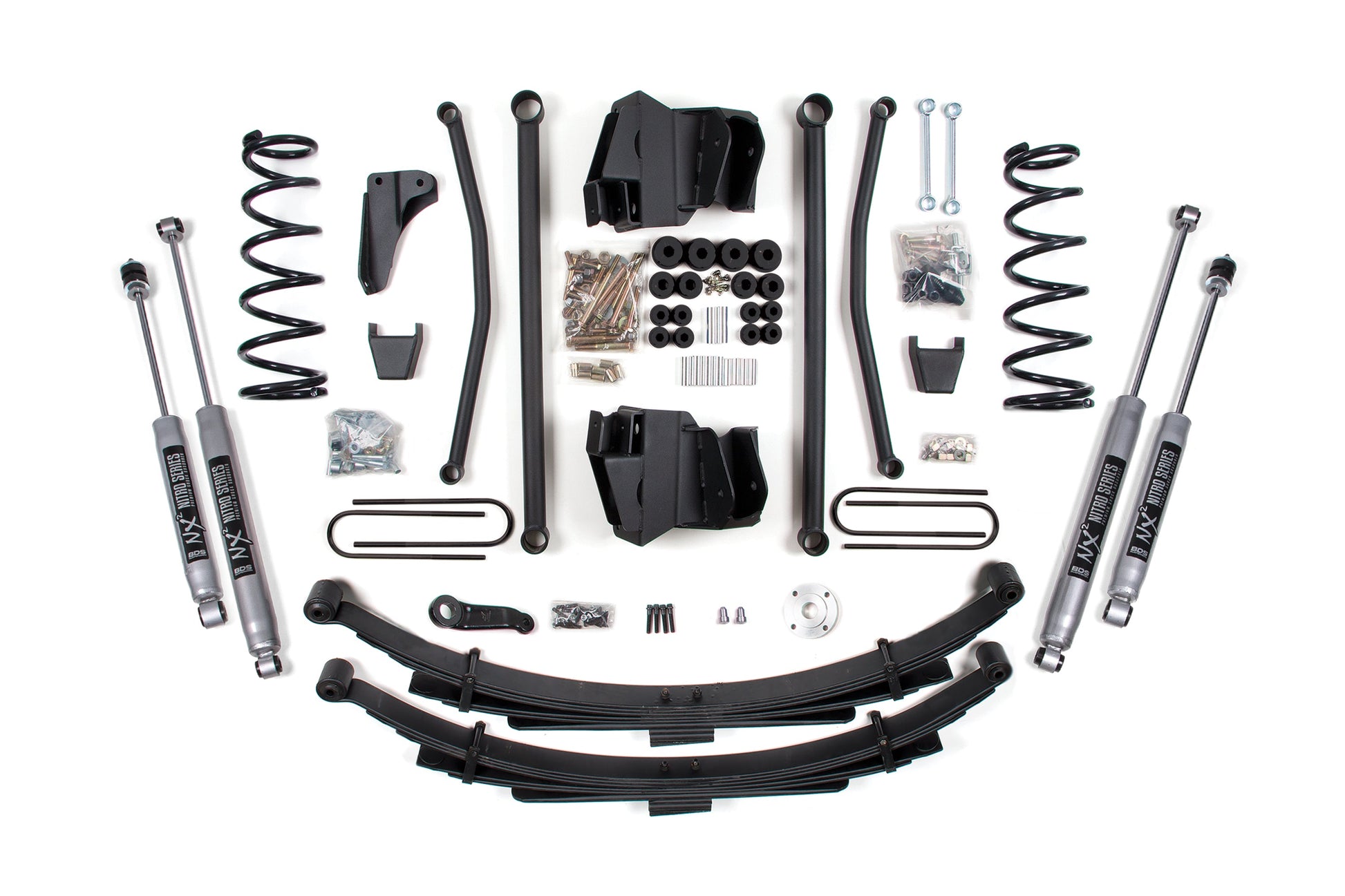

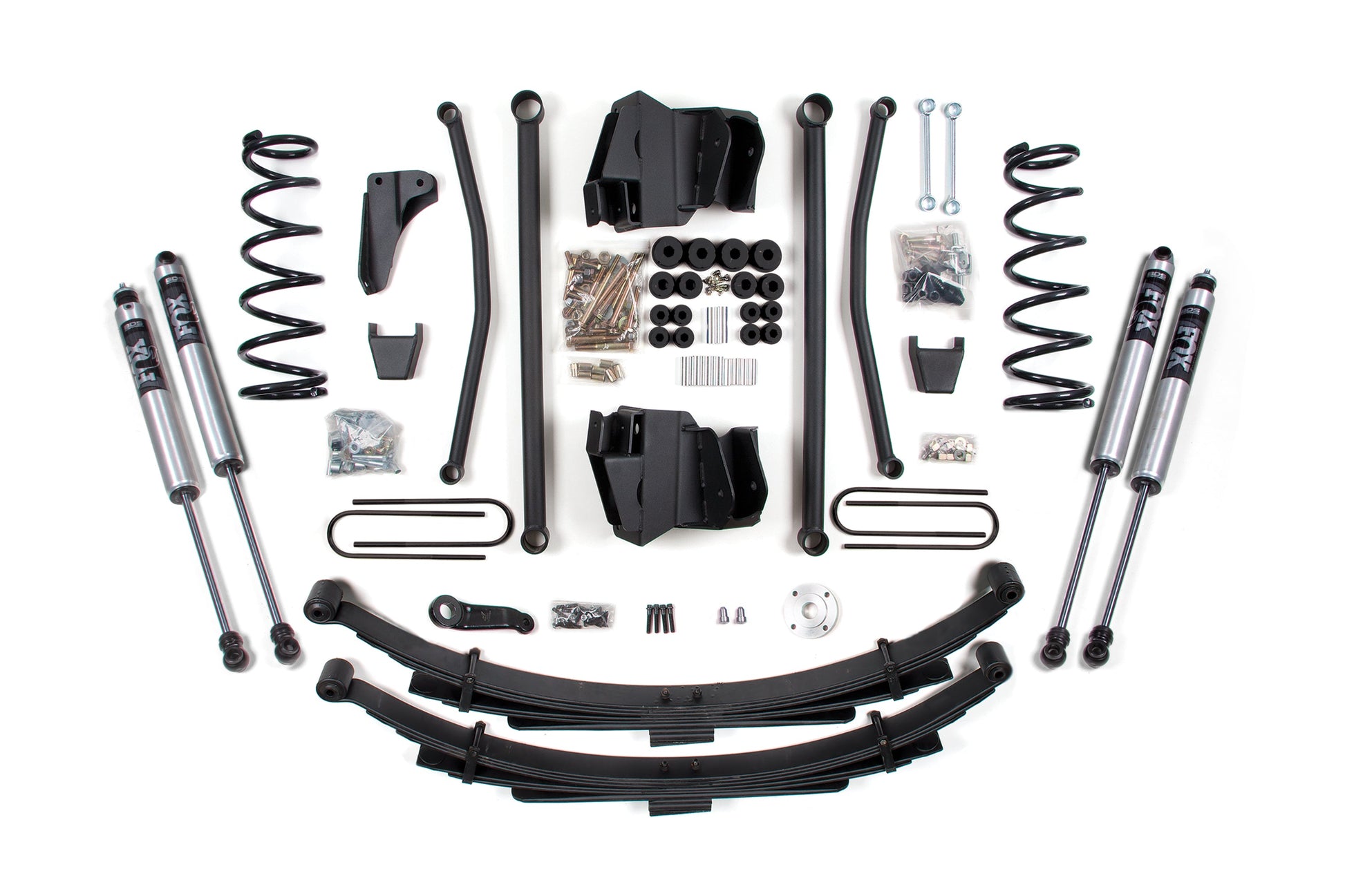

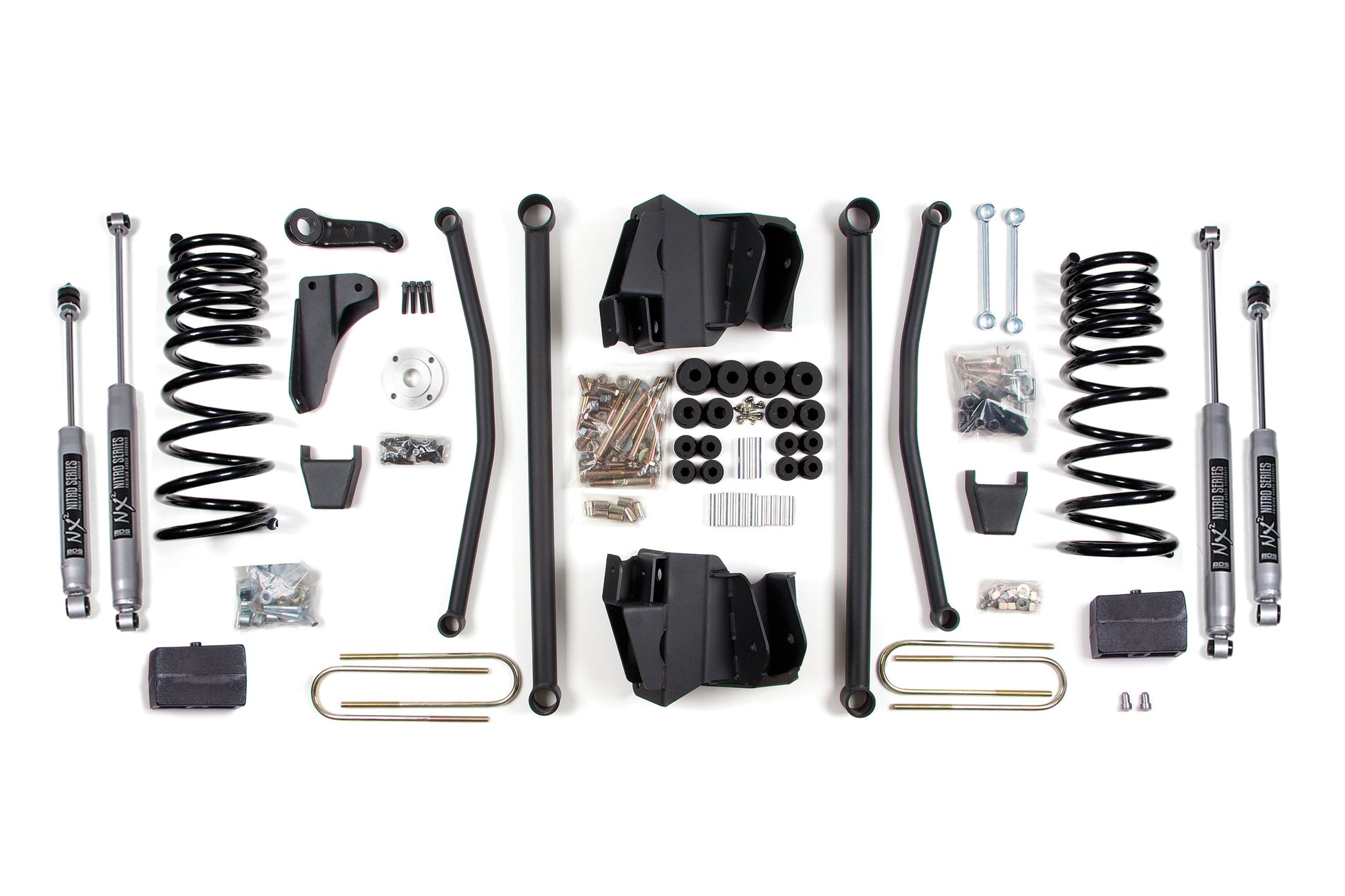

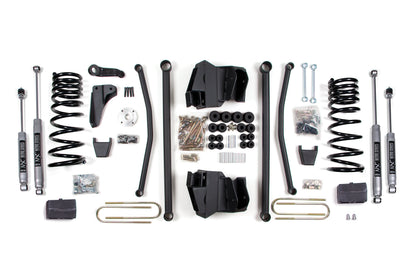

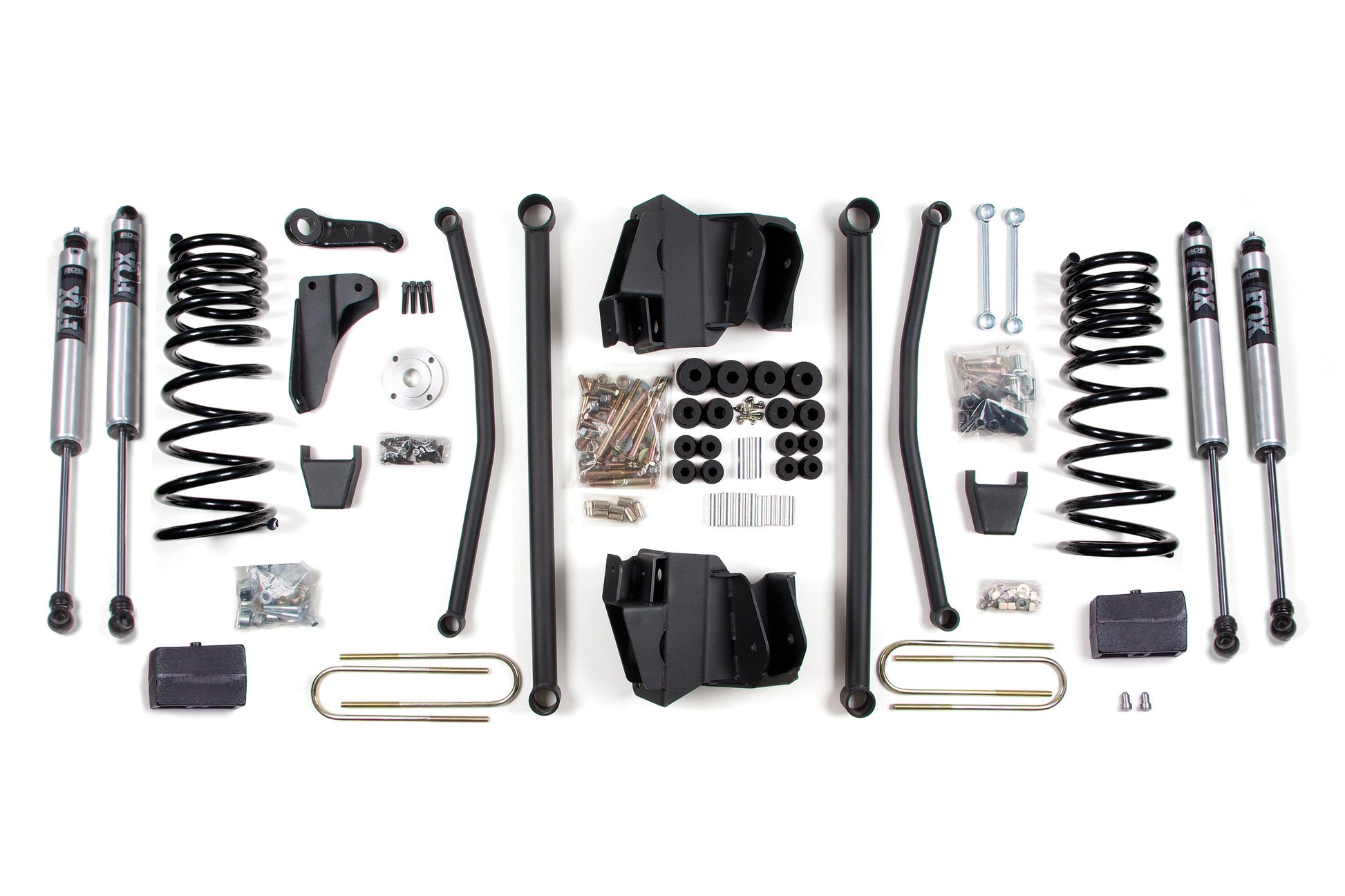

BDS Suspension 8 Inch Lift Kit · Long Arm Dodge Ram 2500 (09-13)/3500 (09-12) 4WD · Diesel
- Front lift 8"
- Lift 8-10"
- Max tire 38 x 13.5
- Rear lift 5"
- Shocks included
- Install 8 hrs
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Traction Bars
Accessories
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Measure rear axle tube before ordering. Some 4" axle models with dual overloads will require UBT4068.
- Rear lift options will not fit dually applications.
- If driveline vibration occurs, order either transfer case drop. NOTE: 122606 transfer case drop kit will only replace the OE bracket #52121938AA
- 102009 Rear brake lines will not fit 2012-2013 models.
- Additional front driveline modification may be required.
- Exhaust modification will be required for dual rear shock kit 122009.
- 2500 Gas models will require modification to the front exhaust crossover pipe on driver side for proper clearance when a transfer case indexing ring kit is installed
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | BDS Suspension |
|---|---|
| Part number | BDS630H |
| UPC / GTIN | 840416418774 |
| Front Lift Height | 8" |
| Front Lift Method | Coil Spring |
| Lift Height | 8-10" |
| Max Tire Size | 38 x 13.5 |
| Rear Lift Height | 5" |
| Rear Lift Method | Block |
| Shocks Included | Yes |
| Install time | 8 hrs |
| Difficulty | Moderate |
| Required Tools | Step Drill Bit, Drill / Bit Set, Pitman Arm Puller, Welding Equipment |
What's in the box
| Qty | Part | Description |
|---|---|---|
| 1 | BDS012801 | 4 Link Control Arm Mounts | Dodge Ram 2500 (03-13) & 3500 (03-12) 4WD |
| 1 | BDS012802 | 4 Link Control Arms Only| Dodge Ram 2500 (03-13) & 3500 (03-12) 4WD |
| 1 | BDS032801 | Coil Springs | 8 Inch Lift | Dodge Ram 2500 4WD (03-12) | Diesel |
For: Block Kit / 3-1/2 Inch Axle / NX2 Nitro Series
| Qty | Part | Description |
|---|---|---|
| 1 | BDS122801 | Transfer Case Indexing Ring | Automatic | Ram 2500 (03-13) 4WD |
| 2 | BDS85751 | NX2 Nitro Shock | Multiple Fitments | 30.00 x 17.25 x 2-3/8 - S50/EB2 |
| 2 | BDS85761 | NX2 Nitro Shock | Multiple Fitments | 33.00 x 19.25 x 2-3/8 - EB1/EB1 |
For: Block Kit / 4 Inch Axle / FOX 2.0 Performance Series
| Qty | Part | Description |
|---|---|---|
| 1 | BDS122811 | Transfer Case Indexing Ring | 6-Bolt | Ram 2500 (09-13) and 3500 (09-12) 4WD |
| 2 | FOX98224751 | FOX 2.0 IFP Shock | Performance Series | 29.85 x 18.25 x 2- S50/EB1 |
| 2 | FOX98224761 | FOX 2.0 IFP Shock | Performance Series | 33.85 x 20.75 x 2- EB1/EB1 |
For: Block Kit / 4 Inch Axle / NX2 Nitro Series
| Qty | Part | Description |
|---|---|---|
| 1 | BDS122811 | Transfer Case Indexing Ring | 6-Bolt | Ram 2500 (09-13) and 3500 (09-12) 4WD |
| 2 | BDS85751 | NX2 Nitro Shock | Multiple Fitments | 30.00 x 17.25 x 2-3/8 - S50/EB2 |
| 2 | BDS85761 | NX2 Nitro Shock | Multiple Fitments | 33.00 x 19.25 x 2-3/8 - EB1/EB1 |
For: Leaf Springs / 4 Inch Axle / FOX 2.0 Performance Series
| Qty | Part | Description |
|---|---|---|
| 2 | BDS002508 | Rear Leaf Spring | 5 Inch Lift | Dodge Ram 2500/3500 (03-12) |
| 1 | BDS122811 | Transfer Case Indexing Ring | 6-Bolt | Ram 2500 (09-13) and 3500 (09-12) 4WD |
| 2 | FOX98224751 | FOX 2.0 IFP Shock | Performance Series | 29.85 x 18.25 x 2- S50/EB1 |
| 2 | FOX98224761 | FOX 2.0 IFP Shock | Performance Series | 33.85 x 20.75 x 2- EB1/EB1 |
| 4 | UBT4067 | Automotive Axle U-Bolt - Round |
For: Leaf Springs / 4 Inch Axle / NX2 Nitro Series
| Qty | Part | Description |
|---|---|---|
| 2 | BDS002508 | Rear Leaf Spring | 5 Inch Lift | Dodge Ram 2500/3500 (03-12) |
| 1 | BDS122811 | Transfer Case Indexing Ring | 6-Bolt | Ram 2500 (09-13) and 3500 (09-12) 4WD |
| 2 | BDS85751 | NX2 Nitro Shock | Multiple Fitments | 30.00 x 17.25 x 2-3/8 - S50/EB2 |
| 2 | BDS85761 | NX2 Nitro Shock | Multiple Fitments | 33.00 x 19.25 x 2-3/8 - EB1/EB1 |
| 4 | UBT4067 | Automotive Axle U-Bolt - Round |
Features
- Tubular long arms reduce caster change and create more controlled feeling on and off road
- Heavy duty control arm brackets maintain proper suspension geometry
- Front high strength progressive rate coil springs for a great ride on any terrain
- Front track bar relocation bracket to re-position axle
- Forged drop pitman arm to correct steering angles
- Front sway bar correction to maintain handling performance
- BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance
Recommended wheels & tires
- 38 x 13.5 with 17 x 9 and 4.5 in. Backspace
Installation
- Estimated install time8 hrs
- DifficultyModerate
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Built to outperform, BDS Suspension engineered an 8-inch lift kit with long-arm conversion for your 2009-2013 Dodge RAM 2500 diesel-powered truck, which maximizes performance on and off the road. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your vehicle up right with clearance for up to 38" tires. BDS built the long lower control arms to reduce caster change through wheel travel, which creates a more controlled steering feel. This long-arm system retains the factory triangulation of the arms, which adds to the stability of the suspension system.
Up front, the lift kit includes diesel-specific Pro-Ride coil springs, all four control arms plus mounting brackets, a forged drop pitman arm and track bar bracket for steering correction, bump stops, sway bar links, and precision-tuned NX2 or FOX 2.0 nitrogen-charged shocks. In the rear, this kit utilizes heavy-duty cast steel blocks, longer U-bolts, and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.
Pro-Ride Coil Springs
A pair of full-length, diesel-specific, progressive-rate Pro-Ride coil springs is supplied to provide the correct lift height and a smooth, predictable ride across various terrains. Manufactured from high-tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameters. This results in maximum reliability without premature coil bind.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy-duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Upgrade your 2009–2013 Dodge Ram 2500/3500 diesel 4WD with an 8" BDS lift kit, including Pro-Ride coil springs, control arms, and track bar for optimal off-road performance.Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
