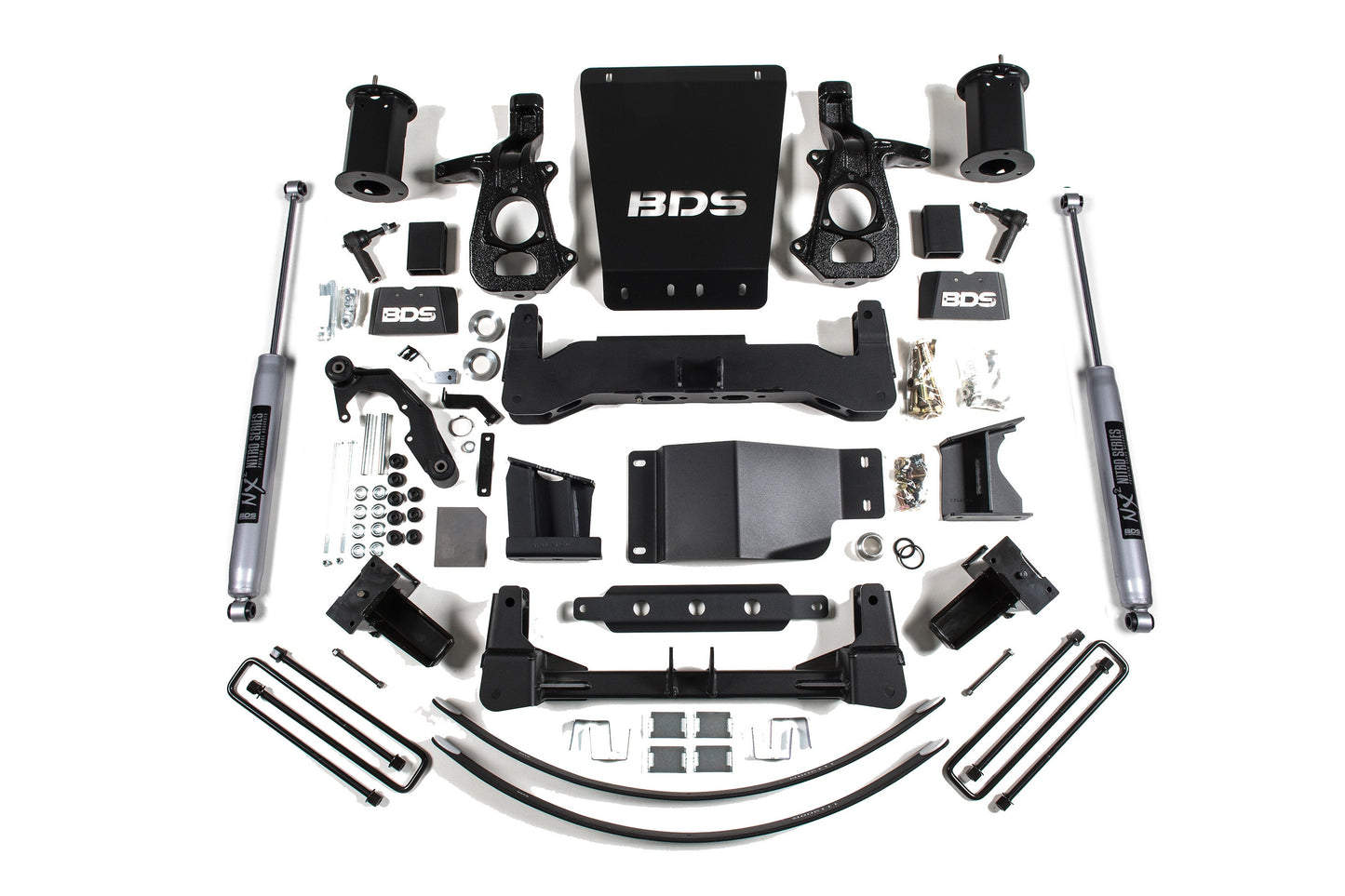

BDS Suspension 8 Inch Lift Kit Chevy Silverado or GMC Sierra 1500 (14-18) 4WD
- Front lift 8"
- Lift 8-10"
- Max tire 35 x 12.5
- Rear lift 6"
- Shocks included
- Install 8 hrs
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Traction Bars
Control Arms
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- *IMPORTANT*: GM is producing several knuckle/control arm configurations in 2014-2018 models trucks. Cast Steel control arm equipped models will require the "Cast Steel Control Arm" kit. Stamped Steel and Aluminum control arm equipped models will require the "Aluminum Control Arm" kit. Be sure to verify which factory control arms your truck has before ordering by referecing our help images when customizing your kit.
- Requires frame bracket modification
- Requires differential modification to clear electric power steering
- Vehicles came from the factory with several knuckle/control arm configurations requiring specific kit selections. Be sure to reference the important notes and images above to determine the correct control arm selection for your application.
- Factory 17" and 18" wheels cannot be reinstalled due to tie rod end interference.
- All wheel drive models require drive line modification.
- Will not fit MagneRide magnetic ride control equipped models
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | BDS Suspension |
|---|---|
| Part number | BDS743FS |
| UPC / GTIN | 840416420791 |
| Front Lift Height | 8" |
| Front Lift Method | Cross-Member |
| Lift Height | 8-10" |
| Max Tire Size | 35 x 12.5 |
| Rear Lift Height | 6" |
| Rear Lift Method | Block |
| Shocks Included | Yes |
| Install time | 8 hrs |
| Difficulty | Difficult |

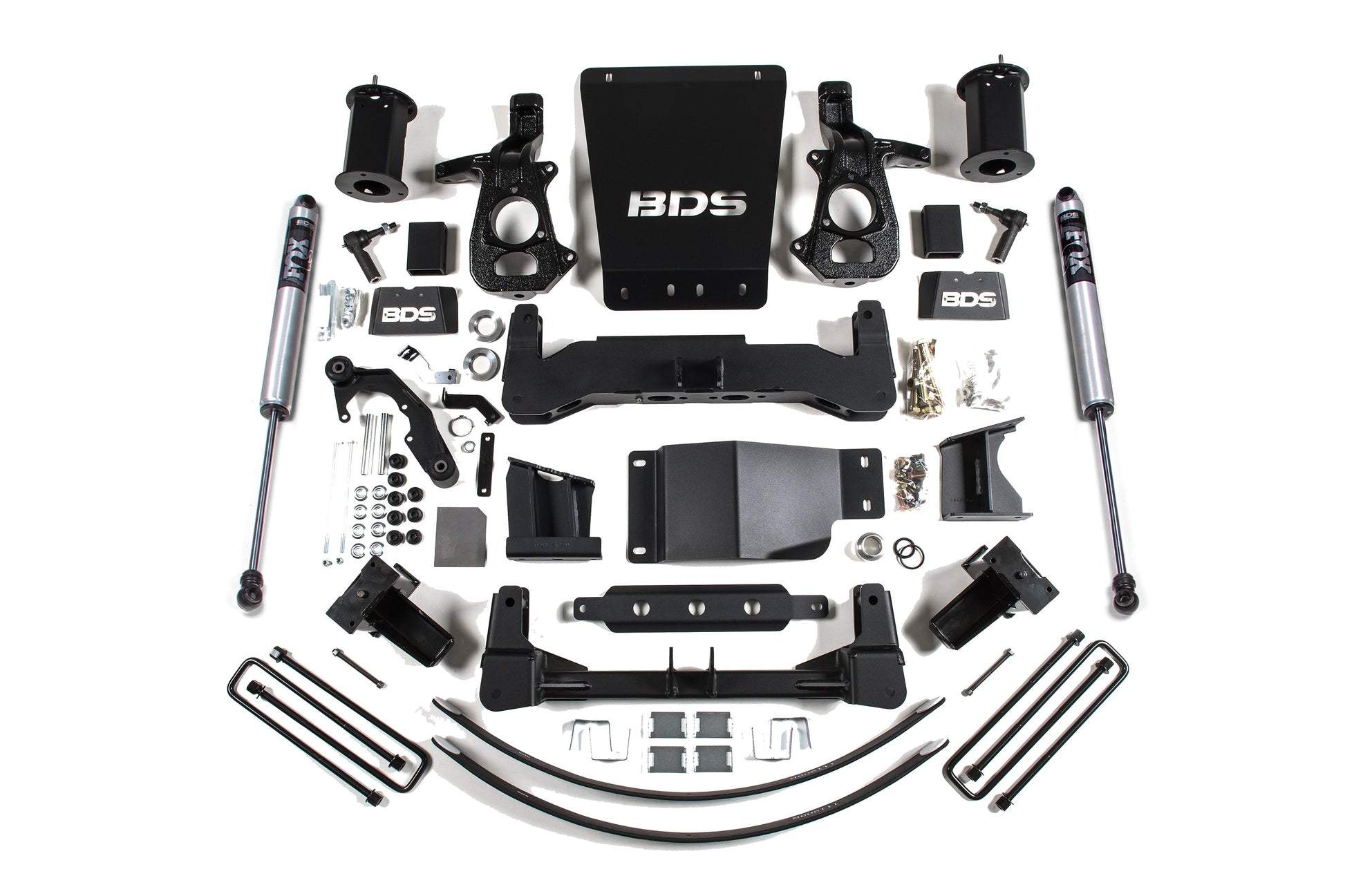

What's in the box
For: FOX 2.0 Performance Series / Aluminum / Stamped Steel
| Qty | Part | Description |
|---|---|---|
| 2 | FOX98224761 | FOX 2.0 IFP Shock | Performance Series | 33.85 x 20.75 x 2- EB1/EB1 |
For: NX2 Nitro Series / Aluminum / Stamped Steel
| Qty | Part | Description |
|---|---|---|
| 2 | BDS85761 | NX2 Nitro Shock | Multiple Fitments | 33.00 x 19.25 x 2-3/8 - EB1/EB1 |
For: FOX 2.0 Performance Series / Cast Steel
| Qty | Part | Description |
|---|---|---|
| 2 | FOX98224761 | FOX 2.0 IFP Shock | Performance Series | 33.85 x 20.75 x 2- EB1/EB1 |
For: NX2 Nitro Series / Cast Steel
| Qty | Part | Description |
|---|---|---|
| 2 | BDS85761 | NX2 Nitro Shock | Multiple Fitments | 33.00 x 19.25 x 2-3/8 - EB1/EB1 |
Features
- High clearance crossmember design maximizes ground clearance
- Robust steering knuckles maintain ESC system compliance
- HD skid plate system improved offroad protection
- Multipoint differential relocation brackets to secure the front axle and improve CV angles
- Factory Protection Plus drivetrain warranty included
Fitment
| Years | Vehicle |
|---|---|
| 2014–2018 | Chevrolet Silverado 1500 |
| 2014–2018 | GMC Sierra 1500 |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Recommended wheels & tires
- 35 x 12.5 with 18 x 9 and 5 in. Backspace
- 35 x 12.5 with 20 x 9 and 5.5 in. Backspace
- 35 x 12.5 with 22 x 10 and 5.5 in. Backspace
Installation
- Estimated install time8 hrs
- DifficultyDifficult
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Go big with the BDS 8-inch lift kit for your 2014-2018 Chevy Silverado and GMC Sierra 1500 resulting in one of a kind lifted truck. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes top mount strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear BDS offers both replacement lift block / add-a-leaf combo and full Glide-Ride leaf spring options to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, brake line brackets and precision tuned NX2 Nitro or FOX 2.0 Performance Series shocks.
High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
