BDS Suspension 6 Inch Lift Kit w/ 4-Link · FOX 2.5 Performance Elite Coil-Over Conversion Ford F350 Super Duty DRW (20-22) 4WD · Diesel
- Front lift 6"
- Lift 6-7.5"
- Max tire 38 x 13.5
- Rear lift 4"
- Shocks included
- Install 8 hrs
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Steering Stabilizers
Accessories
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Due to the taller factory ride height, Tremor models will not net the full advertised lift height. The final right height will be the same as standard models.
- Dually Diesel Models Only
- The transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission.
- If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402).
- 38 x 13.50 tires may require minor trimming.
- The indexing ring is not designed for manual shift transfer case models. Modification of the shift cable mount will be required.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | BDS Suspension |
|---|---|
| Part number | BDS1574FPE |
| UPC / GTIN | 840416404203 |
| Front Lift Height | 6" |
| Front Lift Method | Coil-Over |
| Lift Height | 6-7.5" |
| Max Tire Size | 38 x 13.5 |
| Rear Lift Height | 4" |
| Rear Lift Method | Block |
| Shocks Included | Yes |
| Install time | 8 hrs |
| Difficulty | Difficult |

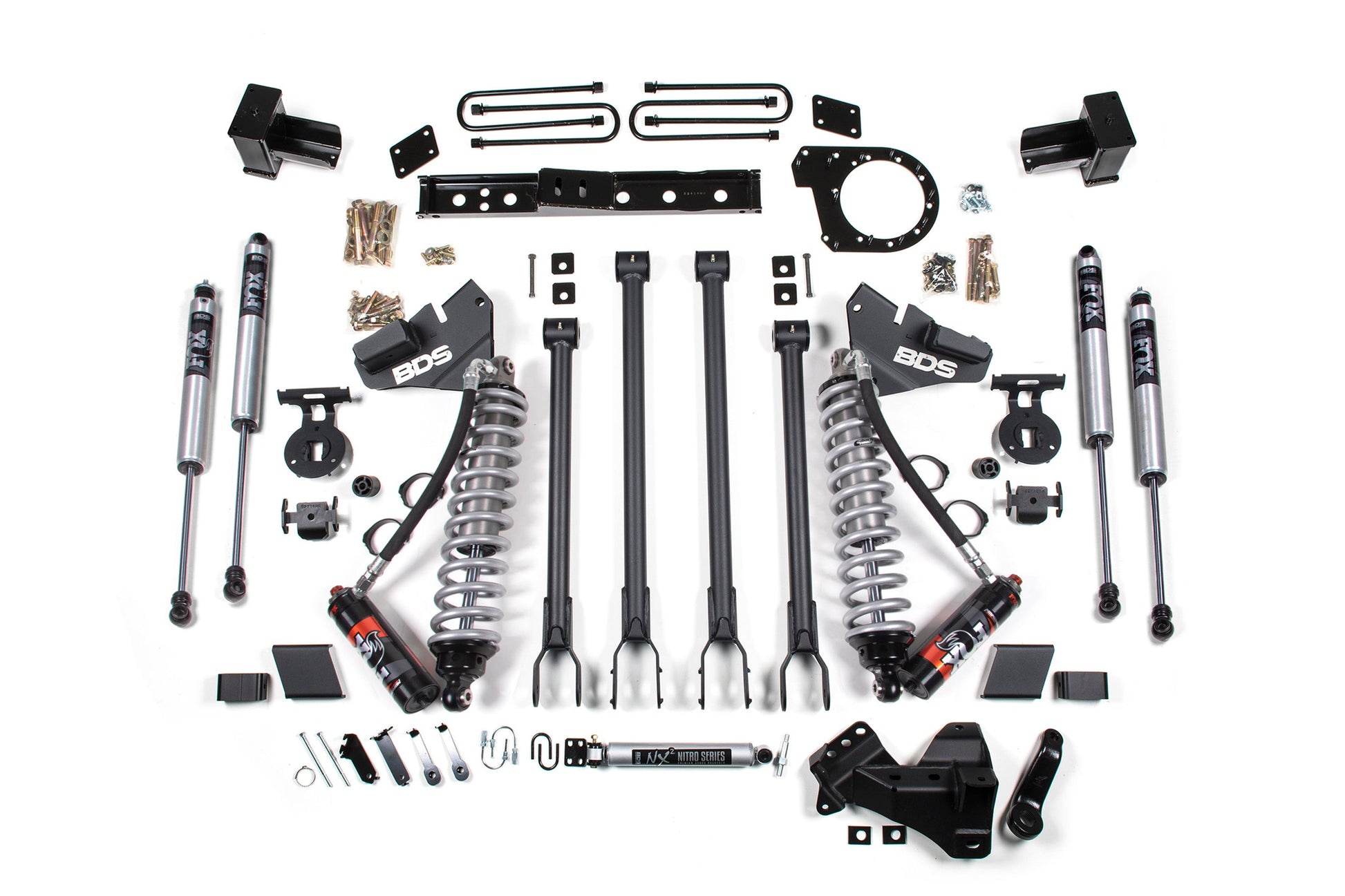

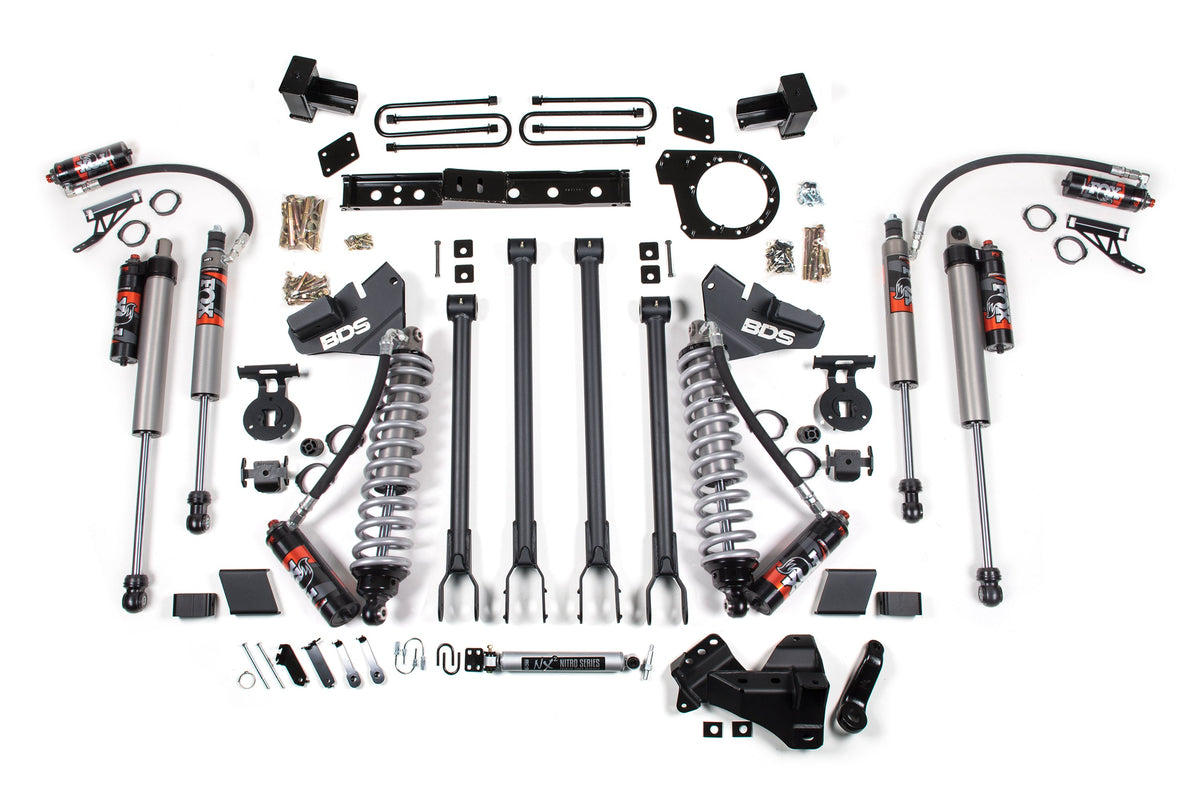

What's in the box
| Qty | Part | Description |
|---|---|---|
| 1 | BDS123605 | Transfer Case Indexing Ring | Fits 6 Inch Lift | Ford F250/F350 Super Duty (17-26) 4WD |
| 1 | BDS85431 | NX2 Steering Stabilizer Shock - Single | Ford F250/F350 Super Duty (17-26) 4WD |
| 1 | FOX88406428 | FOX 2.5 Coilover Shocks w/ DSC Reservoir | 6-7 Inch Lift | Performance Elite Series | Ford F250 / F350 Super Duty (6 Inch Lift: 05-19) | (7 Inch Lift: 20-26) 4WD |
For: FOX 2.0 Performance Series
| Qty | Part | Description |
|---|---|---|
| 2 | FOX98224718 | FOX 2.0 IFP Rear Shock | 3-6 Inch Lift | Performance Series | Ford F250/F350 Super Duty (17-26) 4WD |
| 2 | FOX98224750 | FOX 2.0 IFP Shock | Performance Series | 28.25 x 17.15 x 2- S50/EB1 |
For: FOX 2.5 Performance Elite
| Qty | Part | Description |
|---|---|---|
| 1 | FOX88326099 | FOX 2.5 Reservoir Front Shocks Adjustable | Performance Elite | 4-6 Inch Lift | Ford F250/F350 Superduty (17-26) |
| 1 | FOX88326100 | FOX 2.5 Remote Reservoir Rear Shocks - DSC | 4-6 Inch Lift | Performance Elite Series | Ford F250/F350 Super Duty (17-26) 4WD |
Features
- FOX 2.5 Coil-Over mounts in factory coil bucket location
- Adds additional secondary FOX 2.0 shock for max performance
- Eibach coil springs ride smooth through the roughest terrain
- Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
- Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
- Fabricated steel blocks provide level stance from front to rear
- FOX shocks are fully serviceable and resistant to corrosion and harsh environments.
Fitment
| Years | Vehicle |
|---|---|
| 2020–2022 | Ford F-250 Super Duty King Ranch 4WD DIESEL |
| 2020–2022 | Ford F-250 Super Duty Lariat 4WD DIESEL |
| 2020–2022 | Ford F-250 Super Duty Limited 4WD DIESEL |
| 2020–2022 | Ford F-250 Super Duty Platinum 4WD DIESEL |
| 2020–2022 | Ford F-250 Super Duty XL 4WD DIESEL |
| 2020–2022 | Ford F-250 Super Duty XLT 4WD DIESEL |
| 2020–2022 | Ford F-350 Super Duty King Ranch 4WD DIESEL |
| 2020–2022 | Ford F-350 Super Duty Lariat 4WD DIESEL |
| 2020–2022 | Ford F-350 Super Duty Limited 4WD DIESEL |
| 2020–2022 | Ford F-350 Super Duty Platinum 4WD DIESEL |
| 2020–2022 | Ford F-350 Super Duty XL 4WD DIESEL |
| 2020–2022 | Ford F-350 Super Duty XLT 4WD DIESEL |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Recommended wheels & tires
- 38 x 13.5 with and in. Backspace
Installation
- Estimated install time8 hrs
- DifficultyDifficult
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Raise the bar and take your dual rear wheel "DRW" Ford F350 Super Duty diesel truck to the next level with this 6-inch radius arm lift kit with FOX 2.5 Performance Elite Coil-over shocks from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your dually Ford truck up right with clearance for up to 38" tires.
Up front the lift kit includes FOX 2.5 coil-over shocks, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and secondary FOX 2.0 shocks.
At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of FOX 2.0 Performance shocks.
FOX Performance Elite Coil-Over
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
HD Radius Arms
In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.
T-Case Indexing
At this height, driveline adjustments are necessary to allow the use of the factory driveshafts so a precision-built transfer-case indexing ring featuring ARP-studs can clock the transfer case and improve the front driveline operating angle. Additionally, a high clearance transmission crossmember supplied to allow sufficient clearance.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
About BDS Suspension
BDS Suspension offers a wide range of premium suspension parts and components to complete the build of your high-performance truck or Jeep. All BDS products are made in the USA and powder coated for a superior ultra-premium appearance. On or... Shop all BDS Suspension
