BDS Suspension 6 Inch Lift Kit | FOX 2.5 Performance Elite Coilover | Ram 1500 (13-18) & Ram 1500 Classic (19-24) 4WD

Name: BDS Suspension 6 Inch Lift Kit | FOX 2.5 Performance Elite Coilover | Ram 1500 (13-18) & Ram 1500 Classic (19-24) 4WD
Brand: BDS Suspension
SKU: BDS1755PES
Price: 6302.65 USD
Availability: InStock

BDS Suspension 6 Inch Lift Kit | FOX 2.5 Performance Elite Coilover | Ram 1500 (13-18) & Ram 1500 Classic (19-24) 4WD

PART #

$6,302.65

SALE CALL OR CHAT TO ORDER

Shipping calculated at checkout.

Product variants

Quantity

Inventory: Call or Live-Chat

View full details

Important: Always read the entire product description, including Features, Important Notes, Specifications, and Fitment data, before making a purchase. Components contained in images and descriptions may change based upon your selections.

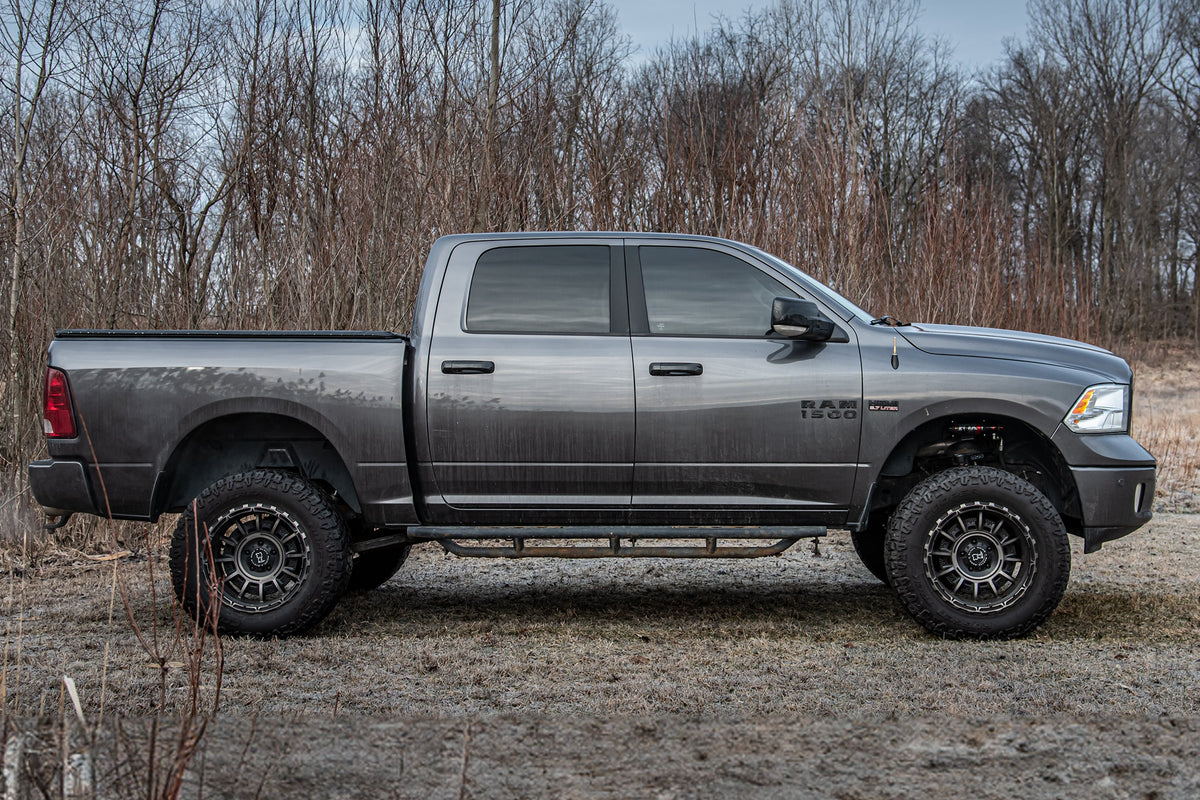

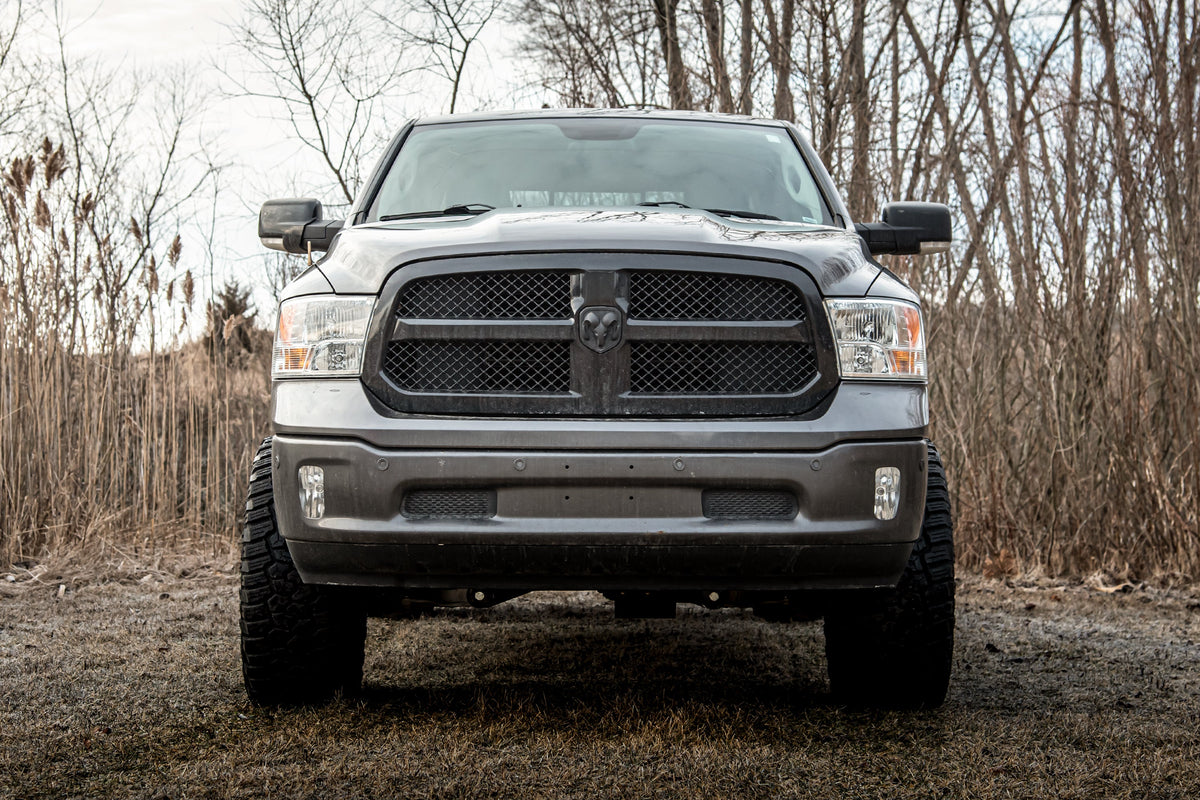

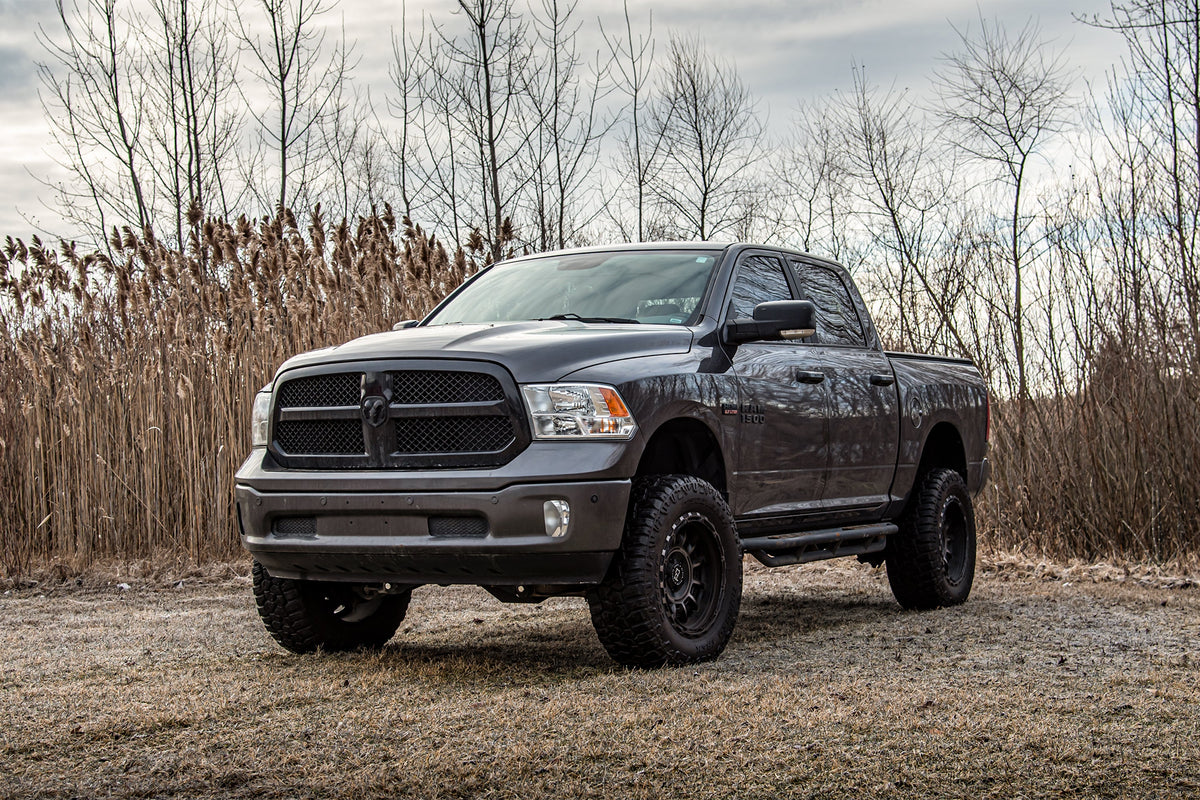

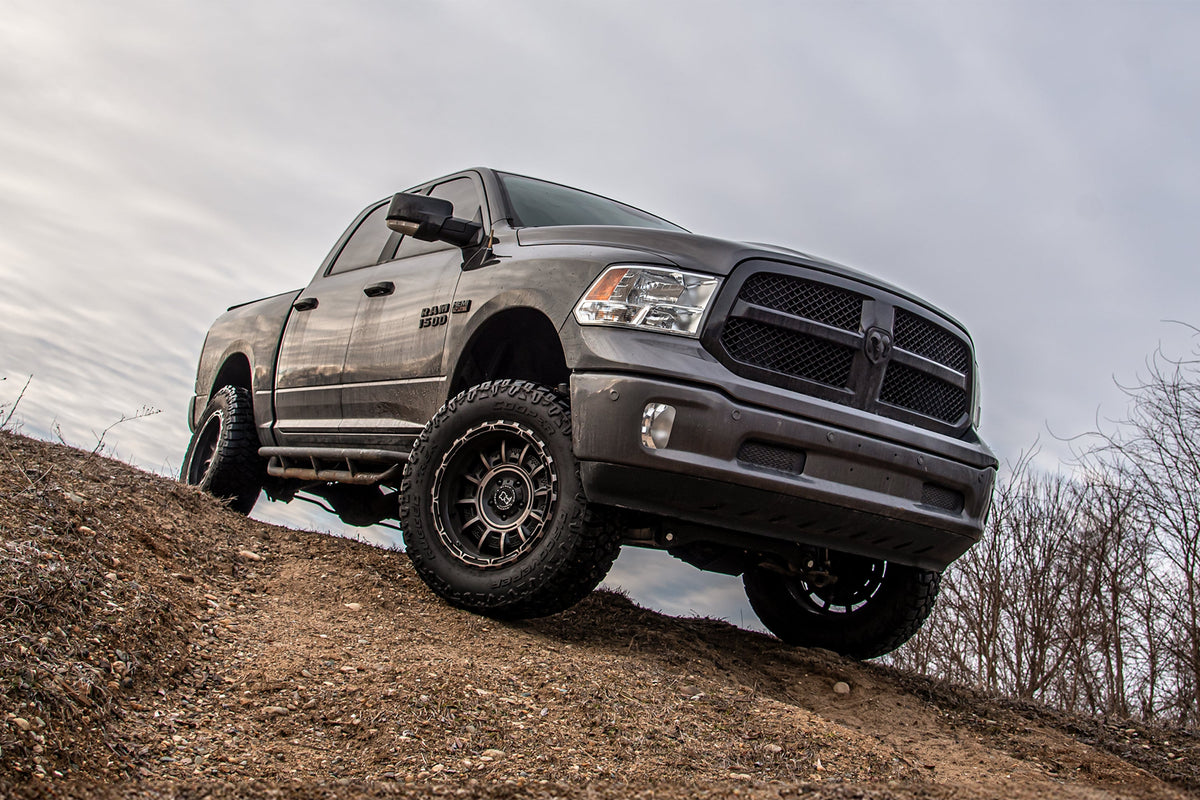

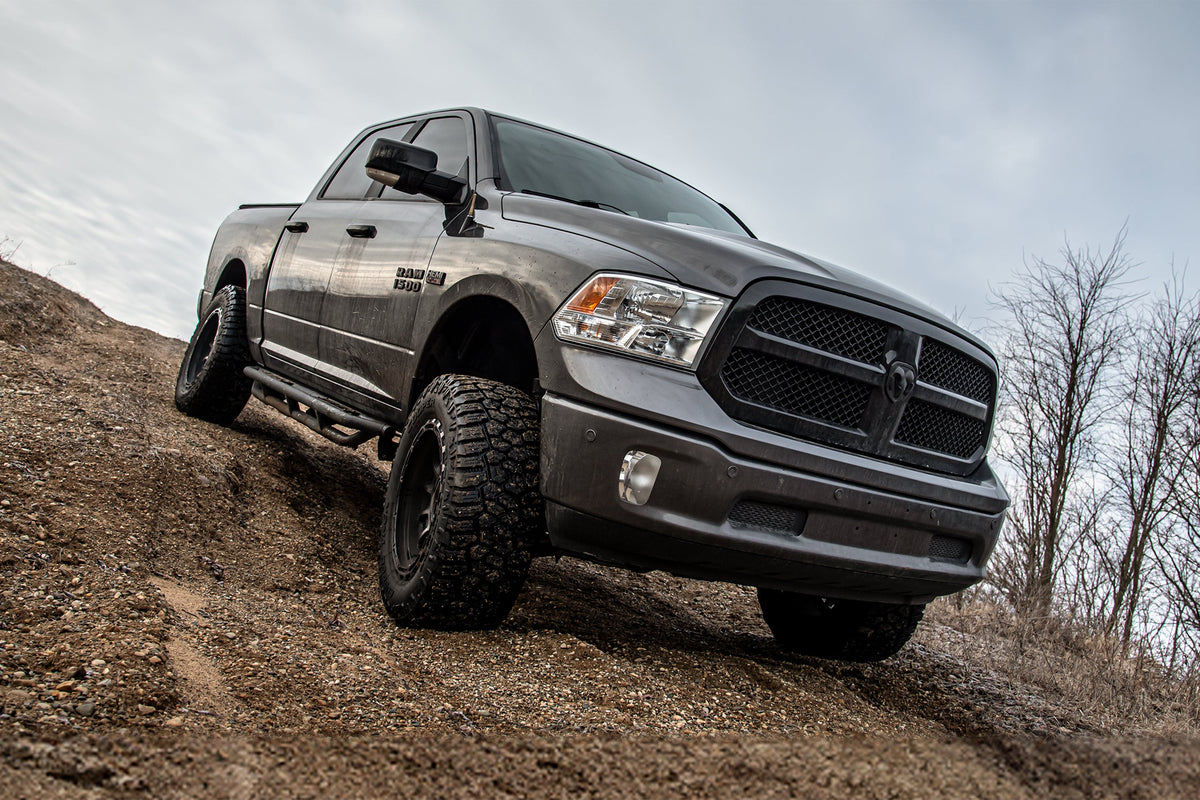

This BDS 6" Coilover Lift Kit is designed for unmatched performance, stance, and strength. This premium system clears up to 37" tires and replaces factory components with heavy-duty, high-clearance parts built to handle any terrain.

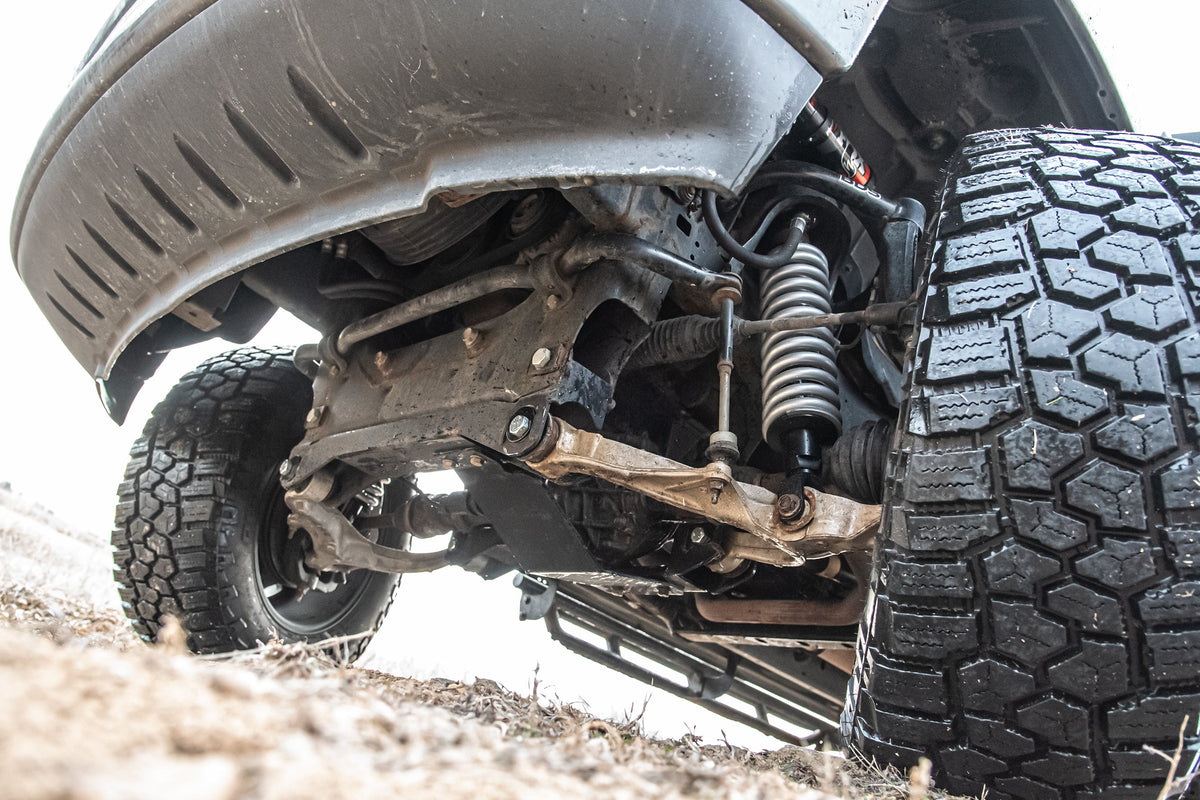

Front:

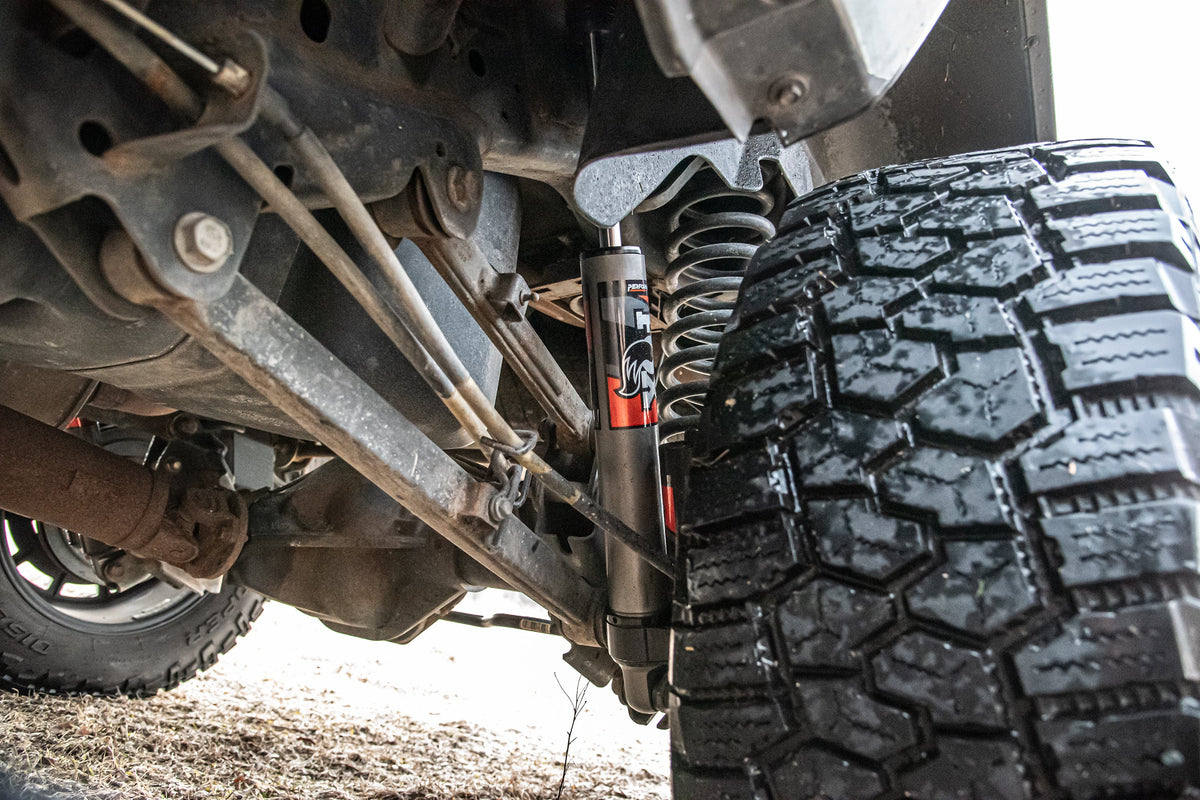

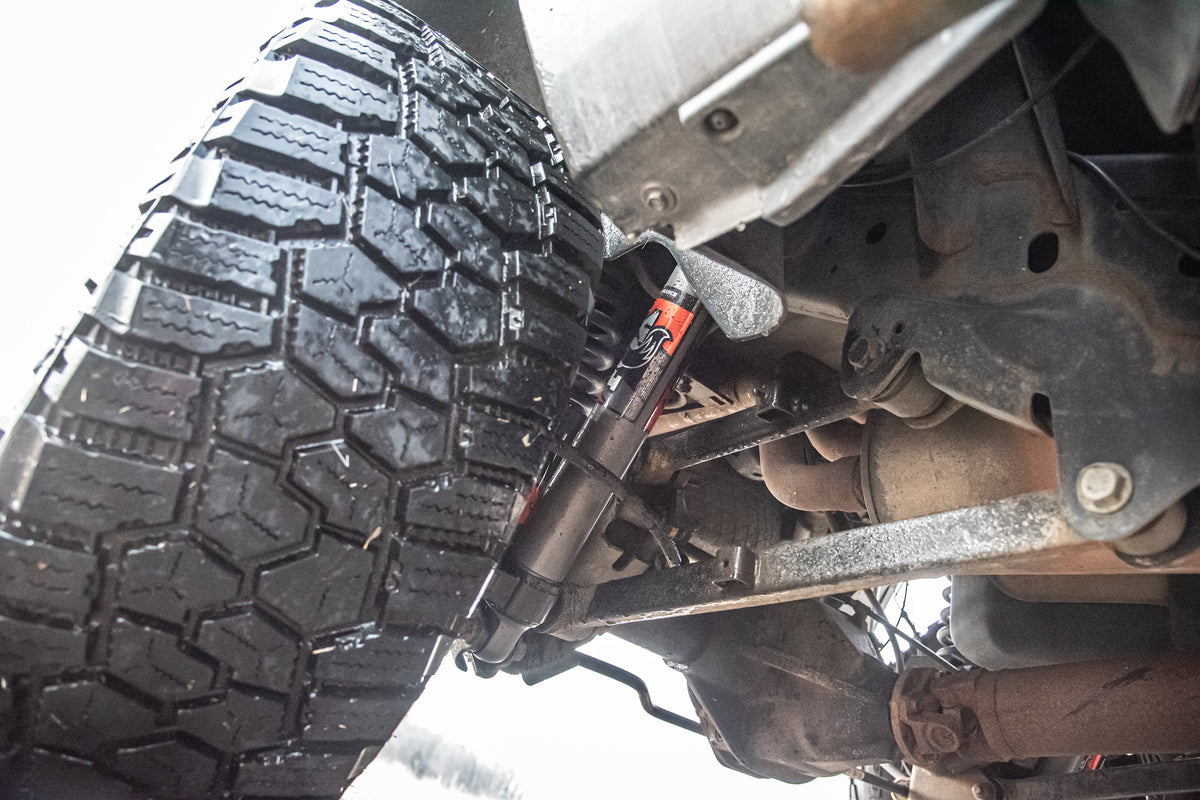

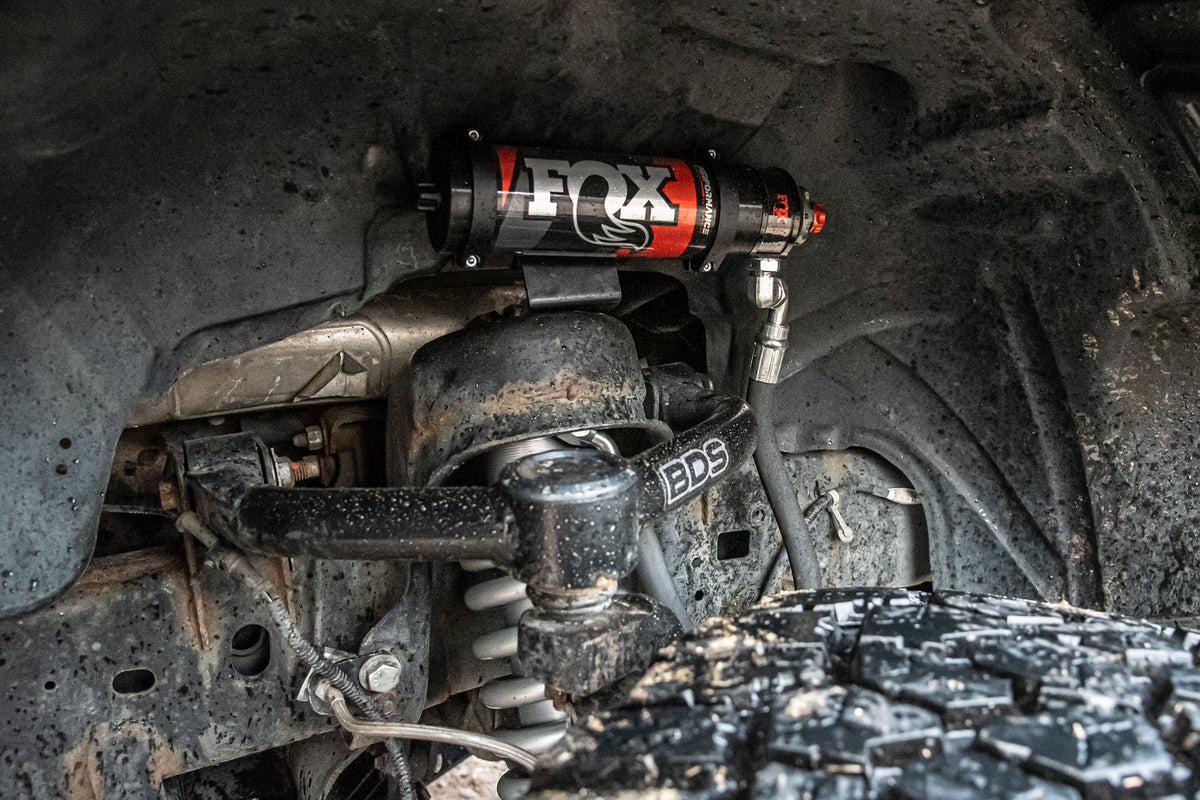

FOX 2.5 Performance Elite Coilovers w/ DSC – adjustable damping for ultimate control on- or off-road

¼" steel high-clearance crossmembers and

HD skid plates for strength and protection

CNC-machined ductile iron steering knuckles maintain proper geometry and ESC compatibility

Rear:

Progressive-rate Pro-Ride coils for comfort and control

Relocation brackets correct pinion and axle geometry

Choice of FOX 2.5 Performance Elite or FOX 2.0 Performance Series rear shocks

Engineered for performance, durability, and ride quality — this BDS 6" Coilover Lift Kit transforms your RAM 1500 into a confident, capable powerhouse on any road or trail.

Features

High clearance crossmember design maximizes ground clearance
Robust steering knuckles maintain ESC system compliance
HD skid plate system improved offroad protection
Multipoint differential relocation brackets to secure the front axle and improve CV angles
Choice of FOX 2.0 Performance Series or 2.5 Performance Elite rear shocks.
Factory Protection Plus drivetrain warranty included

The Rack and Pinion steering system is extremely sensitive to an out-of-round or out-of-balance tire/wheel combination. As you increase the tire diameter and/or decrease the wheel backspacing the more sensitive the system becomes and can cause minor steering wheel shimmy.
Not recommended for AWD models.
Stock 17" and 18" wheels can not be re-installed. Stock 20" can be reinstalled with a factory tire.
Will not fit adjustable air suspension equipped models.
This kit will bolt on Eco-Diesel models but it will require an aftermarket front drive shaft.
TRX models will achieve approximately 1" of additional lift. This lift is not recommended for use on the TRX models due to possible CV shaft vibration caused by the additional lift. Instead, consider our 4" lift system for about 5" of lift or replace the TRX struts with standard struts for use with this system.
This kit is FMVSS No.126 Compliant.

Quick Specs

Front Lift Method: Cross Member & Coil-Over
Front Lift Height: 6"
Rear Lift Method: Coil Spring
Rear Lift Height: 5"
Shocks Included: Yes
Lift Height: 6-7.5"

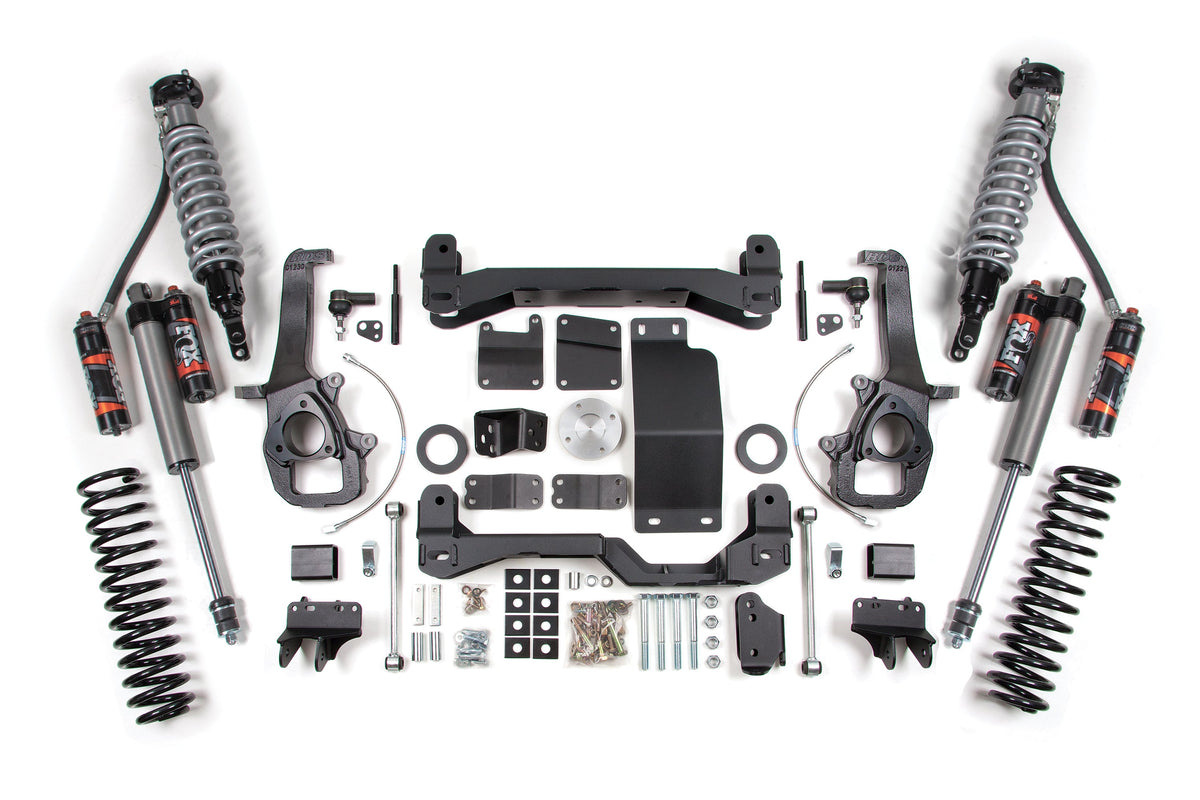

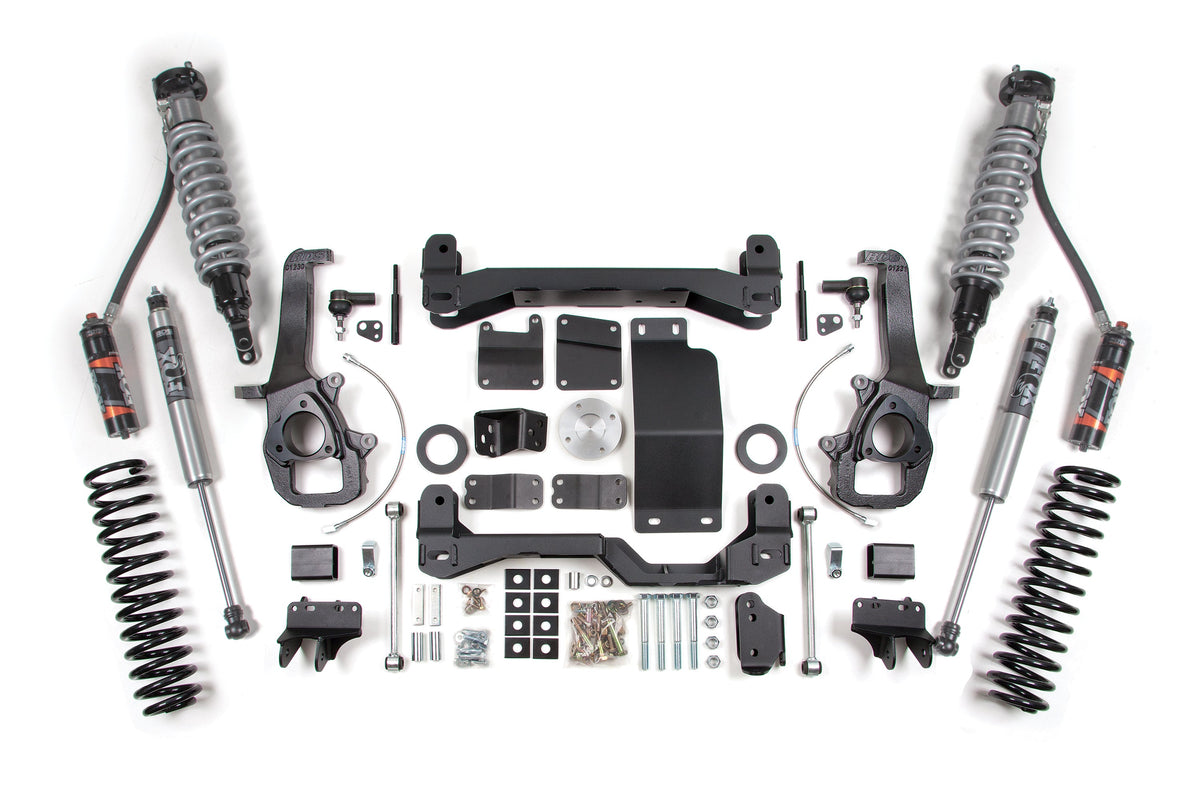

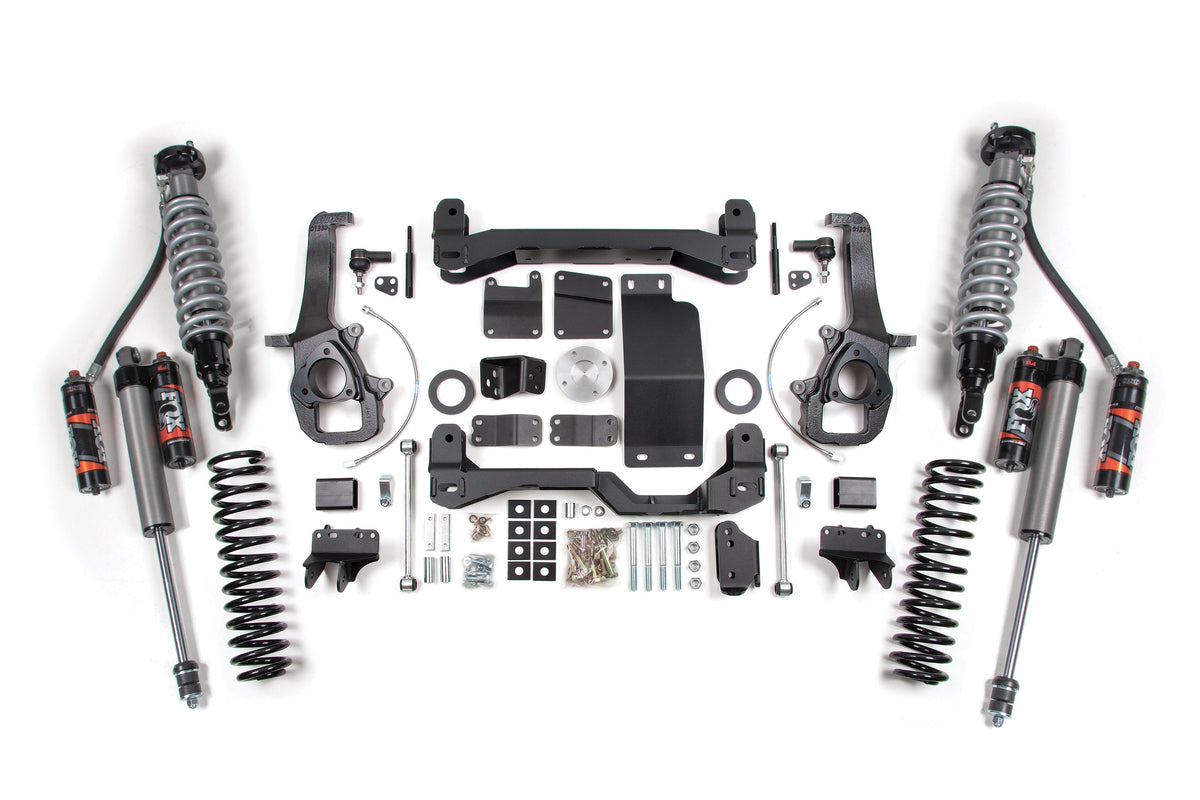

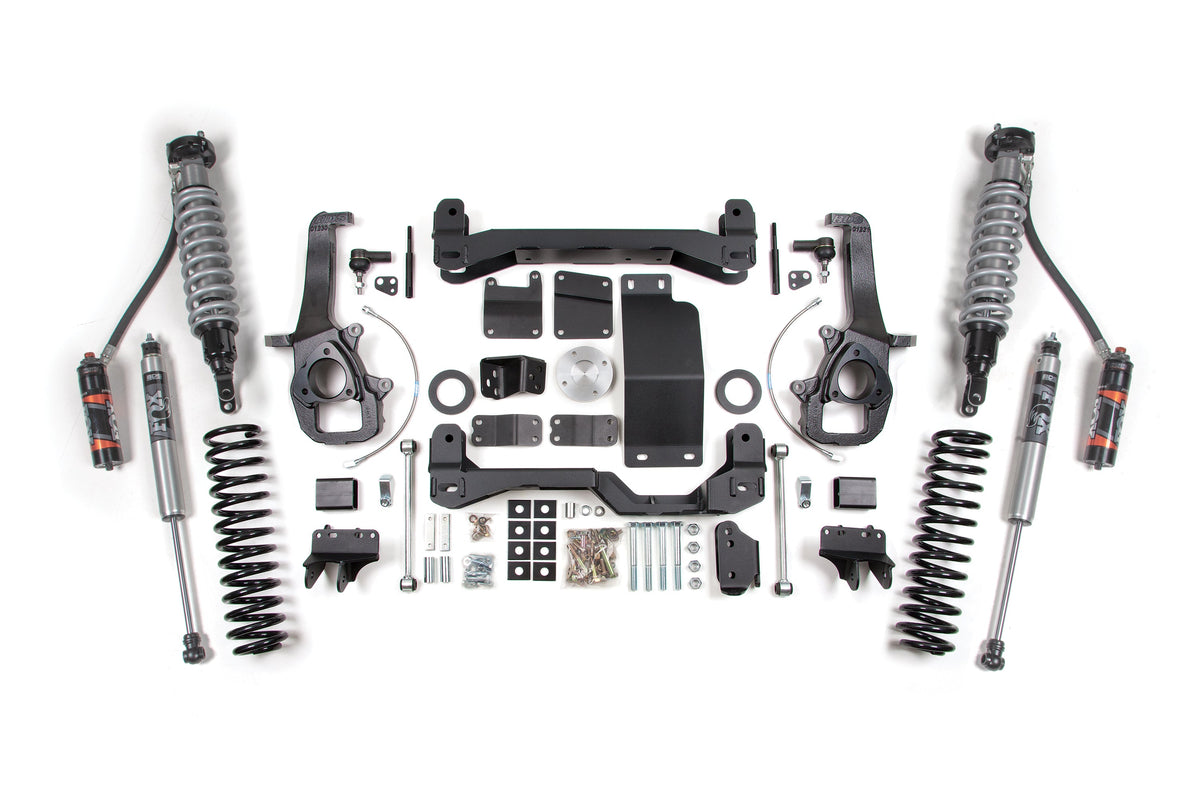

What’s Included

(1) FOX88406526 Kit: BDS 12-23 Ram 1500 DS Classic, Front Coilover, 2.5 Truck PES, R/R, 6" Lift, DSC
(1) FOX88406528 Kit: BDS 12-23 Dodge Ram 1500 DS Classic, Rear, 2.5 Truck PES, P/B, 4-6" Lift DSC

Recommended Wheels and Tires

37 x 12.5 with 17 x 9 and 4.5 in. Backspace
37 x 12.5 with 18 x 9 and 5 in. Backspace
37 x 12.5 with 20 x 9 and 5 in. Backspace
