BDS Suspension 6 Inch Lift Kit | FOX 2.5 Performance Elite Coil-Over | Chevy Silverado or GMC Sierra 1500 (14-18) 4WD

Questions about fitment?

Talk to a TRU specialist

We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT

Call 866-235-4715 Live chat

Important notes before you order

*IMPORTANT*: GM is producing several knuckle/control arm configurations in 2014-2017 models trucks. Cast Steel control arm equipped models will require the "Cast Steel Control Arm" kit. Stamped Steel and Aluminum control arm equipped models will require the "Aluminum Control Arm" kit. Be sure to verify which factory control arms your truck has before ordering by referecing our help images when customizing your kit.
Requires frame bracket modification.
Requires differential modification to clear electric power steering
Factory 17" and 18" wheels cannot be reinstalled due to tie rod end interference If choosing the 5" rear block option, add-a-leaf # 111209 is recommended for a more level/tail high stance on crew cab models.
All wheel drive models require drive line modification.
Will not fit MagneRide magnetic ride control equipped models

TRU specialist notes

From the Trucks R Us fitment and install team, beyond the manufacturer's information.

Plan for a professional wheel alignment after installing any lift or leveling kit.
Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.

Specifications

Brand	BDS Suspension
Part number	BDS710PES
UPC / GTIN	840416433845
Front Lift Height	6"
Front Lift Method	Cross Member & Coil-Over
Lift Height	6-7.5"
Max Tire Size	33 x 12.5
Rear Lift Height	3.75"
Rear Lift Method	Block
Shocks Included	Yes
Install time	8-10 hrs
Difficulty	Difficult
Required Tools	Cut Off Wheel or Equiv., Reciprocating Saw, Strut Compressor, Welding Equipment

What's in the box

Qty	Part	Description

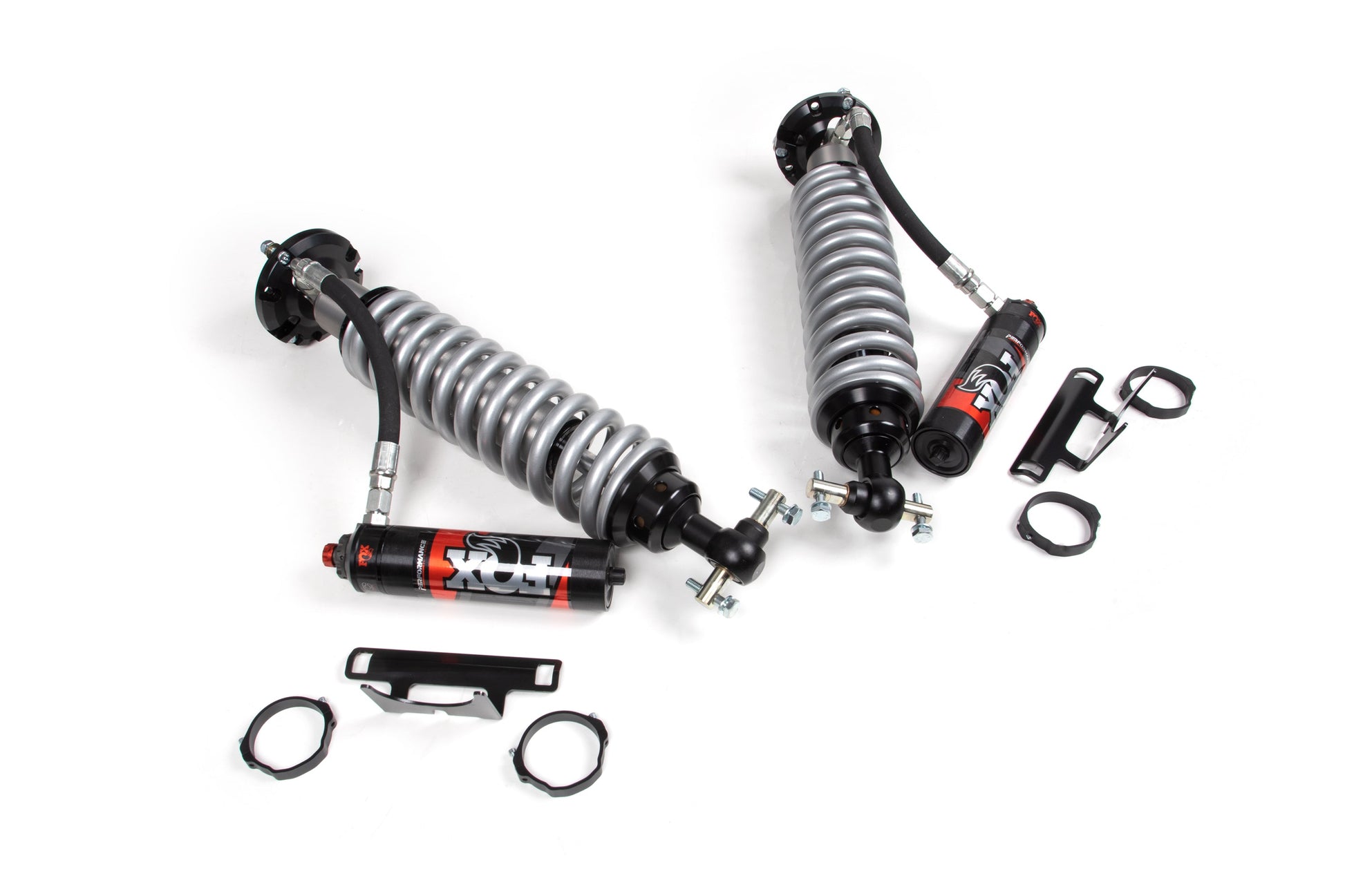

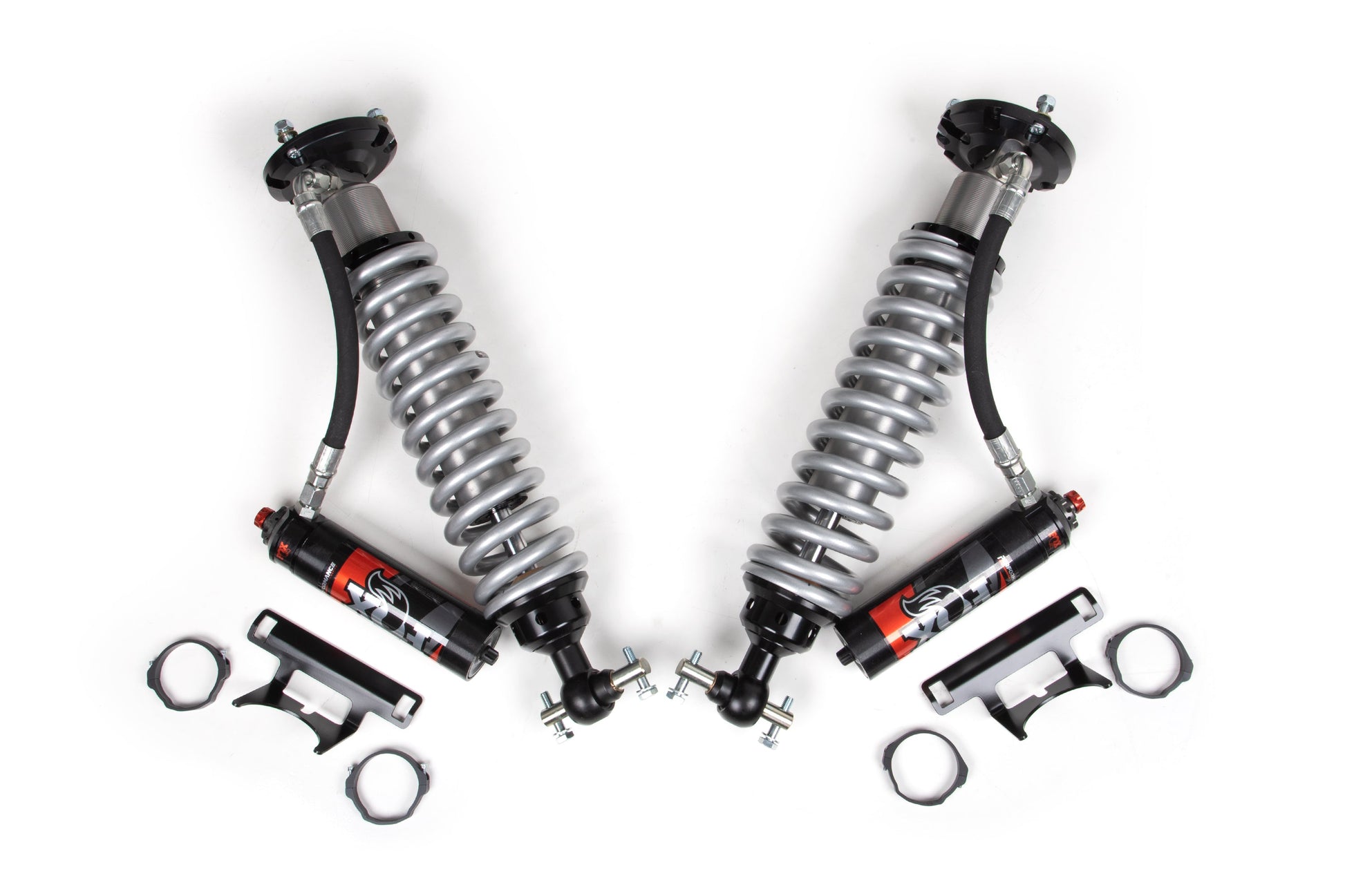

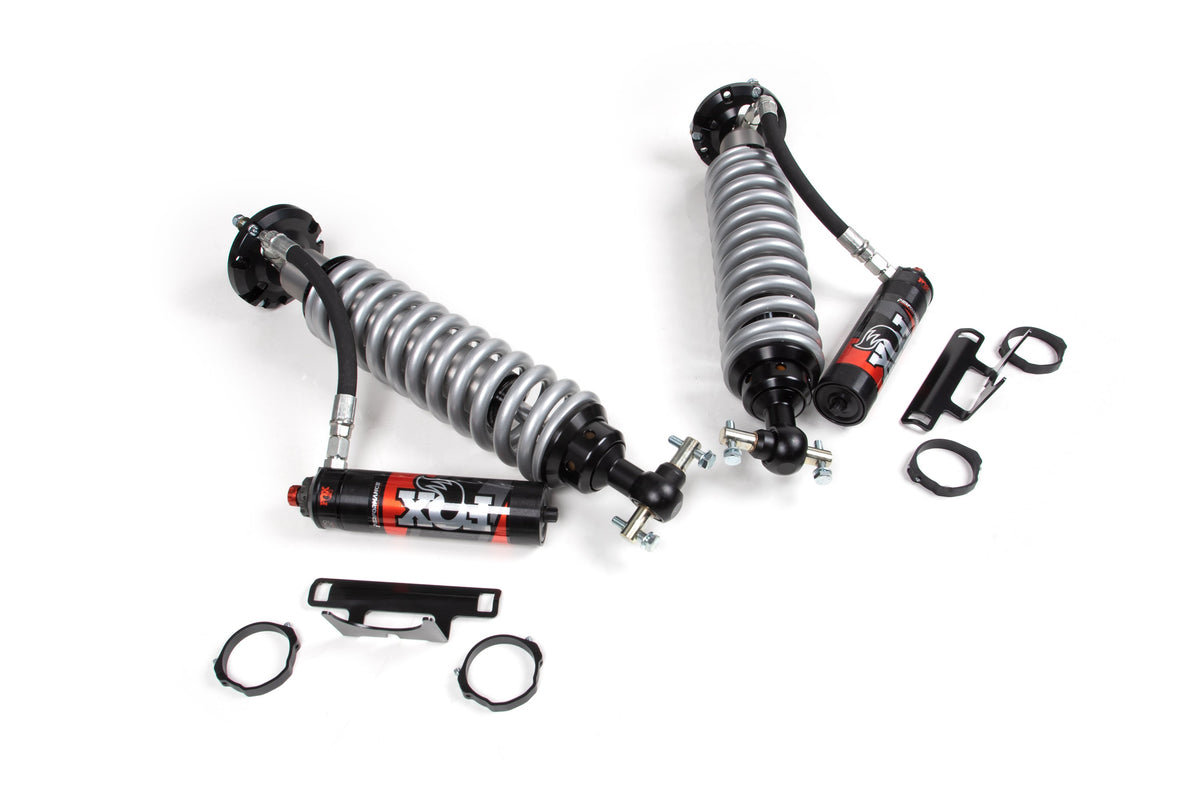

1	FOX88406534	FOX 2.5 Coil-Over Shocks w/ DSC Reservoir Adjuster \| 6 Inch Lift \| Performance Elite Series \| Chevy Silverado and GMC Sierra 1500 (07-18)

For: Block Kit / FOX 2.5 Performance Elite / Cast Steel

Qty	Part	Description

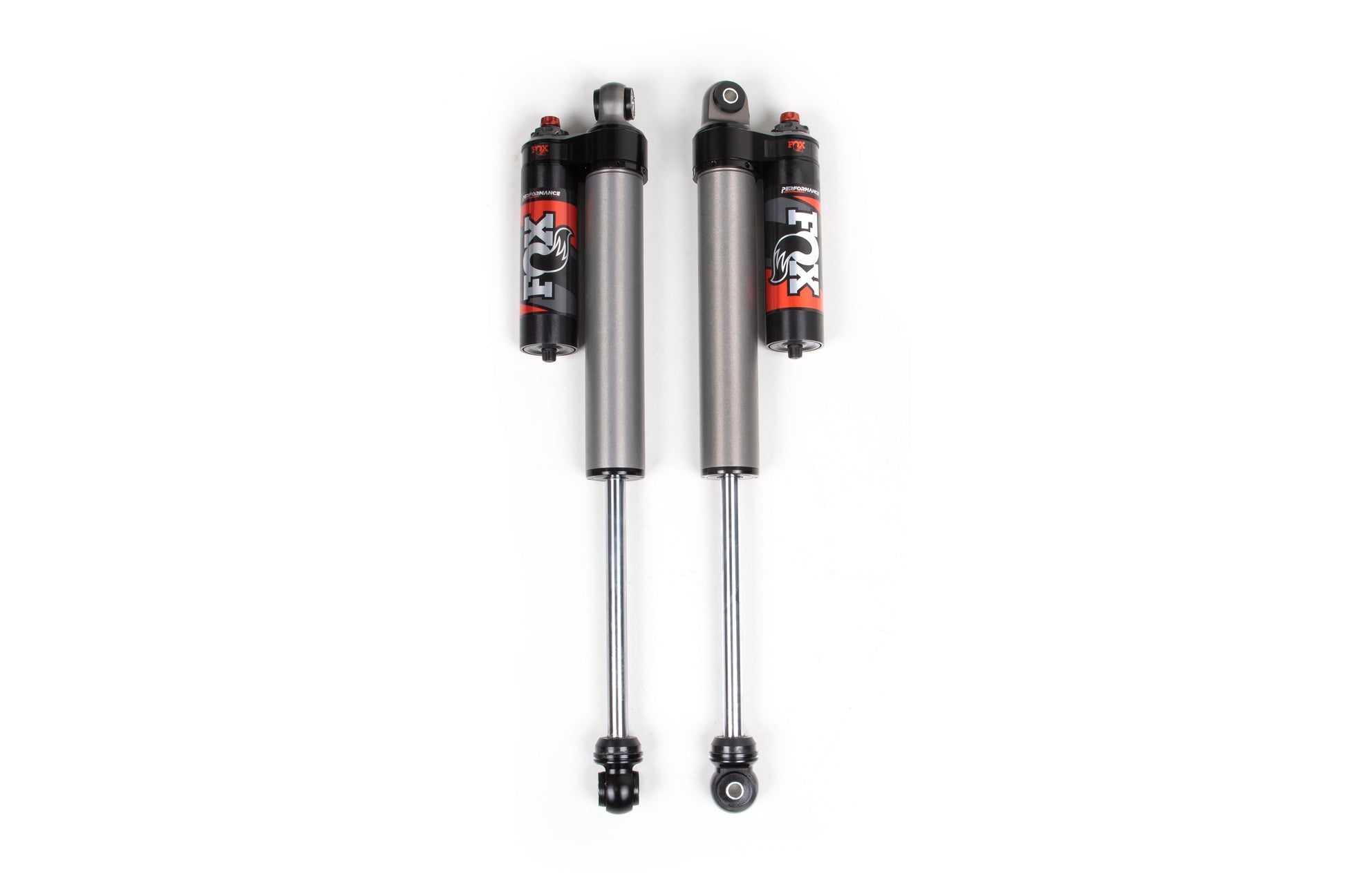

1	FOX88426042	FOX 2.5 Rear Shocks w/ DSC Reservoir Adjuster \| 4-6 Inch Lift \| Performance Elite Series \| Chevy Silverado and GMC Sierra 1500 (07-18)

For: Block Kit / FOX 2.0 Performance Series / Cast Steel

Qty	Part	Description
2	FOX98224759	Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1

For: Block Kit / FOX 2.5 Performance Elite / Aluminum / Stamped Steel

Qty	Part	Description
1	FOX88426042	FOX 2.5 Rear Shocks w/ DSC Reservoir Adjuster \| 4-6 Inch Lift \| Performance Elite Series \| Chevy Silverado and GMC Sierra 1500 (07-18)

For: Block Kit / FOX 2.0 Performance Series / Aluminum / Stamped Steel

Qty	Part	Description
2	FOX98224759	Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1

For: Leaf Springs / FOX 2.5 Performance Elite / Cast Steel

Qty	Part	Description
2	BDS001559	Rear Leaf Spring \| 5 Inch Lift \| Chevy Silverado & GMC Sierra 1500 (99-18)
1	FOX88426042	FOX 2.5 Rear Shocks w/ DSC Reservoir Adjuster \| 4-6 Inch Lift \| Performance Elite Series \| Chevy Silverado and GMC Sierra 1500 (07-18)

For: Leaf Springs / FOX 2.0 Performance Series / Cast Steel

Qty	Part	Description
2	BDS001559	Rear Leaf Spring \| 5 Inch Lift \| Chevy Silverado & GMC Sierra 1500 (99-18)
2	FOX98224759	Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1

For: Leaf Springs / FOX 2.5 Performance Elite / Aluminum / Stamped Steel

Qty	Part	Description
2	BDS001559	Rear Leaf Spring \| 5 Inch Lift \| Chevy Silverado & GMC Sierra 1500 (99-18)
1	FOX88426042	FOX 2.5 Rear Shocks w/ DSC Reservoir Adjuster \| 4-6 Inch Lift \| Performance Elite Series \| Chevy Silverado and GMC Sierra 1500 (07-18)

For: Leaf Springs / FOX 2.0 Performance Series / Aluminum / Stamped Steel

Qty	Part	Description
2	BDS001559	Rear Leaf Spring \| 5 Inch Lift \| Chevy Silverado & GMC Sierra 1500 (99-18)
2	FOX98224759	Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1

Features

Fox 2.5 Shocks designed specifically for increased travel and the abilty to soak up the roughest terrain.

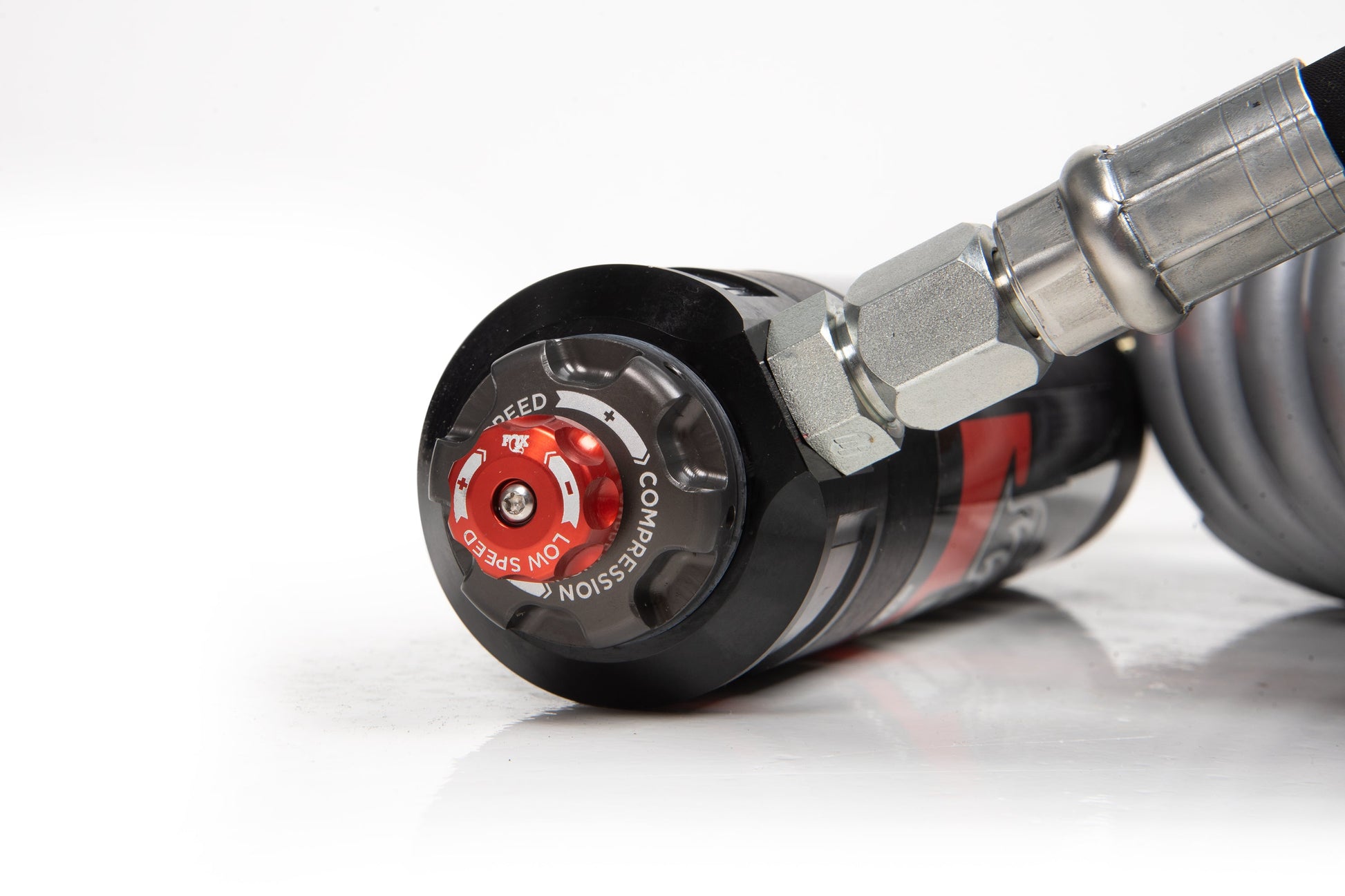

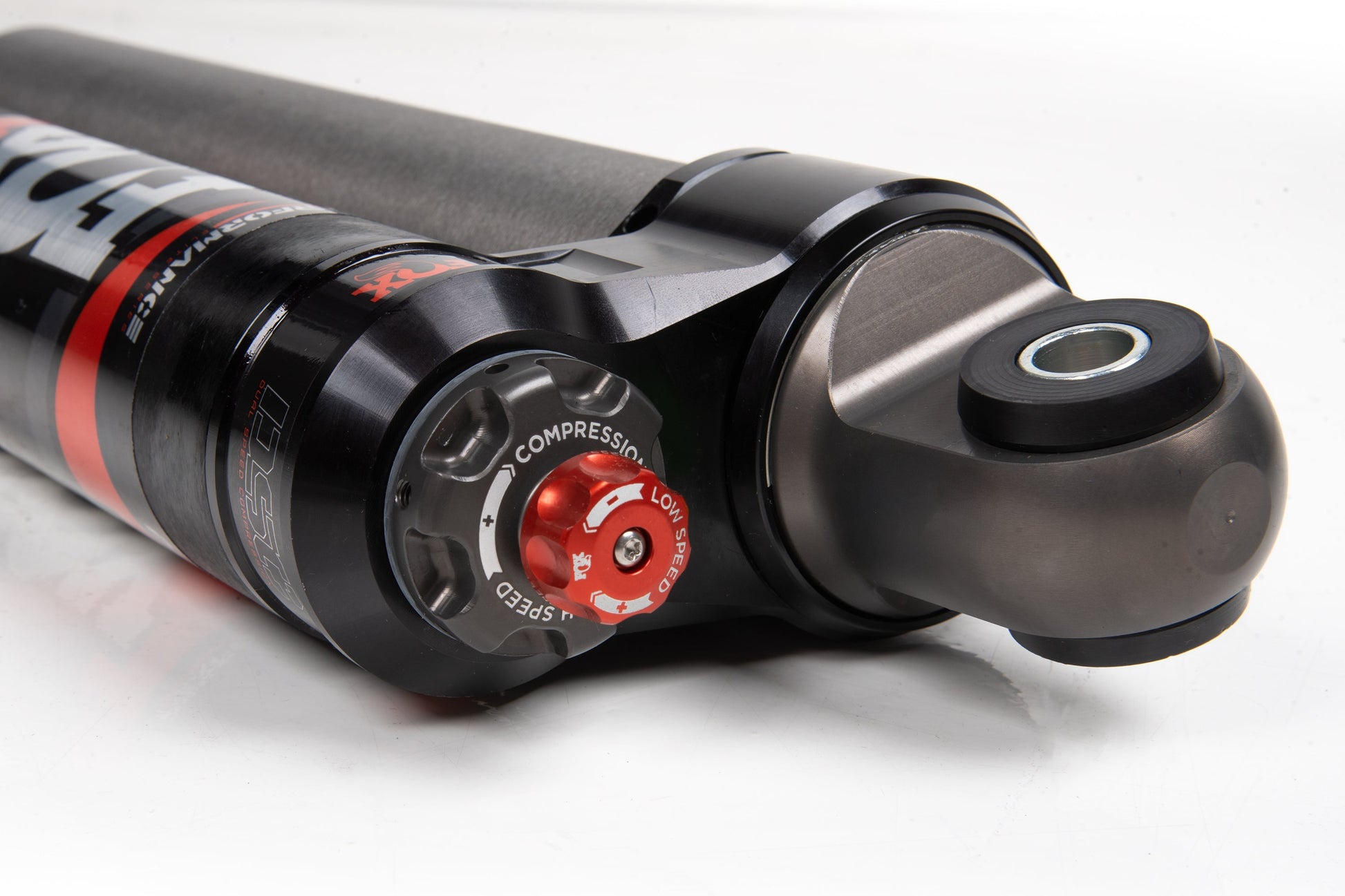

The DSC (dual speed compression) adjuster adds remarkable versatilty and precise tuning with a simple twist of one or both knobs.
High clearance crossmember design maximizes ground clearance Robust steering knuckles maintain ESC system compliance
HD skid plate system improved offroad protection
Multipoint differential relocation brackets to secure the front axle and improve CV angles
FOX performance series IFP gas rear shocks to improved ride and offroad performance
Factory Protection Plus drivetrain warranty included

Recommended wheels & tires

33 x 12.5 with 17 x 9 and 4.5 in. Backspace
34 x 12.5 with 18 x 9 and 5 in. Backspace
35 x 12.5 with 20 x 9 and 5.75 in. Backspace

Installation

Estimated install time8-10 hrs
DifficultyDifficult

Instructions 1 (PDF)Instructions 2 (PDF)

Free install support from the Trucks R Us tech team, for you or your shop.

Overview

The BDS 6-inch lift kit is an amazing upgrade for your 2014-2018 Chevy Silverado and GMC Sierra 1500 that will leave others in envy. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires

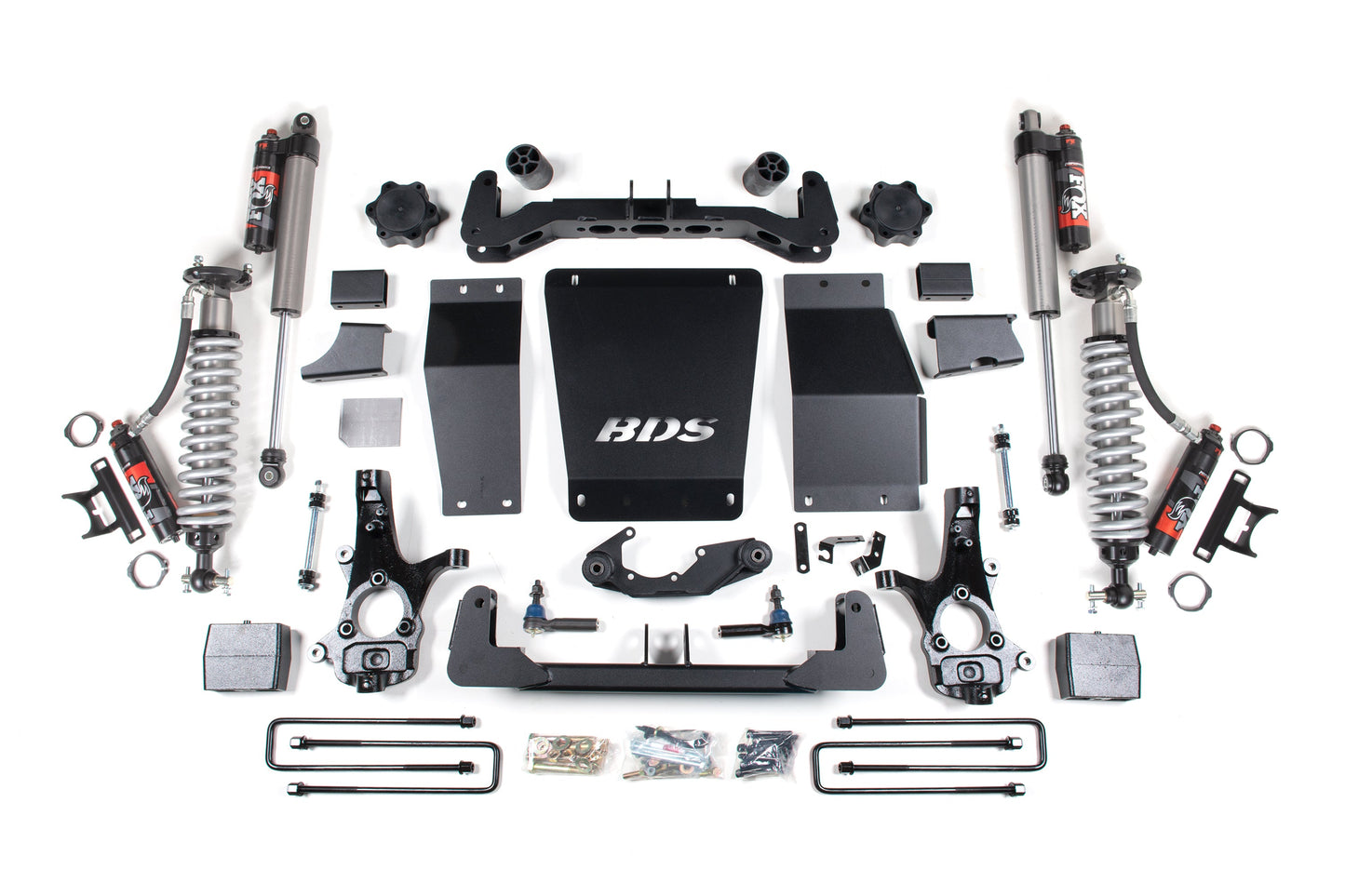

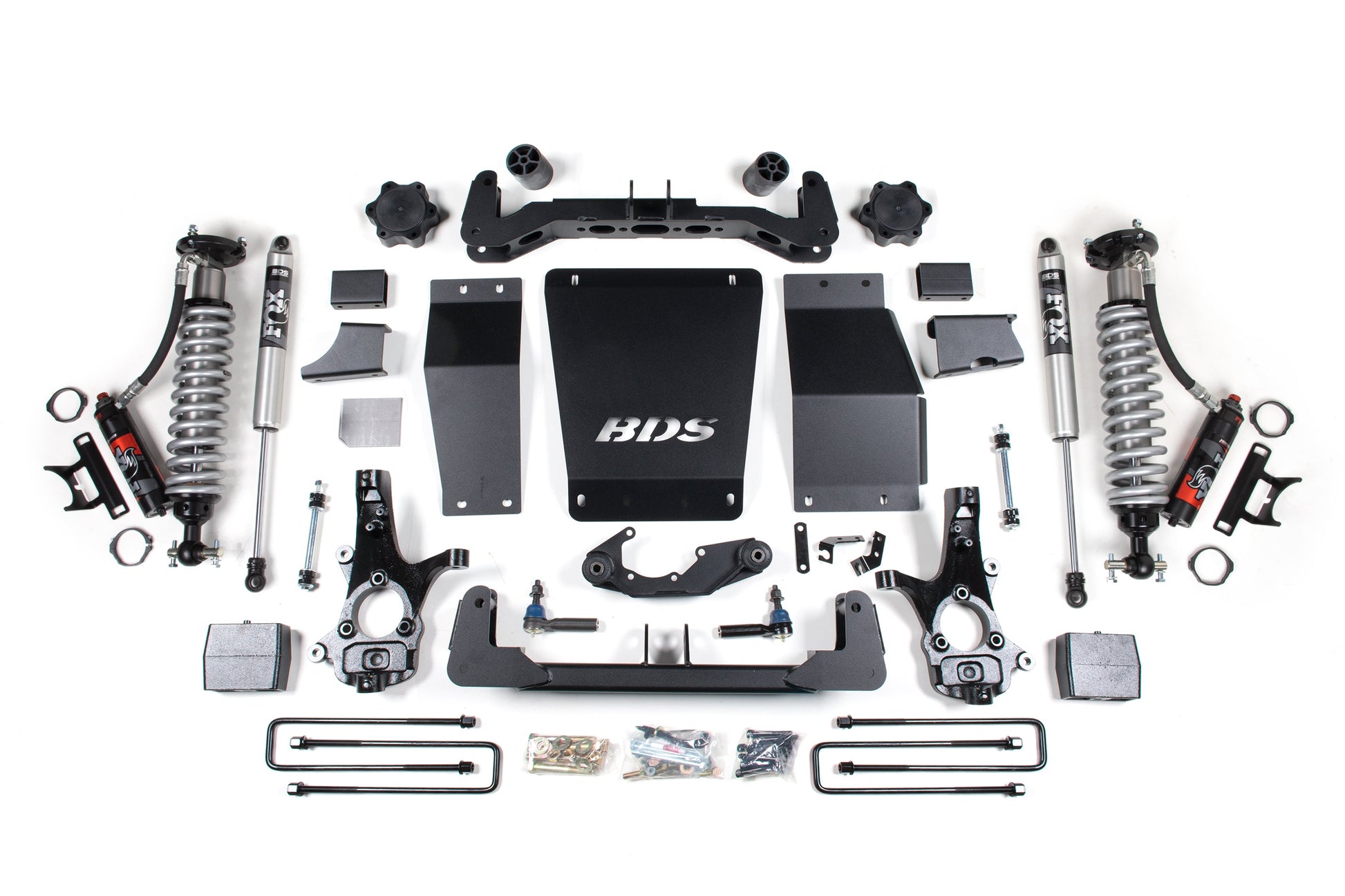

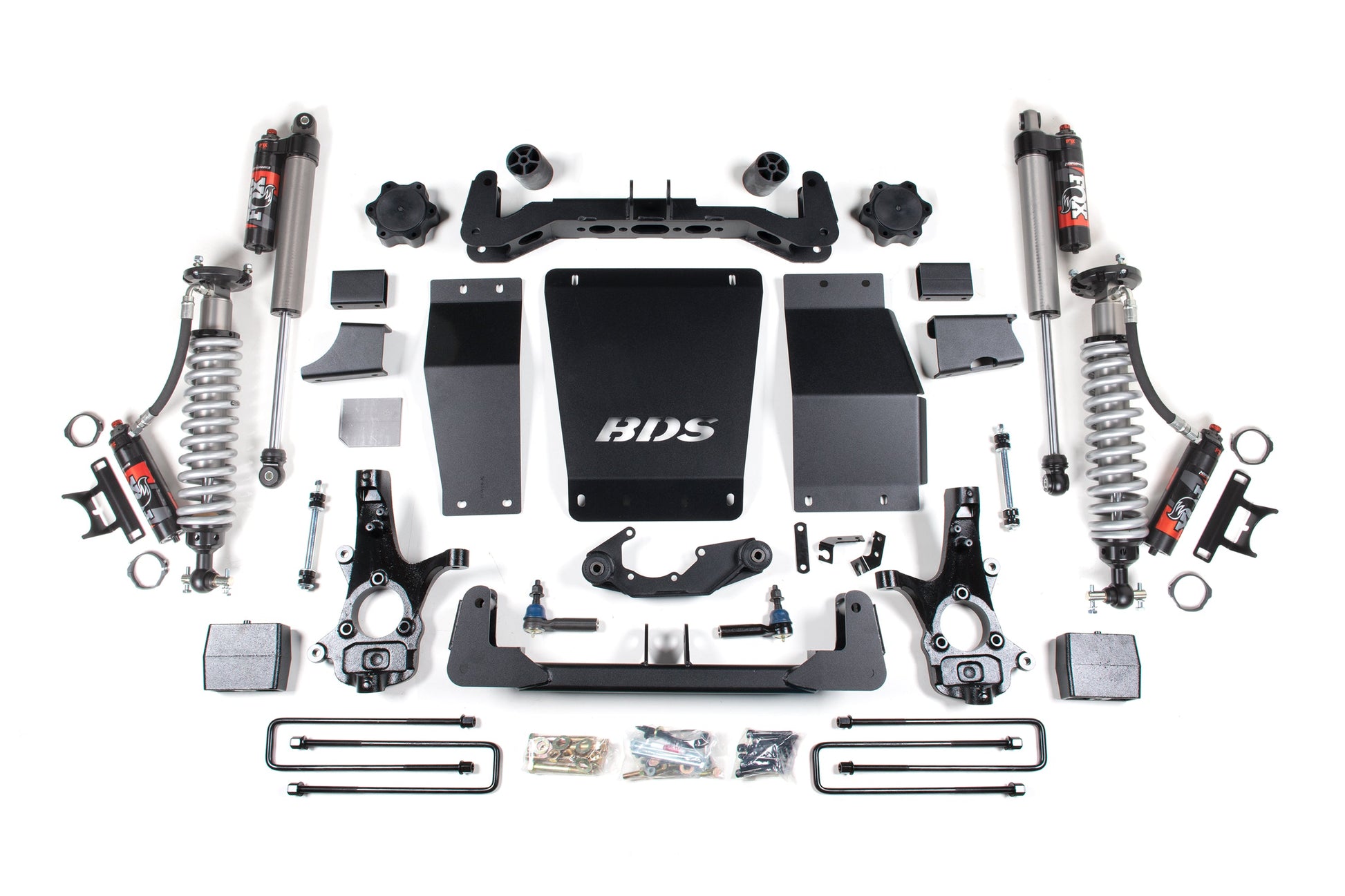

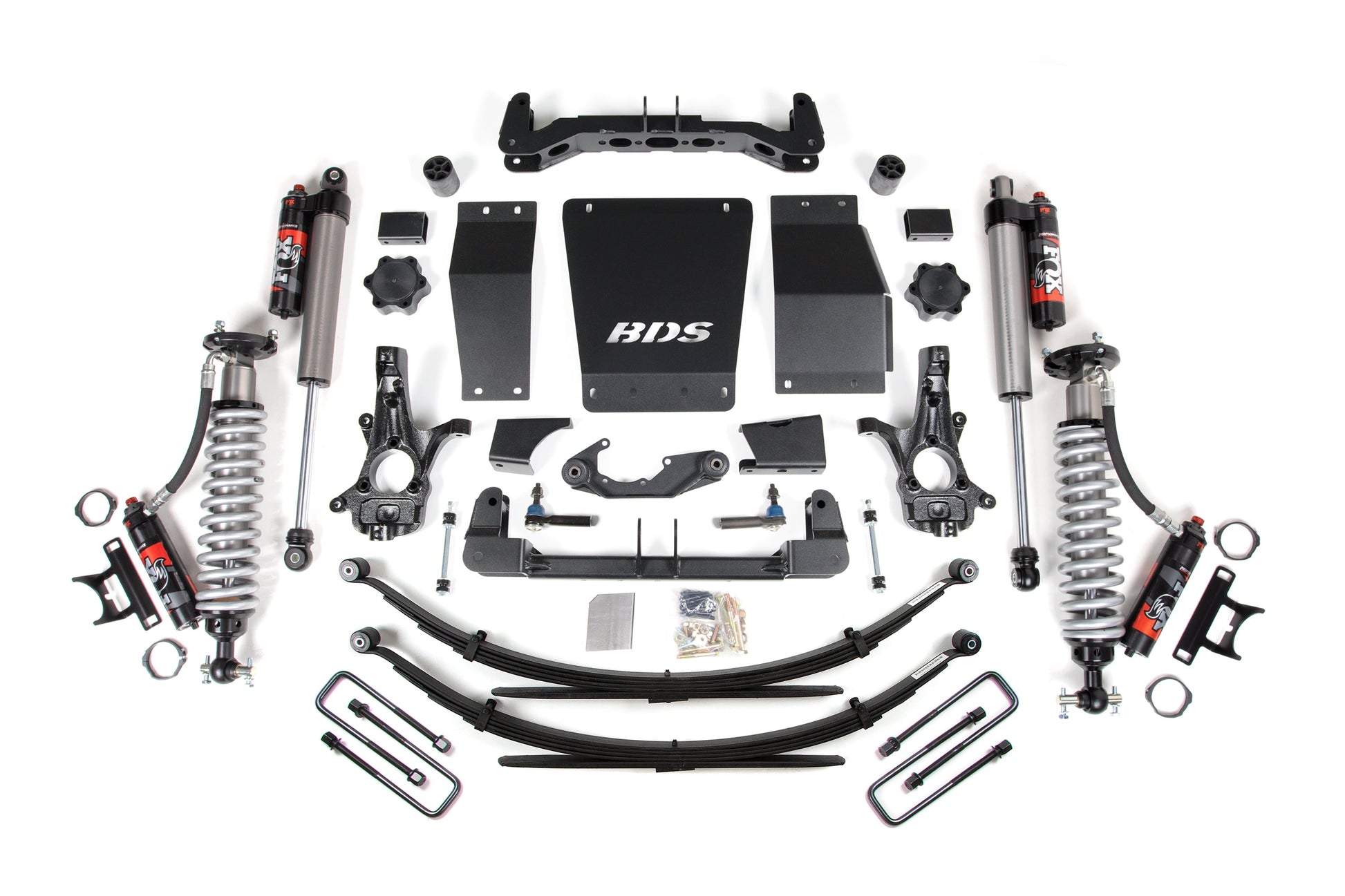

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes full length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

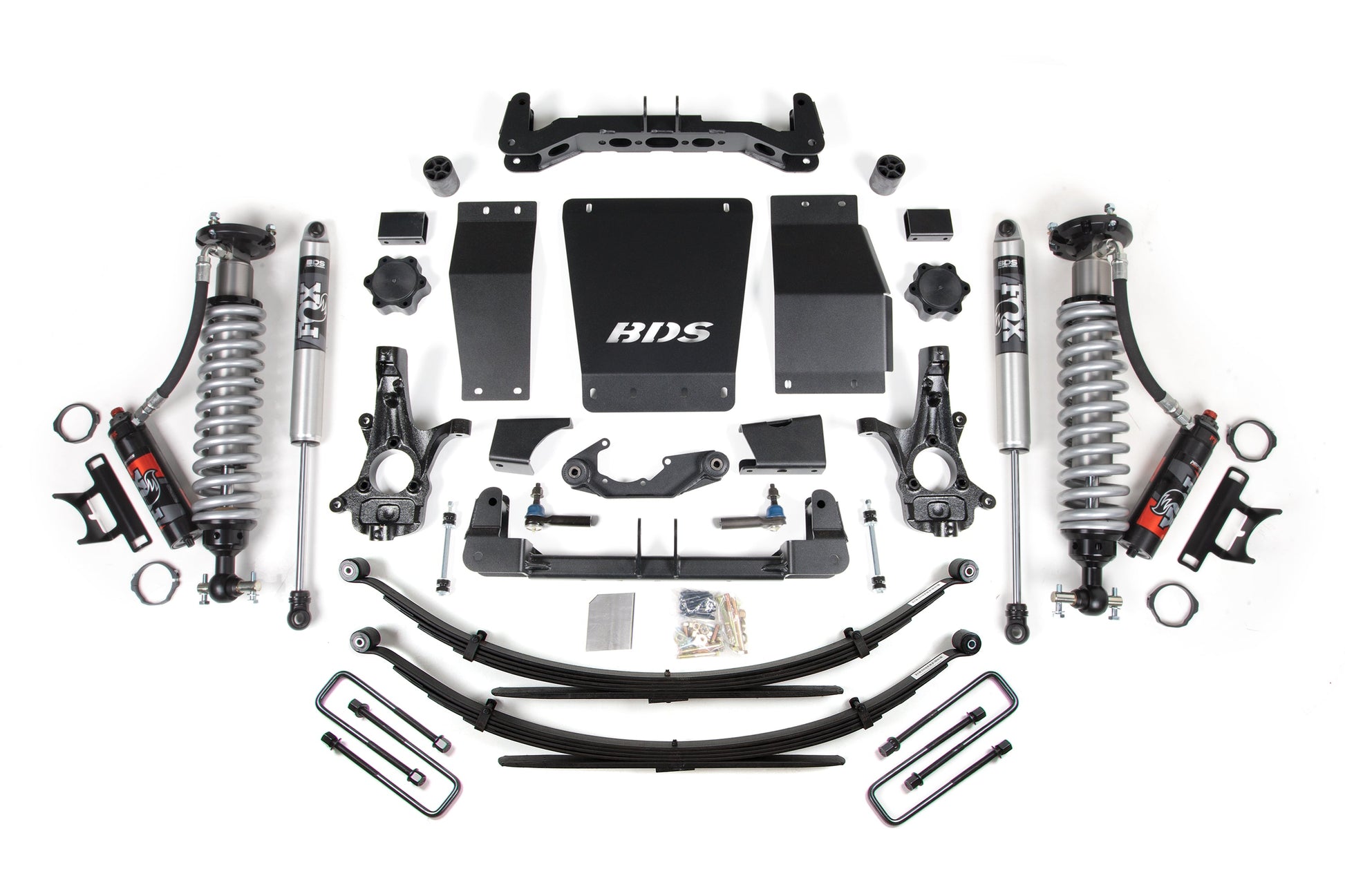

In the rear BDS offers both replacement lift block and full Glide-Ride leaf spring options to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, brake line brackets and precision tuned NX2 Nitro or FOX 2.0 Performance Series shocks.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.

Questions

Will this fit my truck?

Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.

Do you help with installation?

Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.

What if the part has a problem?

We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.

Can I return it?

Most items can be returned within 30 days. See our return policy for details.

Do I need an alignment after installing?

Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
