BDS Suspension 6 Inch Lift Kit | FOX 2.5 Coil-Over | Chevy Silverado or GMC Sierra 1500 (07-13) 4WD

BDS Suspension 6 Inch Lift Kit | FOX 2.5 Coil-Over | Chevy Silverado or GMC Sierra 1500 (07-13) 4WD

VARIANT ID:

$3,751.65
$3,751.65
SALE Sold out
Shipping calculated at checkout.
Rear Lift Option
Coil Over Option
View full details

IMPORTANT: ALWAYS READ THE ENTIRE PRODUCT DESCRIPTION, INCLUDING IMPORTANT NOTES AND FITMENT INFORMATION, BEFORE MAKING A PURCHASE. FOR THE MOST UP-TO-DATE INFORMATION, REFERENCE THE MANUFACTURER'S WEBSITE. KIT COMPONENTS CONTAINED IN IMAGES AND DESCRIPTIONS MAY CHANGE BASED UPON YOUR SELECTIONS.

Upgrade the performance and capability of your 2007-2013 Chevy Silverado and GMC Sierra 1500 trucks with 6-inch coil-over suspension lift kit by BDS. These kits feature proprietary FOX 2.5 coil-over shocks designed specifically to bolt-on performance for increased travel and the ability to soak up the roughest terrain along with smooth on-road comfort.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers both replacement lift block and full Glide-Ride leaf spring options to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, brake line brackets and FOX 2.0 Performance Series shocks.

FOX 2.5 Coil-Overs

FOX 2.5 coil-overs offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter coil-overs are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain.

Features

  • FOX 2.5 Factory Race series coilovers for improved ride quality, performance, and capability
  • High clearance crossmember design maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • Factory Protection Plus drivetrain warranty included

Important Notes

  1. Strut compressor required for installation
  2. This system will not fit 2007 classic models
  3. Installation of rear leaf springs requires removal of the fuel tank
  4. Requires frame bracket modification
  5. 20" wheels with 5" to 5-3/4" backspacing recommended to reduce trimming.
  6. Traction bars will not fit regular cab short box models.
  7. Add 121651 Auxillary Differential support bracket for AWD models. Also may require front driveline modification.
  8. Will not fit two-mode hybrid models with electronic power steering.
  9. Stock 20" wheels can be re-installed only with factory tire size. Factory 17 and 18's cannot be re-installed.

Quick Specs

Installation

  • Install Difficulty: Difficult
  • Est. Install Time: 8 hrs
  • Required Tools: Cut Off Wheel or Equiv., Reciprocating Saw, Welding Equipment

Recommended Wheel & Tire Fitment

  • Option 1: 33 x 12.5 Tires w/ 17 x 9 Wheels & 4.5 Backspacing
  • Option 2: 35 x 12.5 Tires w/ 17 x 9 Wheels & 5 Backspacing
  • Option 3: 35 x 12.5 Tires w/ 20 x 9 Wheels & 5.75 Backspacing
  • Note: Minor plastic trimming may be required

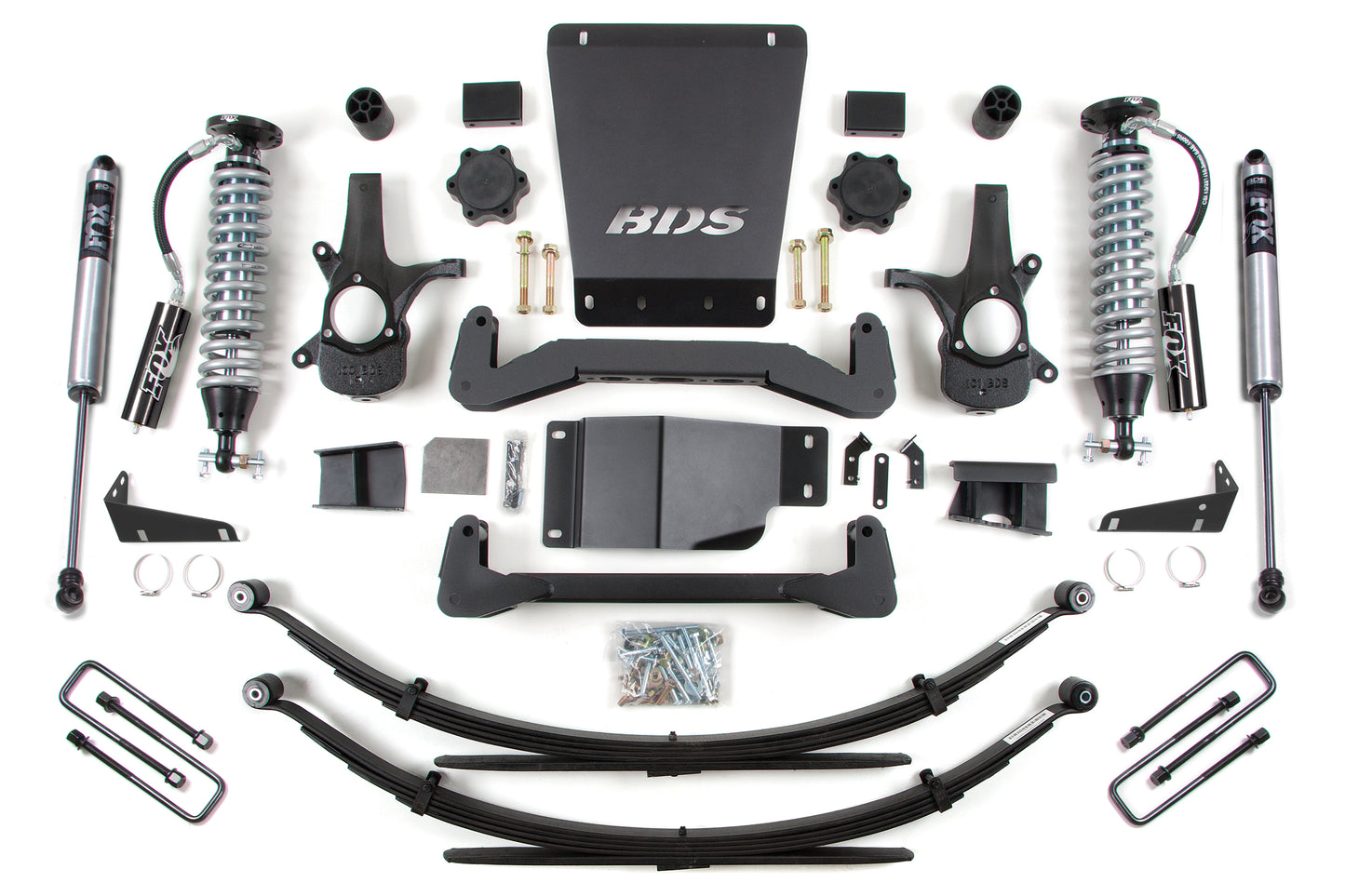

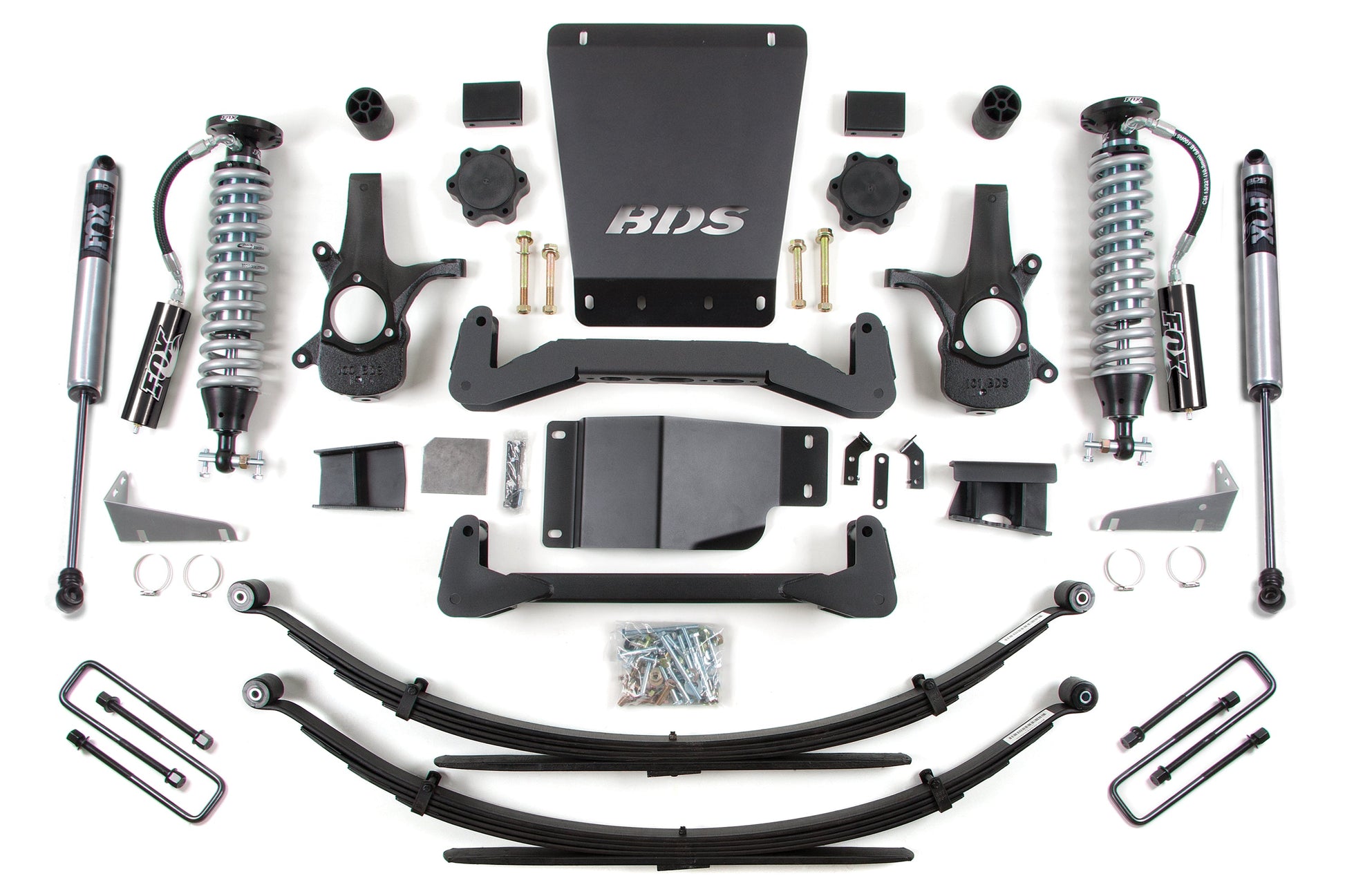

What's In The Box

  • (1) BDS011559 99-13 GM 1500 5.5in Rear Block & AAL
  • (1) BDS021640 07-13 GM 1500/SUV 4-6in Front Box (1of2)
  • (1) BDS021644 2007-2013 GM 1500/SUV 4-6in Front Box (2of2)
  • (1) BDS121613 07-13 GM Front Skid Plate
  • (1) FOX88302059 X - Kit: BDS 07-18 GM 1500 Front Coilover, 2.5 Series, R/R, 6" Lift
  • (2) FOX98224759 Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1

Brand Overview

BDS Suspension offers a wide range of premium suspension parts and components to complete the build of your high-performance truck or Jeep. All BDS products are made in the USA and powder coated for a superior ultra-premium appearance. On or off road, if your truck is running BDS Suspension, you've got the hardest charging, best driving, sharpest looking equipment money can buy.
