BDS Suspension 6 Inch Lift Kit Ford F250/F350 Super Duty (11-16) 4WD · Diesel
- Front lift 6"
- Lift 6-7.5"
- Max tire 37 x 12.5
- Rear lift 5"
- Shocks included
- Install 8 hrs
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Traction Bars
Steering Stabilizers
Accessories
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- If equipped with 2-piece driveshaft, a driveshaft alignment kit may be required.
- Although extremely rare, front driveline vibration may occur.
- If equipped with rear sway bar, #123009 required.
- U-bolts will not work on dually.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | BDS Suspension |
|---|---|
| Part number | BDS594FS |
| UPC / GTIN | 840416418286 |
| Front Lift Height | 6" |
| Front Lift Method | Coil Spring |
| Lift Height | 6-7.5" |
| Max Tire Size | 37 x 12.5 |
| Rear Lift Height | 5" |
| Rear Lift Method | Leaf Spring |
| Shocks Included | Yes |
| Install time | 8 hrs |
| Difficulty | Moderate |
| Required Tools | Pitman Arm Puller |

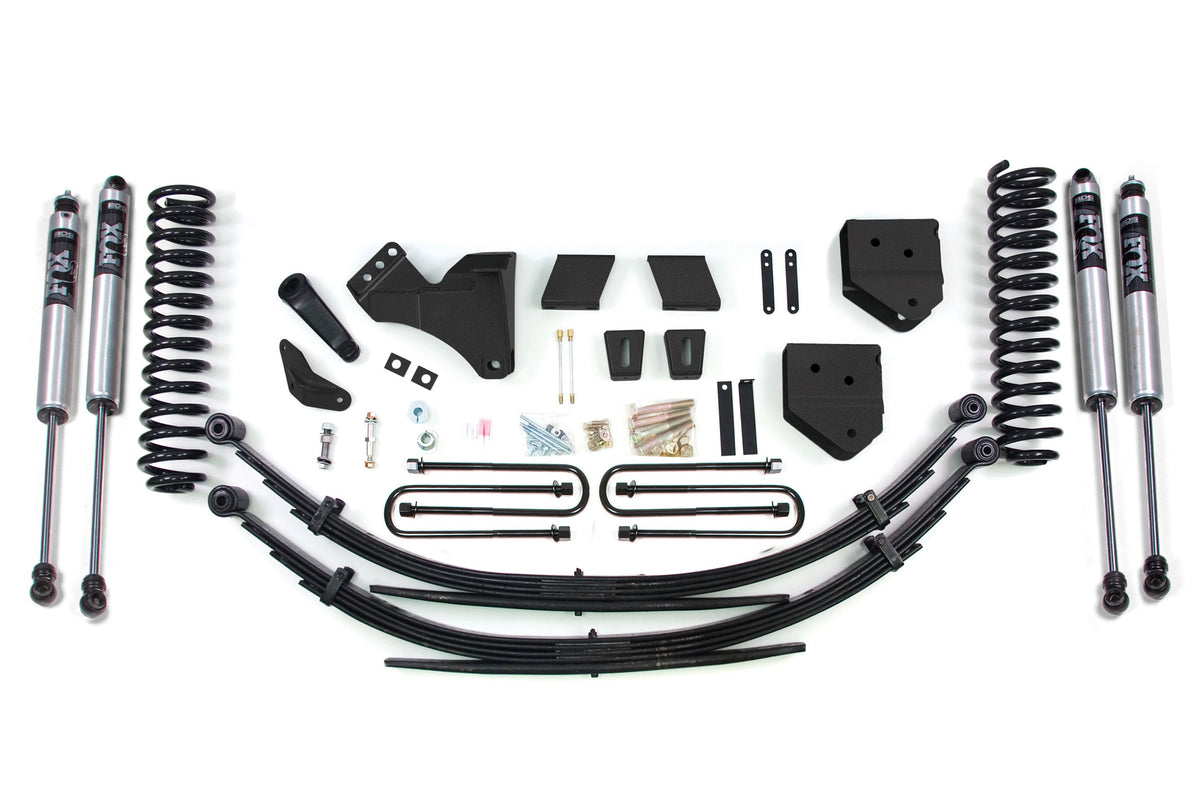

What's in the box
| Qty | Part | Description |
|---|---|---|
| 2 | BDS003629 | Rear Leaf Spring | 3 Inch Lift | Ford F250/F350 Super Duty 4WD (08-16) |
| 1 | BDS033611 | Coil Springs | 6 Inch Lift | Ford F250/F350 Super Duty (05-26) 4WD | Diesel |
For: Factory 2 Inch Rear Blocks / FOX 2.0 Performance Series
| Qty | Part | Description |
|---|---|---|
| 2 | FOX98224750 | FOX 2.0 IFP Shock | Performance Series | 28.25 x 17.15 x 2- S50/EB1 |
| 2 | FOX98224760 | FOX 2.0 IFP Shock | Performance Series | Ford F150 (04-25) and F250/F350 Super Duty (99-16) |
For: Factory 2 Inch Rear Blocks / NX2 Nitro Series
| Qty | Part | Description |
|---|---|---|
| 2 | BDS85750 | NX2 Nitro Shock | Multiple Fitments | 27.40 x 16.20 x 2-3/8 - S50/EB2 |
| 2 | BDS85760 | NX2 Nitro Rear Shock | 4-6 Inch Lift | Ford F150 (04-20) and F250/F350 Super Duty (99-16) |
For: Factory 3 Inch Rear Blocks / FOX 2.0 Performance Series
| Qty | Part | Description |
|---|---|---|
| 2 | FOX98224750 | FOX 2.0 IFP Shock | Performance Series | 28.25 x 17.15 x 2- S50/EB1 |
| 2 | FOX98224760 | FOX 2.0 IFP Shock | Performance Series | Ford F150 (04-25) and F250/F350 Super Duty (99-16) |
For: Factory 3 Inch Rear Blocks / NX2 Nitro Series
| Qty | Part | Description |
|---|---|---|
| 2 | BDS85750 | NX2 Nitro Shock | Multiple Fitments | 27.40 x 16.20 x 2-3/8 - S50/EB2 |
| 2 | BDS85760 | NX2 Nitro Rear Shock | 4-6 Inch Lift | Ford F150 (04-20) and F250/F350 Super Duty (99-16) |
Features
- Easy, 100% Bolt-on installation
- Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
- Heavy duty radius arm drop brackets provide correct caster and will maintain your stock driving characteristics.
- Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
- Steel lift blocks with built-in bump stop provide level stance from front to rear
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Fitment
| Years | Vehicle |
|---|---|
| 2011–2016 | Ford F-250 Super Duty 4WD DIESEL |
| 2011–2016 | Ford F-350 Super Duty 4WD DIESEL |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Recommended wheels & tires
- 37 x 12.5 with 17 x 9 and 4.5 in. Backspace
- 37 x 12.5 with 18 x 9 and 4.5 in. Backspace
- 37 x 12.5 with 20 x 9 and 4.5 in. Backspace
Installation
- Estimated install time8 hrs
- DifficultyModerate
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Improve tire clearance on your 2011-2016 Ford Super Duty F250 and F350 diesel truck and install this 6-inch lift kit from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.
Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty radius arm drop brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned nitrogen charged shocks.
In the rear this kit utilizes a replacement GlideRide leaf springs with integrated overload leaf, u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.
Pro-Ride Coil Springs
A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
BDS Glide-Ride Leaf Springs
Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design where the main leaf pack is broken into two stages:
- First, the primary three leafs are functional with no additional load in the vehicle for excellent everyday ride quality. As moderate loads are applied, the secondary leafs are engaged.
- Second, if the truck is fully loaded, the bottom overload is engaged for maximum hauling capacity. This setup allows your truck to maintain ride quality unloaded without sacrificing payload.
Upgrading to BDS Glide-Ride leaf springs will reduce axle wrap and provide flexibility throughout the suspension cycle.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
