BDS Suspension 6 Inch Lift Kit | Ford F150 (21-25) 4WD

Name: BDS Suspension 6 Inch Lift Kit | Ford F150 (21-25) 4WD
Brand: BDS Suspension
SKU: BDS1579FS
Price: 2298.6 USD
Availability: InStock

BDS Suspension 6 Inch Lift Kit | Ford F150 (21-25) 4WD

PART #

$2,298.60

SALE CALL OR CHAT TO ORDER

Shipping calculated at checkout.

Product variants

Quantity

Inventory: Call or Live-Chat

View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

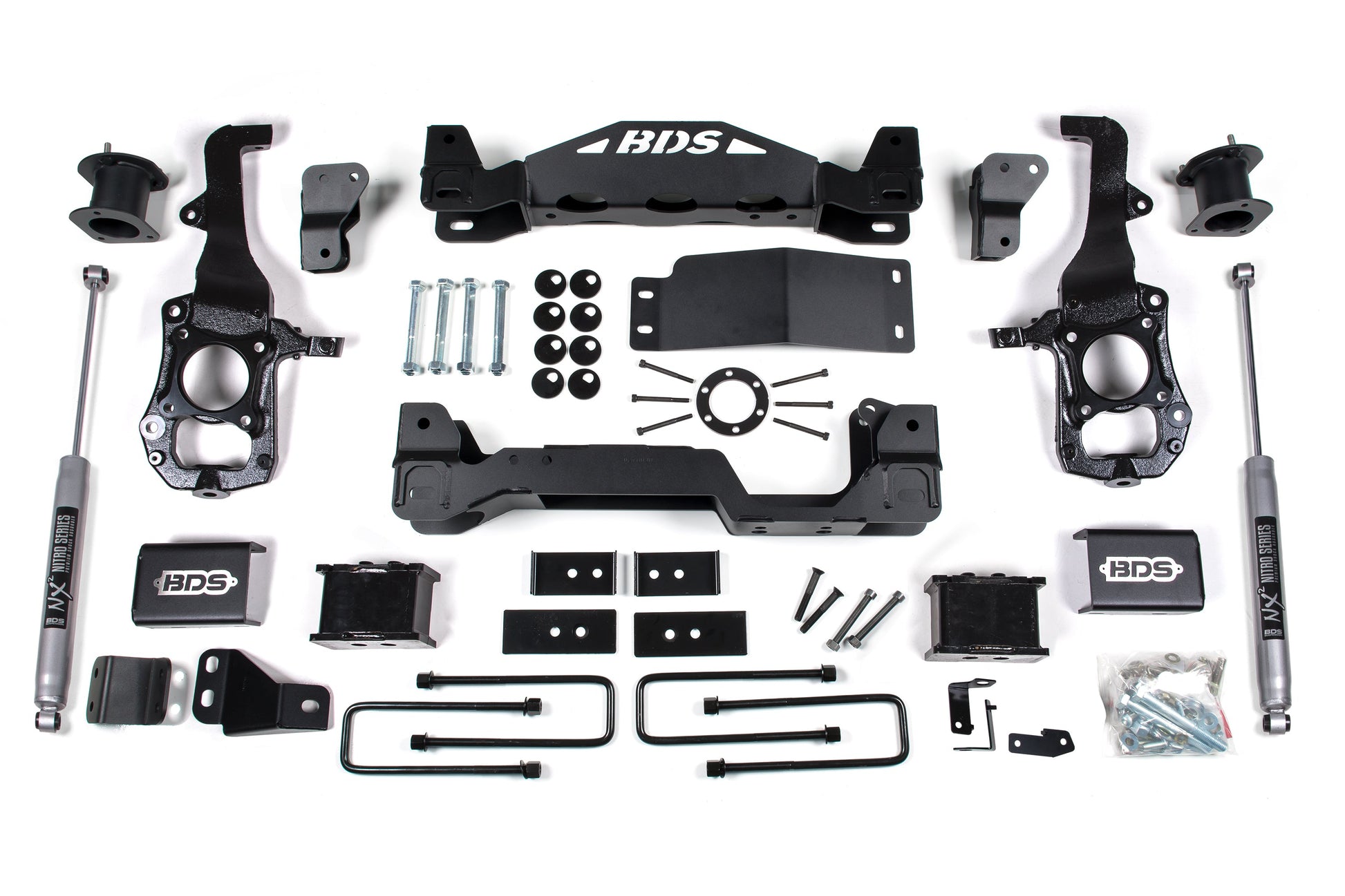

Upgrade your 2021–2025 Ford F150 with a 6" BDS lift kit featuring high-clearance crossmembers, heavy-duty steering knuckles, NX2 or FOX 2.0 shocks, and rear lift blocks for clearance for up to 37" tires.

Features

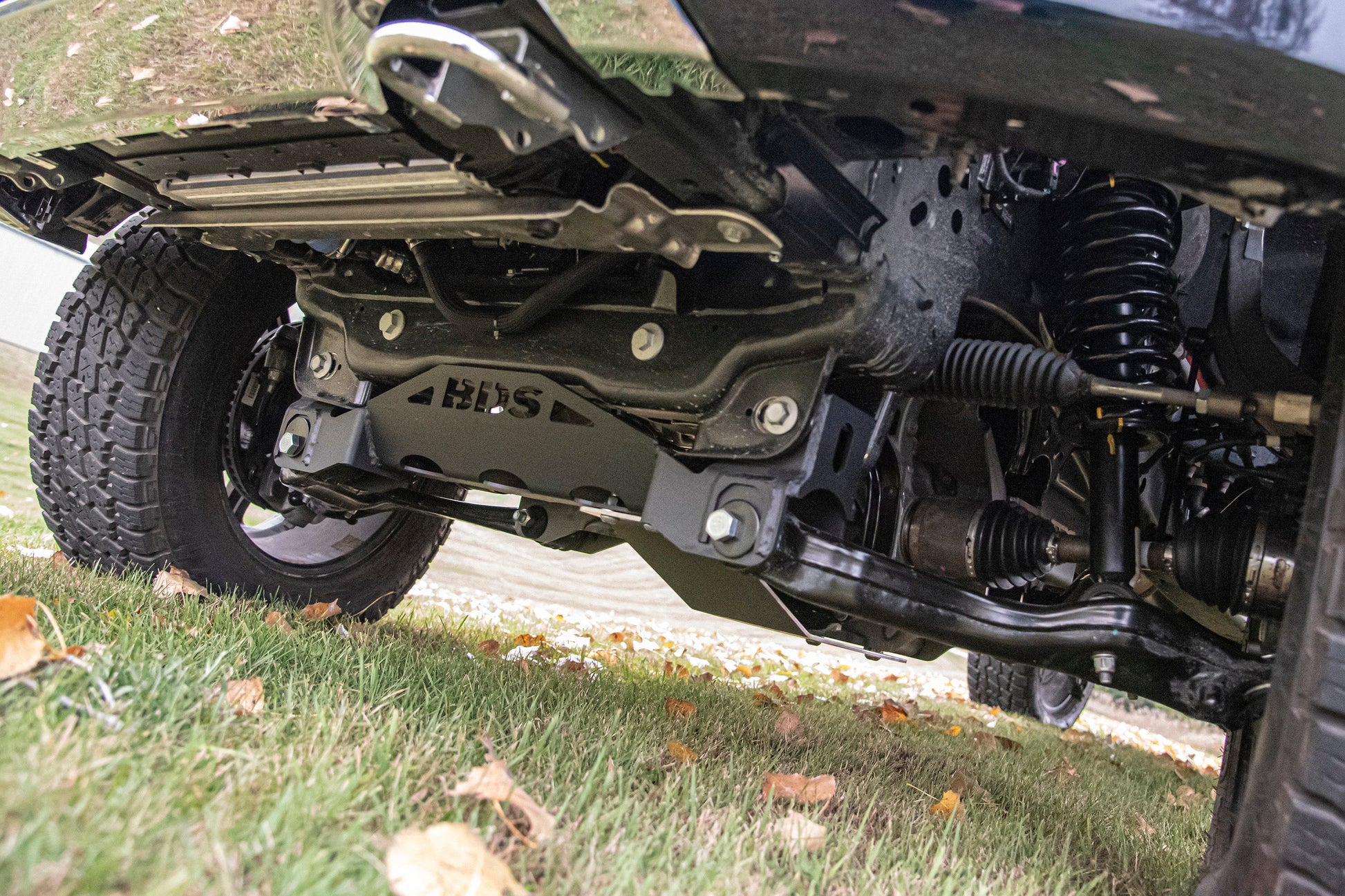

High clearance crossmembers improve strength and offroad capability
Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
Top mounted strut spacers to provide lift and install easily
Differential skid plate for improved offroad protection
Rear lift blocks and u-bolts to lift and level the stance

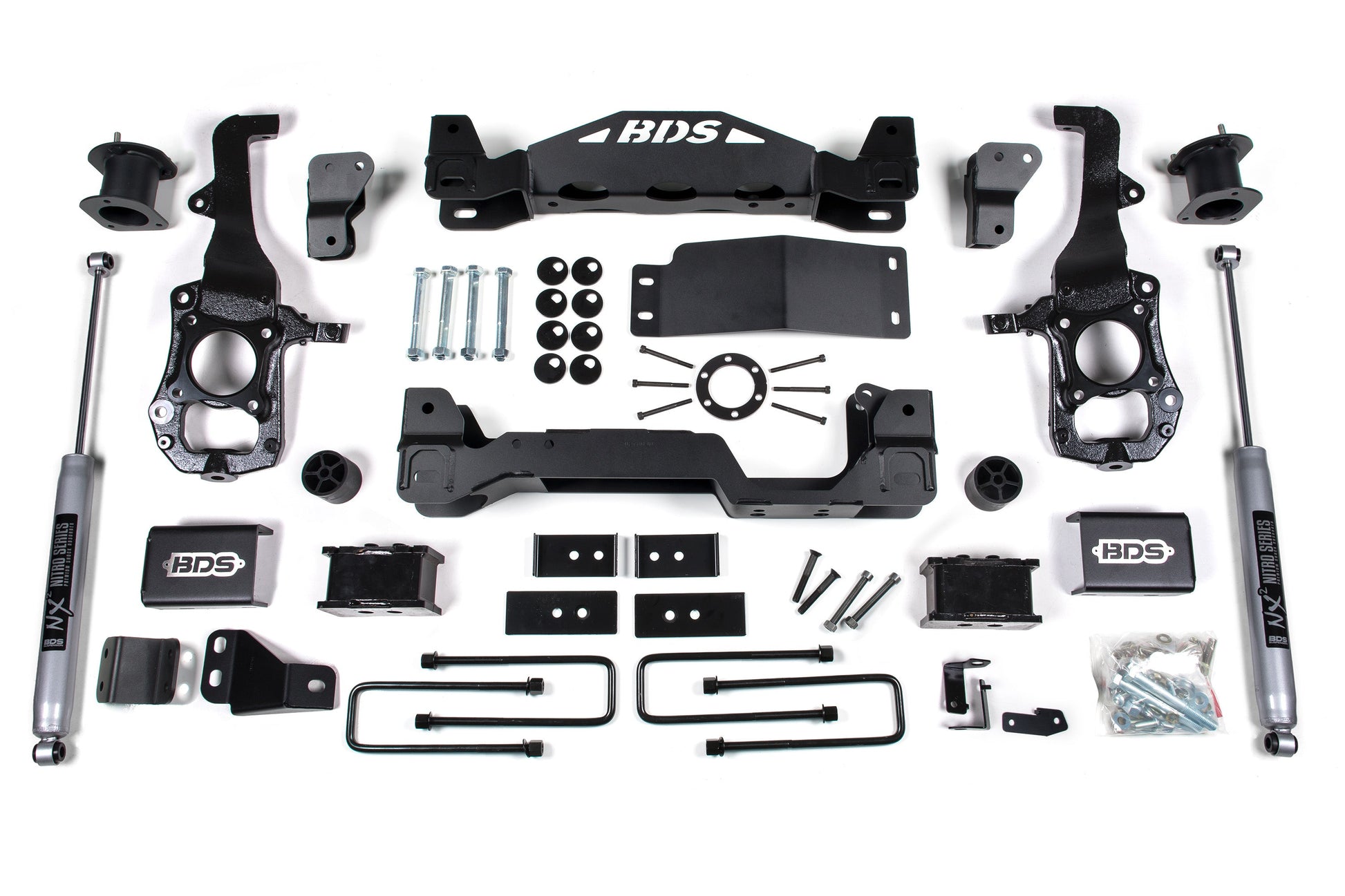

Standard NX2 Nitro shocks with vehicle-specific valving for better control

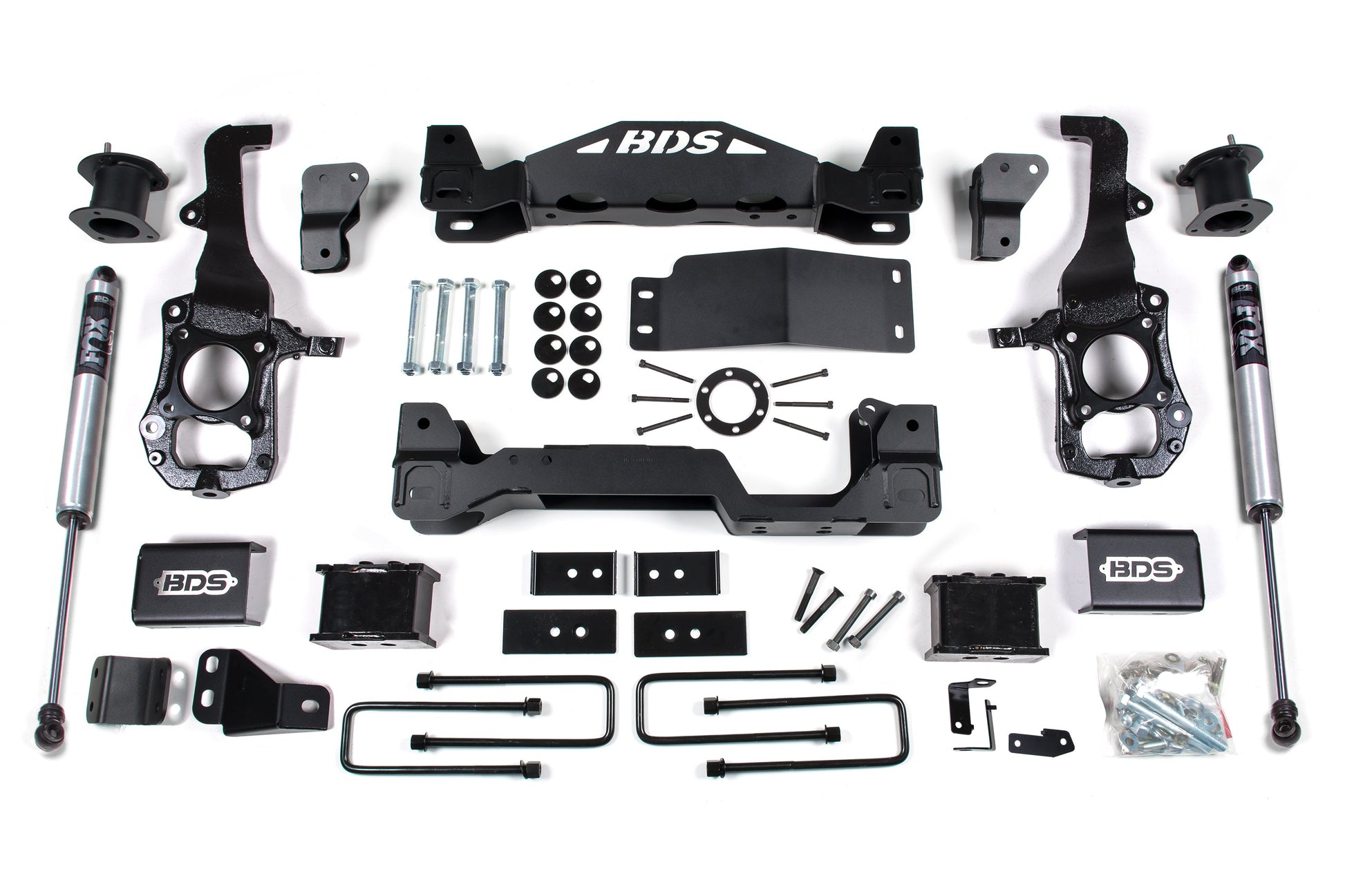

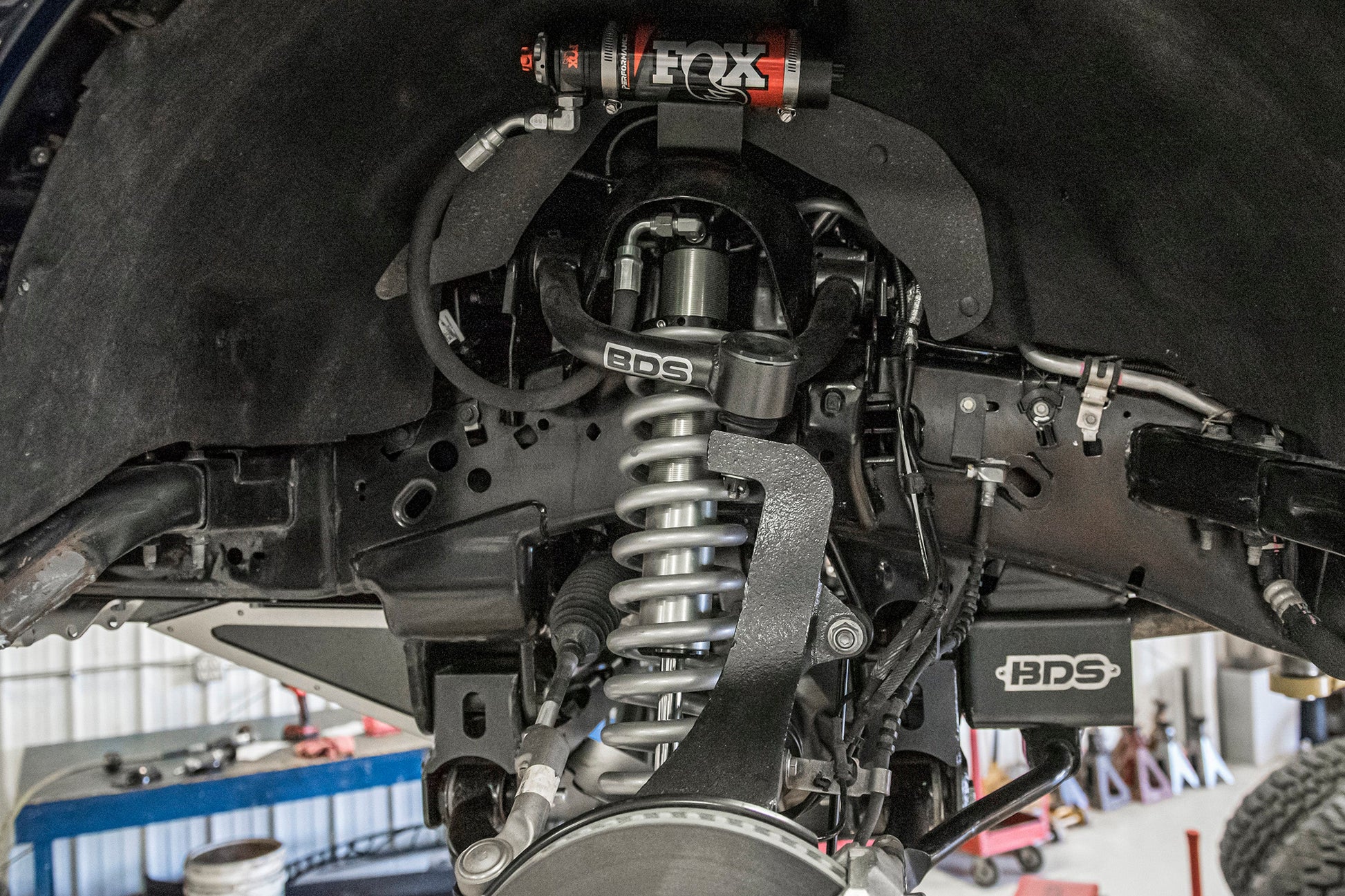

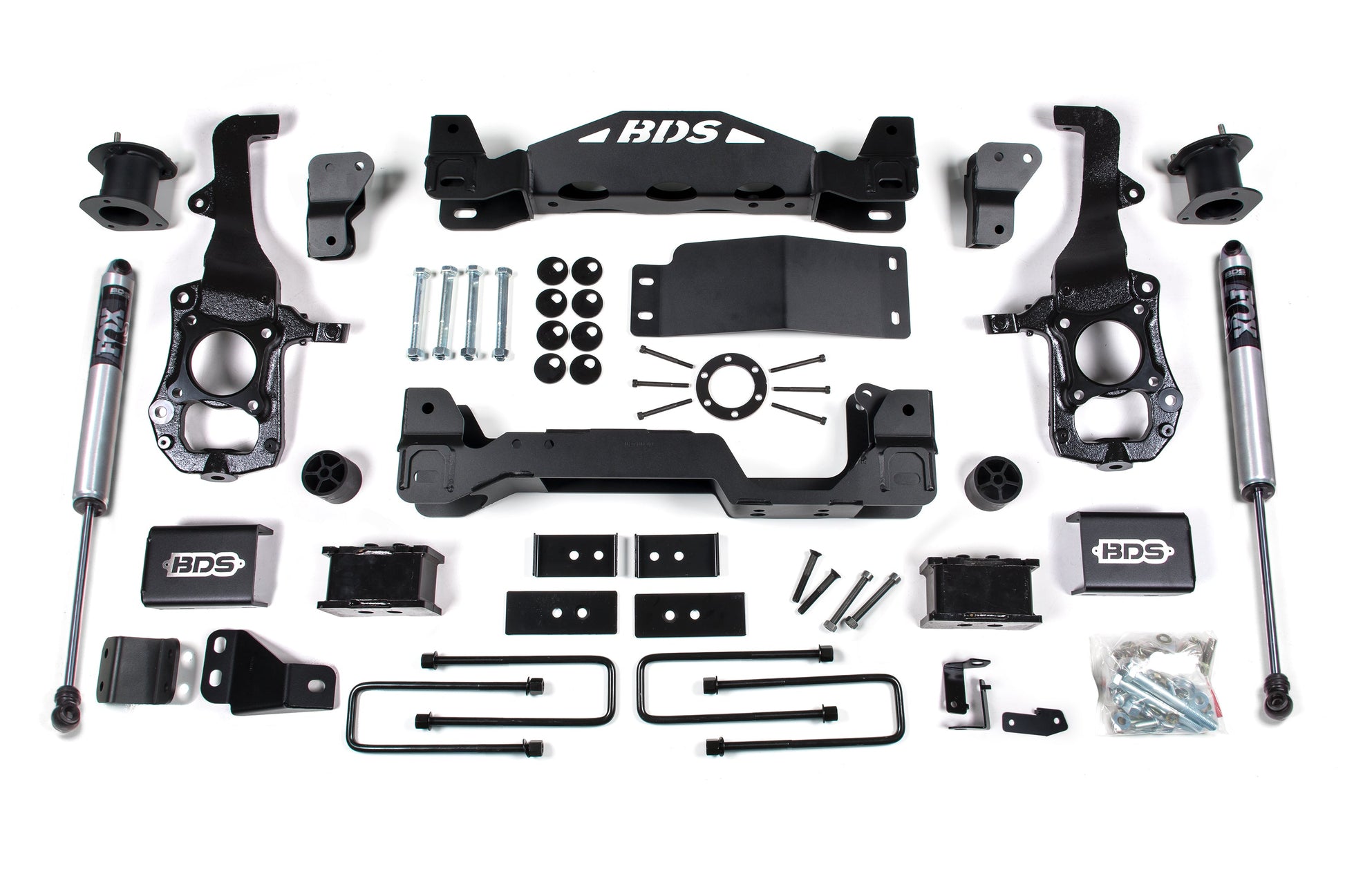

Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Functions with Blue Cruise

18" or larger diameter wheels are required. Stock 17" and 18" wheels cannot be re-installed. Stock 20" wheels can be used with up to a 305/60R20 tire.
18" wheels with 5-5.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle/tie rod. 5.5" backspacing is highly recommended for tire-to-frame crash bar clearance.
Models with 2-piece rear driveshaft WILL require carrier bearing shim kit 122406 (not included w/ kit)
Block kits replace factory 1-1/4" block. The stock block will not be reinstalled.
Crash bars may require modification based on wheel and tire choice. It is the end user's responsibility to ensure modifications are non-detrimental to vehicle safety.
Does NOT fit diesel models.
Will not work with Tremor models.
Some trucks with a 2 piece drive shaft may have a recall from Ford regarding the rear driveshaft. (Safety Recall 21S25) Due to the recall procedure, BDS recommends having this performed prior to installing the lift.
Will not work with models with CCD (Continuous Controlled Damping)
Recalibration of your vehicles Advanced Driver Assistance System (ADAS) cameras, radars, light detection and ranging (LiDAR), and other sensors may be necessary by your local dealership or ADAS service center. This will ensure proper functionality of the vehicle features such as lane keeping, lane departure, parking assistance, blind-spot detection, adaptive cruise control systems, and other functions as they did prior to installation. Please connect with your local dealership or ADAS service center. Similar to a wheel alignment, all charges and expenses that may occur from dealership calibrations and adjustments are the sole responsibility of the vehicle owner.

Quick Specs

Recommended Wheels and Tires

Note: trimming may be required.
35 x 12.5 with 18 x 9 and 5 in. Backspace
35 x 12.5 with 20 x 9 and 4.5 in. Backspace
37 x 12.5 with 20 x 9 and 5.5 in. Backspace

Instructions

Estimated Install Time: 8-10 hrs
Difficulty: Difficult
Required Tools: 204-592 Ball Joint Separator (Recommended), Tie Rod End Separator (Recommended), Reciprocating Saw
