BDS Suspension 6 Inch Lift Kit | Ford F150 (15-20) 2WD

BDS Suspension 6 Inch Lift Kit | Ford F150 (15-20) 2WD

VARIANT ID:

Regular price $2,050.65
Regular price B2B price $2,050.65
SALE Sold out
Shipping calculated at checkout.
Rear Lift Option
Rear Shock Option
View full details

IMPORTANT: ALWAYS READ THE ENTIRE PRODUCT DESCRIPTION, INCLUDING IMPORTANT NOTES AND FITMENT INFORMATION, BEFORE MAKING A PURCHASE. FOR THE MOST UP-TO-DATE INFORMATION, REFERENCE THE MANUFACTURER'S WEBSITE. KIT COMPONENTS CONTAINED IN IMAGES AND DESCRIPTIONS MAY CHANGE BASED UPON YOUR SELECTIONS.

BDS Suspension leads the industry by developing a 2wd specific 6 inch lift kit suspension system for your 2015-2020 Ford F150 2WD truck. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes high-arched 1/4-inch thick steel crossmembers, top mounted strut spacers, and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.

In the rear BDS utilizes high strength fabricated lift blocks and longer u-bolts to lift and level the stance along and NX2 Nitro or optional FOX 2.0 Performance Series shocks.

High Clearance Crossmemebers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

Features

  • High clearance crossmembers improve strength and offroad capability
  • Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
  • Top mounted strut spacers to provide lift and install easily
  • Differential skid plate for improved offroad protection
  • Rear lift blocks and u-bolts to lift and level the stance
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control

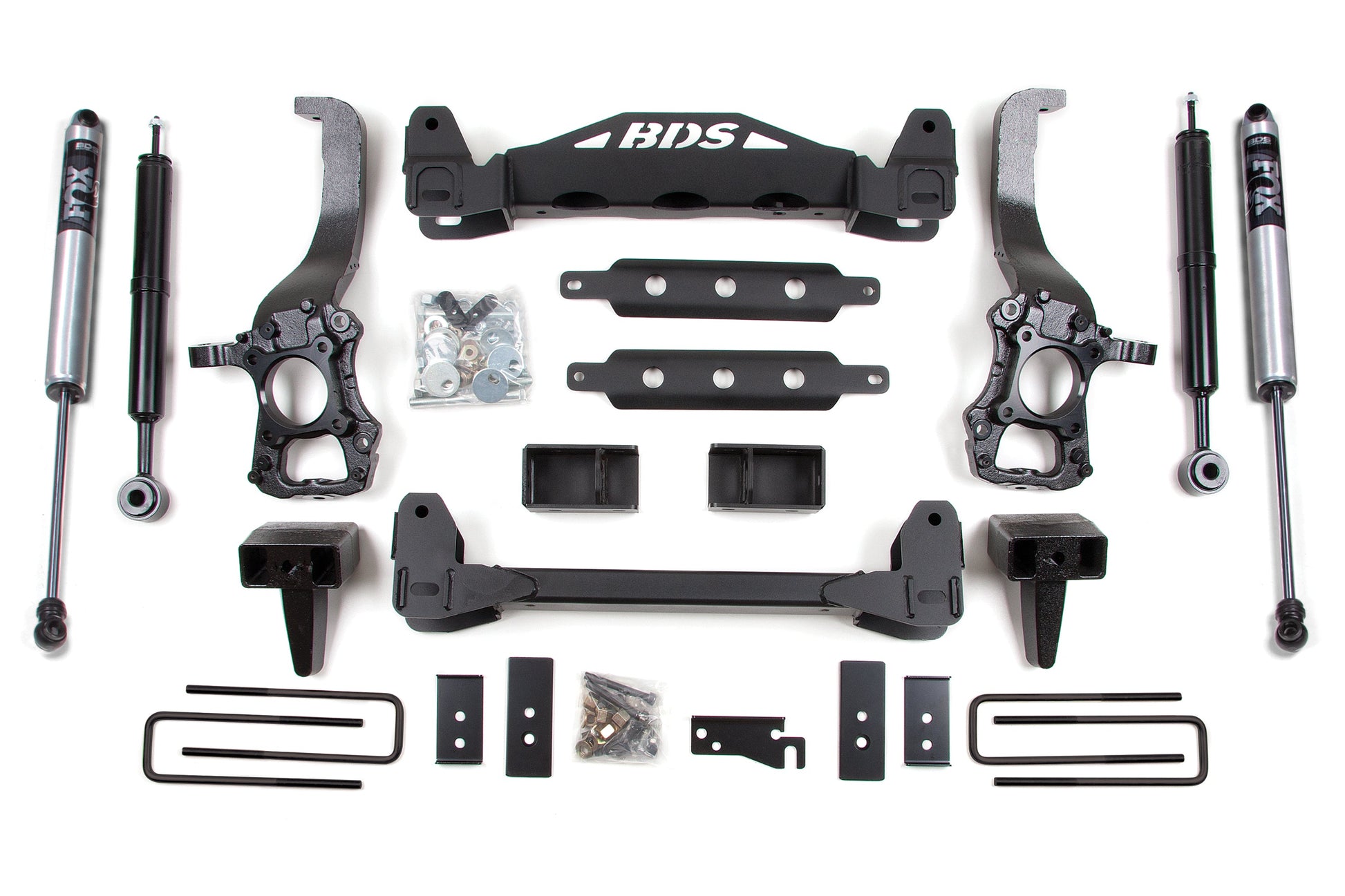

  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Important Notes

  1. 18" wheels with 5-5.5" total backspacing should be tested before mounting to ensure proper clearance to BDS steering knuckle.
  2. 18" or larger diameter wheels are required. Stock 17" and 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to 305/60-20 tires.
  3. The 4" blocks will net a level/tail LOW stance. The 5" blocks will net a level/tail HIGH stance.
  4. Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #122406
  5. This system WILL WORK on Diesel Models.
  6. Will not fit HD models (7 lug).
  7. This kit is FMVSS No.126 Compliant

Quick Specs

Installation

  • Install Difficulty: Difficult
  • Est. Install Time: 8-10 hrs
  • Required Tools: Cut-off Tool, Reciprocating Saw

Recommended Wheel & Tire Fitment

  • Option 1: 35 x 12.5 Tires w/ 18 x 9 Wheels & 5.5 Backspacing
  • Option 2: 37 x 12.5 Tires w/ 18 x 9 Wheels & 5 Backspacing
  • Option 3: 37 x 12.5 Tires w/ 20 x 9 Wheels & 5.5 Backspacing
  • Note: Minor plastic trimming may be required

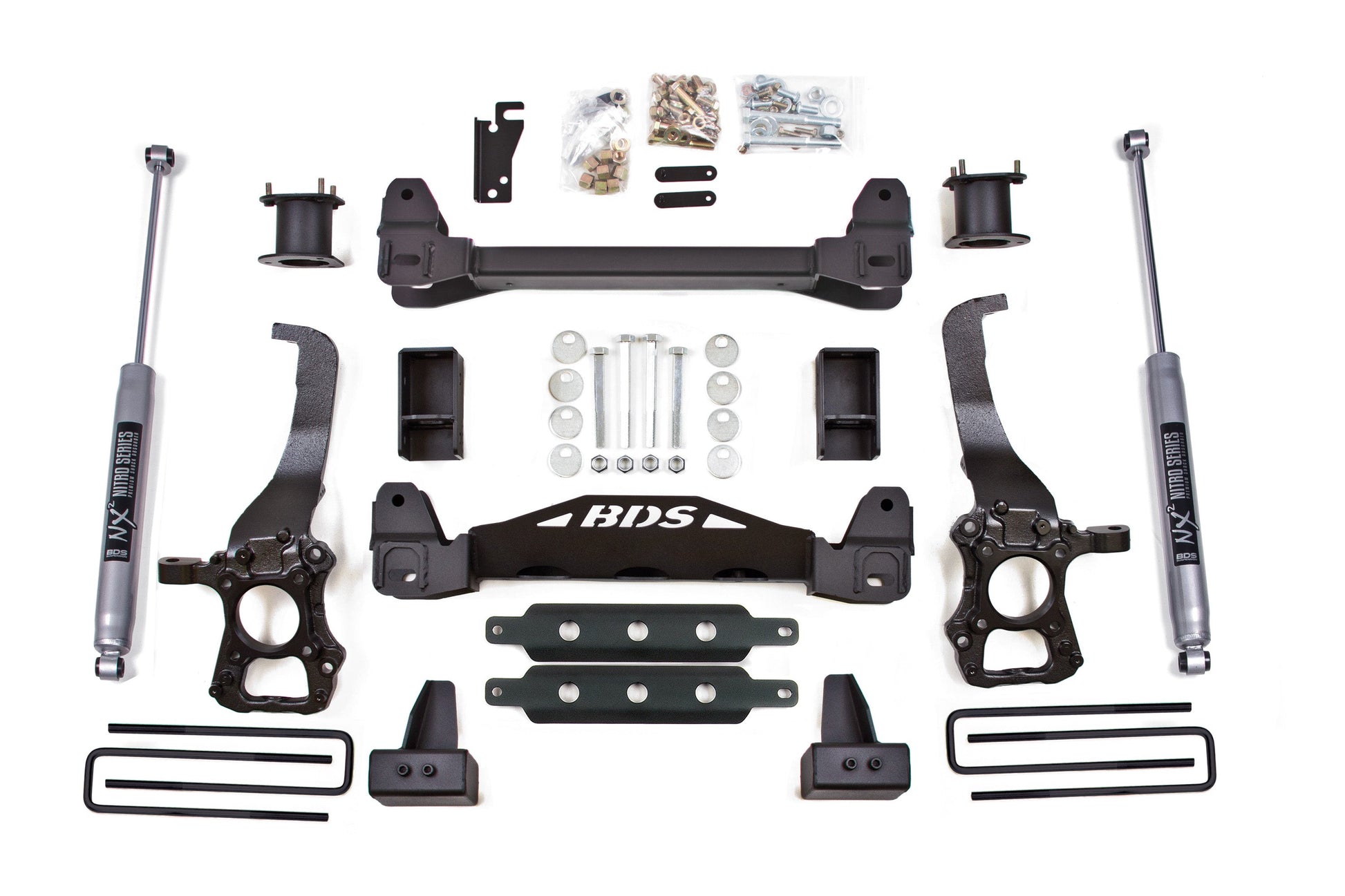

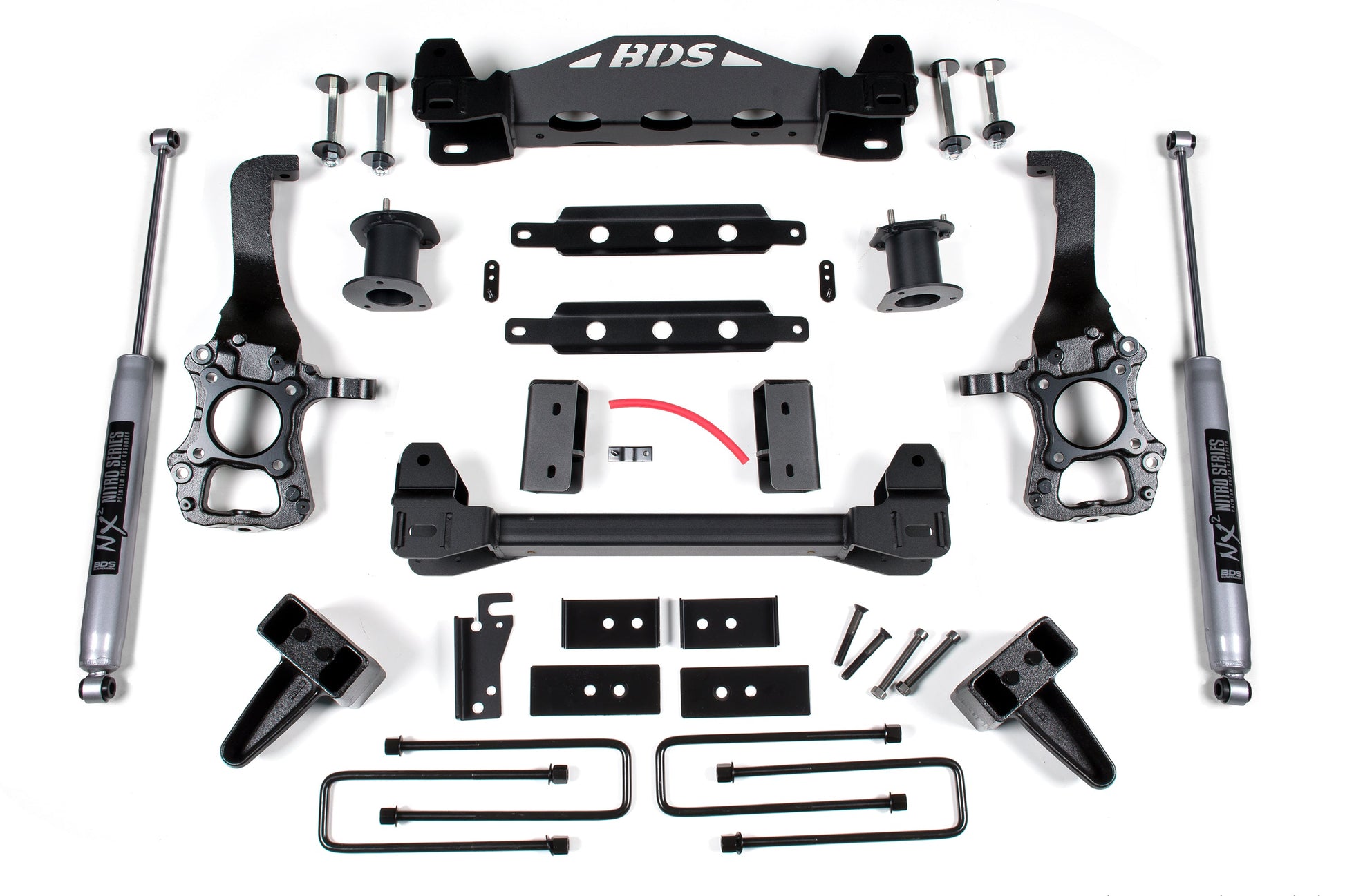

What's In The Box

  • (1) BDS013529 2009-2016 Ford F150 Rear Box Kit
  • (1) BDS023605 2014-15 F150 6in Spacer Box Kit
  • (1) BDS023634 2015-2020 Ford F150 Knuckle Box Kit - DS
  • (1) BDS023635 2015-2020 Ford F150 Knuckle Box Kit - PS
  • (1) BDS023644 2015-2020 Ford F150 2wd Box Kit
  • (2) FOX98224760 Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1

Brand Overview

BDS Suspension offers a wide range of premium suspension parts and components to complete the build of your high-performance truck or Jeep. All BDS products are made in the USA and powder coated for a superior ultra-premium appearance. On or off road, if your truck is running BDS Suspension, you've got the hardest charging, best driving, sharpest looking equipment money can buy.

Fitment

  • 2015 Ford F-150 FLEX RWD
  • 2015 Ford F-150 GAS RWD
  • 2016 Ford F-150 FLEX RWD
  • 2016 Ford F-150 GAS RWD
  • 2017 Ford F-150 FLEX RWD
  • 2017 Ford F-150 GAS RWD
  • 2018 Ford F-150 DIESEL RWD
  • 2018 Ford F-150 FLEX RWD
  • 2018 Ford F-150 GAS RWD
  • 2019 Ford F-150 DIESEL RWD
  • 2019 Ford F-150 FLEX RWD
  • 2019 Ford F-150 GAS RWD
  • 2020 Ford F-150 DIESEL RWD
  • 2020 Ford F-150 FLEX RWD
  • 2020 Ford F-150 GAS RWD
