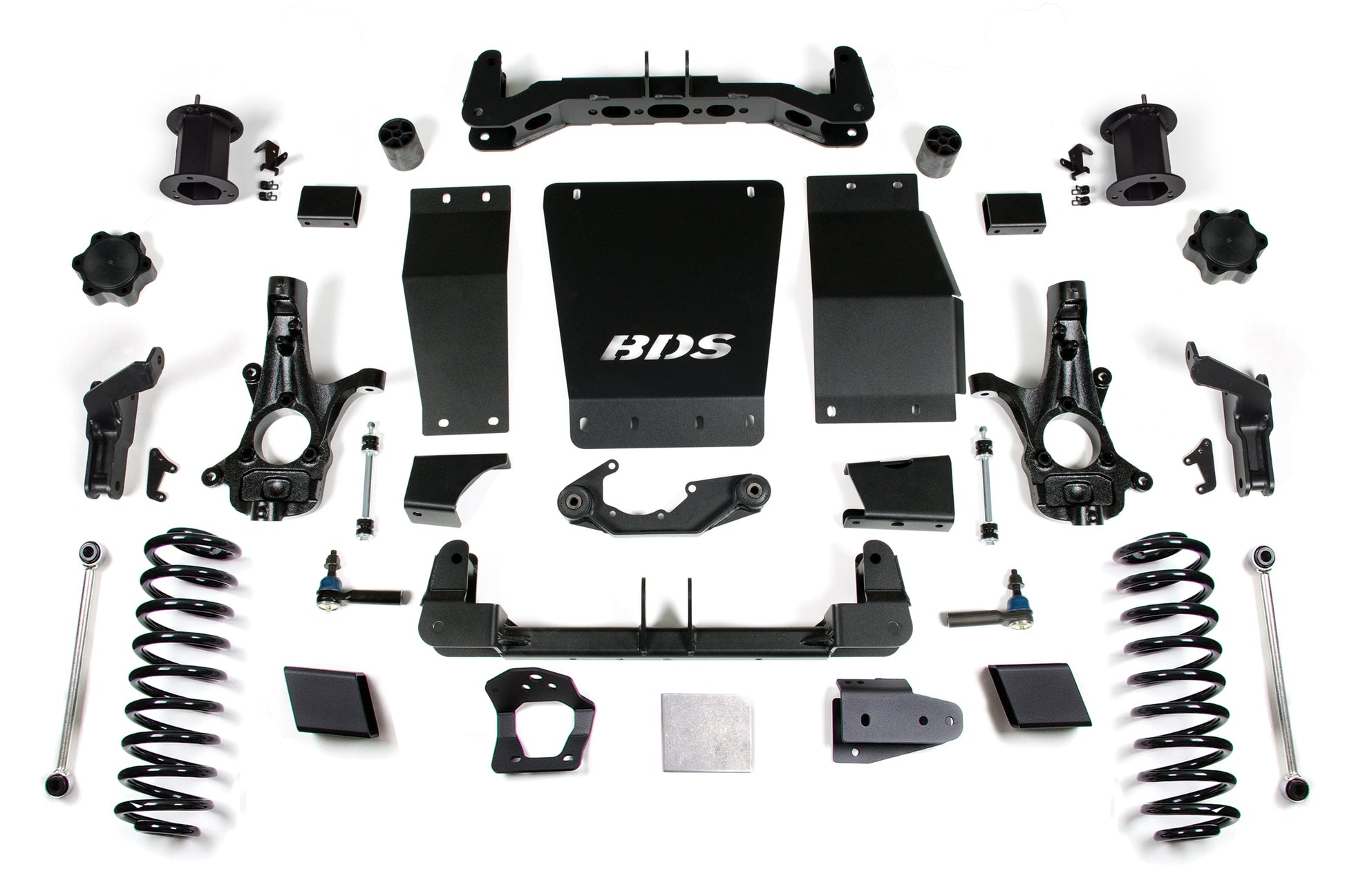

BDS Suspension 6 Inch Lift Kit Chevy/GMC Suburban, Tahoe, Yukon/XL 1500 (15-19) 4WD · Magneride Equipped
- Front lift 6"
- Lift 6-7.5"
- Max tire 33 x 12.5
- Rear lift 5"
- Shocks No
- Install 8 hrs
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Accessories
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- *IMPORTANT*: GM is producing several knuckle/control arm configurations in 2015-2016 model trucks. Cast Steel control arm equipped models will require the "Cast Steel Control Arm" kit. Stamped Steel and Aluminum control arm equipped models will require the "Aluminum Control Arm" kit. Be sure to verify which factory control arms your truck has before ordering by referencing our help images when customizing your kit.
- Frame bracket modification and welding are required.
- 20" wheels with 5" to 5-3/4" backspacing are recommended to reduce trimming.
- AWD models may require front driveline modification
- Factory 17" and 18" wheels cannot be reinstalled due to tie rod interference.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | BDS Suspension |
|---|---|
| Part number | BDS751H |
| UPC / GTIN | 840416420869 |
| Front Lift Height | 6" |
| Front Lift Method | Cross-Member |
| Lift Height | 6-7.5" |
| Max Tire Size | 33 x 12.5 |
| Rear Lift Height | 5" |
| Rear Lift Method | Coil Spring |
| Shocks Included | No |
| Install time | 8 hrs |
| Difficulty | Difficult |

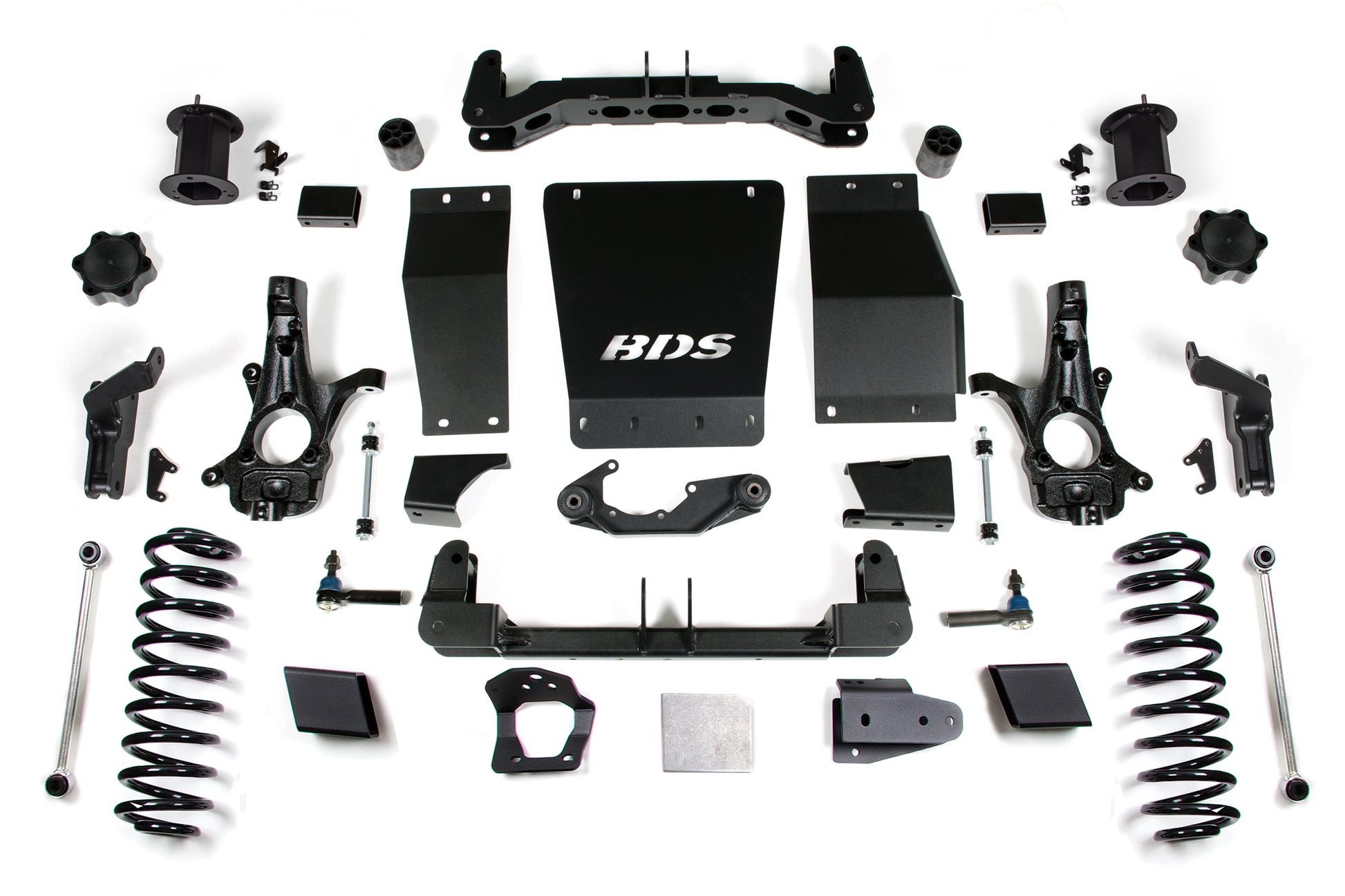

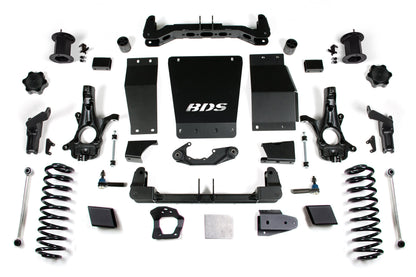

What's in the box
| Qty | Part | Description |
|---|---|---|
| 1 | BDS021662 | 14-18 GM 1500 - 15-19 GM SUV 1500 6" Frt Box Kit (1of2) |
| 1 | BDS021663 | 14-18 GM 1500 15-19 GM SUV 6" Frt Box Kit (2of2) |
| 1 | BDS121660 | 15-19 GM SUV MagneRide Front Box Kit |
| 1 | BDS021518 | 15-19 GM SUV AutoRide Rear 5in Box Kit |
For: Cast Steel
| Qty | Part | Description |
|---|---|---|
| 1 | BDS021660 | 14-18 GM 1500 - 15-19 GM SUV Knuckle Box - Cast |
For: Aluminum / Stamped Steel
| Qty | Part | Description |
|---|---|---|
| 1 | BDS021661 | 14-18 GM 1500 - 15-19 GM SUV Knuckle Box - Alum/Stamped |
Features
- Includes shock relocation brackets to maintain factory Magneride shocks
- High clearance crossmember design maximizes ground clearance
- Robust steering knuckles maintain ESC system compliance
- High-strength replacement upper control arms provide durability and serviceability
- HD skid plate system improved offroad protection
- Multipoint differential relocation brackets to secure the front axle and improve CV angles
- Factory Protection Plus drivetrain warranty included
Fitment
| Years | Vehicle |
|---|---|
| 2016-2019 | Chevrolet Suburban 4WD: LS, LT |
| 2016 | Chevrolet Suburban 4WD: LTZ |
| 2017-2019 | Chevrolet Suburban 4WD: Premier |
| 2015 | Chevrolet Suburban 4WD |
| 2015-2019 | Chevrolet Suburban |
| 2016-2019 | Chevrolet Tahoe 4WD: LS, LT, PPV |
| 2016 | Chevrolet Tahoe 4WD: LTZ |
| 2017-2019 | Chevrolet Tahoe 4WD: Premier |
| 2015 | Chevrolet Tahoe 4WD |
| 2016-2019 | Chevrolet Tahoe: SSV |
| 2015-2019 | Chevrolet Tahoe |
| 2015-2019 | GMC Yukon 4WD |
| 2015-2019 | GMC Yukon XL 4WD |
| 2015-2019 | GMC Yukon XL |
| 2015-2019 | GMC Yukon |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Recommended wheels & tires
- 33 x 12.5 with 17 x 8 and 4.5 in. Backspace
- 34 x 12.5 with 18 x 9 and 5 in. Backspace
- 35 x 12.5 with 20 x 9 and 5.75 in. Backspace
Installation
- Estimated install time8 hrs
- DifficultyDifficult
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Take your 2015-2019 Chevy Suburban, or Tahoe and GMC Yukon 1500 to new heights with a BDS 6-inch lift kit. Works only on Magneride equipped SUVs. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes a top mounted strut spacer, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear BDS offers new Pro-Ride coil springs for on-road ride quality as well as serious off road performance, anti-sway bar links, track bar relocation system, and adjustable upper control arms allowing you to properly adjust pinion angle. The rear sensors are relocated using the supplied brackets along with rear shock extensions to retain the factory electronic dampers.
High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
About BDS Suspension
BDS Suspension offers a wide range of premium suspension parts and components to complete the build of your high-performance truck or Jeep. All BDS products are made in the USA and powder coated for a superior ultra-premium appearance. On or... Shop all BDS Suspension
