BDS Suspension 6.5 inch long arm lift kit Jeep Wrangler TJ and TJ Rubicon · 1997-2006
- Front lift 6"
- Lift 6-7.5"
- Rear lift 6"
- Shocks No
- Install 10 hrs
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Steering Stabilizers
Accessories
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- A slip yoke eliminator kit and CV style rear drive shaft is required.
- May require exhaust modification.
- Some welding required.
- Long Arm systems also fit short wheel base Rubicon models (not Unlimited models)
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | BDS Suspension |
|---|---|
| Part number | BDS467H |
| UPC / GTIN | 840416416862 |
| Front Lift Height | 6" |
| Front Lift Method | Coil Spring |
| Lift Height | 6-7.5" |
| Rear Lift Height | 6" |
| Rear Lift Method | Coil Spring |
| Shocks Included | No |
| Install time | 10 hrs |

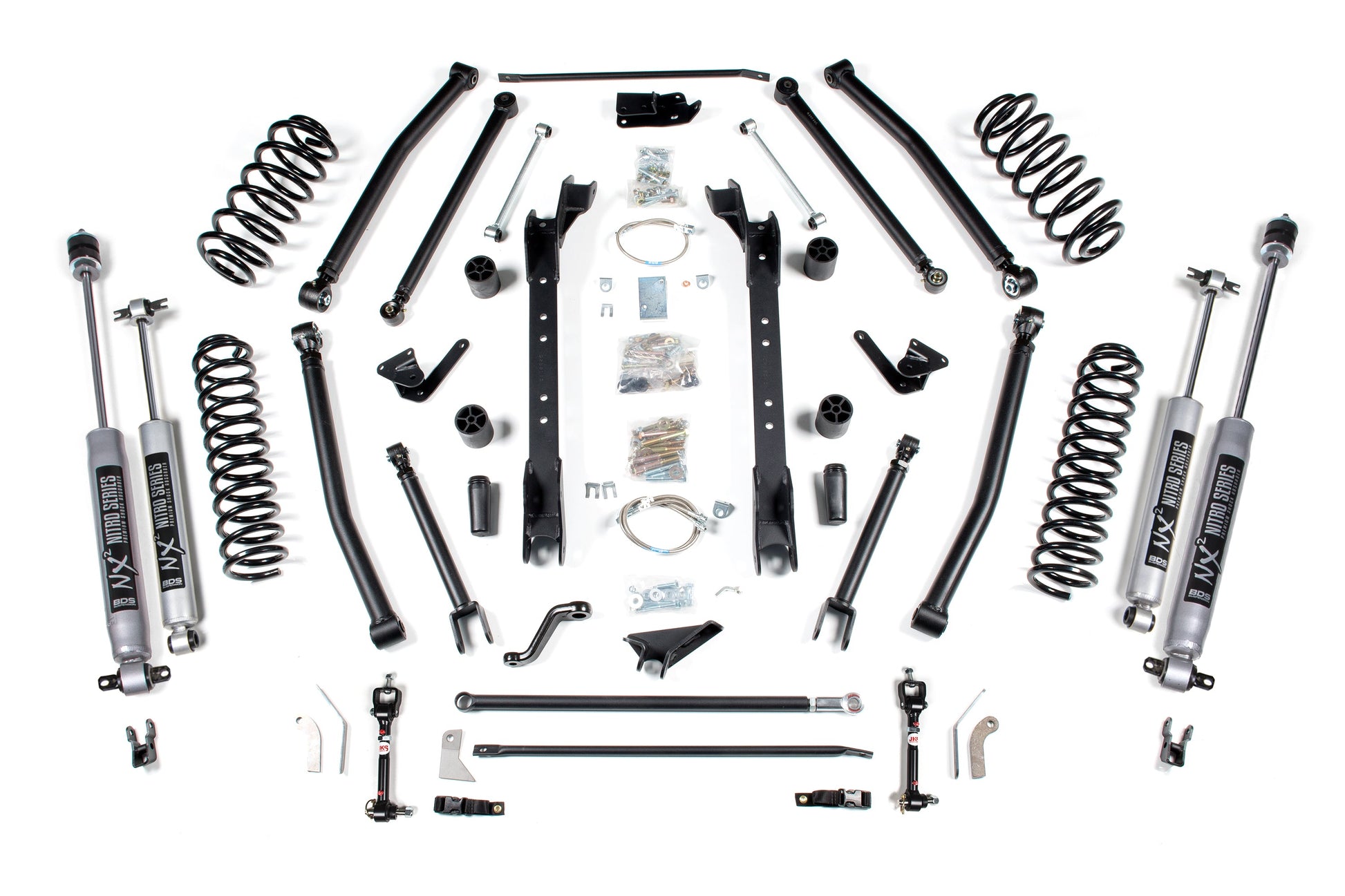

What's in the box
| Qty | Part | Description |
|---|---|---|
| 1 | BDS034651 | Coil Springs - Front | 6.5 Inch Lift | Jeep Wrangler TJ (97-06) |
| 1 | BDS034659 | Coil Springs - Rear | 6.5 Inch Lift | Jeep Wrangler TJ (97-06) |
| 2 | BDS85962 | NX2 Nitro Front Shock | 6.5 Inch Lift | Jeep Wrangler TJ/LJ (97-06) |
| 2 | BDS85974 | NX2 Nitro Rear Shock | 6 Inch Lift | Jeep Wrangler TJ/LJ (97-06) and Cherokee XJ (84-01) |
Features
- All new long upper arms are included that are adjustable to fine tune the rear pinion angles as well as the front caster angles, D.O.T. approved Kevlar lined stainless steel brake lines for front and rear, ultimate sway bar disconnects for the front and extended links for the rear, and NX² series shocks.
Installation
- Estimated install time10 hrs
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
This lift kit comes with four new Pro-Ride Coil Springs capable of full coil bind. The box kit includes a pitman arm for steering correction, adjustable front track bar with a track bar relocation system to match the track bar angles with the steering angles. Four long lower arms are included with flex ends to ensure off road performance.
This lift kit comes with four new Pro-Ride Coil Springs capable of full coil bind. The box kit includes a pitman arm for steering correction, adjustable front track bar with a track bar relocation system to match the track bar angles with the steering angles. Four long lower arms are included with flex ends to ensure off road performance.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
