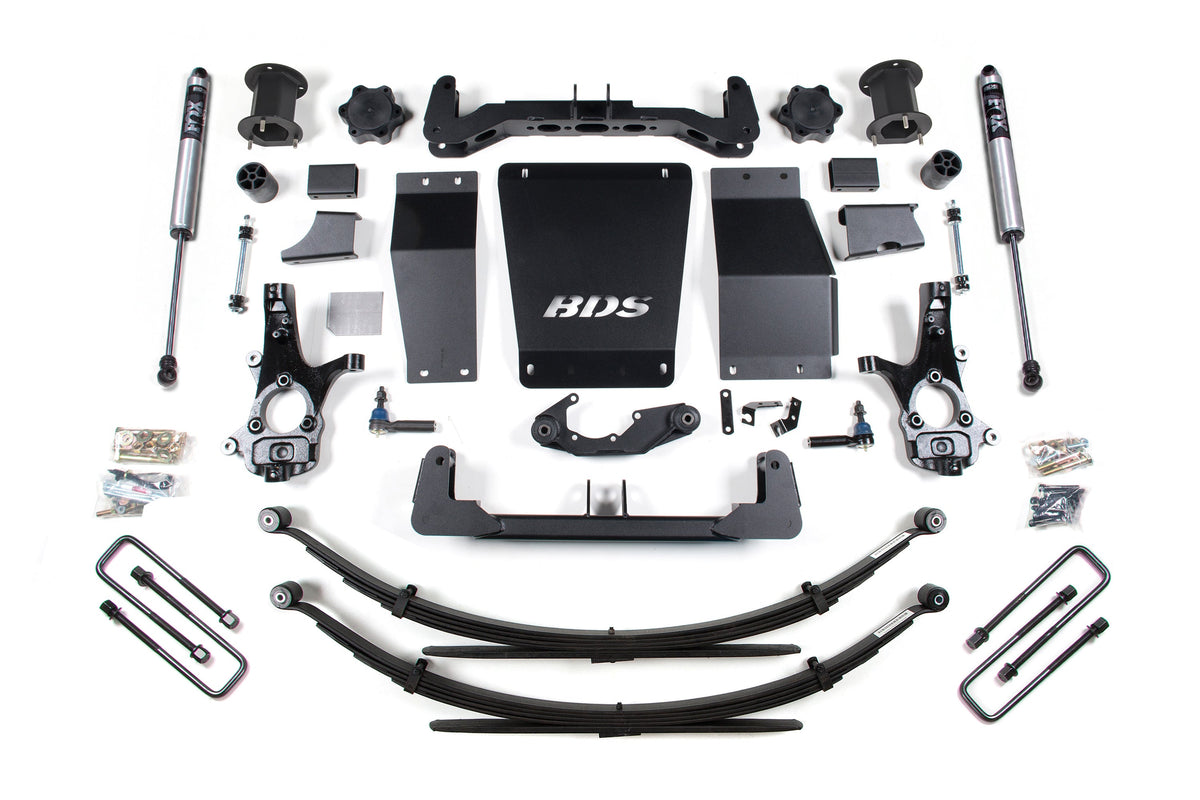

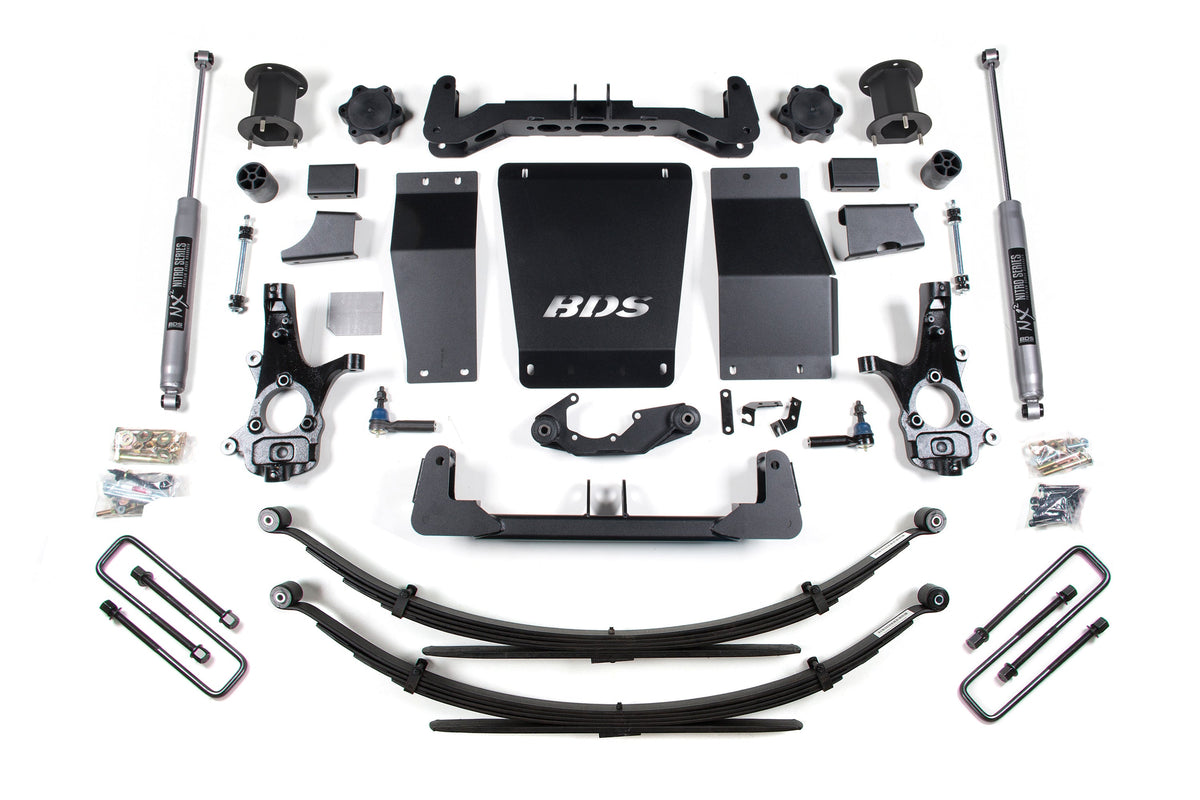

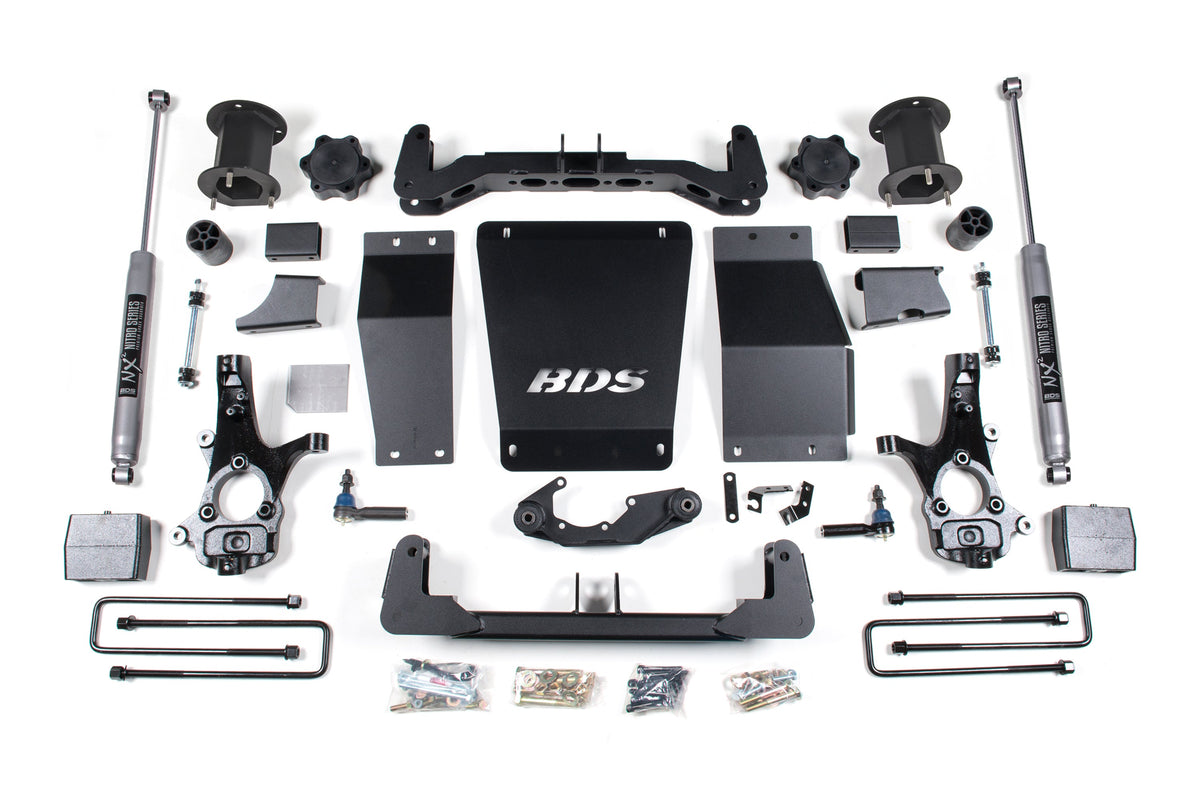

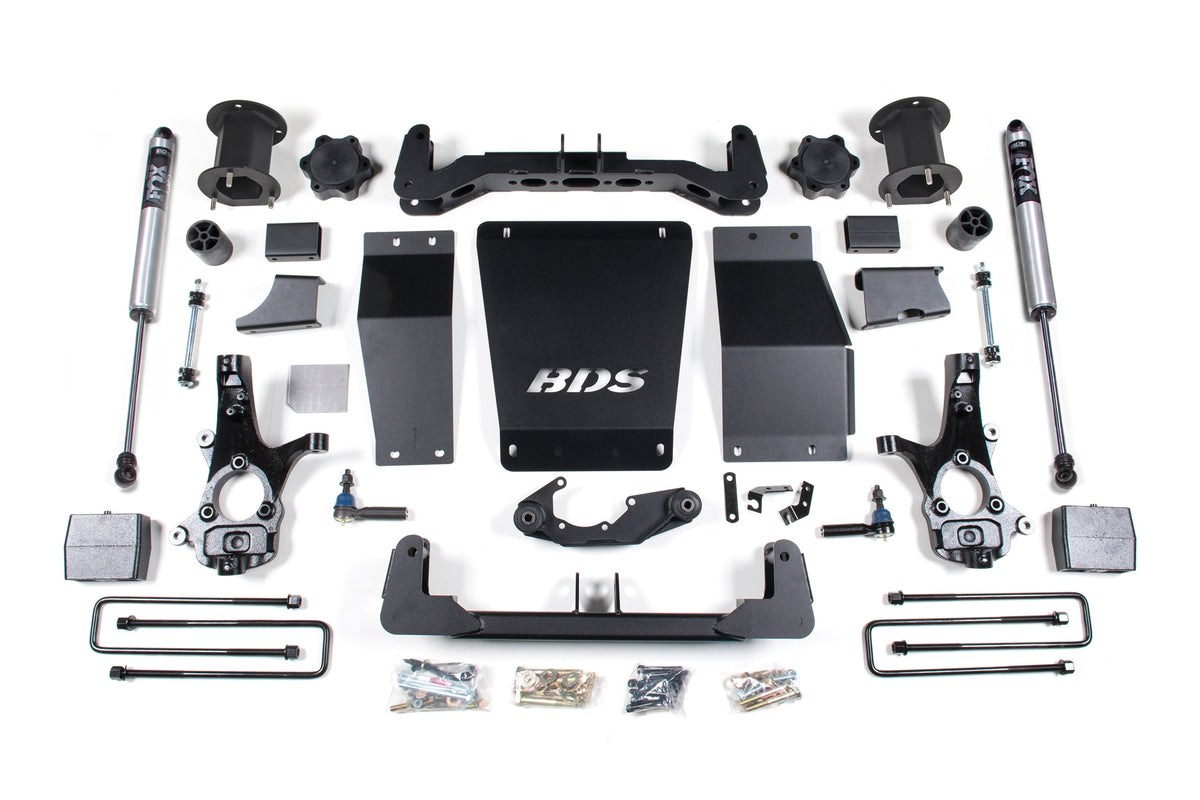

BDS Suspension 6.5 Inch Lift Kit | Chevy Silverado or GMC Sierra 1500 (14-18) 4WD

Name: BDS Suspension 6.5 Inch Lift Kit | Chevy Silverado or GMC Sierra 1500 (14-18) 4WD
Brand: BDS Suspension
SKU: BDS706FS
Price: 2255.65 USD
Availability: InStock

BDS Suspension 6.5 Inch Lift Kit | Chevy Silverado or GMC Sierra 1500 (14-18) 4WD

PART #

$2,255.65

SALE CALL OR CHAT TO ORDER

Shipping calculated at checkout.

Product variants

Quantity

Inventory: Call or Live-Chat

View full details

Important: Always read the entire product description, including Features, Important Notes, Specifications, and Fitment data, before making a purchase. Components contained in images and descriptions may change based upon your selections.

The BDS 6.5-inch lift kit is an amazing upgrade for your 2014-2018 Chevy Silverado and GMC Sierra 1500 that will leave others in envy. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes full length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers both replacement lift block and full Glide-Ride leaf spring options to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, brake line brackets and precision tuned NX2 Nitro or FOX 2.0 Performance Series shocks.

Features

High clearance crossmember design maximizes ground clearance
Robust steering knuckles maintain ESC system compliance
HD skid plate system improved offroad protection
Multipoint differential relocation brackets to secure the front axle and improve CV angles
Choice of FOX 2.0 performance series or BDS NX2 Twin tube rear shocks.
Factory Protection Plus drivetrain warranty included

*IMPORTANT*: GM is producing several knuckle/control arm configurations in 2014-2017 models trucks. Cast Steel control arm equipped models will require the "Cast Steel Control Arm" kit. Stamped Steel and Aluminum control arm equipped models will require the "Aluminum Control Arm" kit. Be sure to verify which factory control arms your truck has before ordering by referecing our help images when customizing your kit.
Requires frame bracket modification.
Requires differential modification to clear electric power steering
Factory 17" and 18" wheels cannot be reinstalled due to tie rod end interference
If choosing the 4" rear block option, add-a-leaf # 111209 is recommended for a more level/tail high stance on crew cab models.
All wheel drive models require drive line modification.

Quick Specs

Front Lift Method: Cross Member & Strut Spacer
Front Lift Height: 6.5"
Rear Lift Method: Block
Rear Lift Height: 4"
Shocks Included: Yes
Lift Height: 6-7.5"

What’s Included

(2) FOX98224759 Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1

Recommended Wheels and Tires

33 x 12.5 with 17 x 9 and 4.5 in. Backspace
34 x 12.5 with 18 x 9 and 5 in. Backspace
35 x 12.5 with 20 x 9 and 5.75 in. Backspace
