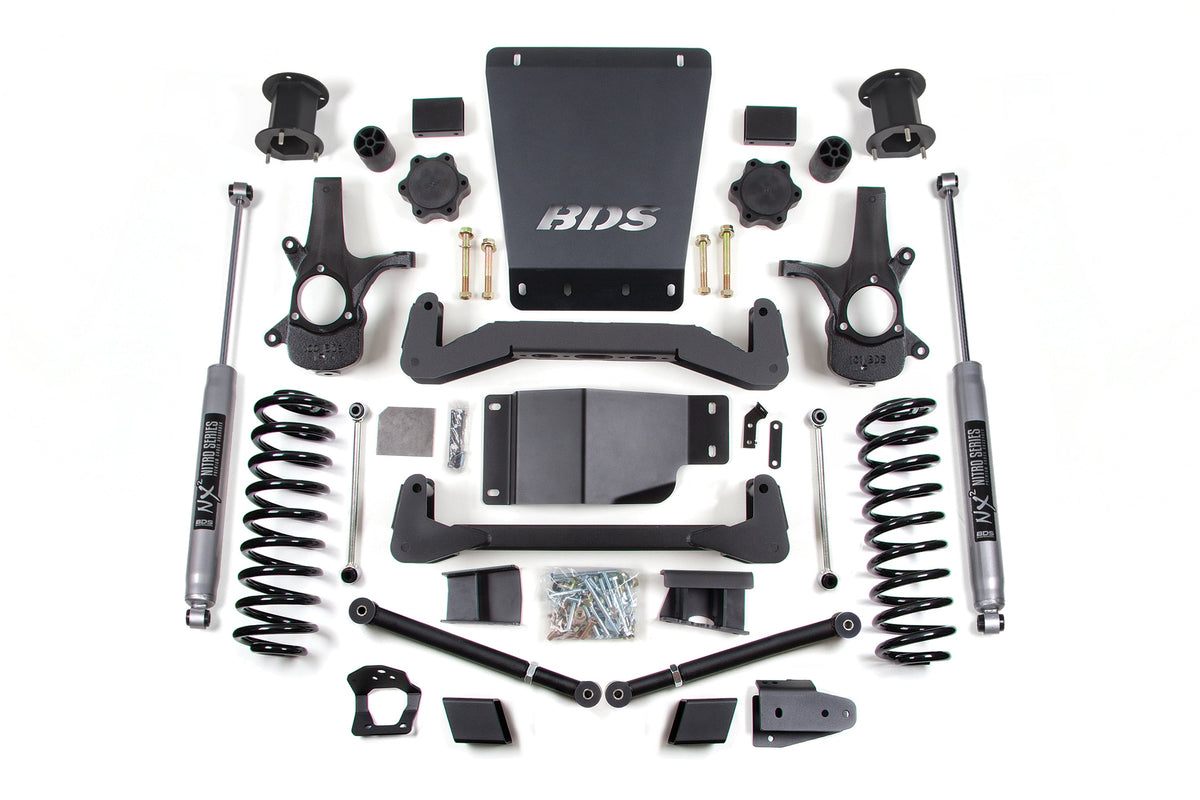

BDS Suspension 6.5 Inch Lift Kit Chevy/GMC Avalanche, Suburban, Tahoe, or Yukon 1500 (07-14) 4WD
- Front lift 6.5"
- Lift 6-7.5"
- Max tire 33 x 12.5
- Rear lift 5"
- Shocks included
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Accessories
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Will not work with auto-ride equipped vehicles.
- Minor premature engagement of the StabiliTrak system may occur during certain driving maneuvers.
- Minor frame bracket modification and welding are required. 20" wheels with 5" to 5-3/4" backspacing recommended to reduce trimming.
- Add 121651 Auxillary Differential bracket for AWD models. Also may require front driveline modification.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | BDS Suspension |
|---|---|
| Part number | BDS907FS |
| UPC / GTIN | 840416439908 |
| Front Lift Height | 6.5" |
| Front Lift Method | Strut Spacer |
| Lift Height | 6-7.5" |
| Max Tire Size | 33 x 12.5 |
| Rear Lift Height | 5" |
| Rear Lift Method | Coil Spring |
| Shocks Included | Yes |

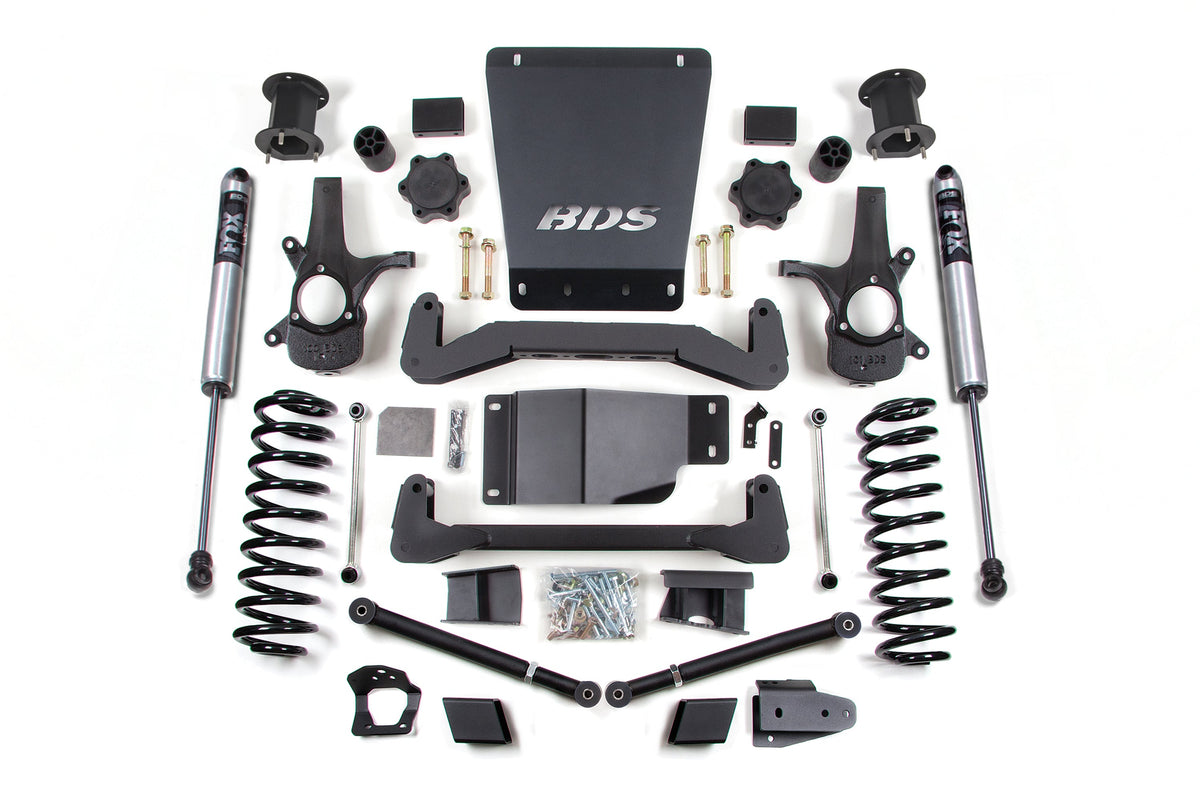

What's in the box
| Qty | Part | Description |
|---|---|---|
| 1 | BDS121613 | Front Skid Plate | Fits BDS 4 or 6 Inch Lift Only | Chevy Silverado and GMC Sierra 1500 (07-13) |
| 2 | FOX98224759 | Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1 |
Features
- High clearance crossmember design maximizes ground clearance
- Robust steering knuckles maintain ESC system compliance
- HD skid plate system improved offroad protection
- Multipoint differential relocation brackets to secure the front axle and improve CV angles
- Choice of FOX 2.0 performance series or BDS NX2 Twin tube rear shocks.
- Factory Protection Plus drivetrain warranty included
Fitment
| Years | Vehicle |
|---|---|
| 2007-2013 | Chevrolet Avalanche 4WD |
| 2012-2013 | Chevrolet Avalanche AWD |
| 2007-2009 | Chevrolet Suburban 1500 4WD: LS, LT, LTZ |
| 2010-2014 | Chevrolet Suburban 1500 4WD |
| 2012-2013 | Chevrolet Suburban 1500 AWD |
| 2011 | Chevrolet Tahoe 4WD: Base |
| 2008-2013 | Chevrolet Tahoe 4WD: Hybrid |
| 2007-2014 | Chevrolet Tahoe 4WD: LS, LT, LTZ |
| 2012 | Chevrolet Tahoe AWD: Base |
| 2013 | Chevrolet Tahoe AWD: LT |
| 2012-2014 | Chevrolet Tahoe: SSV |
| 2010 | Chevrolet Tahoe: Z71 |
| 2008-2009 | GMC Yukon 4WD: Hybrid |
| 2007-2009 | GMC Yukon 4WD: SLE, SLT |
| 2010-2014 | GMC Yukon 4WD |
| 2008-2009 | GMC Yukon AWD: Denali |
| 2010-2014 | GMC Yukon AWD |
| 2007-2014 | GMC Yukon XL 1500 4WD |
| 2007-2014 | GMC Yukon XL 1500 AWD |
| 2007 | GMC Yukon: Denali |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Recommended wheels & tires
- 33 x 12.5 with 17 x 9 and 4.5 in. Backspace
- 34 x 12.5 with 18 x 9 and 5 in. Backspace
- 33 x 12.5 with 20 x 9 and 5.75 in. Backspace
Overview
Take your 2007-2014 Chevy Avalanche, Suburban, or Tahoe and GMC Yukon 1500 to new heights with a BDS 6.5-inch lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes full length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear BDS offers coil spring spacers to properly level the vehicle. Also for the rear are precision tuned NX2 Nitro or premium FOX 2.0 Performance Series shocks.
High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
