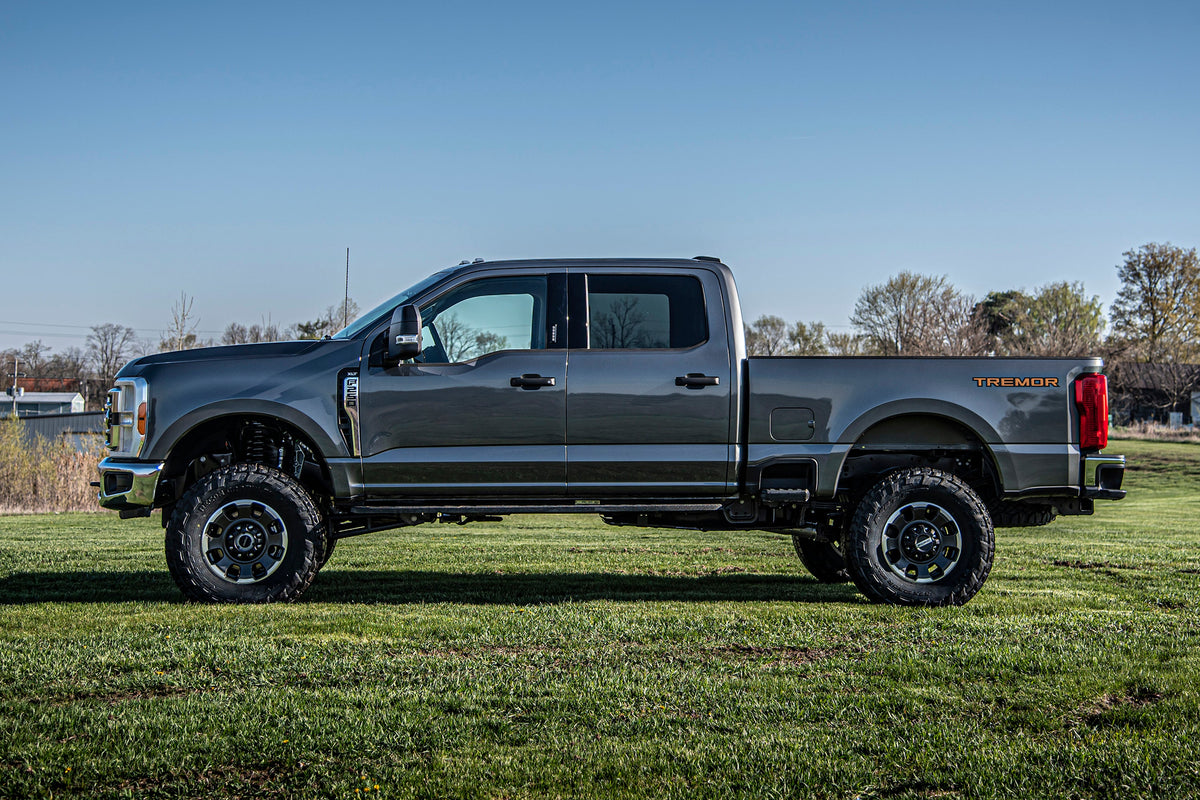

BDS Suspension 5 Inch Lift Kit w/ Radius Arm Ford F250/F350 Super Duty (23-26) 4WD · Diesel
- Front lift 5"
- Lift 4-5.5"
- Max tire 37 x 12.5
- Rear lift 3"
- Shocks included
- Install 6-8 hrs
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Traction Bars
Steering Stabilizers
Accessories
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Vehicles with radius arm mounted ride height sensors will require BDS123303.
- Ford recommends the replacement of the pitman arm nut after each time it has been removed.
- Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
- If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.

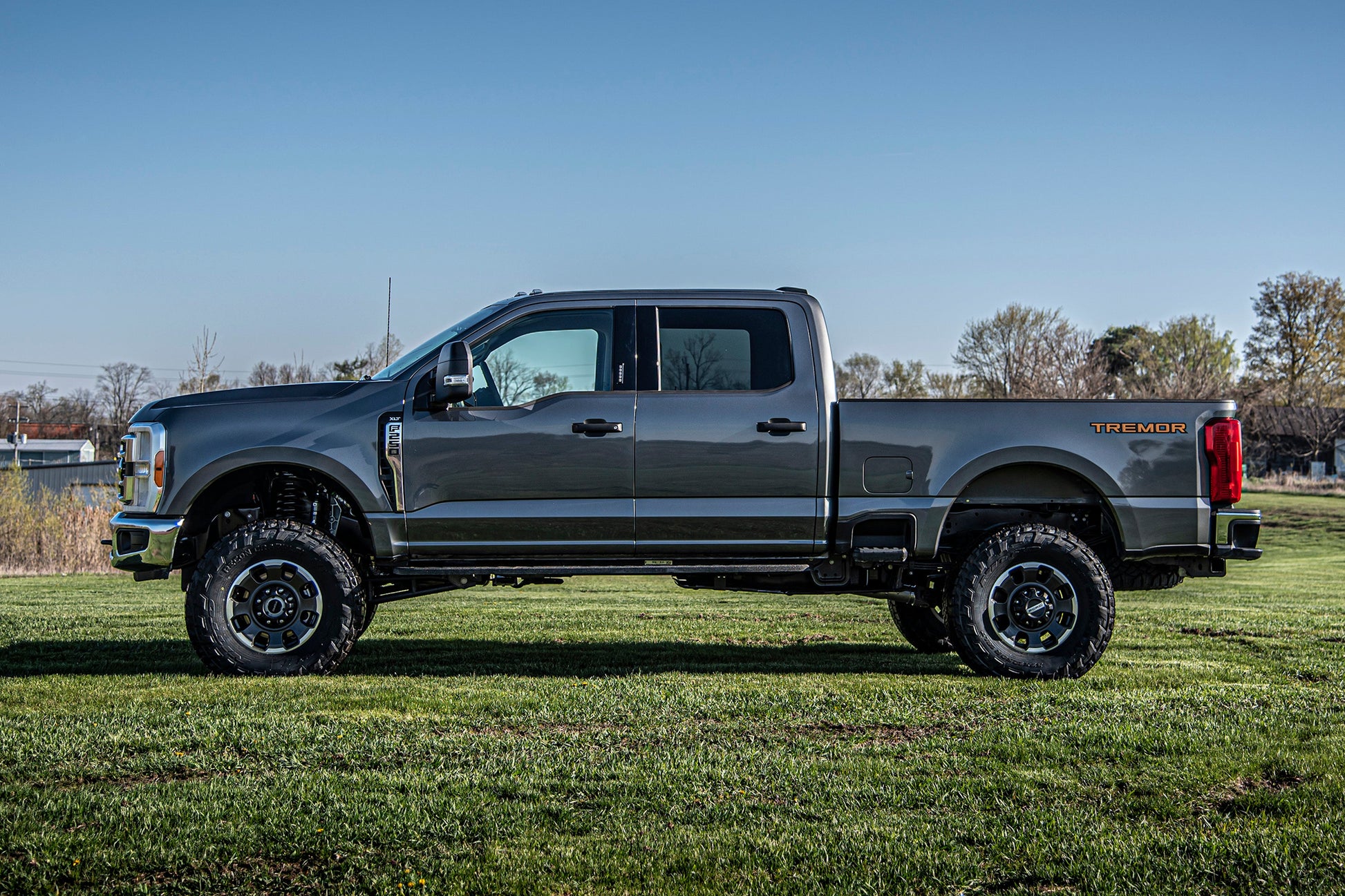

- Due to the taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.
- Larger tires on stock wheel are not recommended due to interference with brake line, radius arm and sway bar. Use recommended specs listed in wheel and tire fitment section.
- Minor trimming may be necessary for clearance of 37x12.50 tires on certain wheel setups.
- Installation requires a torque wrench capable of 406 ft-lbs.
- Vehicles with leaf spring ride height sensors must select the rear block option.
- Fits SRW models only.
- Recalibration of your vehicles Advanced Driver Assistance System (ADAS) cameras, radars, light detection and ranging (LiDAR), and other sensors may be necessary by your local dealership or ADAS service center. This will ensure proper functionality of the vehicle features such as lane keeping, lane departure, parking assistance, blind-spot detection, adaptive cruise control systems, and other functions as they did prior to installation. Please connect with your local dealership or ADAS service center. Similar to a wheel alignment, all charges and expenses that may occur from dealership calibrations and adjustments are the sole responsibility of the vehicle owner.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | BDS Suspension |
|---|---|
| Part number | BDS2203FS |
| UPC / GTIN | 840416413618 |
| Front Lift Height | 5" |
| Front Lift Method | Coil Spring |
| Lift Height | 4-5.5" |
| Max Tire Size | 37 x 12.5 |
| Rear Lift Height | 3" |
| Rear Lift Method | Block |
| Shocks Included | Yes |
| Install time | 6-8 hrs |
| Difficulty | Difficult |
| Required Tools | Torque Wrench, Die Grinder, Pitman Arm Puller |

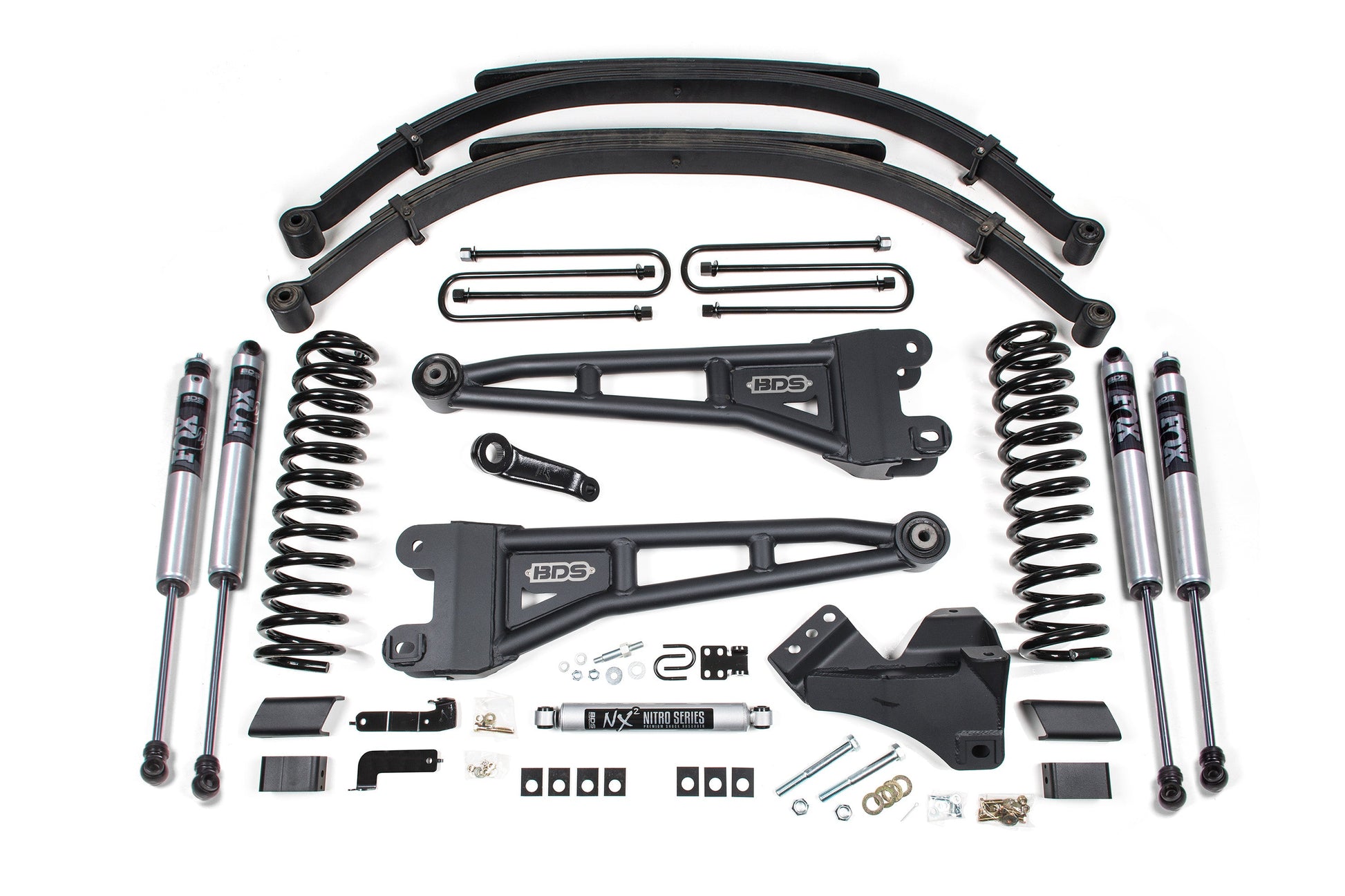

What's in the box
| Qty | Part | Description |
|---|---|---|
| 1 | BDS033411 | Coil Springs | 4 Inch Lift | Ford F250/F350 Super Duty (05-26) 4WD | Diesel |
| 1 | BDS123263 | Radius Arm Upgrade | Ford F250 / F350 Super Duty (23-26) & Ford F450 / F550 / F600 Super Duty (23-26) 4WD |
| 1 | BDS85431 | NX2 Steering Stabilizer Shock - Single | Ford F250/F350 Super Duty (17-26) 4WD |
For: 5 Inch Block Kit With Overload / FOX 2.0 Performance Series
| Qty | Part | Description |
|---|---|---|
| 2 | FOX98224700 | FOX 2.0 IFP Shock | Performance Series | 25.65 x 16.05 x 2- S50/EB1 |
| 2 | FOX98224718 | FOX 2.0 IFP Rear Shock | 3-6 Inch Lift | Performance Series | Ford F250/F350 Super Duty (17-26) 4WD |
For: 5 Inch Block Kit With Overload / NX2 Nitro Series
| Qty | Part | Description |
|---|---|---|
| 2 | BDS85700 | NX2 Nitro Shock | Multiple Fitments | 25.20 x 15.20 x 2-3/8 - S50/EB2 |
| 2 | BDS85718 | NX2 Nitro Rear Shock | 3-6 Inch Lift | Ford F250/F350 Super Duty (17-26) 4WD |

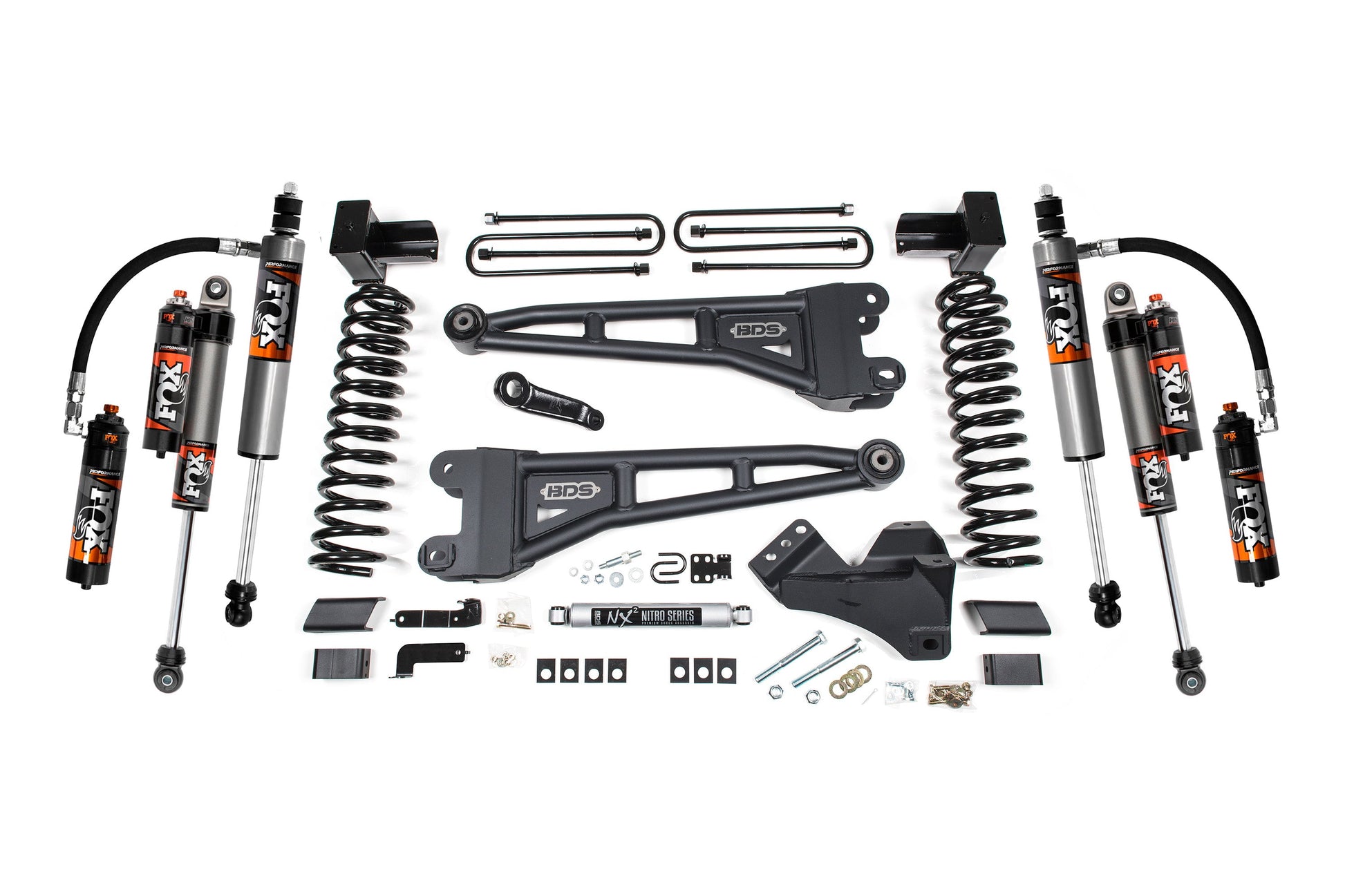

For: 5 Inch Block Kit With Overload / FOX 2.5 Performance Elite
| Qty | Part | Description |
|---|---|---|
| 1 | FOX88326097 | FOX 2.5 Remote Reservoir Front Shocks - DSC | 2-3.5 Inch Lift | Performance Elite Series | Ford F250/F350 Super Duty (17-26) 4WD |
| 1 | FOX88326100 | FOX 2.5 Remote Reservoir Rear Shocks - DSC | 4-6 Inch Lift | Performance Elite Series | Ford F250/F350 Super Duty (17-26) 4WD |
For: Leaf Springs / FOX 2.0 Performance Series
| Qty | Part | Description |
|---|---|---|
| 2 | BDS003639 | Rear Leaf Spring | 6 Inch Lift | Ford F250/F350 Super Duty (17-26) 4WD |
| 2 | FOX98224700 | FOX 2.0 IFP Shock | Performance Series | 25.65 x 16.05 x 2- S50/EB1 |
| 2 | FOX98224718 | FOX 2.0 IFP Rear Shock | 3-6 Inch Lift | Performance Series | Ford F250/F350 Super Duty (17-26) 4WD |

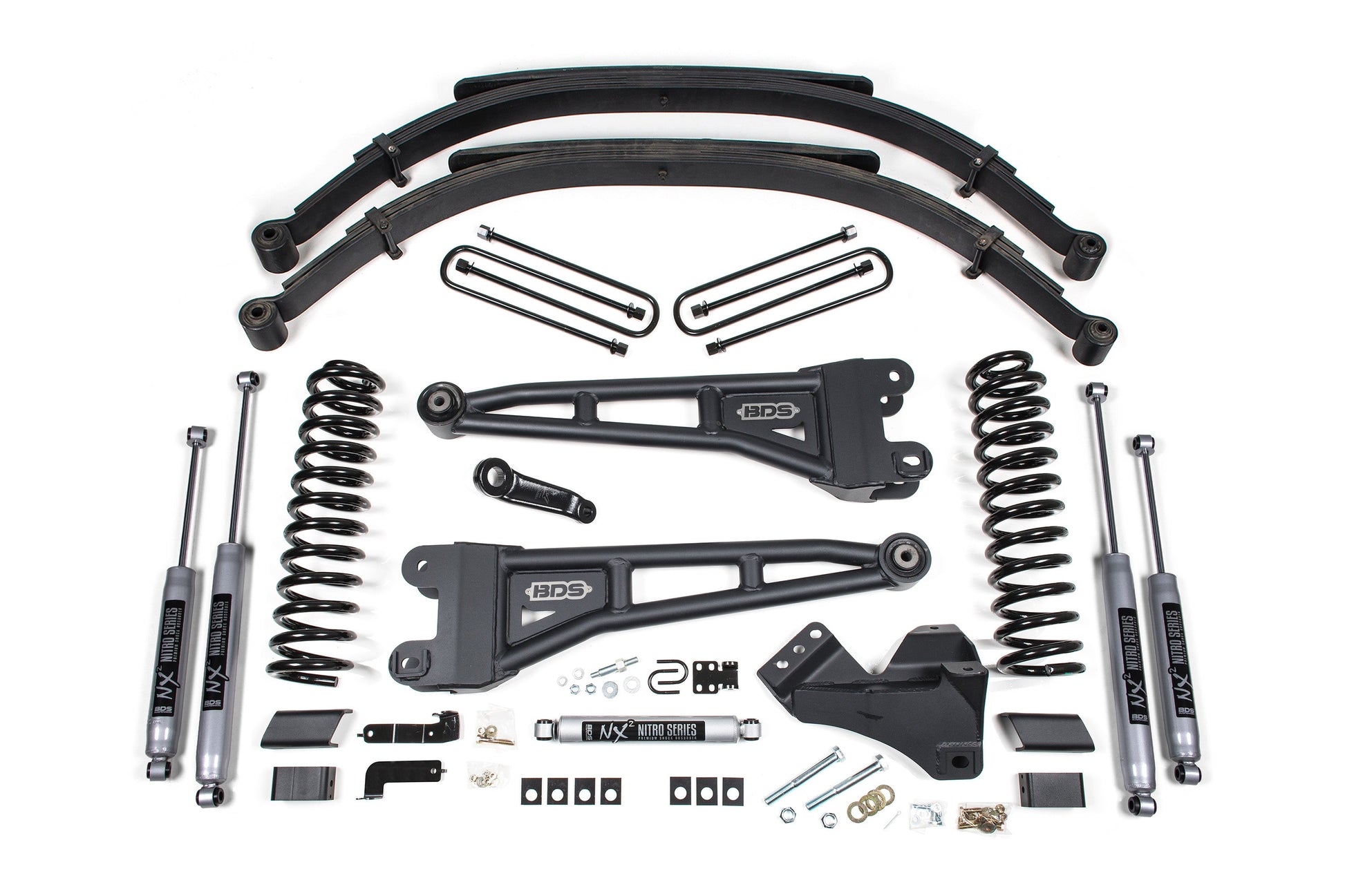

For: Leaf Springs / NX2 Nitro Series
| Qty | Part | Description |
|---|---|---|
| 2 | BDS003639 | Rear Leaf Spring | 6 Inch Lift | Ford F250/F350 Super Duty (17-26) 4WD |
| 2 | BDS85700 | NX2 Nitro Shock | Multiple Fitments | 25.20 x 15.20 x 2-3/8 - S50/EB2 |
| 2 | BDS85718 | NX2 Nitro Rear Shock | 3-6 Inch Lift | Ford F250/F350 Super Duty (17-26) 4WD |

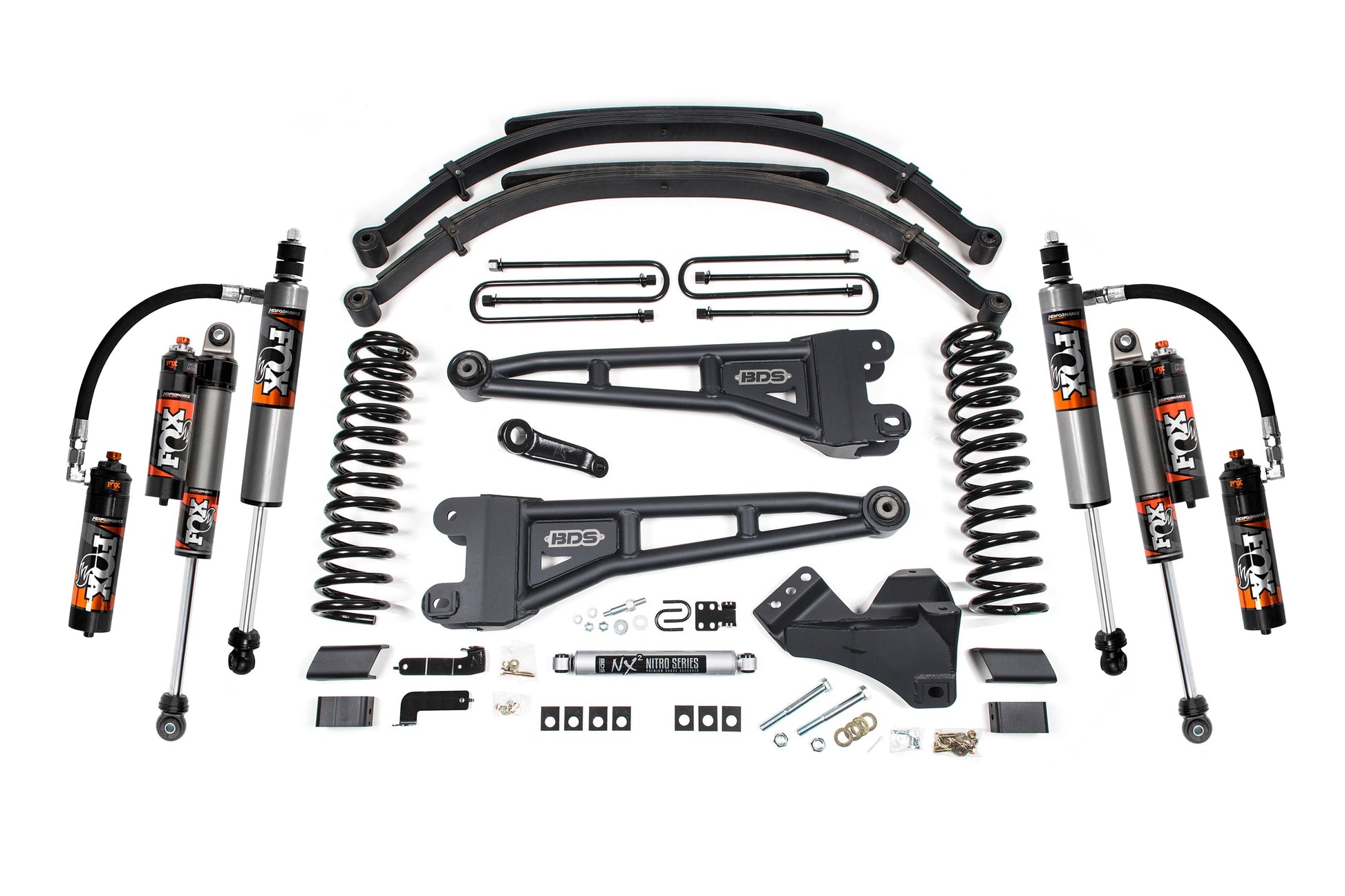

For: Leaf Springs / FOX 2.5 Performance Elite
| Qty | Part | Description |
|---|---|---|
| 2 | BDS003639 | Rear Leaf Spring | 6 Inch Lift | Ford F250/F350 Super Duty (17-26) 4WD |
| 1 | FOX88326097 | FOX 2.5 Remote Reservoir Front Shocks - DSC | 2-3.5 Inch Lift | Performance Elite Series | Ford F250/F350 Super Duty (17-26) 4WD |
| 1 | FOX88326100 | FOX 2.5 Remote Reservoir Rear Shocks - DSC | 4-6 Inch Lift | Performance Elite Series | Ford F250/F350 Super Duty (17-26) 4WD |
For: 5 Inch Block Kit Without Overload / FOX 2.5 Performance Elite
| Qty | Part | Description |
|---|---|---|
| 1 | FOX88326097 | FOX 2.5 Remote Reservoir Front Shocks - DSC | 2-3.5 Inch Lift | Performance Elite Series | Ford F250/F350 Super Duty (17-26) 4WD |
| 1 | FOX88326100 | FOX 2.5 Remote Reservoir Rear Shocks - DSC | 4-6 Inch Lift | Performance Elite Series | Ford F250/F350 Super Duty (17-26) 4WD |

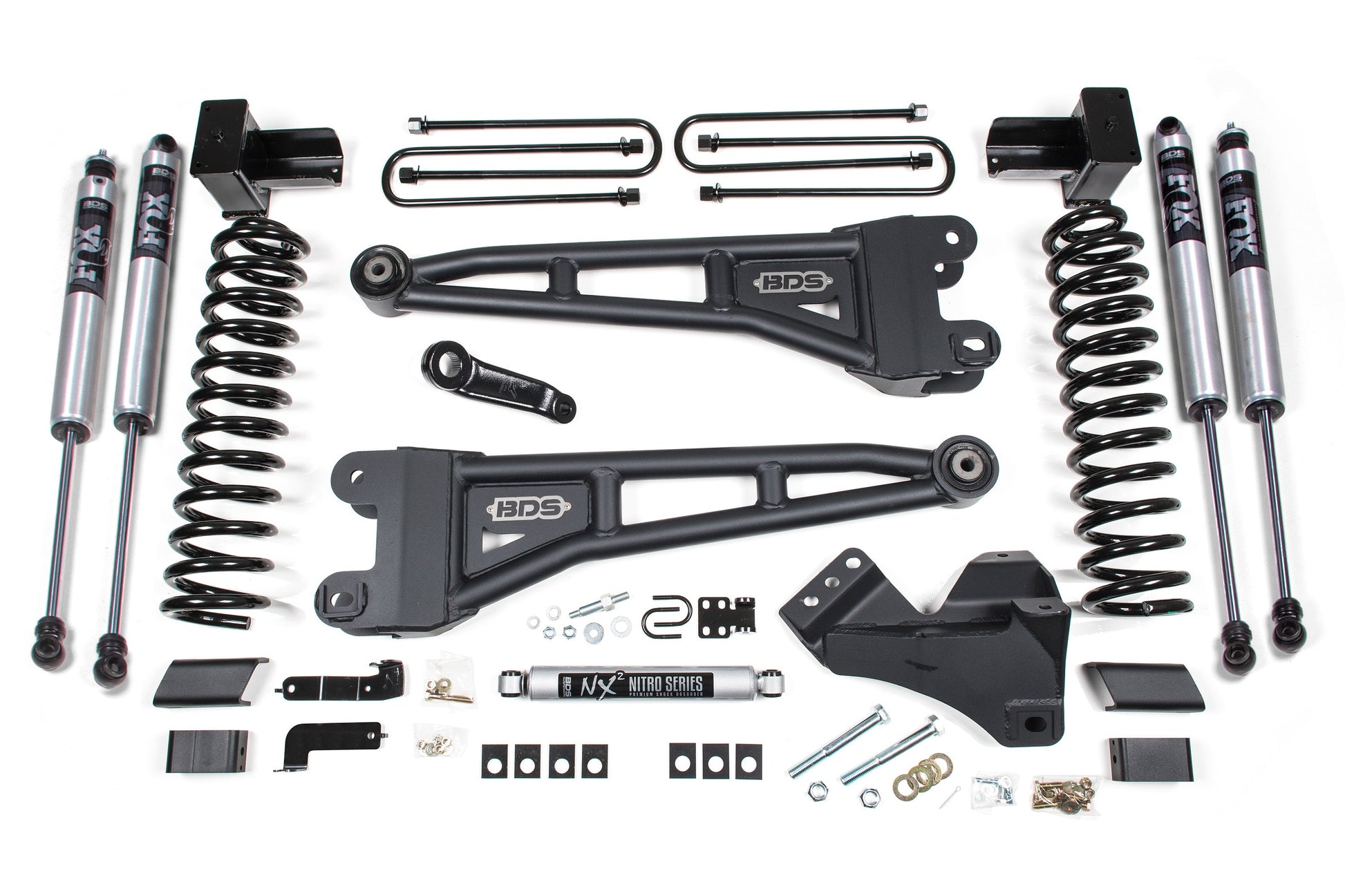

For: 5 Inch Block Kit Without Overload / FOX 2.0 Performance Series
| Qty | Part | Description |
|---|---|---|
| 2 | FOX98224700 | FOX 2.0 IFP Shock | Performance Series | 25.65 x 16.05 x 2- S50/EB1 |
| 2 | FOX98224718 | FOX 2.0 IFP Rear Shock | 3-6 Inch Lift | Performance Series | Ford F250/F350 Super Duty (17-26) 4WD |

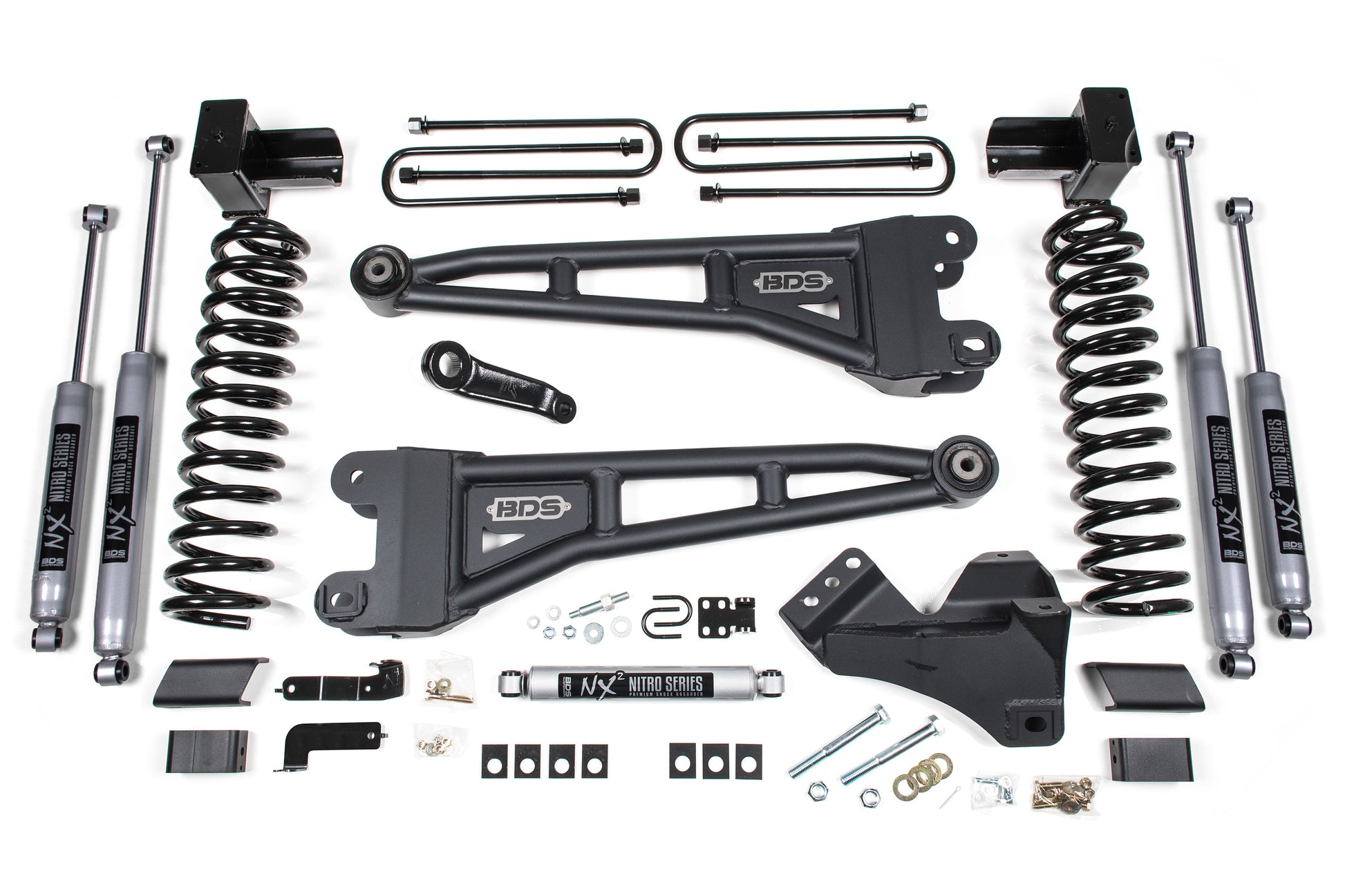

For: 5 Inch Block Kit Without Overload / NX2 Nitro Series
| Qty | Part | Description |
|---|---|---|
| 2 | BDS85700 | NX2 Nitro Shock | Multiple Fitments | 25.20 x 15.20 x 2-3/8 - S50/EB2 |
| 2 | BDS85718 | NX2 Nitro Rear Shock | 3-6 Inch Lift | Ford F250/F350 Super Duty (17-26) 4WD |
Features
- Easy, 100% Bolt-on installation
- Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
- Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
- Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
- Fabricated steel blocks provide level stance from front to rear
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Recommended wheels & tires
- 37 x 12.5 with 17 x 9 and 5 in. Backspace
- 37 x 12.5 with 18 x 9 and 5 in. Backspace
- 37 x 12.5 with 20 x 9 and 5 in. Backspace
Installation
- Estimated install time6-8 hrs
- DifficultyDifficult
Free install support from the Trucks R Us tech team, for you or your shop.
Overview

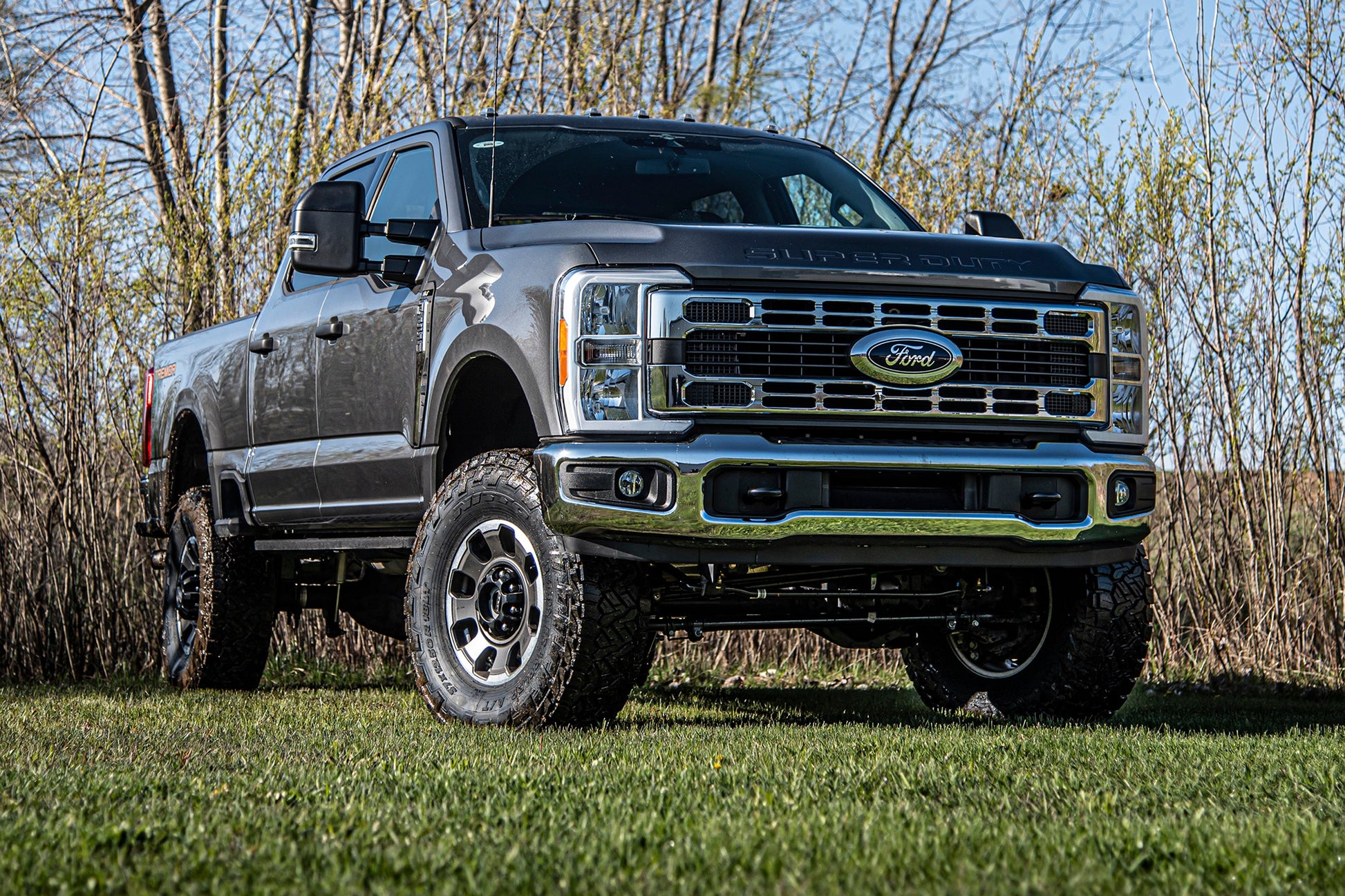

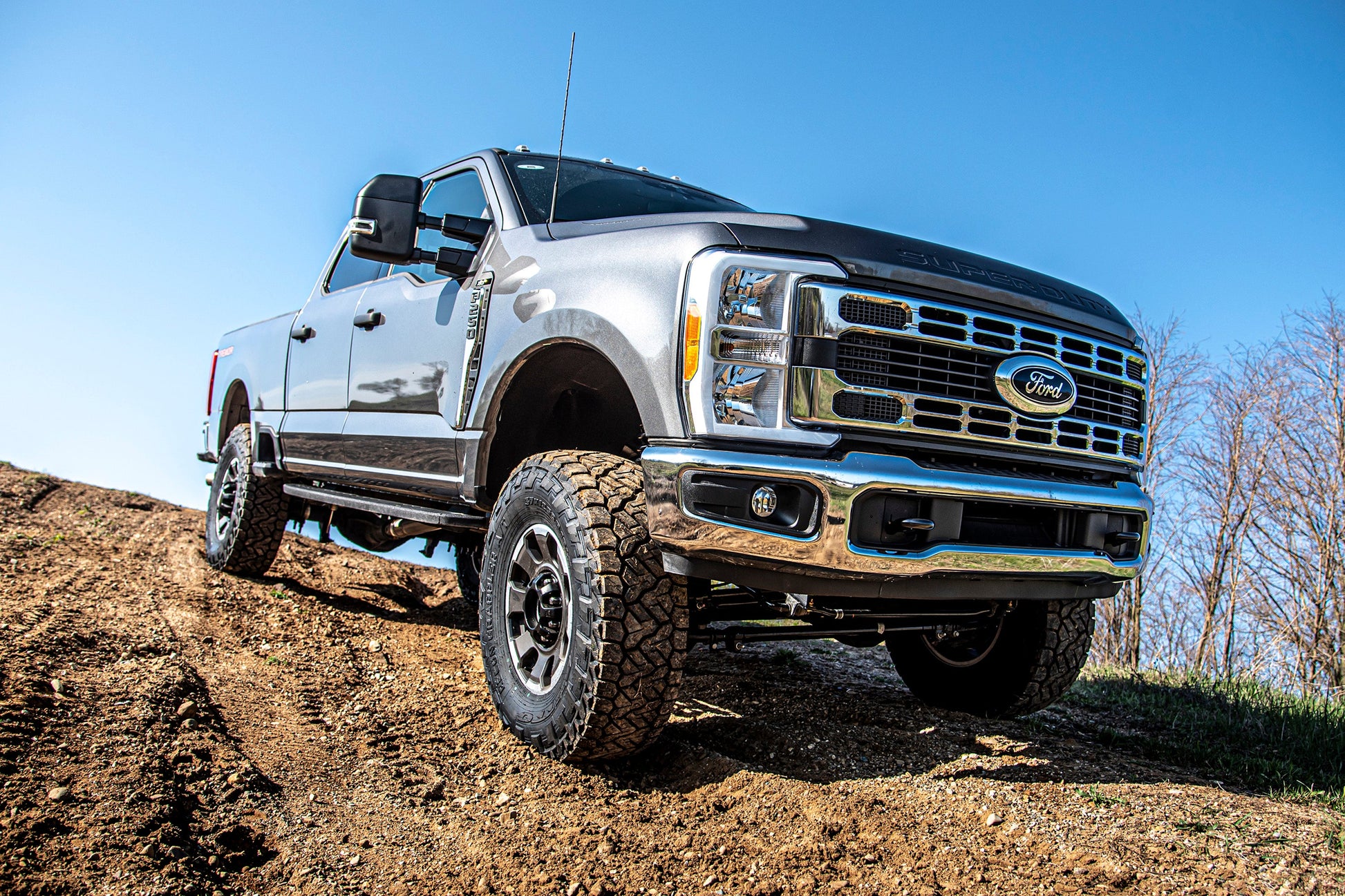

Improve the ride on your 23-26 Ford Super Duty diesel truck with this 5-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.
Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.
In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.
HD Radius Arms
In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.
Pro-Ride Coil Springs
A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Upgrade your 2023–2026 Ford F250/F350 diesel with a 5" BDS lift kit featuring HD radius arms, Pro-Ride coil springs, steering correction, and NX2 or FOX shocks for up to 37" tires.Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
