BDS Suspension 5 Inch Lift Kit w/ 4-Link · FOX 2.5 Performance Elite Coilover Conversion Ford F350 Super Duty DRW (23-26) 4WD · Diesel
- Front lift 5"
- Lift 4-5.5"
- Max tire 37 x 12.5
- Rear lift 2"
- Shocks included
- Install 8-10 hrs
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Traction Bars
Steering Stabilizers
Accessories
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Ford recommends the pitman arm nut is replaced prior to pitman arm installation.
- If installed on a truck with a top-mounted overload spring, with an overload spacer block taller than 1-1/8" UBT4027 (Qty: 4) is required.
- Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
- If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.
- Due to the taller factory ride height, Tremor models will not net the full advertised lift height. The final ride height will be the same as standard models.
- Larger tires on the stock wheel are not recommended due to the brake line clearance required. Use recommended specs listed in the wheel and tire fitment section.
- Minor trimming may be necessary for clearance of 37x12.50 tires on certain wheel setups.
- Installation requires a torque wrench capable of 405 ft-lbs.
- Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, BDS recommends having this performed prior to installing the lift.
- Vehicles with radius arm mounted ride height sensors will require BDS123303
- Vehicles with leaf spring ride height sensors must select the rear block option.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | BDS Suspension |
|---|---|
| Part number | BDS2250PES |
| UPC / GTIN | 840416434361 |
| Front Lift Height | 5" |
| Front Lift Method | Coil-Over |
| Lift Height | 4-5.5" |
| Max Tire Size | 37 x 12.5 |
| Rear Lift Height | 2" |
| Rear Lift Method | Block |
| Shocks Included | Yes |
| Install time | 8-10 hrs |
| Difficulty | Difficult |
| Required Tools | Cut-off Tool, Pitman Arm Puller |

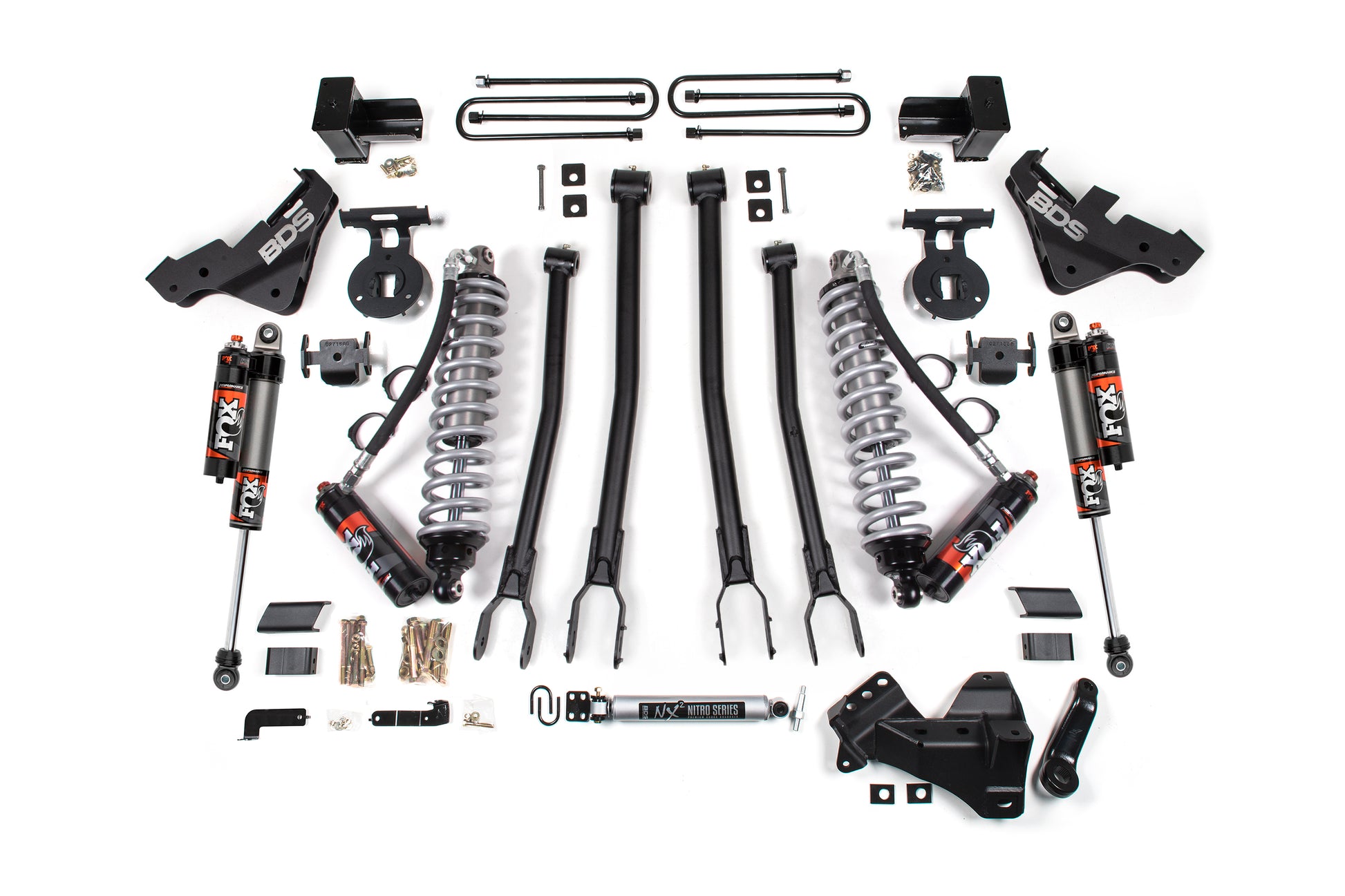

What's in the box
| Qty | Part | Description |
|---|---|---|
| 1 | BDS85431 | NX2 Steering Stabilizer Shock - Single | Ford F250/F350 Super Duty (17-26) 4WD |
| 1 | FOX88406427 | FOX 2.5 Coilover Shocks w/ DSC Reservoir | 4-5 Inch Lift | Performance Elite Series | Ford F250 / F350 Super Duty (4 Inch Lift: 05-19) | (4 Inch Lift: 20-26) 4WD |
| 1 | FOX88326098 | FOX 2.5 Remote Reservoir Rear Shocks - DSC | 2-3.5 Inch Lift | Performance Elite Series | Ford F250/F350 Super Duty (17-26) 4WD |
Features
- FOX 2.5 Coilover mounts in factory coil bucket location
- Adds additional secondary FOX 2.5 Performance Elite shock for max performance
- Eibach coil springs ride smooth through the roughest terrain
- Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
- Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
- Fabricated steel blocks provide level stance from front to rear
- FOX shocks are fully serviceable and resistant to corrosion and harsh environments.
Recommended wheels & tires
- 37 x 12.5 with 17 x 10 and 5 in. Backspace
- 37 x 12.5 with 20 x 10 and 5 in. Backspace
Installation
- Estimated install time8-10 hrs
- DifficultyDifficult
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Take your dual rear wheel "DRW" Ford F350 Super Duty diesel truck to the next level with this 5-inch 4-Link lift kit from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your dually Ford truck up right with clearance for up to 37" tires.
Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-Link control arm conversion, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned nitrogen charged shocks. At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied.
In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of FOX 2.5 Performance Elite Shock.
FOX Performance Elite Coilover
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.4-Link Conversion
Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength ¼-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel. Upgrade your 2023–2026 Ford F350 DRW diesel with BDS 5" 4-link lift kit featuring FOX 2.5 Performance Elite coilovers for max strength, control, and ride quality.Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
