BDS Suspension 5 Inch Lift Kit w/ 4-Link Ford F350 Super Duty DRW (23-26) 4WD · Gas
- Front lift 5"
- Lift 4"
- Max tire 37 x 12.5
- Rear lift 2"
- Shocks included
- Install 8-10 hrs
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Traction Bars
Steering Stabilizers
Accessories
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Ford recommends the pitman arm nut is replaced prior to pitman arm installation.
- If installed on a truck with a top-mounted overload spring, with an overload spacer block taller than 1-1/8" UBT4027 (Qty: 4) is required.
- Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
- If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.
- Due to the taller factory ride height, Tremor models will not net the full advertised lift height. The final ride height will be the same as standard models.
- Larger tires on the stock wheel are not recommended due to the brake line clearance required. Use recommended specs listed in the wheel and tire fitment section.
- Minor trimming may be necessary for clearance of 37x12.50 tires on certain wheel setups.
- Installation requires a torque wrench capable of 405 ft-lbs.
- Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, BDS recommends having this performed prior to installing the lift.
- Recalibration of your vehicles Advanced Driver Assistance System (ADAS) cameras, radars, light detection and ranging (LiDAR), and other sensors may be necessary by your local dealership or ADAS service center. This will ensure proper functionality of the vehicle features such as lane keeping, lane departure, parking assistance, blind-spot detection, adaptive cruise control systems, and other functions as they did prior to installation. Please connect with your local dealership or ADAS service center. Similar to a wheel alignment, all charges and expenses that may occur from dealership calibrations and adjustments are the sole responsibility of the vehicle owner.
- Vehicles with radius arm mounted ride height sensors will require BDS123303
- Vehicles with leaf spring ride height sensors must select the rear block option.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | BDS Suspension |
|---|---|
| Part number | BDS2251FPE |
| UPC / GTIN | 840416436020 |
| Front Lift Height | 5" |
| Front Lift Method | Coil Spring |
| Lift Height | 4" |
| Max Tire Size | 37 x 12.5 |
| Rear Lift Height | 2" |
| Rear Lift Method | Block |
| Shocks Included | Yes |
| Install time | 8-10 hrs |
| Difficulty | Difficult |
| Required Tools | Cut-off Tool, Pitman Arm Puller |

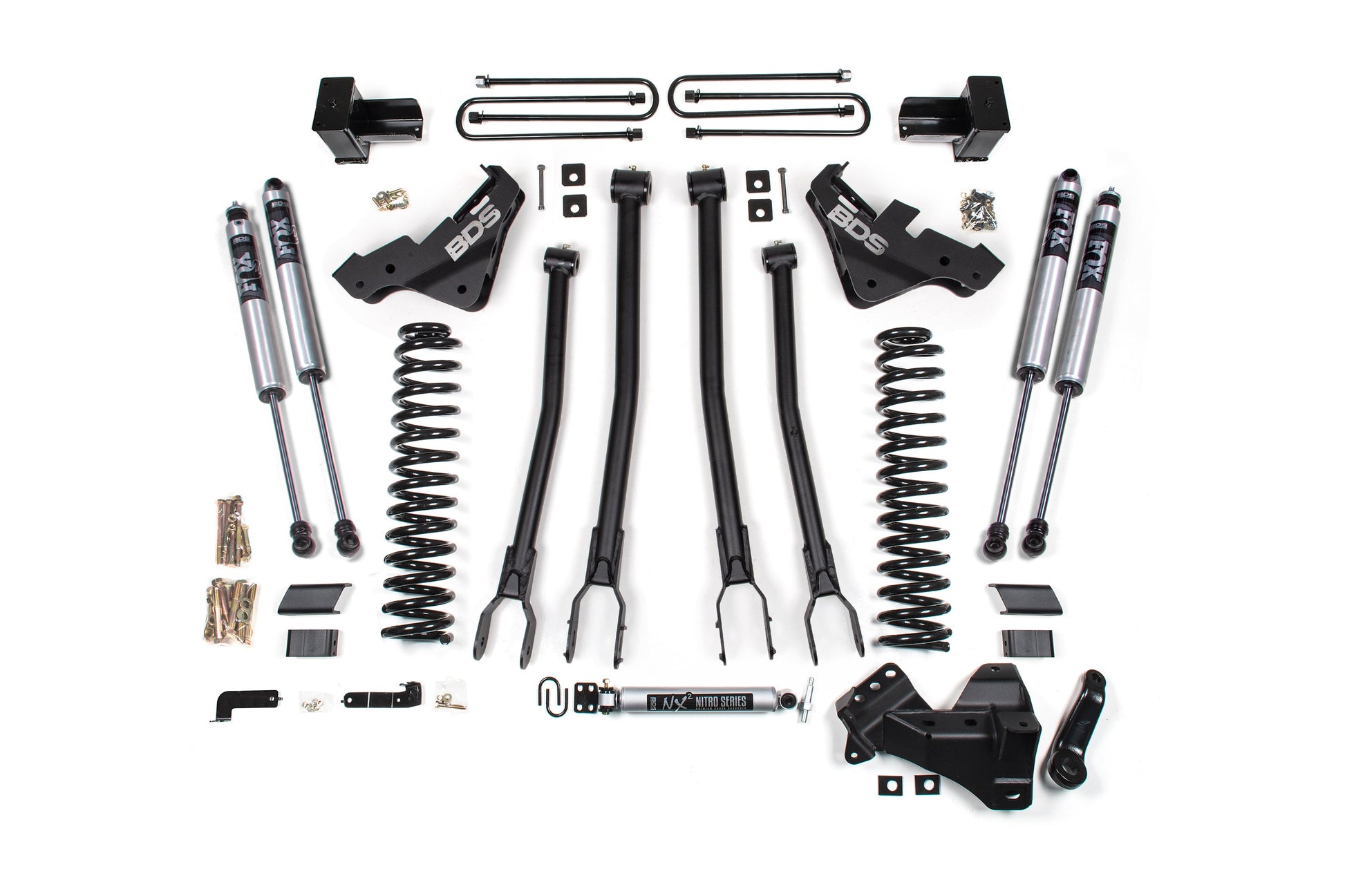

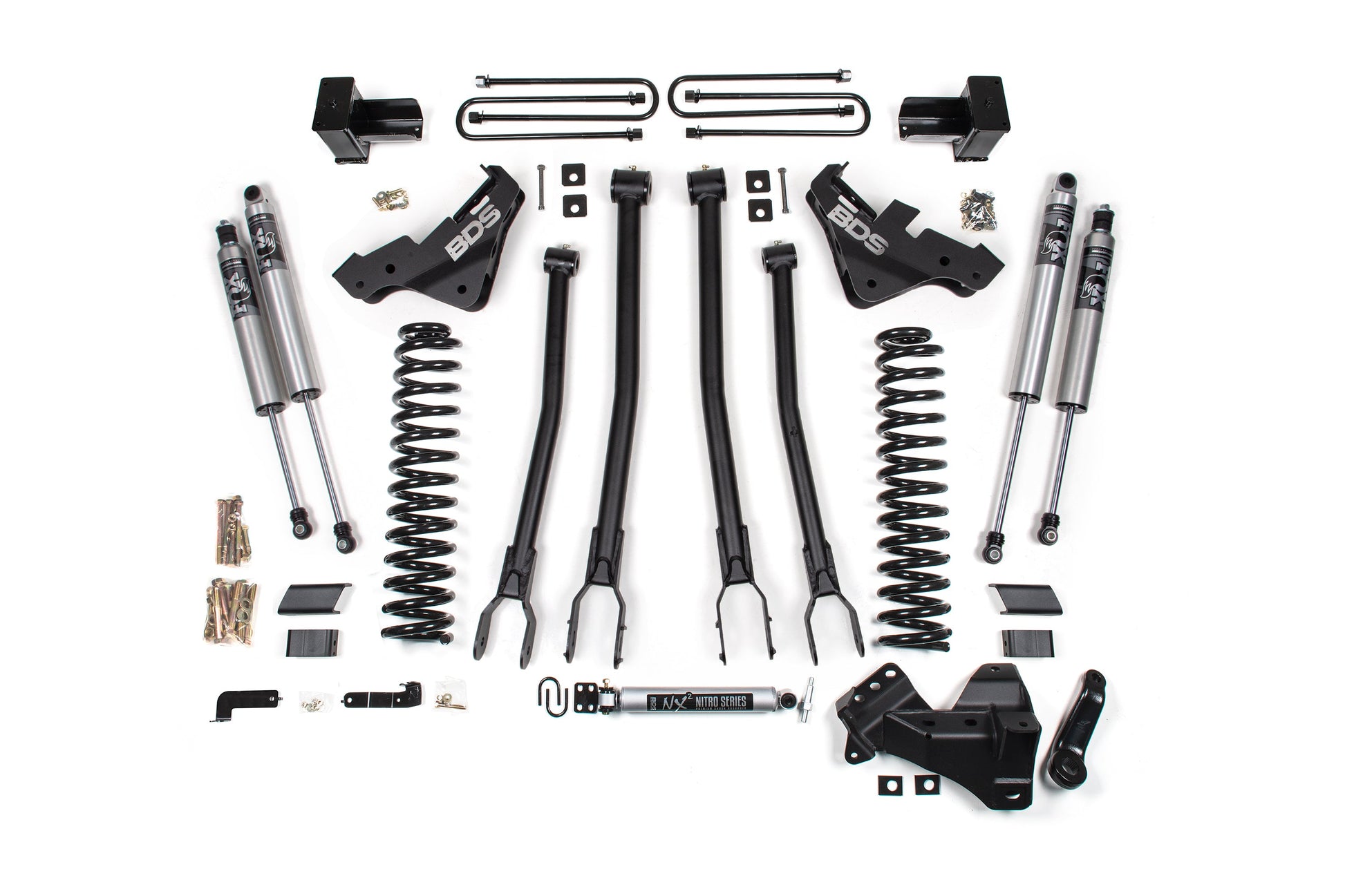

What's in the box
| Qty | Part | Description |
|---|---|---|
| 1 | BDS033412 | Coil Springs | 4 Inch Lift | Ford F250/F350 Super Duty (05-26) 4WD | Gas |
| 1 | BDS85431 | NX2 Steering Stabilizer Shock - Single | Ford F250/F350 Super Duty (17-26) 4WD |

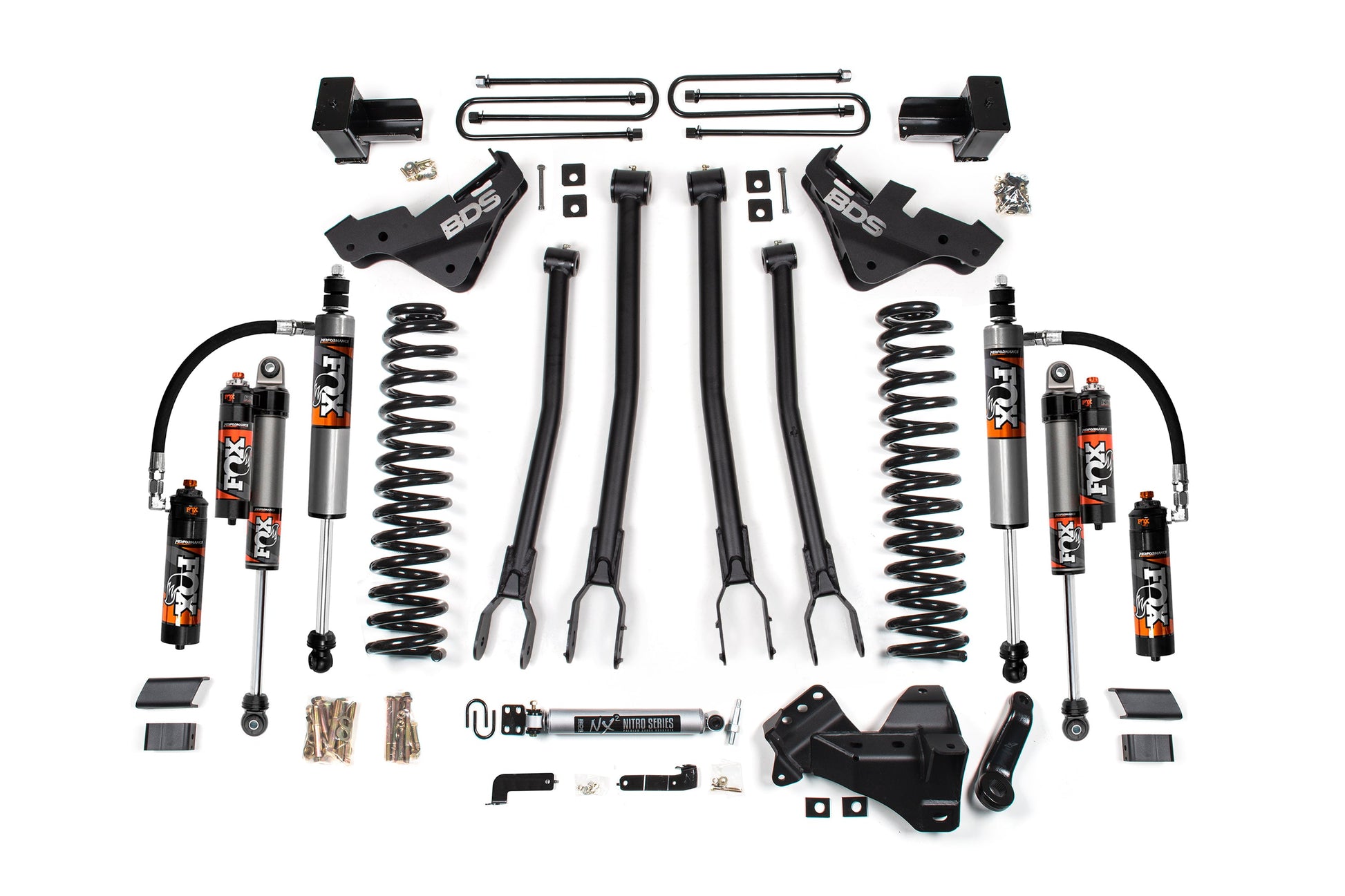

For: FOX 2.5 Performance Elite
| Qty | Part | Description |
|---|---|---|
| 1 | FOX88326097 | FOX 2.5 Remote Reservoir Front Shocks - DSC | 2-3.5 Inch Lift | Performance Elite Series | Ford F250/F350 Super Duty (17-26) 4WD |
| 1 | FOX88326098 | FOX 2.5 Remote Reservoir Rear Shocks - DSC | 2-3.5 Inch Lift | Performance Elite Series | Ford F250/F350 Super Duty (17-26) 4WD |
For: FOX 2.5 Performance Series HTO
| Qty | Part | Description |
|---|---|---|
| 2 | FOX98724020 | FOX 2.5 IFP Front Shock w/HTO | 4.5-6 Inch Lift | Performance Series | Ford F250/F350 Super Duty (17-26) |
| 2 | FOX98724021 | 2017-2026 Ford SD, Rear, 2.5 Truck PS, IFP, 4-6” Lift, HTO |
For: FOX 2.0 Performance Series
| Qty | Part | Description |
|---|---|---|
| 2 | FOX98224700 | FOX 2.0 IFP Shock | Performance Series | 25.65 x 16.05 x 2- S50/EB1 |
| 2 | FOX98224718 | FOX 2.0 IFP Rear Shock | 3-6 Inch Lift | Performance Series | Ford F250/F350 Super Duty (17-26) 4WD |

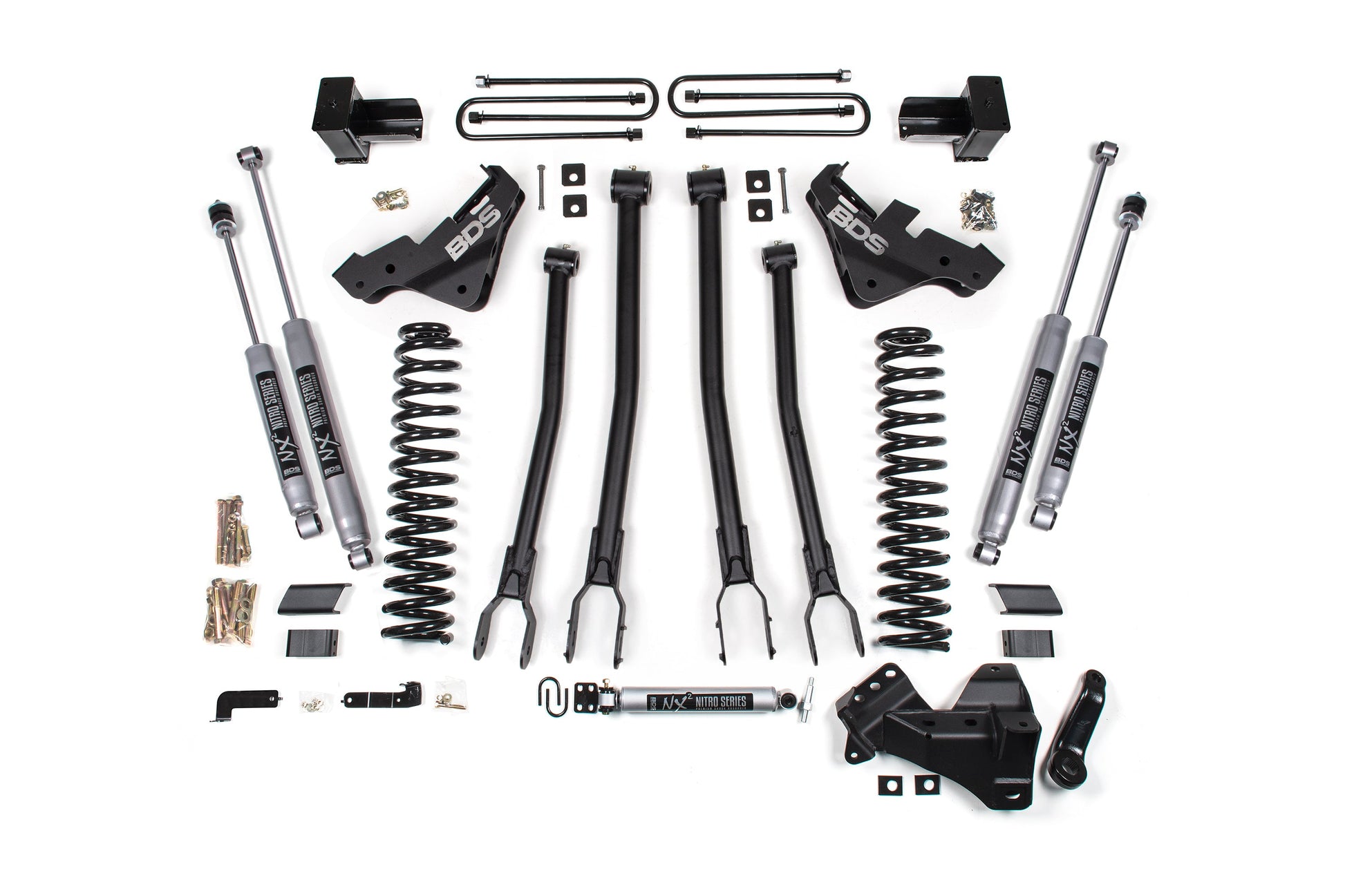

For: NX2 Nitro Series
| Qty | Part | Description |
|---|---|---|
| 2 | BDS85700 | NX2 Nitro Shock | Multiple Fitments | 25.20 x 15.20 x 2-3/8 - S50/EB2 |
| 2 | BDS85718 | NX2 Nitro Rear Shock | 3-6 Inch Lift | Ford F250/F350 Super Duty (17-26) 4WD |
Features
- Complete bolt in installation.
- Pro-Ride dual rate springs provide superior ride quallity vs OEM springs.
- Heavy Duty 4-Link control arms offer improved handling, stability and strength.
- 4-Link suspension offers superior caster control through suspension travel.
- Improved driveability from corrected geometry and steering angles.
- Fabricated rear blocks provide a level stance from front to rear.
Recommended wheels & tires
- 37 x 12.5 with 17 x 10 and 5 in. Backspace
- 37 x 12.5 with 20 x 10 and 5 in. Backspace
Installation
- Estimated install time8-10 hrs
- DifficultyDifficult
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Take your dual rear wheel "DRW" Ford F350 Super Duty Gas truck to the next level with this 5-inch 4-Link lift kit from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your dually Ford truck up right with clearance for up to 37" tires.
Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-Link control arm conversion, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned nitrogen charged shocks. At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied.
In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.
4-Link Conversion
Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength ¼-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.Pro-Ride Coil Springs
A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. 5" 4-Link lift for 23-26 F350 DRW Gas with Pro-Ride coils, HD 4-Link arms, track bar relocation, lift blocks & NX2 or FOX Performance shocks.Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
