BDS Suspension 5 Inch Lift Kit Dodge W100/W200 (69-73) 4WD
- Front lift 5"
- Lift 4-5.5"
- Max tire 35 x 12.5
- Rear lift 5"
- Shocks included
- Install 6-8 hrs
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- On models with Saginaw or Corporate type front driveshaft, CV cluster may require dressing to prevent binding.
- Anti-Sway bar links will have to be sectioned and lengthened.
- Not for heavy duty 3/4 ton.
- I.D. of the bushing is smaller than the mounting pin and will require lubrication and extra effort for installation.
- #082501 steering block only fits Dana 44 with 3 bolt knuckle.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | BDS Suspension |
|---|---|
| Part number | BDS200FS |
| UPC / GTIN | 840416412659 |
| Front Lift Height | 5" |
| Front Lift Method | Leaf Spring |
| Lift Height | 4-5.5" |
| Max Tire Size | 35 x 12.5 |
| Rear Lift Height | 5" |
| Rear Lift Method | Block |
| Shocks Included | Yes |
| Install time | 6-8 hrs |
| Difficulty | Moderately Easy |
| Required Tools | Pitman Arm Puller |

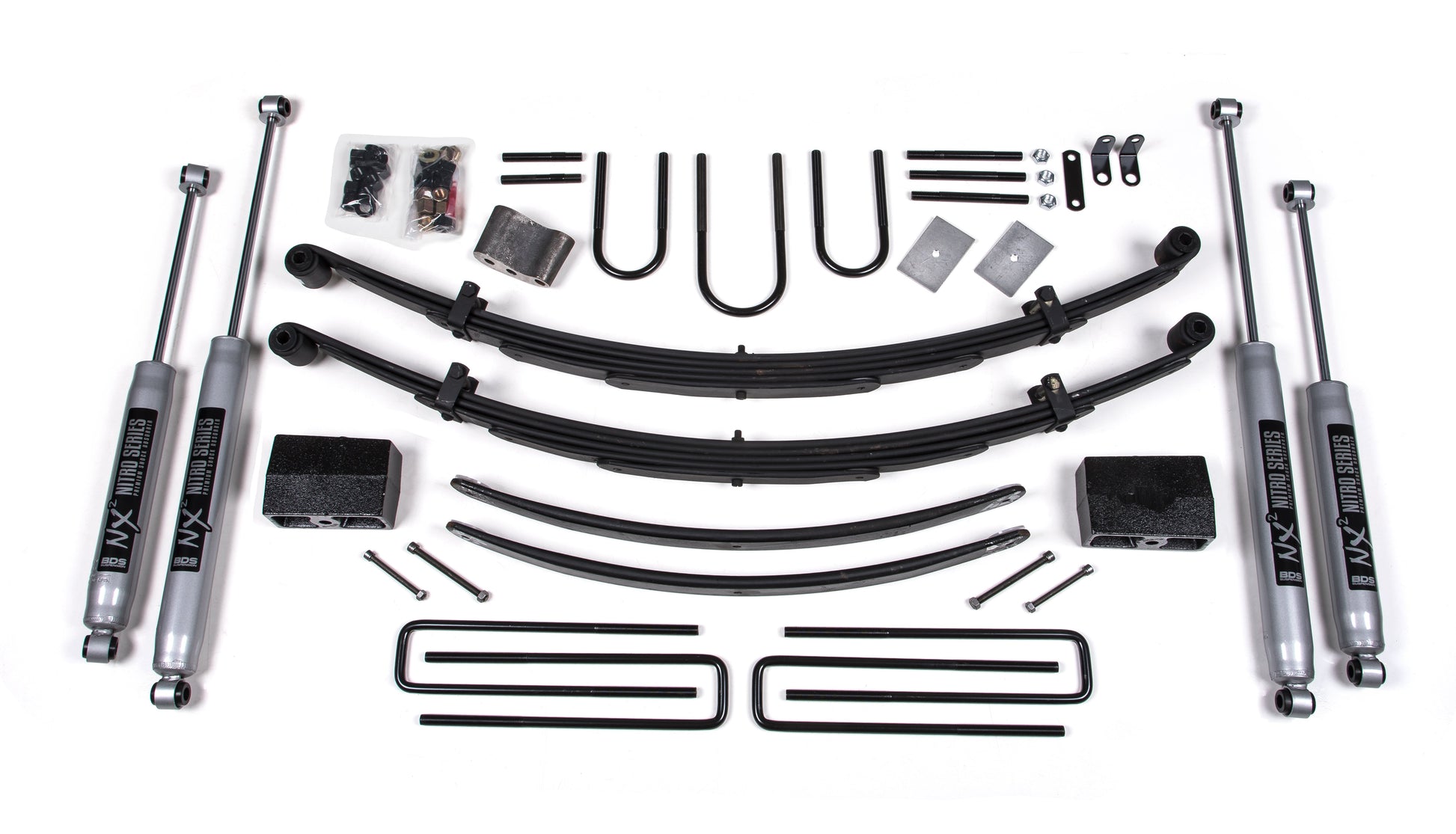

What's in the box
| Qty | Part | Description |
|---|---|---|
| 2 | BDS002501 | Front Leaf Spring | 5 Inch Lift | Dodge Truck (69-93) |
| 1 | BDS082501 | Steering Block | Chevy/GMC Truck (73-87) and SUV (73-91) 4WD |
| 1 | BDS119158 | Full Size Rear Short Add-a-leaf |

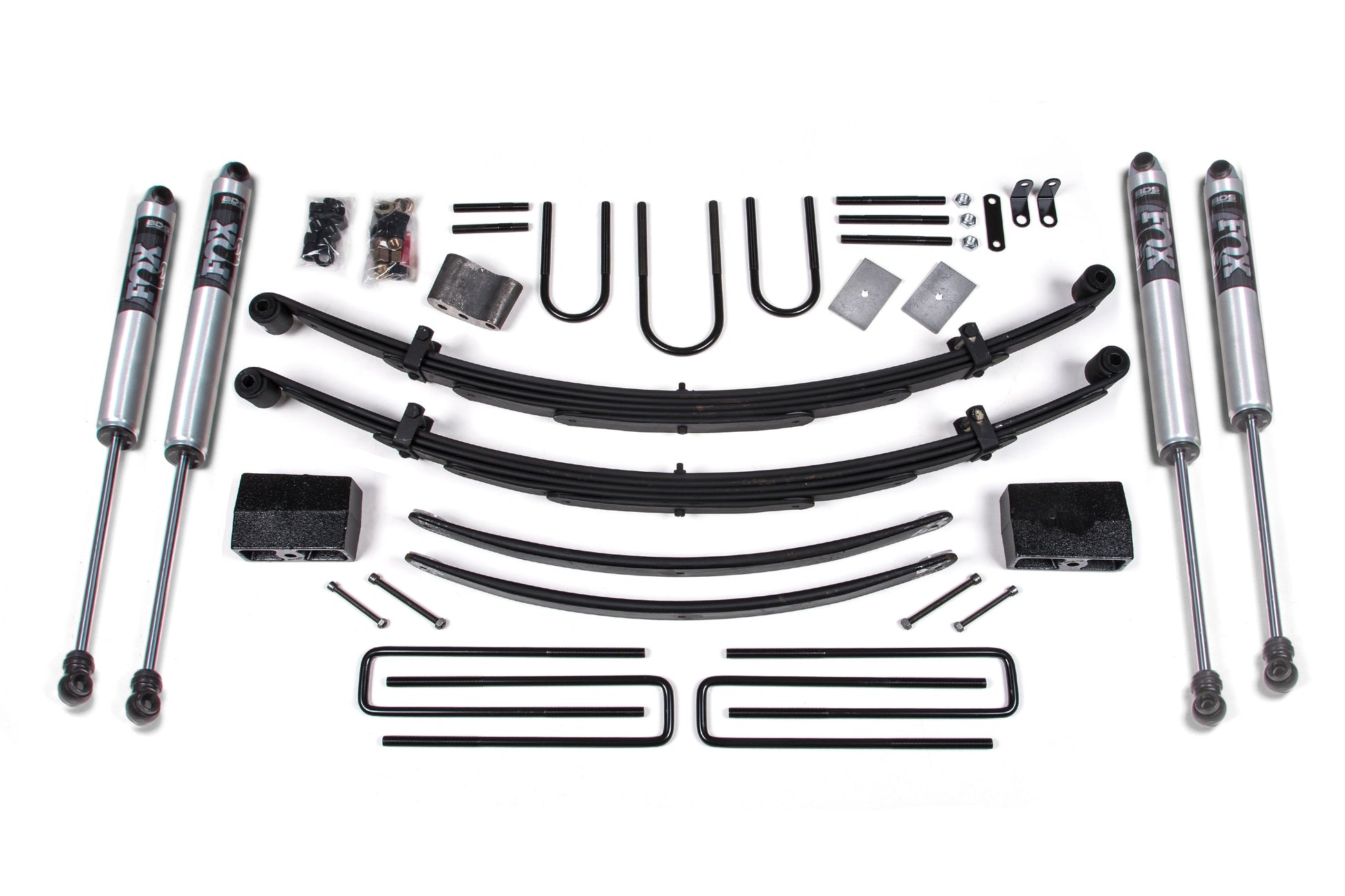

For: FOX 2.0 Performance Series
| Qty | Part | Description |
|---|---|---|
| 2 | FOX98224650 | FOX 2.0 IFP Shock | Performance Series | 26.85 x 16.75 x 2- EB1/EB1 |
| 2 | FOX98224760 | FOX 2.0 IFP Shock | Performance Series | Ford F150 (04-25) and F250/F350 Super Duty (99-16) |
For: NX2 Nitro Series
| Qty | Part | Description |
|---|---|---|
| 2 | BDS85650 | NX2 Nitro Shock | Multiple Fitments | 26.20 x 15.80 x 2-3/8 - EB1/EB1 |
| 2 | BDS85760 | NX2 Nitro Rear Shock | 4-6 Inch Lift | Ford F150 (04-20) and F250/F350 Super Duty (99-16) |
Features
- Easy, 100% Bolt-on installation
- Glideride leaf springs to provide full lift height and increased capacity
- New steering arm maintains proper steering angles for improved handling
- Cast steel blocks and add-a-leaf provide level stance from front to rear
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Fitment
| Years | Vehicle |
|---|---|
| 1969–1974 | Dodge W100 Pickup |
| 1969–1974 | Dodge W200 Pickup |
| 1969–1974 | Dodge W300 Pickup |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Recommended wheels & tires
- 35 x 12.5 with 15 x 8 and 4 in. Backspace
Installation
- Estimated install time6-8 hrs
- DifficultyModerately Easy
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Designed to improve stance, performance, and capability. BDS Suspension has designed this 5-inch lift kit for your 1969-1973 Dodge RAM 1500 and 2500 truck. This kit includes everything necessary to set your truck up right with clearance for up to 35" tires.
Up front the lift kit includes Glide-Ride leaf springs, 3" steering block to correct steering linkage angles, and brake line brackets. In the rear this kit utilizes a high-strength lift blocks, add-a-leaf, and longer u-bolts. The round out these kits with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to offer improved damper performance.
Glide-Ride Leaf Springs
Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.
