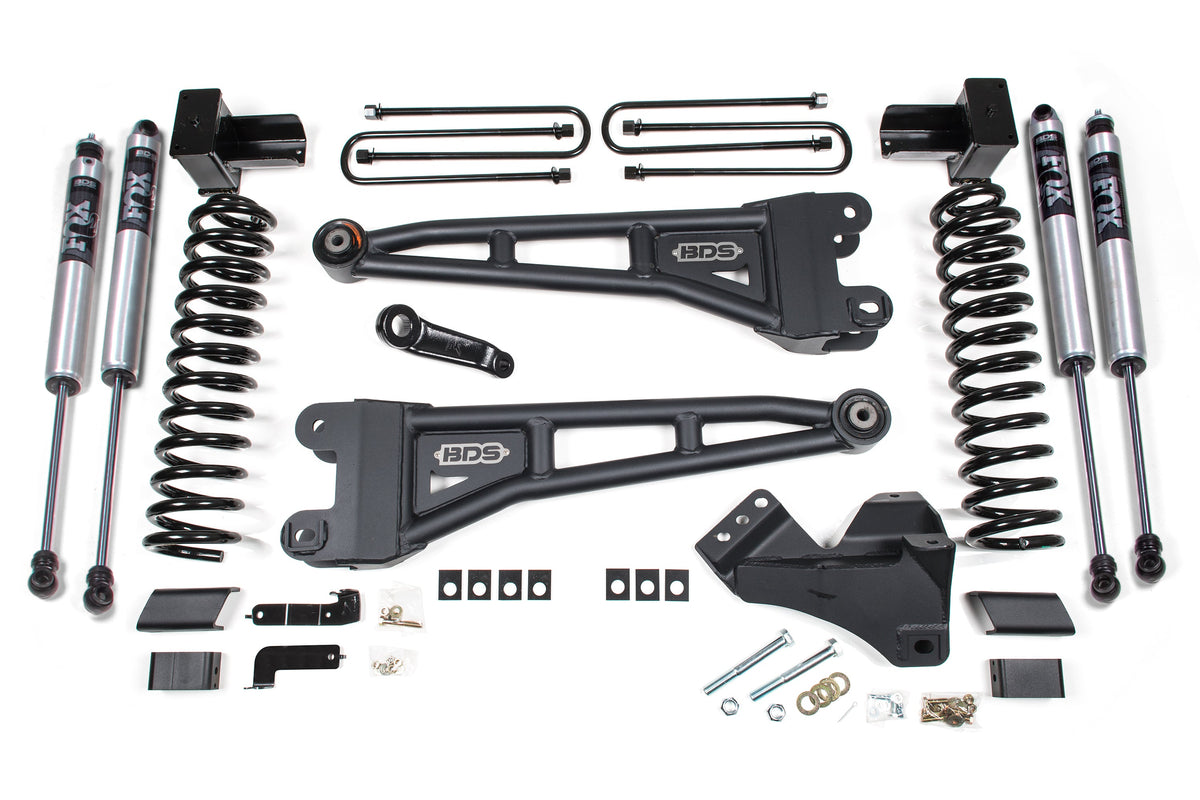

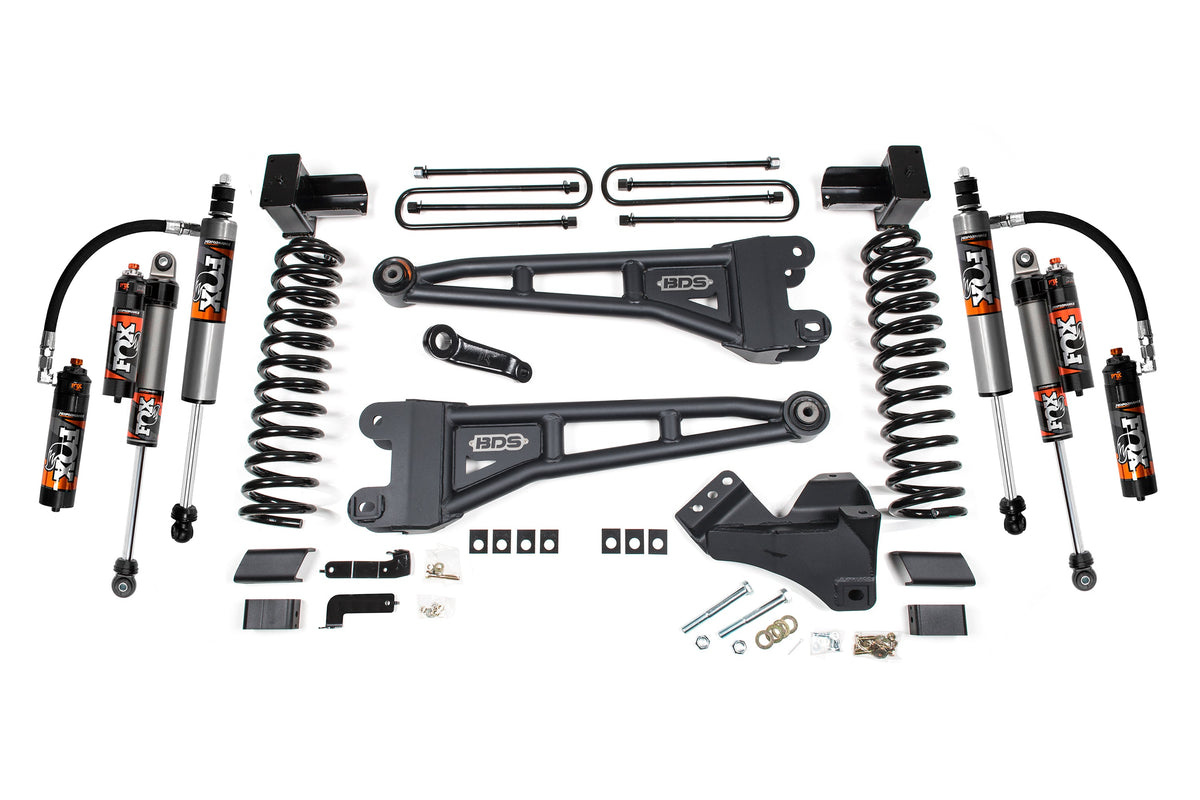

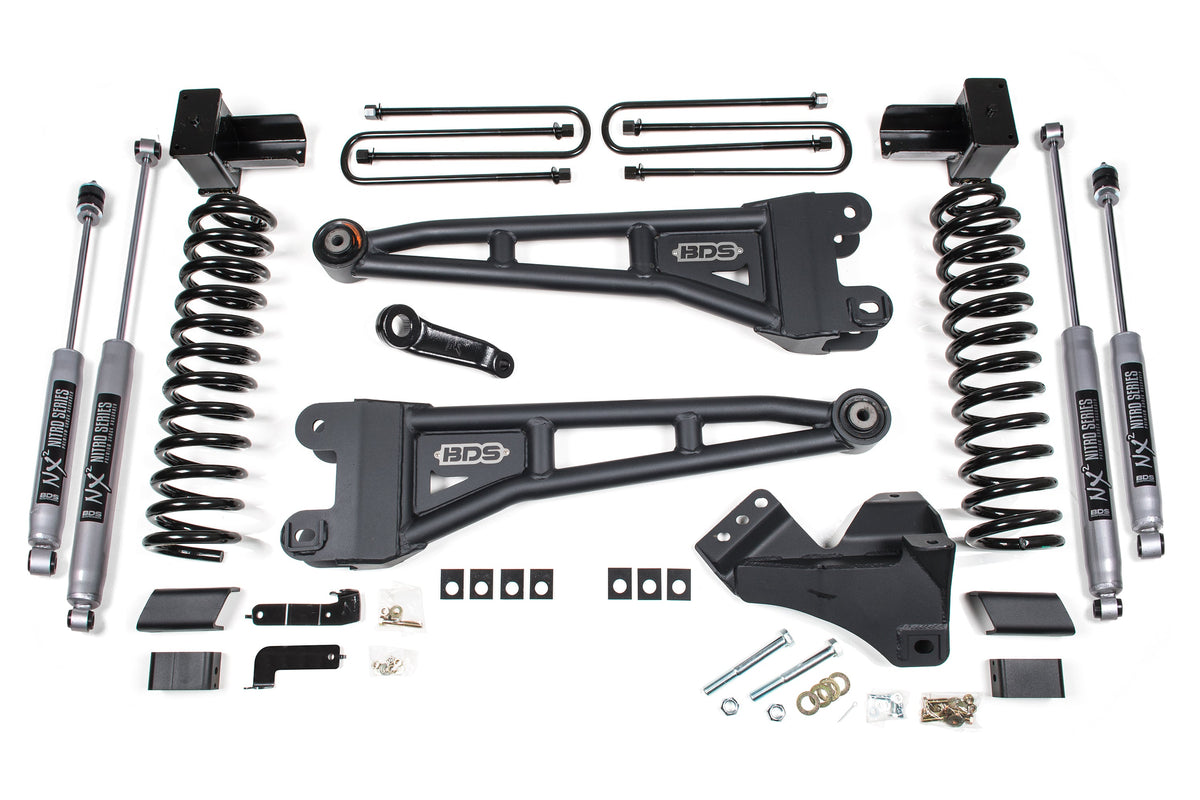

BDS Suspension 4 Inch Lift Kit w/ Radius Arms Ford F450 Super Duty (20-22) 4WD
- Front lift 4"
- Lift 4-5.5"
- Max tire 37 x 12.5
- Rear lift 3.5"
- Shocks included
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Traction Bars
Steering Stabilizers
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- These kits are designed for the F-450 style front end . They do not work with the standard Ford Super Duty F-250/350 axle width.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | BDS Suspension |
|---|---|
| Part number | BDS1224FPE |
| UPC / GTIN | 840416441406 |
| Front Lift Height | 4" |
| Front Lift Method | Coil Spring |
| Lift Height | 4-5.5" |
| Max Tire Size | 37 x 12.5 |
| Rear Lift Height | 3.5" |
| Rear Lift Method | Block |
| Shocks Included | Yes |
What's in the box
| Qty | Part | Description |
|---|---|---|
| 1 | BDS123251 | Radius Arm Upgrade | Ford F250 / F350 Super Duty (05-22) & Ford F450 / F550 / F600 Super Duty (20-22) 4WD |
| 1 | BDS033411 | Coil Springs | 4 Inch Lift | Ford F250/F350 Super Duty (05-26) 4WD | Diesel |
| 1 | FOX88326097 | FOX 2.5 Remote Reservoir Front Shocks - DSC | 2-3.5 Inch Lift | Performance Elite Series | Ford F250/F350 Super Duty (17-26) 4WD |
| 1 | FOX88326098 | FOX 2.5 Remote Reservoir Rear Shocks - DSC | 2-3.5 Inch Lift | Performance Elite Series | Ford F250/F350 Super Duty (17-26) 4WD |
| 1 | BDS123808 | Rear Sway Bar Link Kit | Fits 6-8 Inch Lift | Ford F250 / F350 Super Duty (17-26) 4WD |
Features
- BDS Forged pitman arm to maximize steering radius at 4" of lift.
- BDS Radius arms are made from heavy duty DOM steel.
- BDS Radius arms restore proper caster angle, axle alignment, and suspension geometry, which helps maintain predictable steering, stable handling, and prevents wander or tire wear.
- Rather than rigid joints, the kit uses OE-style rubber bushings at the frame mounts. These bushings isolate noise and vibration , provide a smoother, quieter ride, and require no ongoing greasing or maintenance
- Choice of Fox shocks ranging from 2.0 to 2.5 Performance Elite.
Fitment
| Years | Vehicle |
|---|---|
| 2020-2022 | Ford F-450 Super Duty 4 X 4 |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Recommended wheels & tires
- 37 x 12.5 with 18 x 9 and in. Backspace
- 37 x 12.5 with 20 x 10 and in. Backspace
Overview
Give your 2020–2022 Ford F-450 the lift it deserves with the BDS 4" Radius Arm Lift Kit, an ideal choice for drivers who want strength, simplicity, and outstanding everyday performance. While 4-link systems offer excellent articulation and fine-tuned geometry, a radius-arm setup shines when it comes to durability, straightforward design, and long-term reliability, qualities especially valued on heavy-duty trucks like the F-450. The heavy-duty radius arms from BDS are built to handle serious workload demands while maintaining predictable road manners, confident steering feel, and excellent stability under towing and hauling. This kit pairs perfectly with your choice of shocks: the proven BDS NX2 shocks, the FOX 2.0 Performance Series for a ride and handling upgrade, or the top-tier FOX 2.5 Performance Elite with DSC (Dual Speed Compression) adjusters for fully tunable control. And for those seeking even higher performance, the system can be optioned with front FOX 2.5 Performance Elite coilovers to deliver maximum responsiveness and comfort. Rugged, dependable, and easier on the budget, this BDS Radius Arm Lift Kit is the smart choice for drivers who want reliable performance without overcomplicating their suspension.
HD Radius Arms
In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.Pro-Ride Coil Springs
A pair of full-length Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
