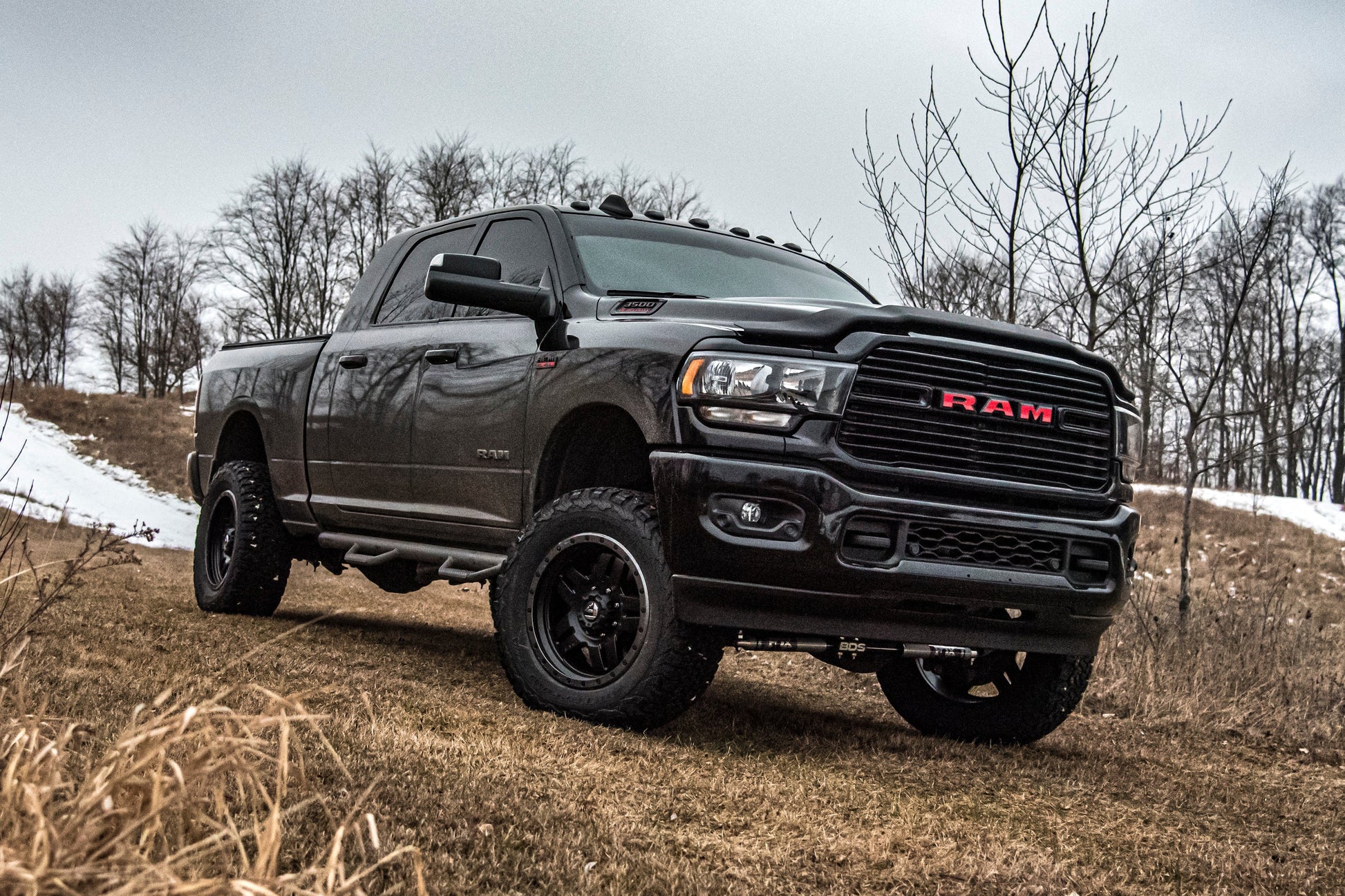

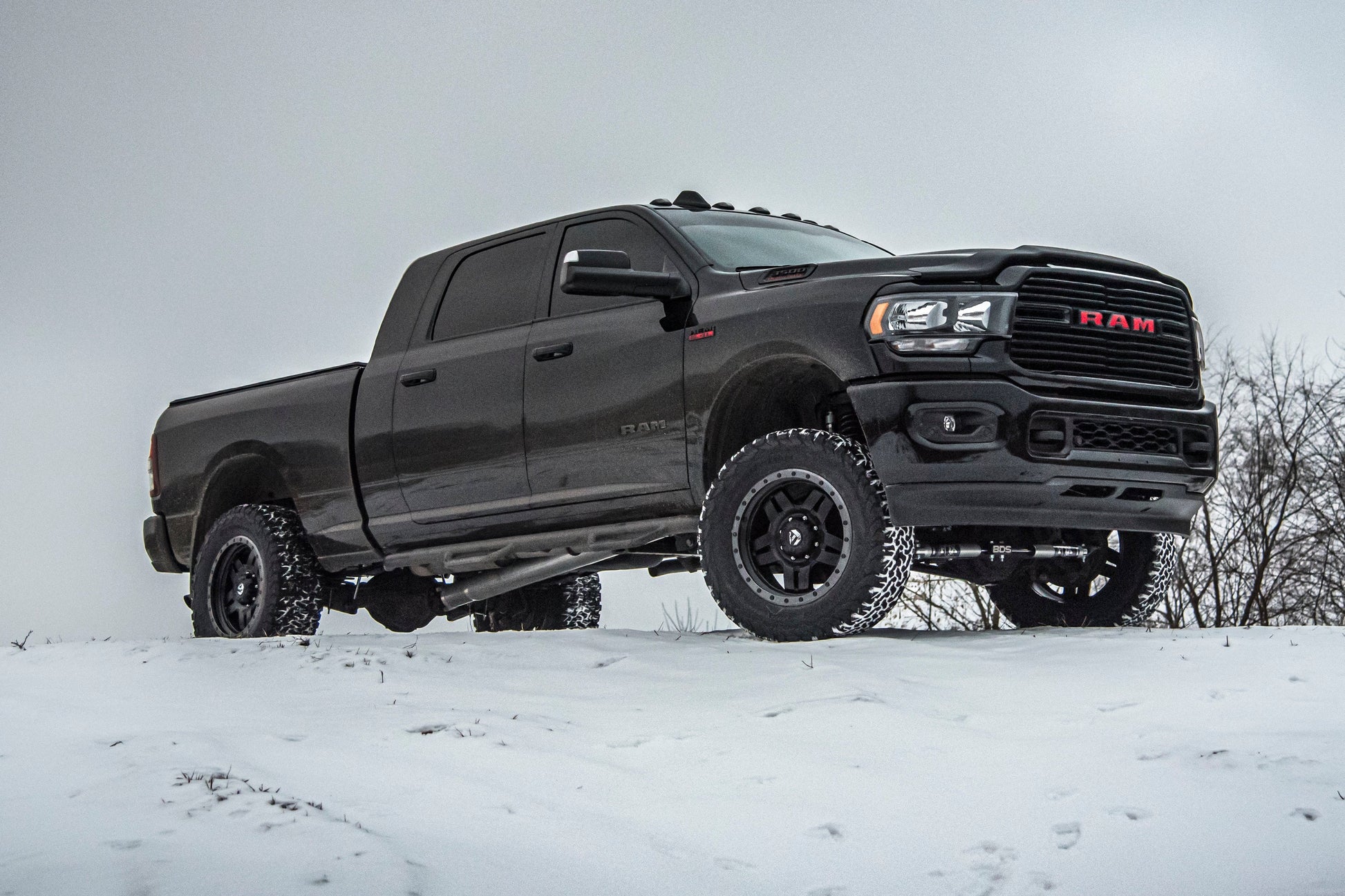

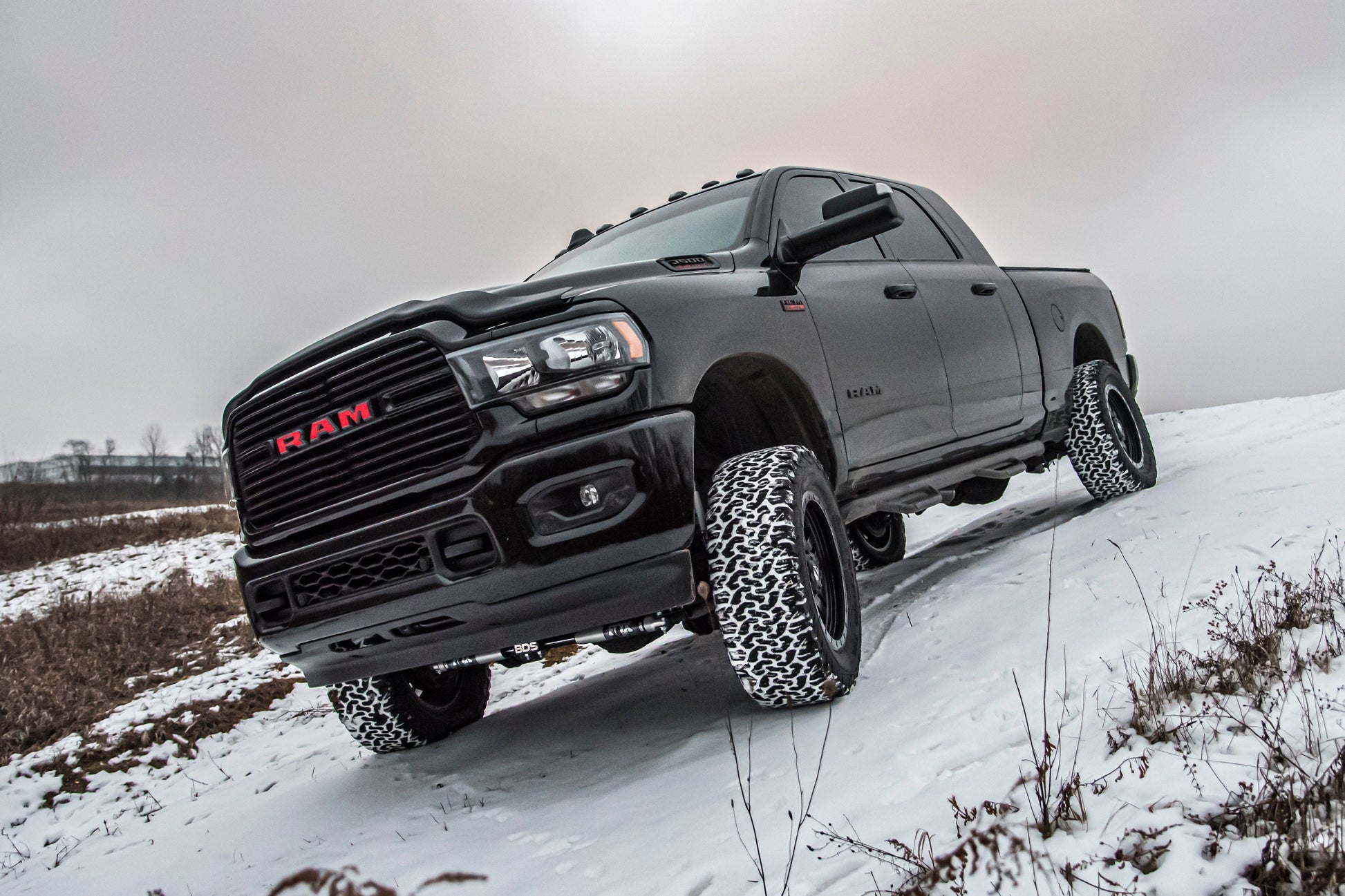

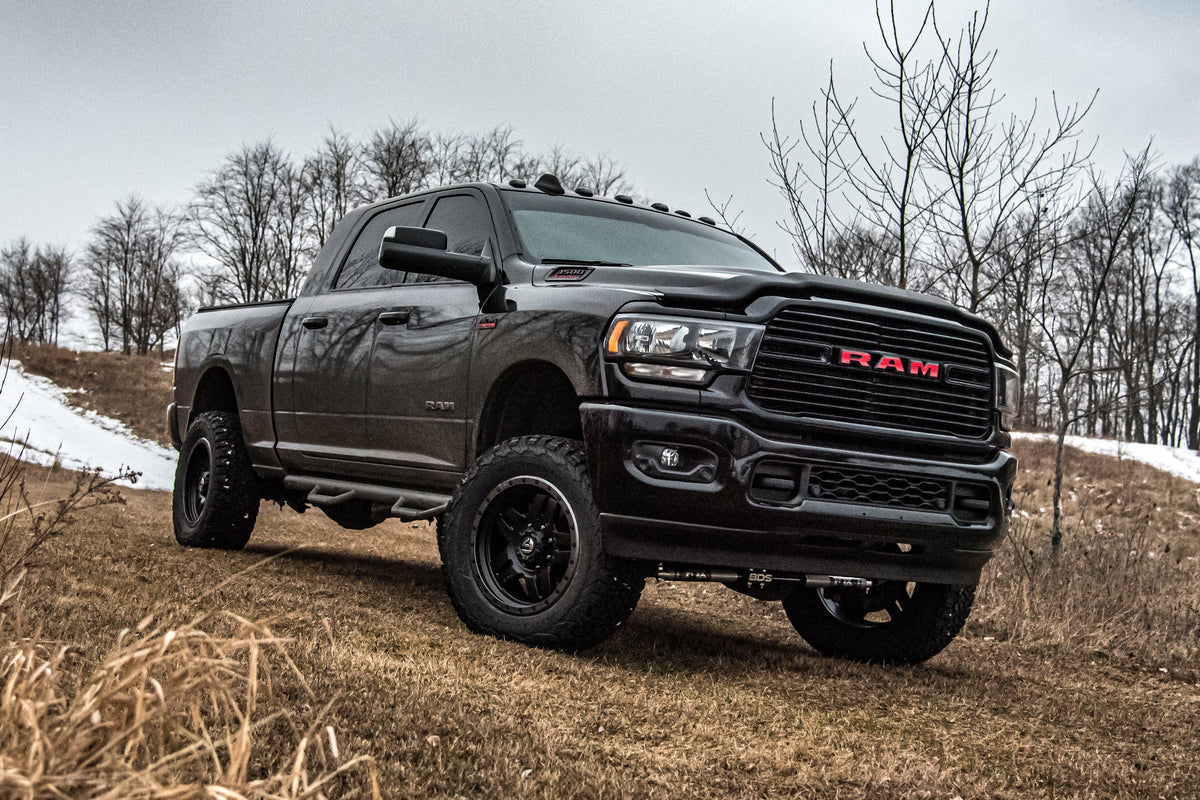

BDS Suspension 4 Inch Lift Kit w/ Radius Arm Ram 3500 (19-24) 4WD · Gas
- Front lift 4"
- Lift 4-5.5"
- Max tire 35 x 12.5
- Rear lift 3"
- Shocks included
- Install 8-10 hrs
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Traction Bars
Steering Stabilizers
Accessories
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Exhaust modification is required to clear the front driveshaft. The vehicle can be driven w/o a front driveshaft to an exhaust shop.
- A DEF tank relocation bracket BDS122409 is required for this kit to work with Dually or Mega Cab Models with Aisin Transmissions (8-bolt).
- Vehicles equipped with a Manual T-case, requires BDS122422 Manual transfer case shifter extension.
- Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | BDS Suspension |
|---|---|
| Part number | BDS1700FPE |
| UPC / GTIN | 840416407365 |
| Front Lift Height | 4" |
| Front Lift Method | Coil Spring |
| Lift Height | 4-5.5" |
| Max Tire Size | 35 x 12.5 |
| Rear Lift Height | 3" |
| Rear Lift Method | Block |
| Shocks Included | Yes |
| Install time | 8-10 hrs |
| Difficulty | Moderate |
| Required Tools | Pitman Arm Puller |

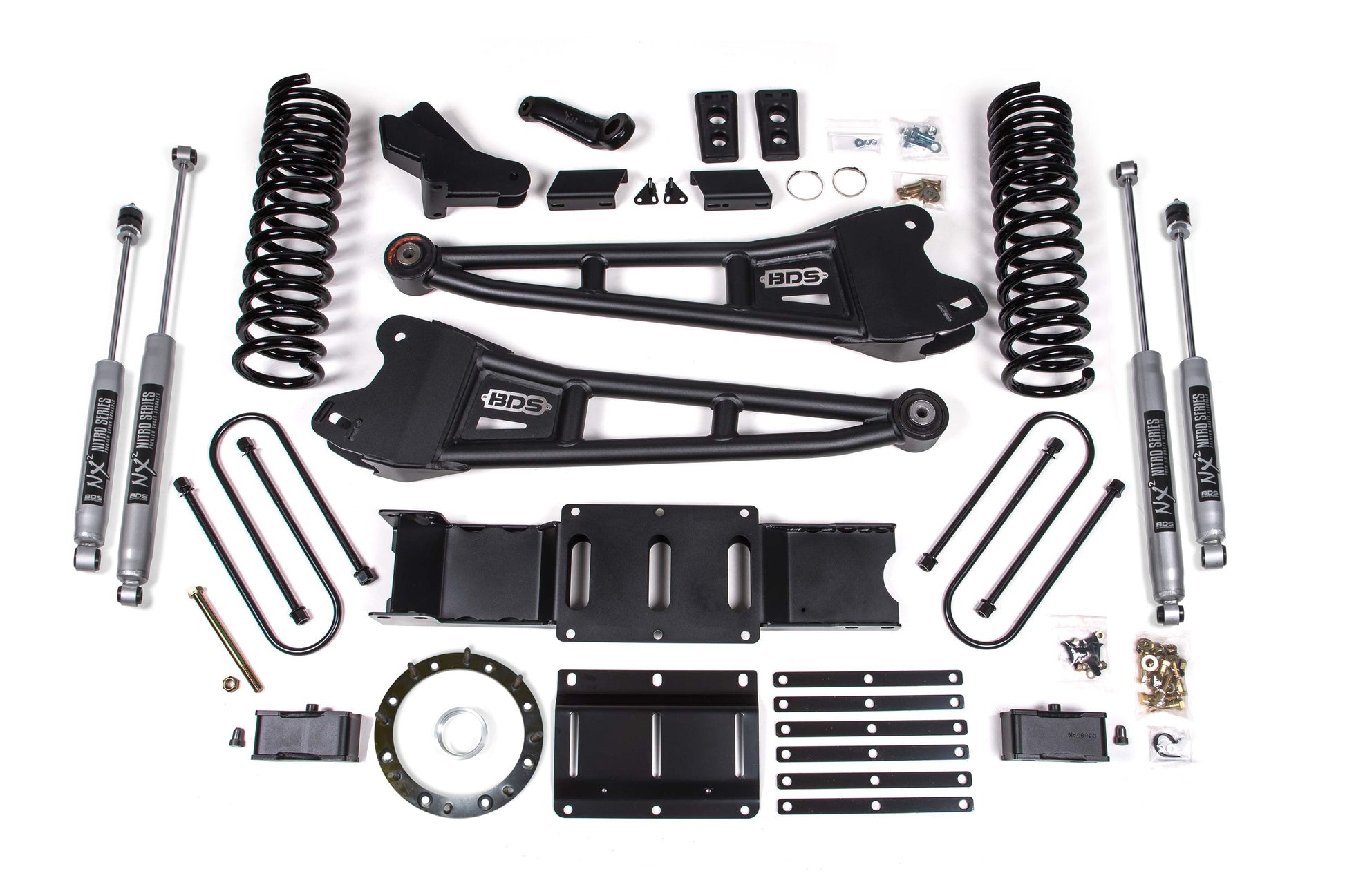

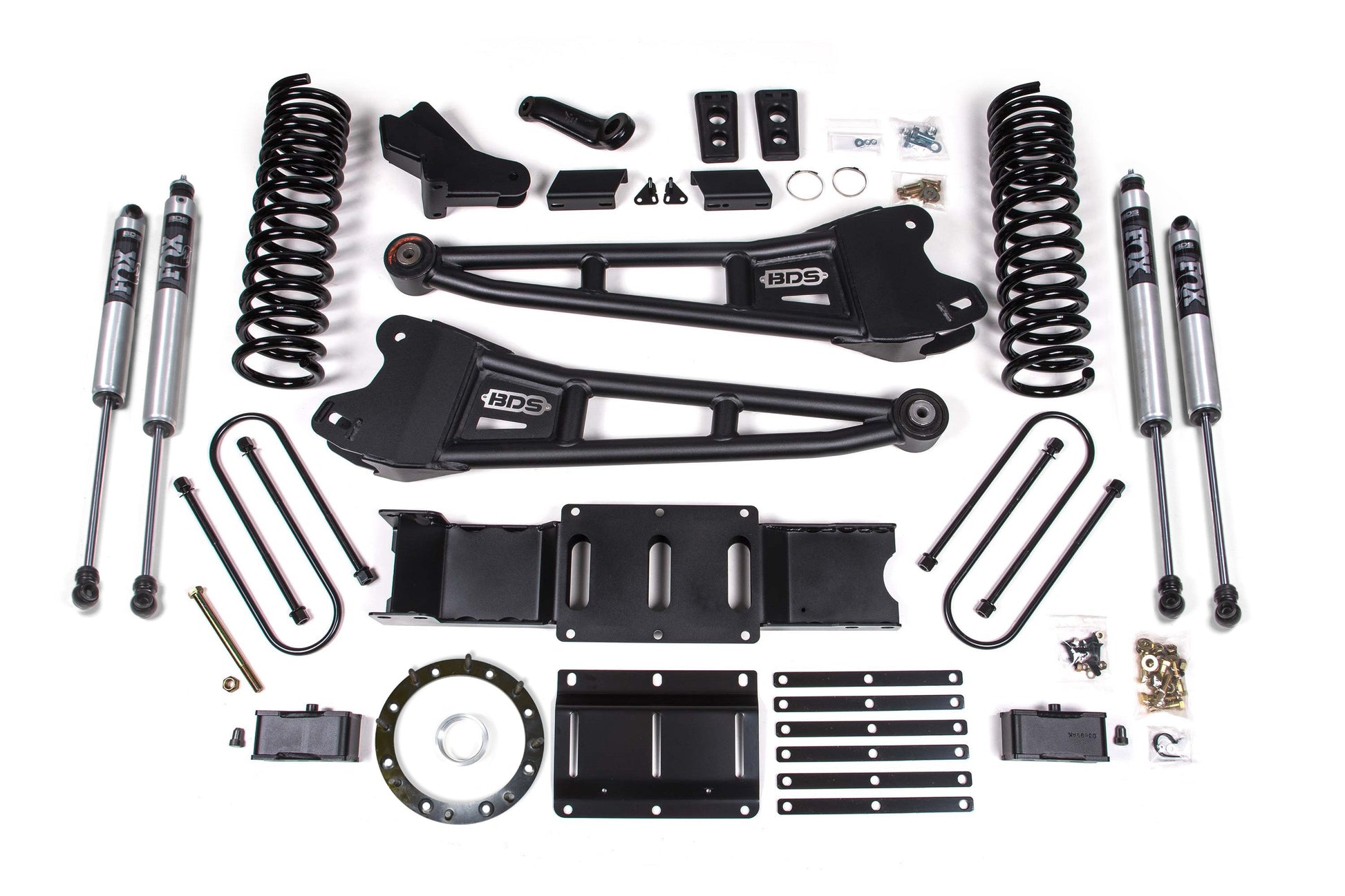

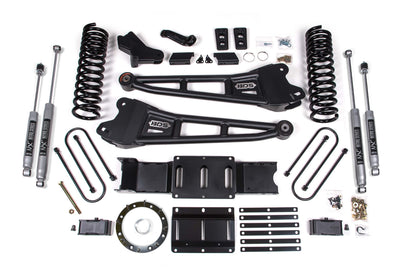

What's in the box
| Qty | Part | Description |
|---|---|---|
| 1 | BDS032302 | Coil Springs | 3 Inch Lift - Diesel / 4 Inch Lift - Gas | RAM 2500 (14-27) & 3500 (13-27) |
| 1 | BDS122321 | Radius Arm Upgrade | Ram 2500 (14-27) and 3500 (13-27) 4WD |
| 1 | BDS122626 | Transfer Case Indexing Ring | 6-Bolt | Ram 2500 / 3500 (19-27) 4WD | Gas |
For: Without Factory Rear Overload Leaf / FOX 2.5 Performance Elite
| Qty | Part | Description |
|---|---|---|
| 1 | FOX88326063 | FOX 2.5 Front Shocks w/ DSC Reservoir | 2-3.5 Inch Lift | Performance Elite Series | Ram 2500 (14-27) and 3500 (13-27) 4WD |
| 1 | FOX88326101 | FOX 2.5 Remote Reservoir Rear Shocks - DSC | 2-3.5 Inch Lift | Performance Elite Series | Ram 3500 (13-27) |
For: Without Factory Rear Overload Leaf / FOX 2.0 Performance Series
| Qty | Part | Description |
|---|---|---|
| 2 | FOX98224700 | FOX 2.0 IFP Shock | Performance Series | 25.65 x 16.05 x 2- S50/EB1 |
| 2 | FOX98224759 | Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1 |
For: Without Factory Rear Overload Leaf / NX2 Nitro Series
| Qty | Part | Description |
|---|---|---|
| 2 | BDS85700 | NX2 Nitro Shock | Multiple Fitments | 25.20 x 15.20 x 2-3/8 - S50/EB2 |
| 2 | BDS85759 | Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1 |
For: With Factory Rear Overload Leaf / FOX 2.5 Performance Elite
| Qty | Part | Description |
|---|---|---|
| 1 | FOX88326063 | FOX 2.5 Front Shocks w/ DSC Reservoir | 2-3.5 Inch Lift | Performance Elite Series | Ram 2500 (14-27) and 3500 (13-27) 4WD |
| 1 | FOX88326101 | FOX 2.5 Remote Reservoir Rear Shocks - DSC | 2-3.5 Inch Lift | Performance Elite Series | Ram 3500 (13-27) |
For: With Factory Rear Overload Leaf / FOX 2.0 Performance Series
| Qty | Part | Description |
|---|---|---|
| 2 | FOX98224700 | FOX 2.0 IFP Shock | Performance Series | 25.65 x 16.05 x 2- S50/EB1 |
| 2 | FOX98224759 | Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1 |
For: With Factory Rear Overload Leaf / NX2 Nitro Series
| Qty | Part | Description |
|---|---|---|
| 2 | BDS85700 | NX2 Nitro Shock | Multiple Fitments | 25.20 x 15.20 x 2-3/8 - S50/EB2 |
| 2 | BDS85759 | Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1 |
Features
- Heavy duty tubular radius arms improve strength, handling and caster control
- Front high strength progressive rate coil springs for a great ride on any terrain
- Front track bar relocation bracket to re-position axle
- Forged drop pitman arm to correct steering angles
- Front sway bar correction to maintain handling performance
- HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
- BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance
Recommended wheels & tires
- 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
- 37 x 12.5 with 17 x 9 and 5.625 in. Backspace
- 37 x 12.5 with 20 x 9 and 5.625 in. Backspace
Installation
- Estimated install time8-10 hrs
- DifficultyModerate
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Raise your RAM 3500 gas powered truck to the next heights with this 4-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.
Up front the lift kit includes gas-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.
At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

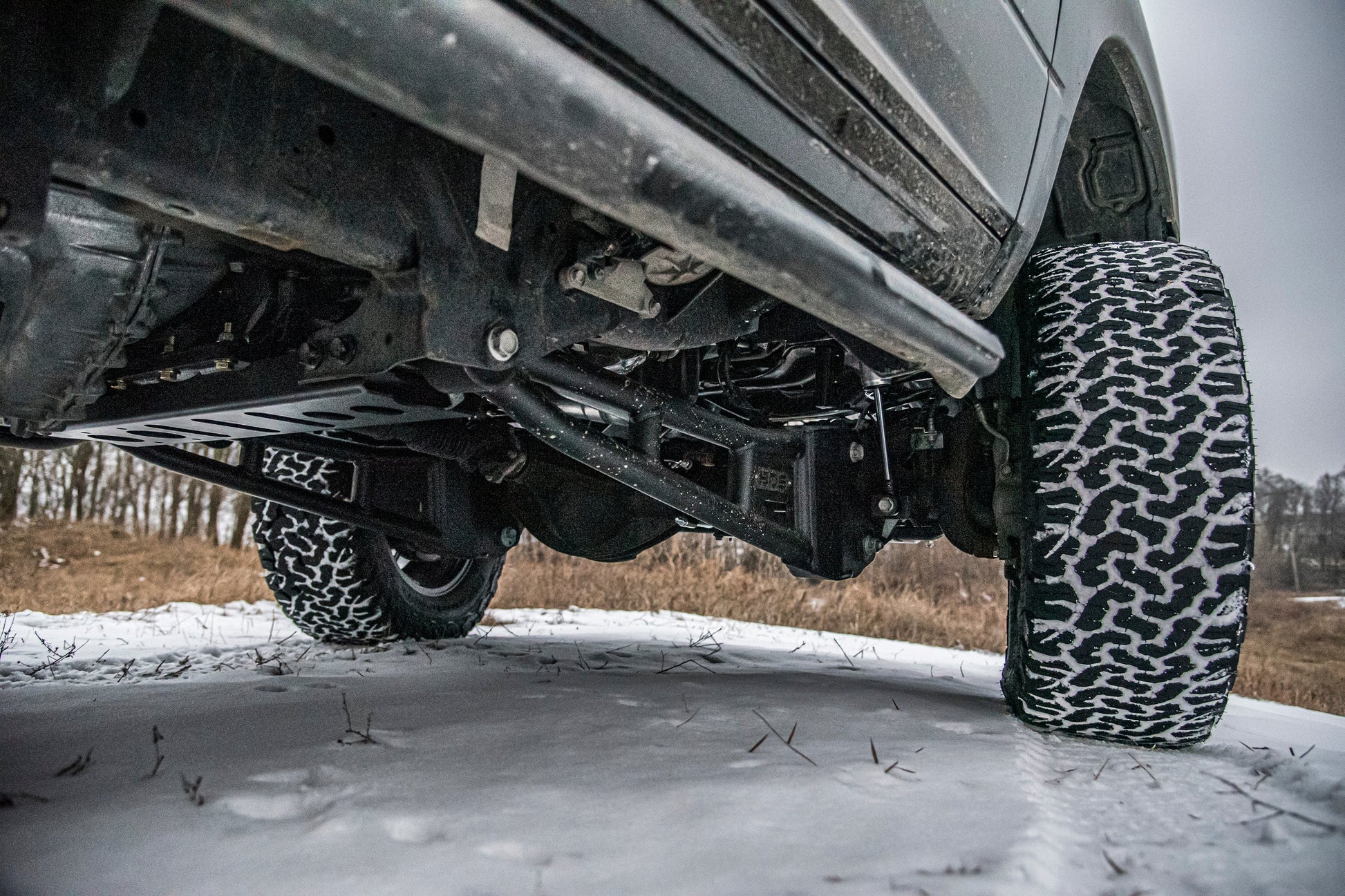

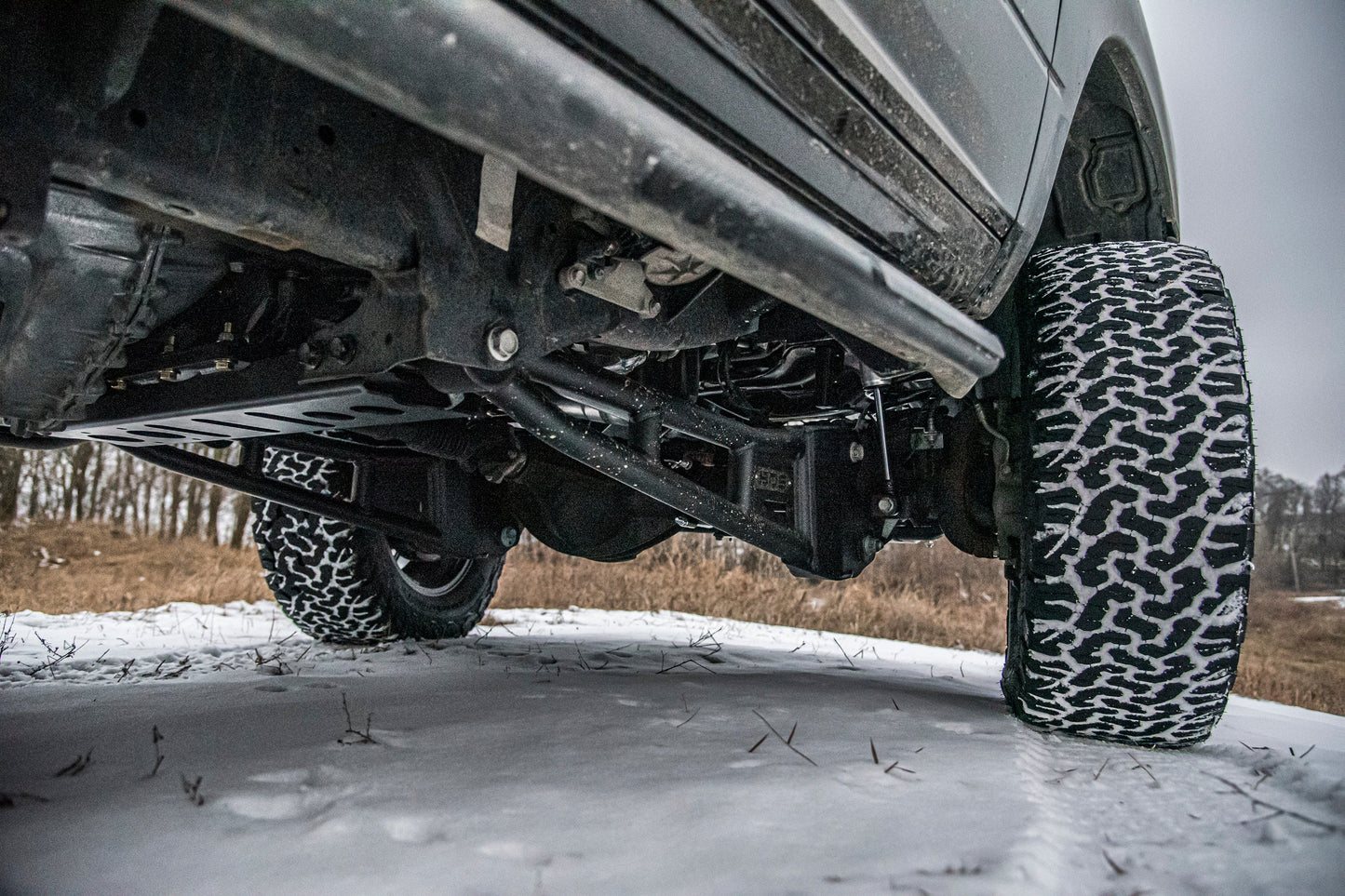

HD Radius Arms
In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.
Pro-Ride Coil Springs
A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
