Raise your RAM 3500 gas powered truck to the next heights with this 4-inch lift kit with 4-Link conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

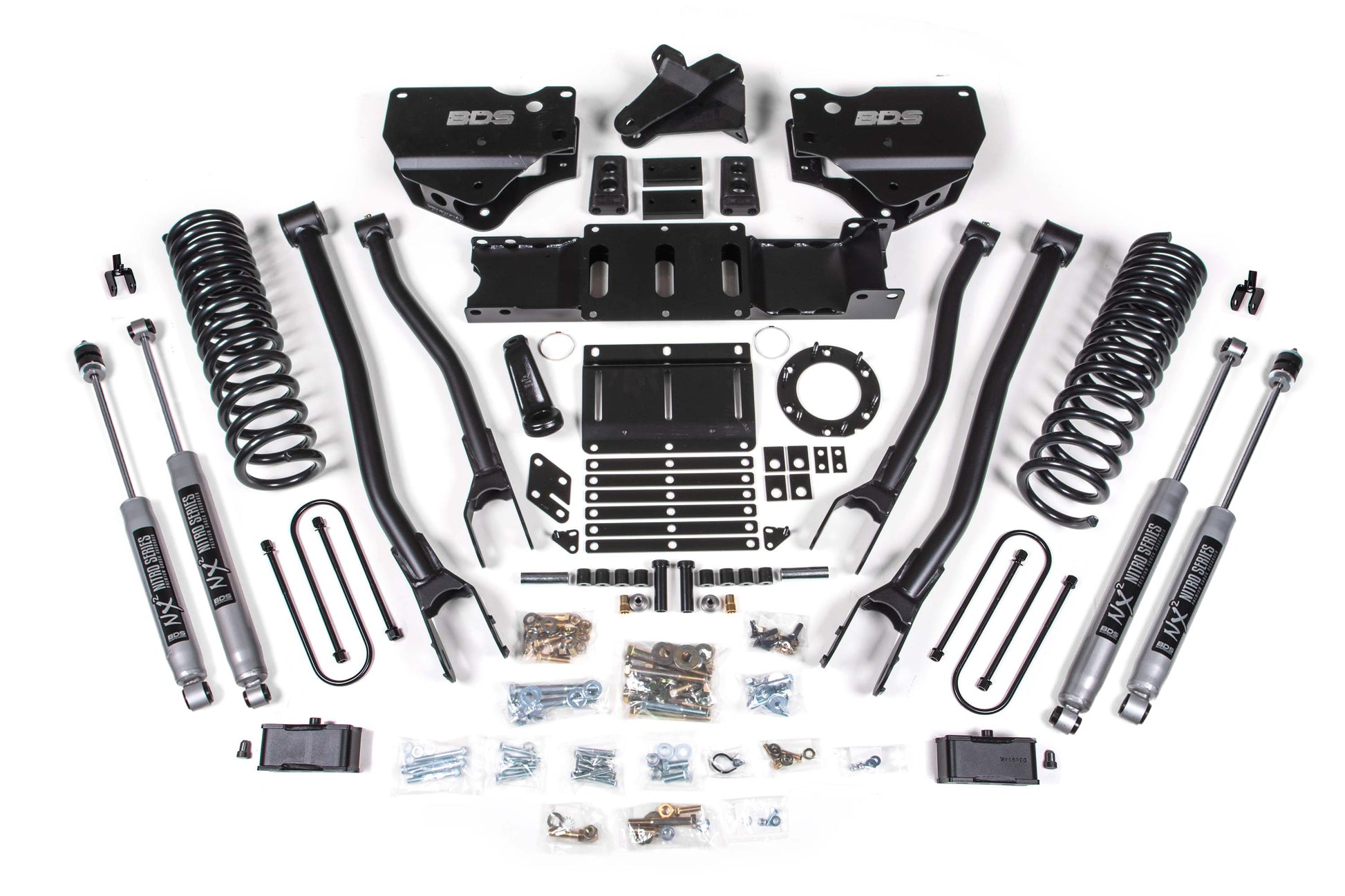

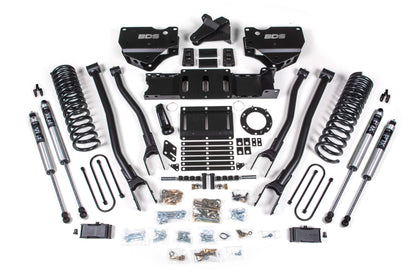

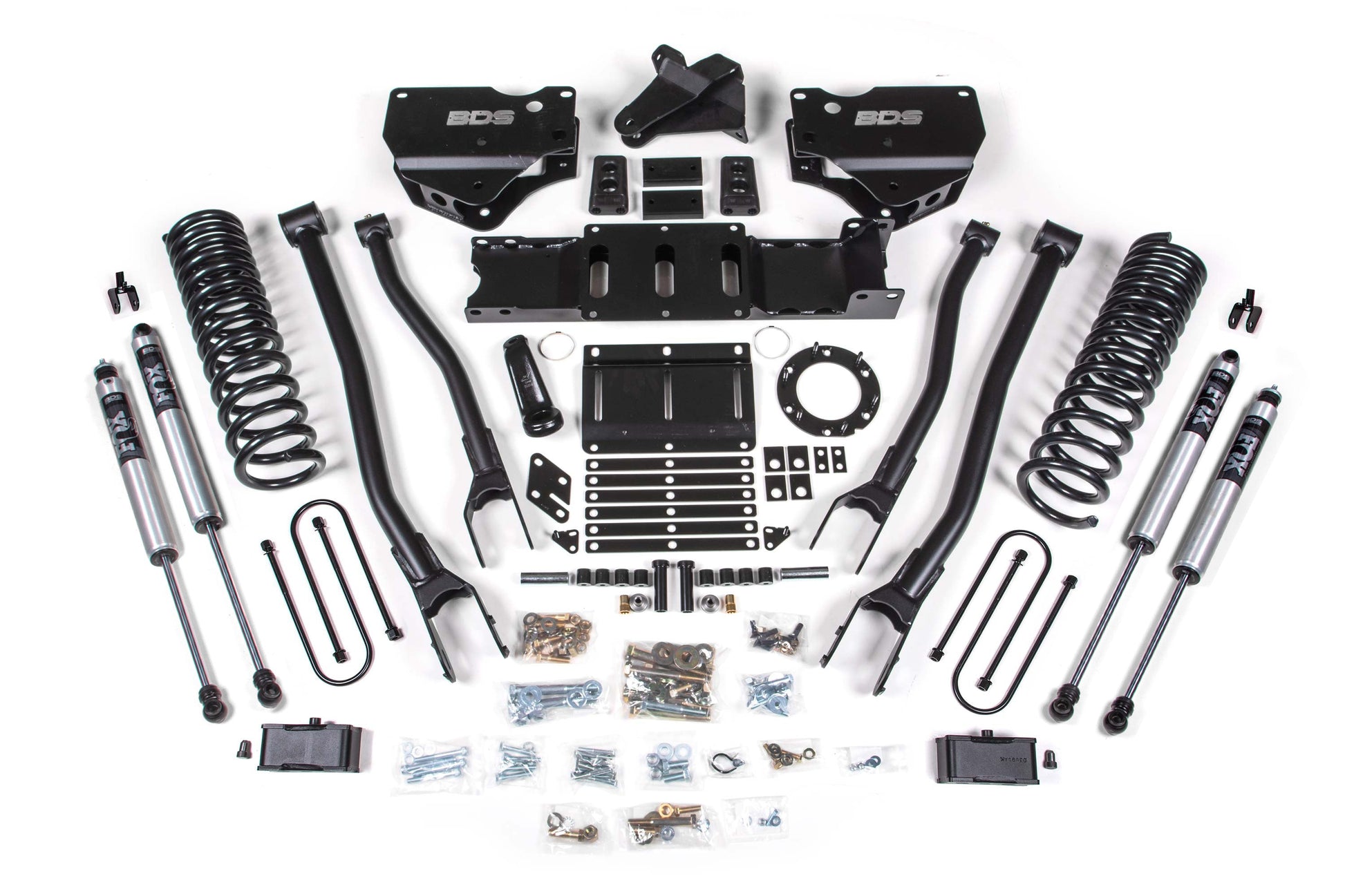

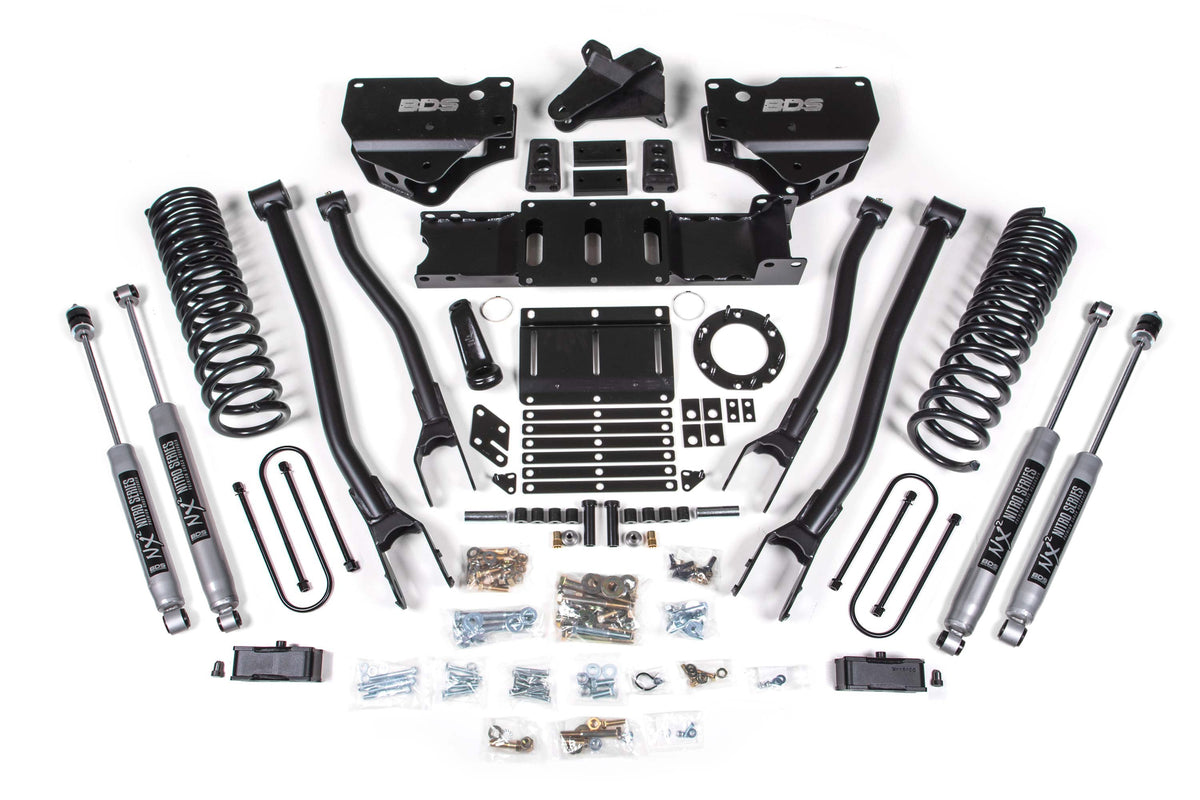

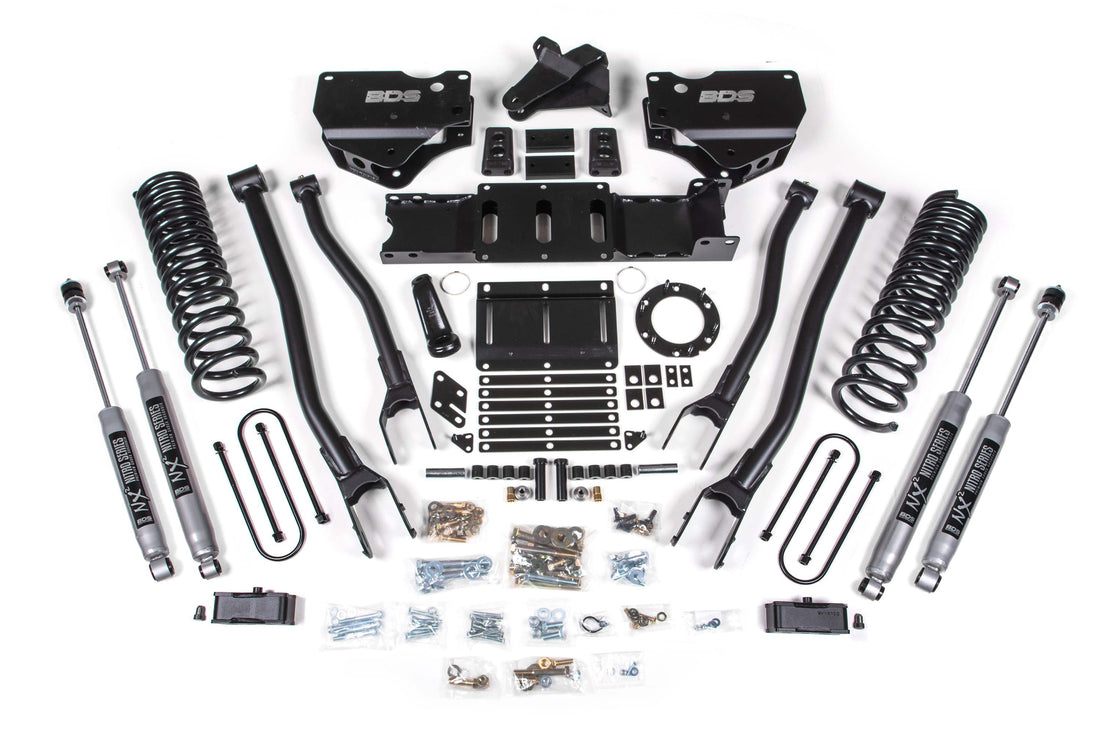

Up front the lift kit includes gas-specific Pro-Ride coil springs, 4-Link control arms and conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.
At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength steel lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.
4-Link Conversion

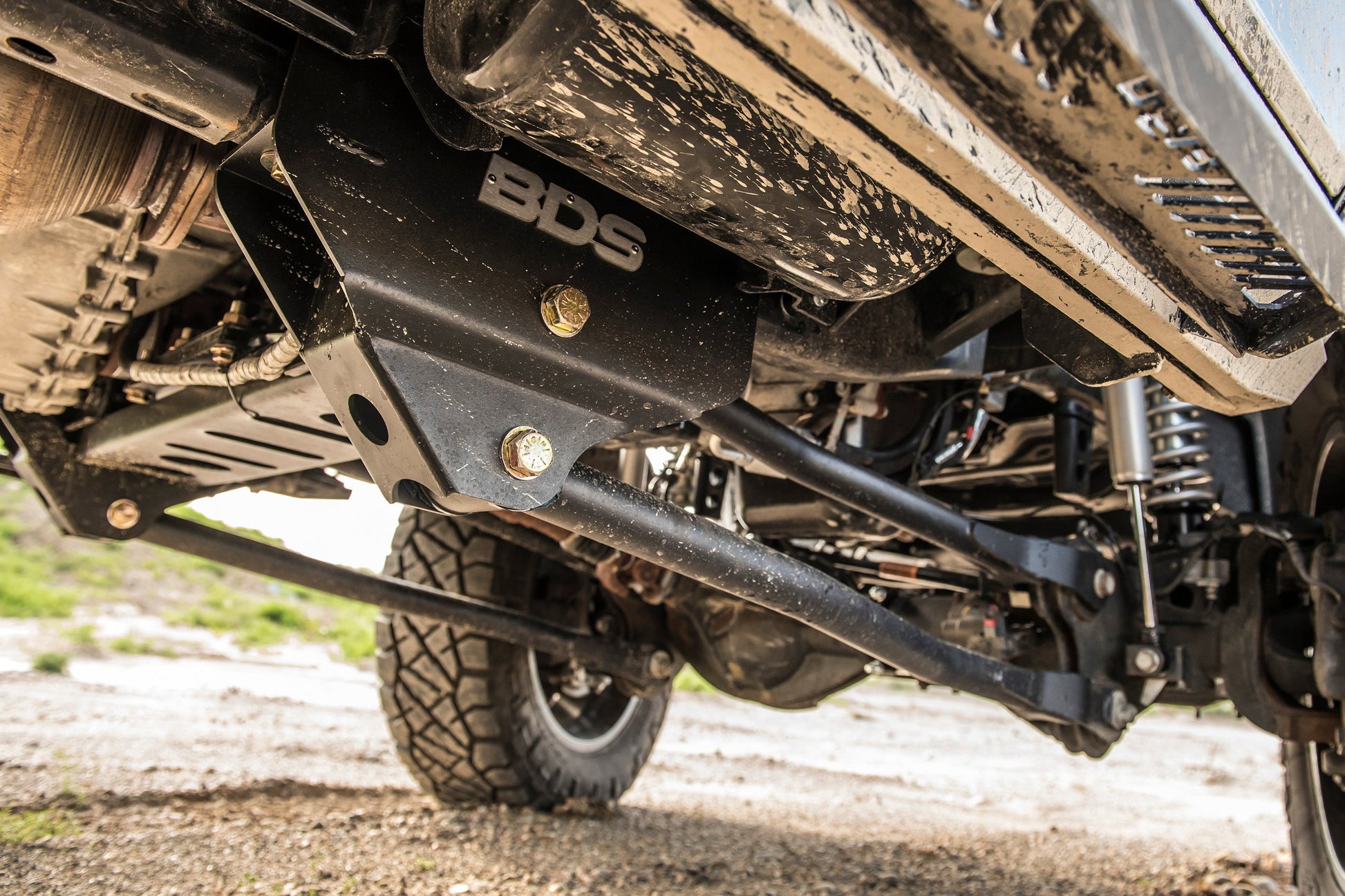

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.
Pro-Ride Coil Springs
A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Raise your RAM 3500 gas
powered truck to the next heights with this 4-inch lift kit with 4-Link
conversion from BDS Suspension. Designed to improve stance, performance, and
capability, this kit includes everything necessary to set your truck up right
with clearance for up to 35" tires.
Up front the lift kit includes gas-specific
Pro-Ride coil springs, 4-Link control arms and conversion brackets, forged drop
pitman arm and track bar bracket for steering correction, sway bar relocation,
brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.
At
this height, the transfer case needs to be indexed to allow use of the factory
front driveshaft so an indexing ring and new transmission crossmember are
supplied. In the rear this kit utilizes a high-strength steel lift block,
longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.
Features
- Front Lift Method: 4-Link
- Rear Lift Method: Block
- Shocks Included: Yes
- Front Lift Height: 4"
- Rear Lift Height: 3"
Brand Overview
BDS Suspension offers a wide range of premium suspension parts and components to complete the build of your high-performance truck or Jeep.
All BDS products are made in the USA and powder coated for a superior ultra-premium appearance. On or off road, if your truck is running BDS Suspension, you've got the hardest charging, best driving, sharpest looking equipment money can buy.
