BDS Suspension 4 Inch Lift Kit w/ 4-Link · FOX 2.5 Performance Elite Coil-Over Conversion Ford F350 Super Duty DRW (17-19) 4WD · Diesel
- Front lift 4"
- Lift 4-5.5"
- Max tire 37 x 12.5
- Rear lift 2"
- Shocks included
- Install 8-10 hrs
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Traction Bars
Steering Stabilizers
Accessories
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
- 37 x 12.50 tires may require minor trimming.
- Some models may be factory equipped with a 2-leaf main rear leaf spring pack and others a 3-leaf main. Be sure to order the correct option when customizing your kit.
- If your truck is equipped with a factory rear sway bar add: 123005
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | BDS Suspension |
|---|---|
| Part number | BDS1577FPE |
| UPC / GTIN | 840416404326 |
| Front Lift Height | 4" |
| Front Lift Method | Coil-Over |
| Lift Height | 4-5.5" |
| Max Tire Size | 37 x 12.5 |
| Rear Lift Height | 2" |
| Rear Lift Method | Block |
| Shocks Included | Yes |
| Install time | 8-10 hrs |
| Difficulty | Difficult |

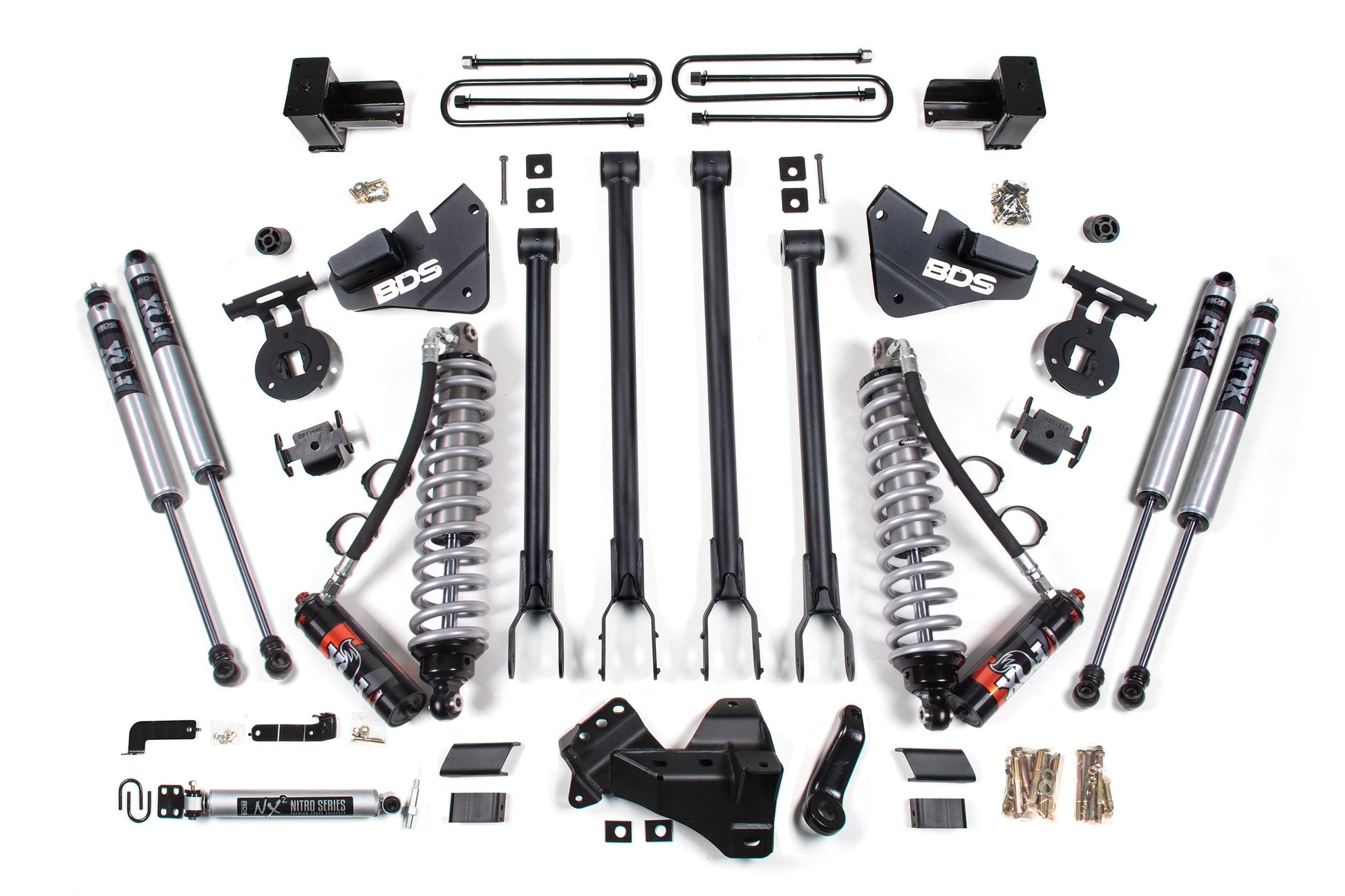

What's in the box
| Qty | Part | Description |
|---|---|---|
| 1 | BDS85431 | NX2 Steering Stabilizer Shock - Single | Ford F250/F350 Super Duty (17-26) 4WD |
| 1 | FOX88406427 | FOX 2.5 Coilover Shocks w/ DSC Reservoir | 4-5 Inch Lift | Performance Elite Series | Ford F250 / F350 Super Duty (4 Inch Lift: 05-19) | (4 Inch Lift: 20-26) 4WD |
For: FOX 2.0 Performance Series
| Qty | Part | Description |
|---|---|---|
| 2 | FOX98224700 | FOX 2.0 IFP Shock | Performance Series | 25.65 x 16.05 x 2- S50/EB1 |
| 2 | FOX98224718 | FOX 2.0 IFP Rear Shock | 3-6 Inch Lift | Performance Series | Ford F250/F350 Super Duty (17-26) 4WD |
For: FOX 2.5 Performance Elite
| Qty | Part | Description |
|---|---|---|
| 1 | FOX88326097 | FOX 2.5 Remote Reservoir Front Shocks - DSC | 2-3.5 Inch Lift | Performance Elite Series | Ford F250/F350 Super Duty (17-26) 4WD |
| 1 | FOX88326098 | FOX 2.5 Remote Reservoir Rear Shocks - DSC | 2-3.5 Inch Lift | Performance Elite Series | Ford F250/F350 Super Duty (17-26) 4WD |
Features
- FOX 2.5 Coil-Over mounts in factory coil bucket location
- Adds additional secondary FOX 2.0 shock for max performance
- Eibach coil springs ride smooth through the roughest terrain
- Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
- Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
- Fabricated steel blocks provide level stance from front to rear
- FOX shocks are fully serviceable and resistant to corrosion and harsh environments.
Fitment
| Years | Vehicle |
|---|---|
| 2017–2019 | Ford F-350 Super Duty King Ranch 4WD DIESEL |
| 2017–2019 | Ford F-350 Super Duty Lariat 4WD DIESEL |
| 2018–2019 | Ford F-350 Super Duty Limited 4WD DIESEL |
| 2017–2019 | Ford F-350 Super Duty Platinum 4WD DIESEL |
| 2017–2019 | Ford F-350 Super Duty XL 4WD DIESEL |
| 2017–2019 | Ford F-350 Super Duty XLT 4WD DIESEL |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Recommended wheels & tires
- 37 x 12.5 with and in. Backspace
Installation
- Estimated install time8-10 hrs
- DifficultyDifficult
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Maximize the capability of your 2017-2019 Ford F350 Dually "DRW" Super Duty diesel powered truck with this 4-inch lift kit with 4-Link and FOX 2.5 Performance Elite Coil-over conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your dually truck up right with clearance for up to 37" tires.
Up front the lift kit includes diesel-specific FOX 2.5 coil-over shocks, 4-link control arms with conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, and brake line brackets.
In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of FOX Performance shocks.
4-Link Conversion
Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.
FOX Performance Elite Coil-Over
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
About BDS Suspension
BDS Suspension offers a wide range of premium suspension parts and components to complete the build of your high-performance truck or Jeep. All BDS products are made in the USA and powder coated for a superior ultra-premium appearance. On or... Shop all BDS Suspension
