BDS Suspension 4 Inch Lift Kit w/ 4-Link Ford F250/F350 Super Duty (05-07) 4WD · Diesel
- Front lift 4"
- Lift 4-5.5"
- Max tire 35 x 12.5
- Rear lift 4"
- Shocks included
- Install 8 hrs
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Traction Bars
Steering Stabilizers
Accessories
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- These trucks were manufactured with and without top mounted overload springs on the rear leaf springs. A top mounted overload is an extra leaf separate from the pack that set above the main leaf. You will need to identify which you have before ordering.
- Removal of O.E. block in the rear is required.
- Front dual shock hoop requires different cylinders than what comes in the base kit.
- If equipped with 2 piece driveshaft, a driveshaft alignment kit may be required.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | BDS Suspension |
|---|---|
| Part number | BDS345FS |
| UPC / GTIN | 840416415520 |
| Front Lift Height | 4" |
| Front Lift Method | Coil Spring |
| Lift Height | 4-5.5" |
| Max Tire Size | 35 x 12.5 |
| Rear Lift Height | 4" |
| Rear Lift Method | Block |
| Shocks Included | Yes |
| Install time | 8 hrs |
| Difficulty | Moderate |
| Required Tools | Grinder/Sanding Disc, Drill / Bit Set, Pitman Arm Puller |
What's in the box
| Qty | Part | Description |
|---|---|---|
| 1 | BDS033411 | Coil Springs | 4 Inch Lift | Ford F250/F350 Super Duty (05-26) 4WD | Diesel |
| 1 | BDS85415 | NX2 Steering Stabilizer Shock - Single | Ford F250/F350 Super Duty (05-16) 4WD |

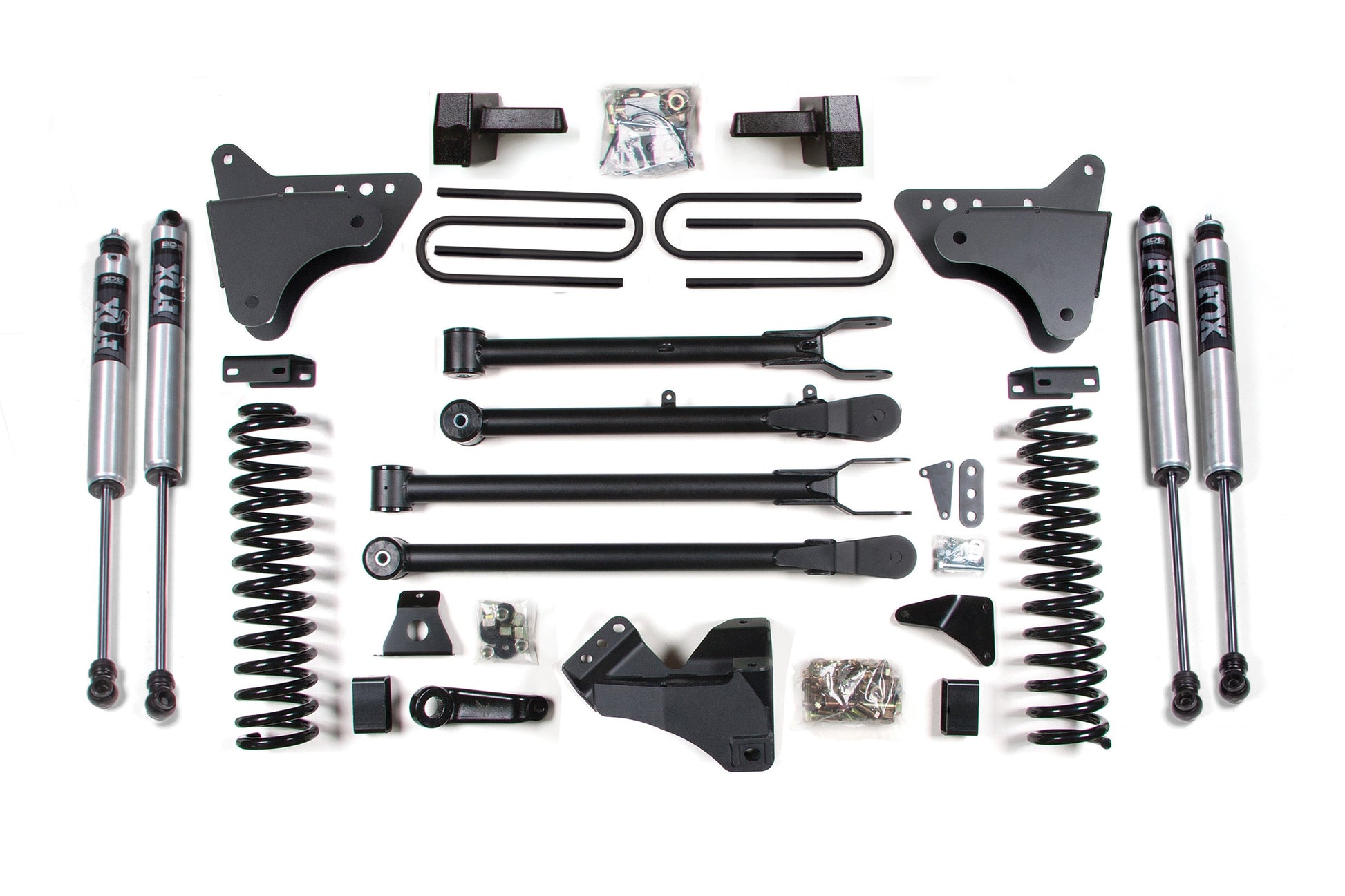

For: Block Kit Without Factory Overload / FOX 2.0 Performance Series
| Qty | Part | Description |
|---|---|---|
| 2 | FOX98224700 | FOX 2.0 IFP Shock | Performance Series | 25.65 x 16.05 x 2- S50/EB1 |
| 2 | FOX98224760 | FOX 2.0 IFP Shock | Performance Series | Ford F150 (04-25) and F250/F350 Super Duty (99-16) |

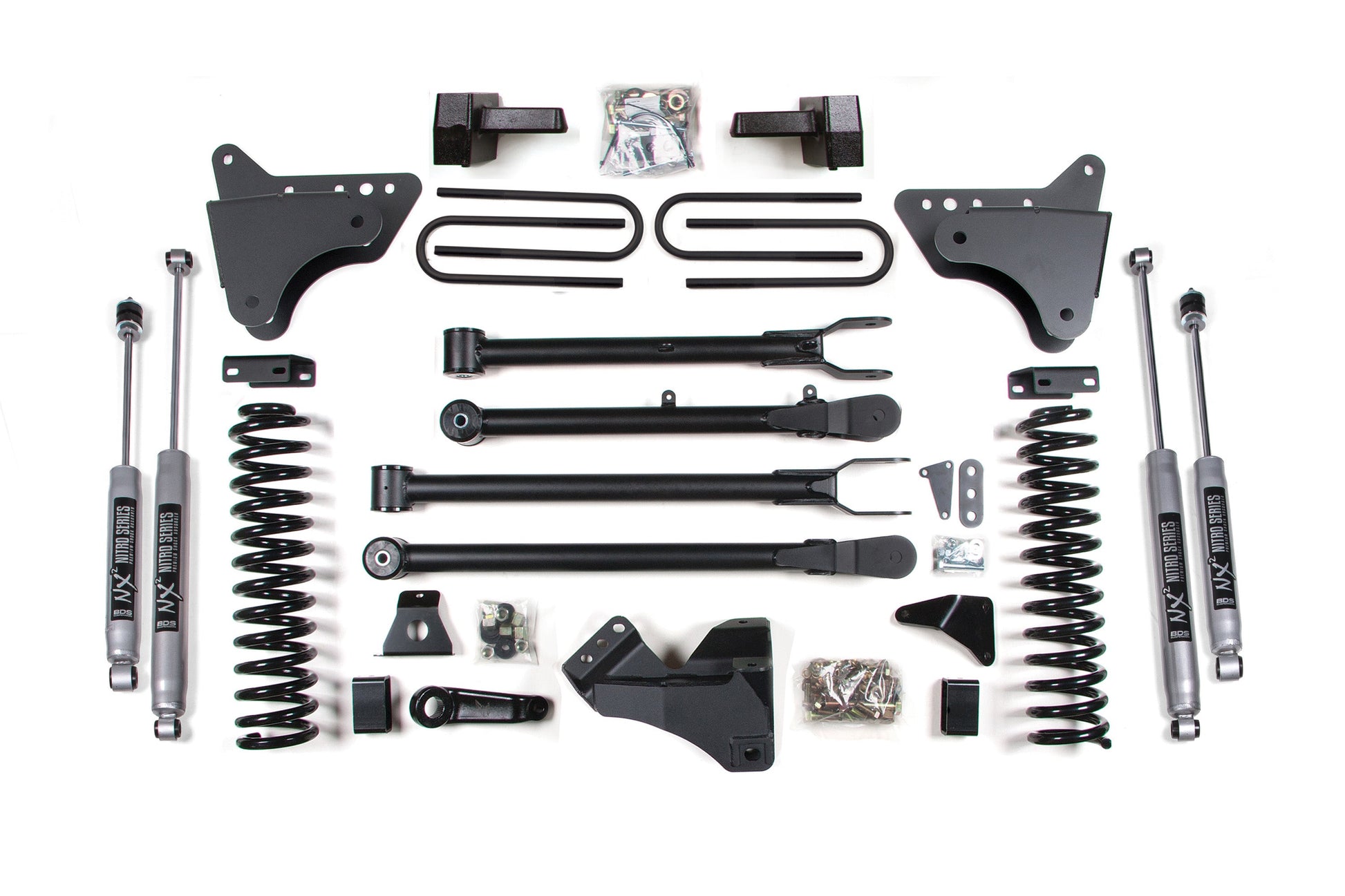

For: Block Kit Without Factory Overload / NX2 Nitro Series
| Qty | Part | Description |
|---|---|---|
| 2 | BDS85700 | NX2 Nitro Shock | Multiple Fitments | 25.20 x 15.20 x 2-3/8 - S50/EB2 |
| 2 | BDS85760 | NX2 Nitro Rear Shock | 4-6 Inch Lift | Ford F150 (04-20) and F250/F350 Super Duty (99-16) |
For: Block Kit With Factory Overload / FOX 2.0 Performance Series
| Qty | Part | Description |
|---|---|---|
| 2 | FOX98224700 | FOX 2.0 IFP Shock | Performance Series | 25.65 x 16.05 x 2- S50/EB1 |
| 2 | FOX98224760 | FOX 2.0 IFP Shock | Performance Series | Ford F150 (04-25) and F250/F350 Super Duty (99-16) |
For: Block Kit With Factory Overload / NX2 Nitro Series
| Qty | Part | Description |
|---|---|---|
| 2 | BDS85700 | NX2 Nitro Shock | Multiple Fitments | 25.20 x 15.20 x 2-3/8 - S50/EB2 |
| 2 | BDS85760 | NX2 Nitro Rear Shock | 4-6 Inch Lift | Ford F150 (04-20) and F250/F350 Super Duty (99-16) |

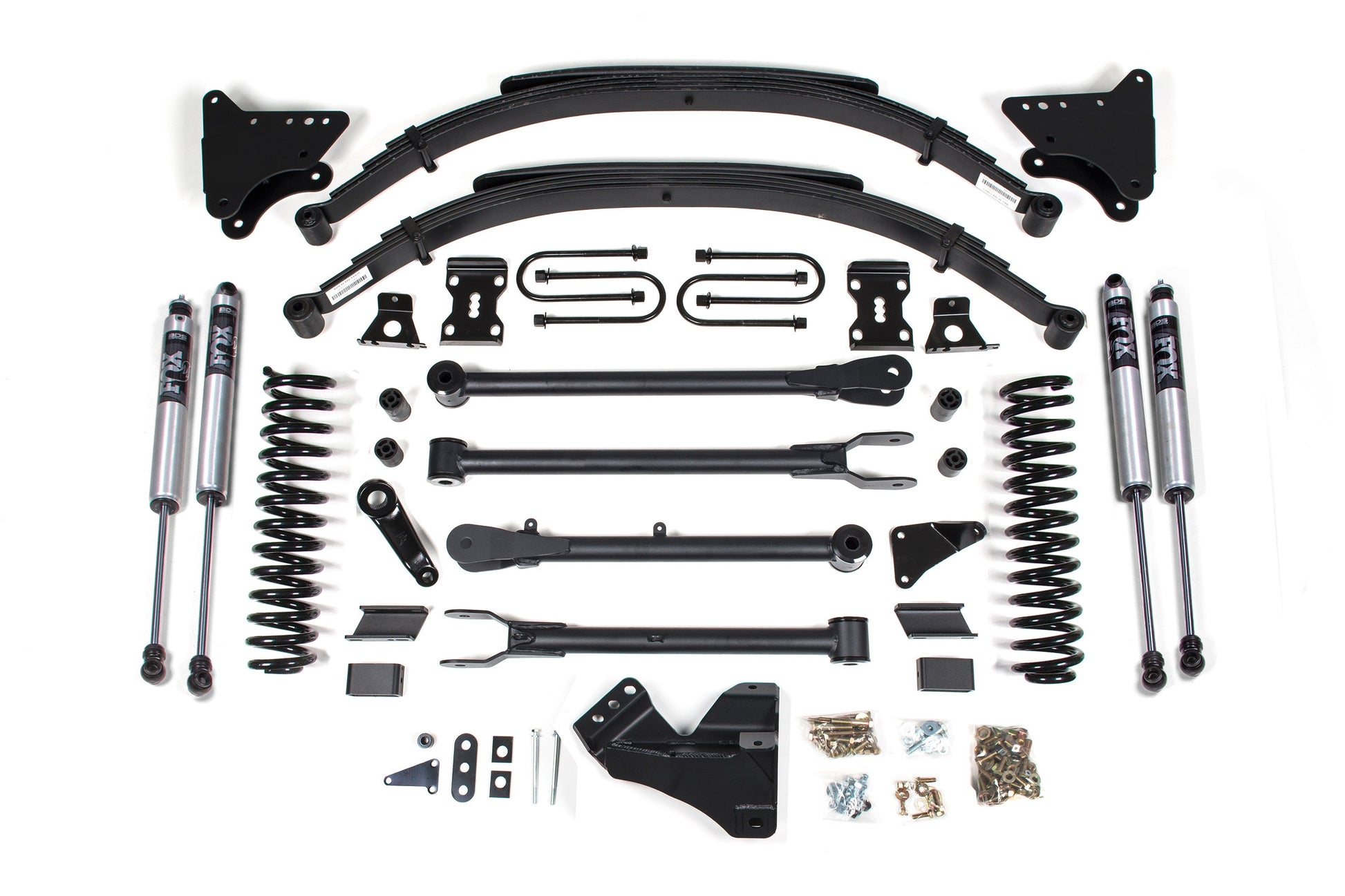

For: Leaf Springs / FOX 2.0 Performance Series
| Qty | Part | Description |
|---|---|---|
| 2 | BDS003609 | Rear Leaf Spring | 6 Inch Lift | Ford F250/F350 Super Duty (99-07) & Excursion (00-05) 4WD |
| 2 | FOX98224700 | FOX 2.0 IFP Shock | Performance Series | 25.65 x 16.05 x 2- S50/EB1 |
| 2 | FOX98224760 | FOX 2.0 IFP Shock | Performance Series | Ford F150 (04-25) and F250/F350 Super Duty (99-16) |
| 4 | UBT4032 | Automotive Axle U-Bolt - Round |

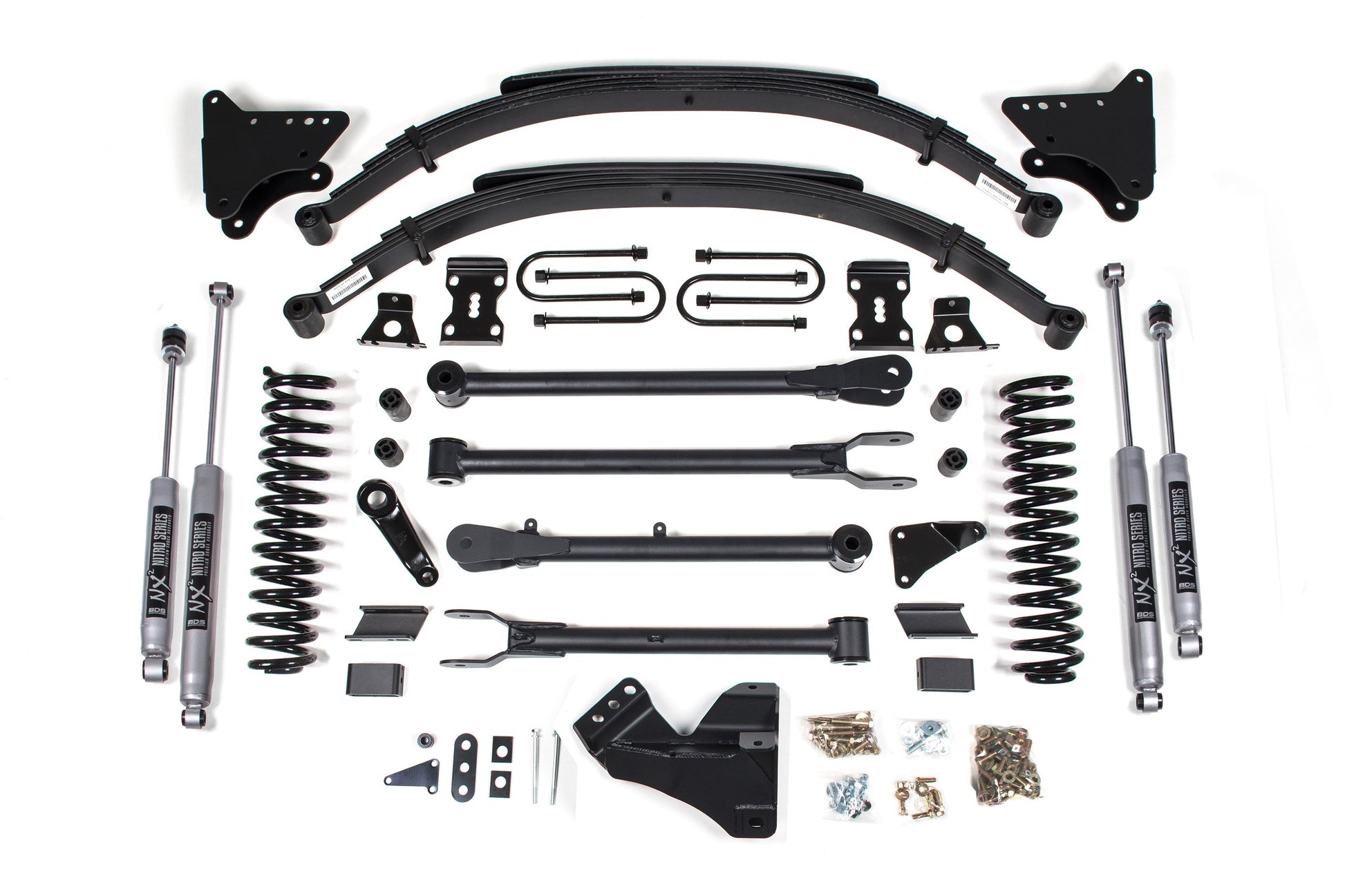

For: Leaf Springs / NX2 Nitro Series
| Qty | Part | Description |
|---|---|---|
| 2 | BDS003609 | Rear Leaf Spring | 6 Inch Lift | Ford F250/F350 Super Duty (99-07) & Excursion (00-05) 4WD |
| 2 | BDS85700 | NX2 Nitro Shock | Multiple Fitments | 25.20 x 15.20 x 2-3/8 - S50/EB2 |
| 2 | BDS85760 | NX2 Nitro Rear Shock | 4-6 Inch Lift | Ford F150 (04-20) and F250/F350 Super Duty (99-16) |
| 4 | UBT4032 | Automotive Axle U-Bolt - Round |
Features
- Easy, 100% Bolt-on installation
- Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
- Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
- Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
- Fabricated steel blocks provide level stance from front to rear
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Fitment
| Years | Vehicle |
|---|---|
| 2005–2007 | Ford F-250 Super Duty 4WD DIESEL |
| 2005–2007 | Ford F-350 Super Duty 4WD DIESEL |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Recommended wheels & tires
- 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
- 35 x 12.5 with 18 x 9 and 4.5 in. Backspace
- 35 x 12.5 with 20 x 9 and 4.5 in. Backspace
Installation
- Estimated install time8 hrs
- DifficultyModerate
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Raise the height of your 2005-2007 Ford F250 and F350 Super Duty diesel truck with this 4-inch lift kit and 4-Link conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.
Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-link control arms with conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.
In the rear the base kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro or FOX Performance shocks.
4-Link Conversion
Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.
Pro-Ride Coil Springs
A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
