BDS Suspension 4 Inch Lift Kit w/ 4-Link | Extended Travel | Ram 3500 (25-27) 4WD | Gas

Questions about fitment?

Talk to a TRU specialist

We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT

Call 866-235-4715 Live chat

Important notes before you order

Fits Gas models only
Special literature required: OE Service Manual for model/year of vehicle. Refer to manual for proper disassembly/reassembly procedures of OE and related components.
Adhere to recommendations when replacement fasteners, retainers and keepers are called out in the OE manual.
Larger rim and tire combinations may increase leverage on suspension, steering, and related components. When selecting combinations larger than OE, consider the additional stress you could be inducing on the OE and related components.
Post suspension system vehicles may experience drive line vibrations. Angles may require tuning, slider on shaft may require replacement, shafts may need to be lengthened or trued, and U-joints may need to be replaced.
Secure and properly block vehicle prior to installation of BDS Suspension components. Always wear safety glasses when using power tools.
If installation is to be performed without a hoist, BDS Suspension Co. reccomends doing the rear suspension first.
Due to payload options and initial ride height variances, the amount of lift is a base figure. Final ride height dimensions may vary in accordance to original vehicle attitude. Always measure the attitude prior to beginning installation."

TRU specialist notes

From the Trucks R Us fitment and install team, beyond the manufacturer's information.

Plan for a professional wheel alignment after installing any lift or leveling kit.
Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.

Specifications

Brand	BDS Suspension
Part number	BDS2160FPE
UPC / GTIN	840416443479
Front Lift Height	4"
Front Lift Method	Coil Spring
Lift Height	4-5.5"
Max Tire Size	37 x 12.5
Rear Lift Height	2"
Rear Lift Method	Block
Shocks Included	Yes

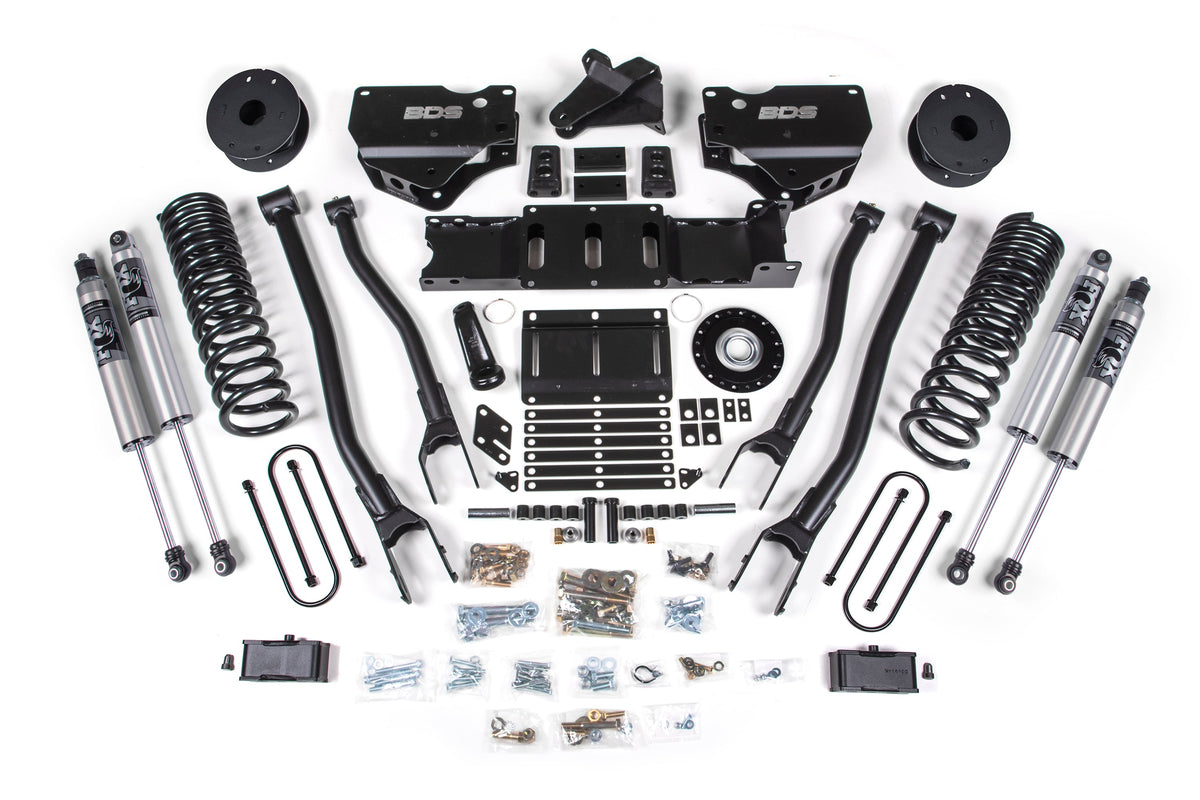

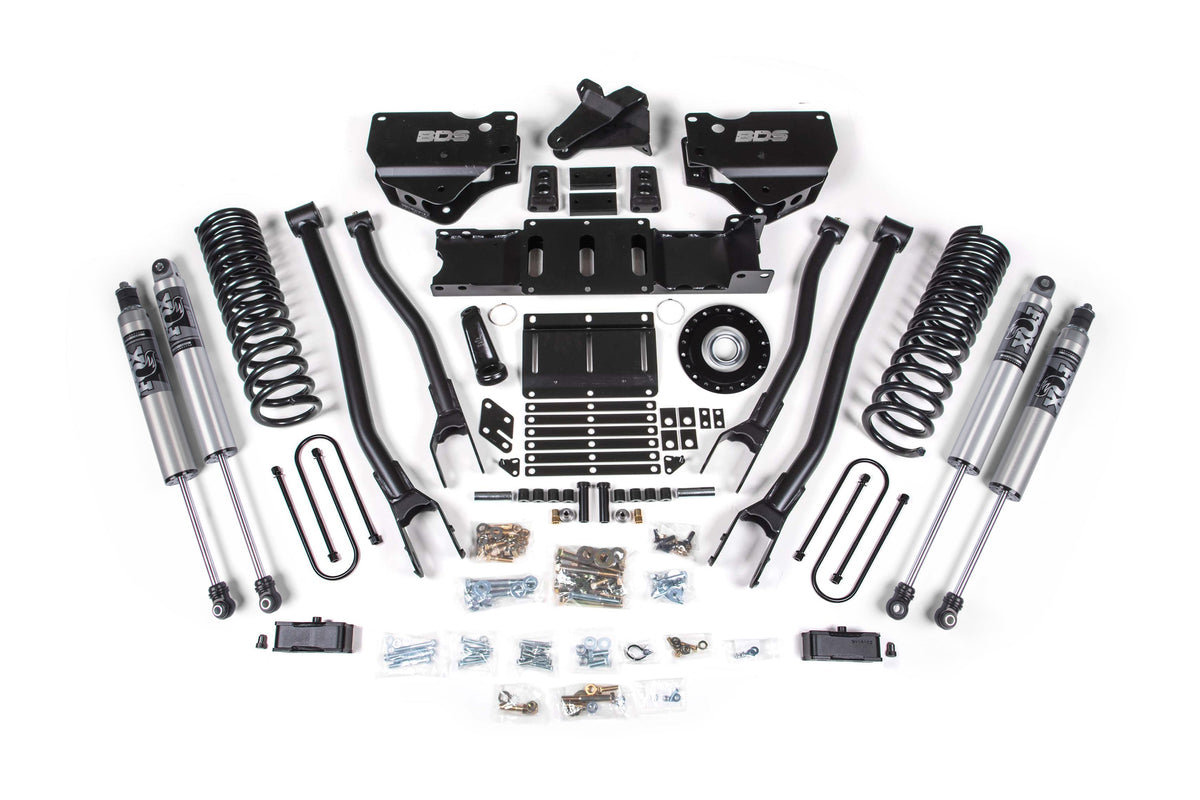

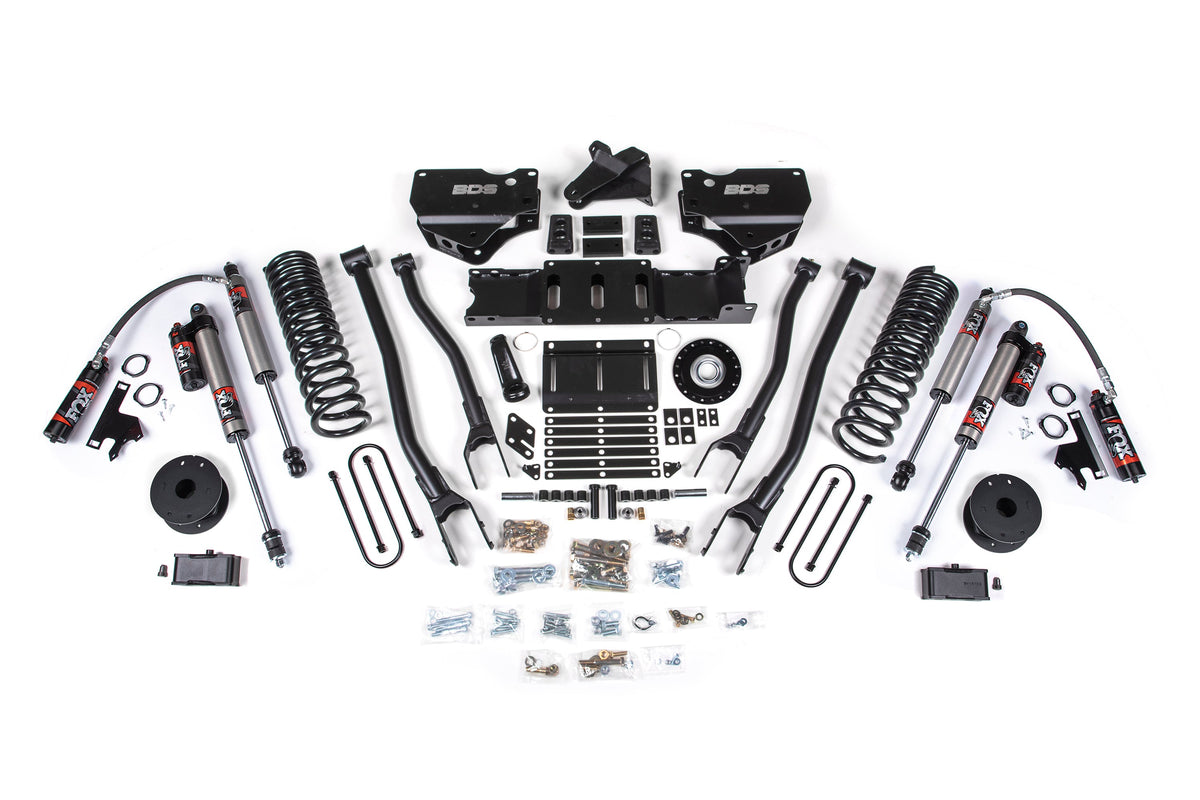

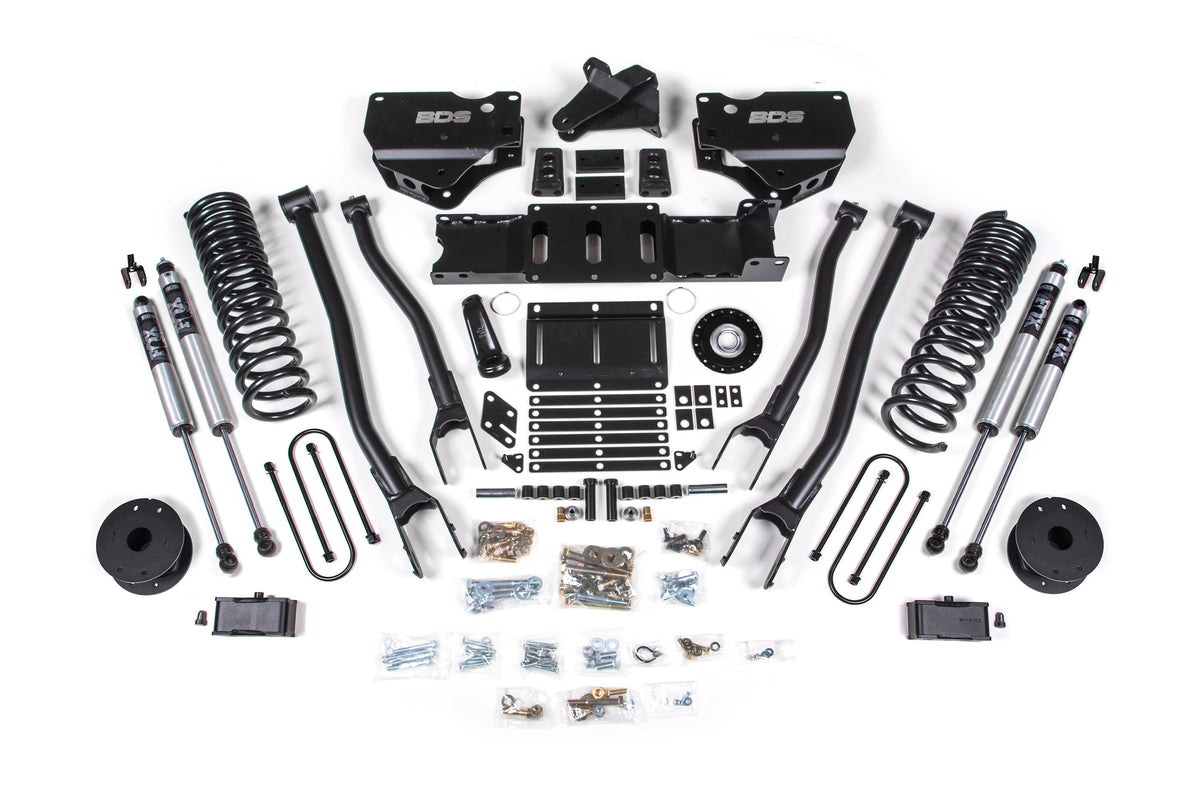

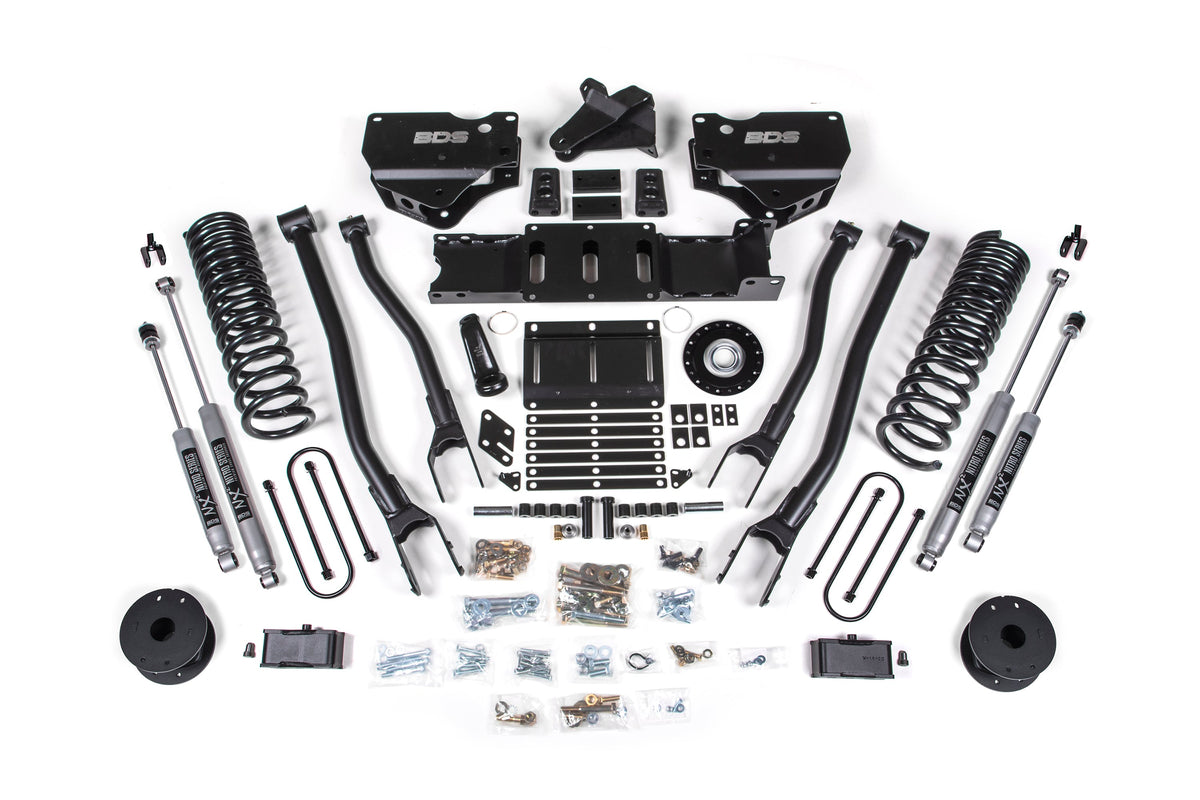

What's in the box

Qty	Part	Description
1	BDS032302	Coil Springs \| 3 Inch Lift - Diesel / 4 Inch Lift - Gas \| RAM 2500 (14-27) & 3500 (13-27)
1	FOX88326063	FOX 2.5 Front Shocks w/ DSC Reservoir \| 2-3.5 Inch Lift \| Performance Elite Series \| Ram 2500 (14-27) and 3500 (13-27) 4WD
1	FOX88326101	FOX 2.5 Remote Reservoir Rear Shocks - DSC \| 2-3.5 Inch Lift \| Performance Elite Series \| Ram 3500 (13-27)
1	BDS122626	Transfer Case Indexing Ring \| 6-Bolt \| Ram 2500 / 3500 (19-27) 4WD \| Gas

Features

Extended travel shocks with transfer case indexing ring.
4-Link Front suspension for consistant caster control throughout travel.
Front high strength dual rate coil springs for a great ride on any terrain
Forged front adjustable track bar allows you to re-center axle
Front sway bar correction to maintain handling performance
Choice of BDS NX2 or upgrade to Fox shocks to suit your needs.

Fitment

Years	Vehicle
2025-2027	Ram 3500 4WD (Gas models only)

Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.

Recommended wheels & tires

37 x 12.5 with 20 x 9 and 5.625 in. Backspace
35 x 12.5 with 18 x 9 and 4.5 in. Backspace
35 x 12.5 with 20 x 9 and 4.5 in. Backspace

Overview

This BDS Suspension extended travel 4-inch 4-Link Lift Kit, designed specifically for Gas-powered Ram 3500 trucks, improves ride quality, handling, and off-road capability while maintaining excellent on-road comfort. With clearance for up to 37-inch tires, it delivers a more aggressive stance while preserving proper driveline geometry and everyday drivability.

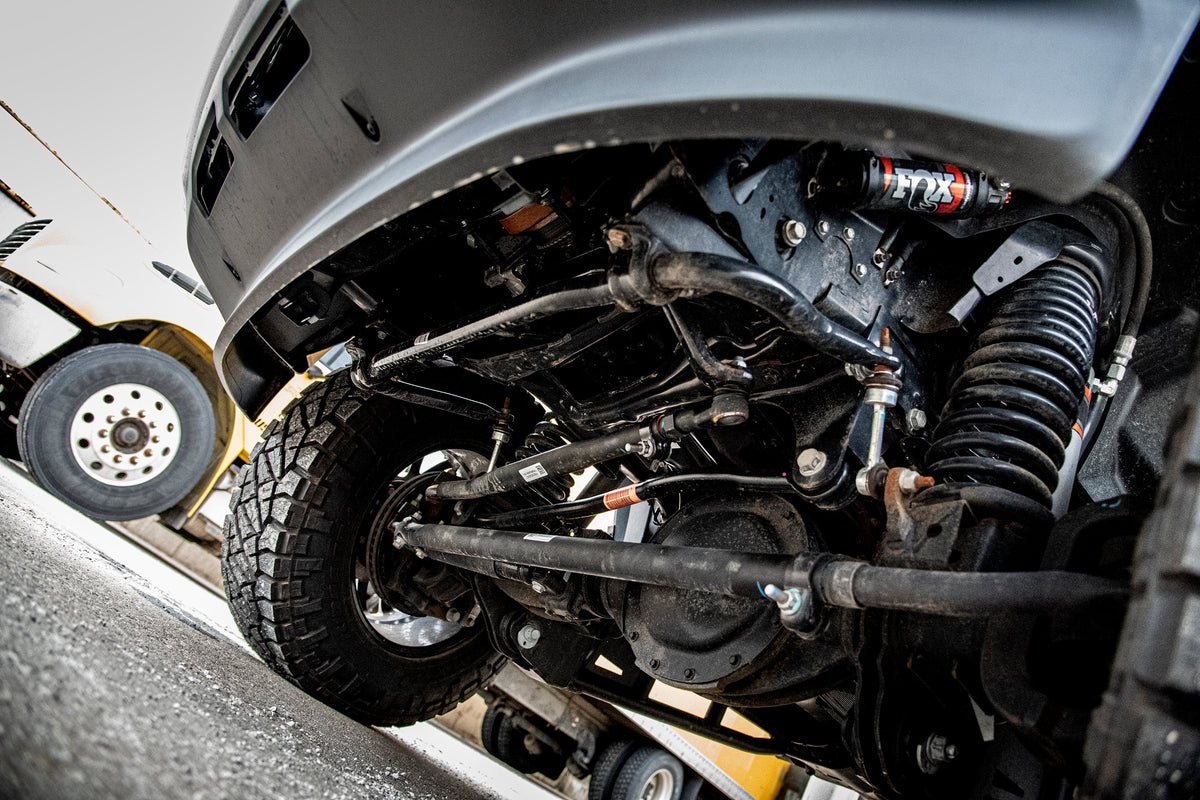

Up front, the kit features Pro-Ride coil springs engineered to support the weight of the Gas platform while providing a smooth, controlled ride. A heavy-duty 4-link front suspension system replaces the factory control arms to properly position the front axle while significantly reducing suspension bind through the full range of travel. By allowing each link to articulate independently, the 4-link design maintains more consistent caster and pinion angles, improving straight-line stability, steering return-to-center, braking control, and overall ride quality both on and off the road. The reinforced link construction delivers exceptional strength and long-term durability for demanding on-road use, towing, and off-road conditions.

A heavy-duty track bar bracket is included to properly center the front axle and maintain precise steering geometry. Also included is a brand-new 10-bolt transfer case indexing ring engineered to clock the transfer case for optimized driveline angles and increased suspension droop. This indexing ring features an all-new, industry-leading seal developed specifically for motorsports applications, delivering superior sealing performance, reduced friction, and long-term durability under extreme heat and speed. By properly clocking the transfer case, this system allows increased suspension travel and improved off-road capability compared to lift kits that do not re-index the transfer case. Additional components include sway bar links, brake line brackets, and premium shock absorbers matched to your selected configuration.

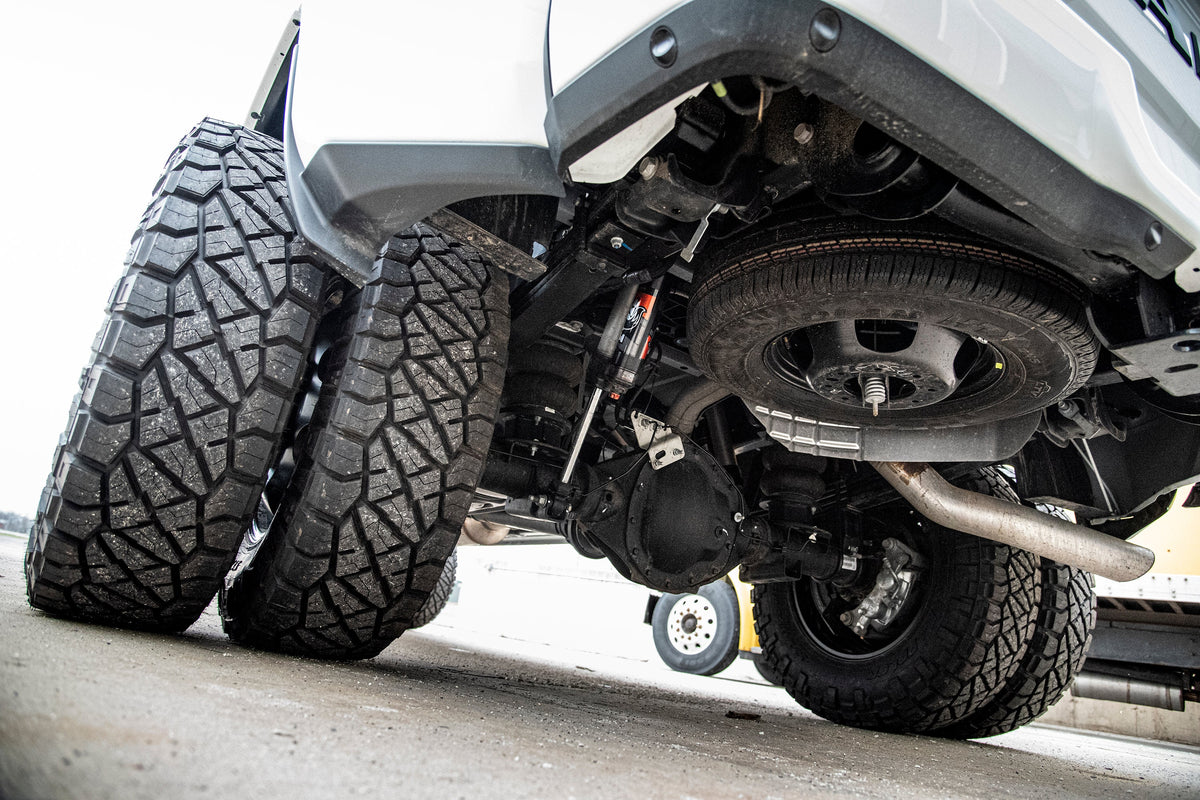

In the rear, lift is achieved using a high-strength fabricated lift block with longer U-bolts to ensure a secure and reliable installation. Matching rear shocks are included to maintain balanced ride quality and consistent performance from front to rear.

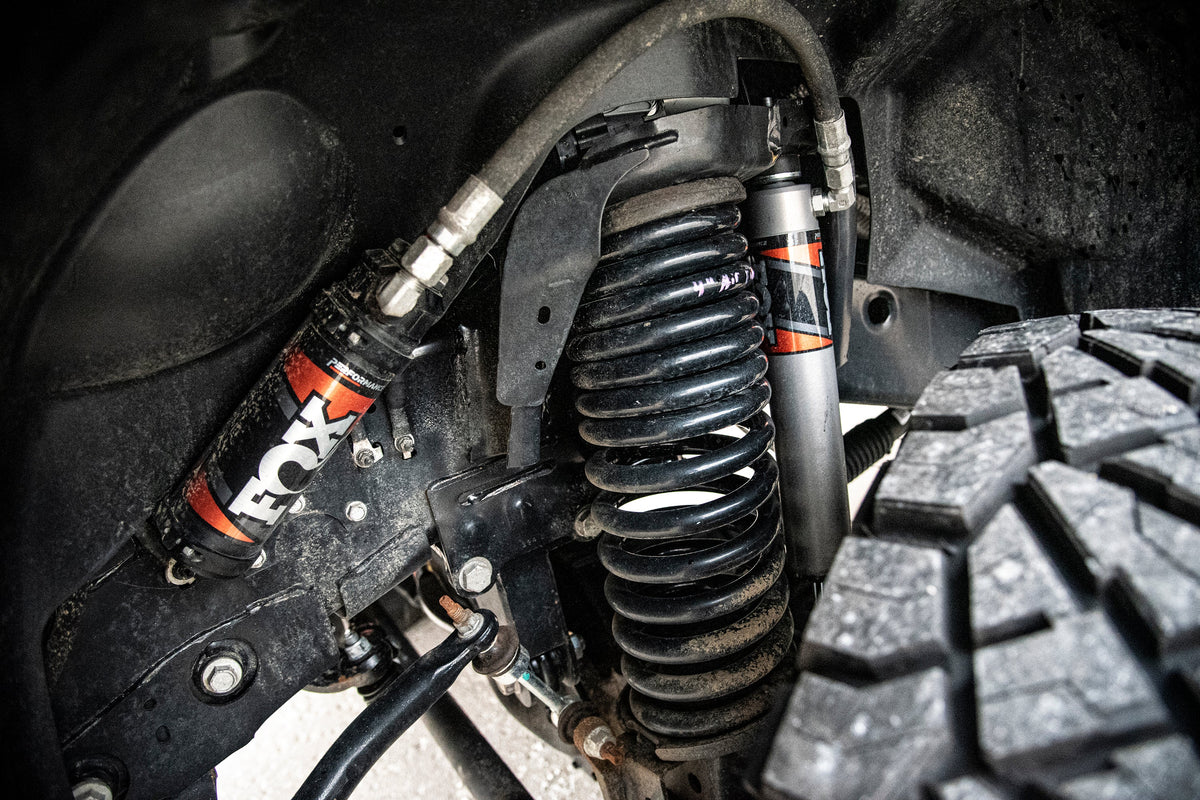

Shock options allow you to fine-tune ride quality and performance to match your driving style. BDS NX2 Nitro shocks provide a comfortable, well-controlled ride for daily driving and light off-road use. FOX 2.0 Performance Series IFP shocks feature aluminum construction and internal floating piston technology for consistent, fade-free performance. FOX 2.5 Performance Series IFP shocks increase oil capacity and cooling for enhanced damping control in more aggressive terrain. At the top level, FOX 2.5 Performance Elite Series shocks with Dual Speed Compression (DSC) adjusters deliver race-inspired performance and tunability, allowing independent adjustment of low- and high-speed compression for maximum control and versatility.

Built with BDS Suspension’s uncompromising commitment to strength, ride quality, and long-term reliability, this 4-inch 4-link lift kit is the ideal upgrade for Ram 3500 owners seeking improved handling, corrected suspension geometry, increased suspension travel, and confidence-inspiring performance both on and off the road.

Questions

Will this fit my truck?

Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.

Do you help with installation?

Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.

What if the part has a problem?

We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.

Can I return it?

Most items can be returned within 30 days. See our return policy for details.

Do I need an alignment after installing?

Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
